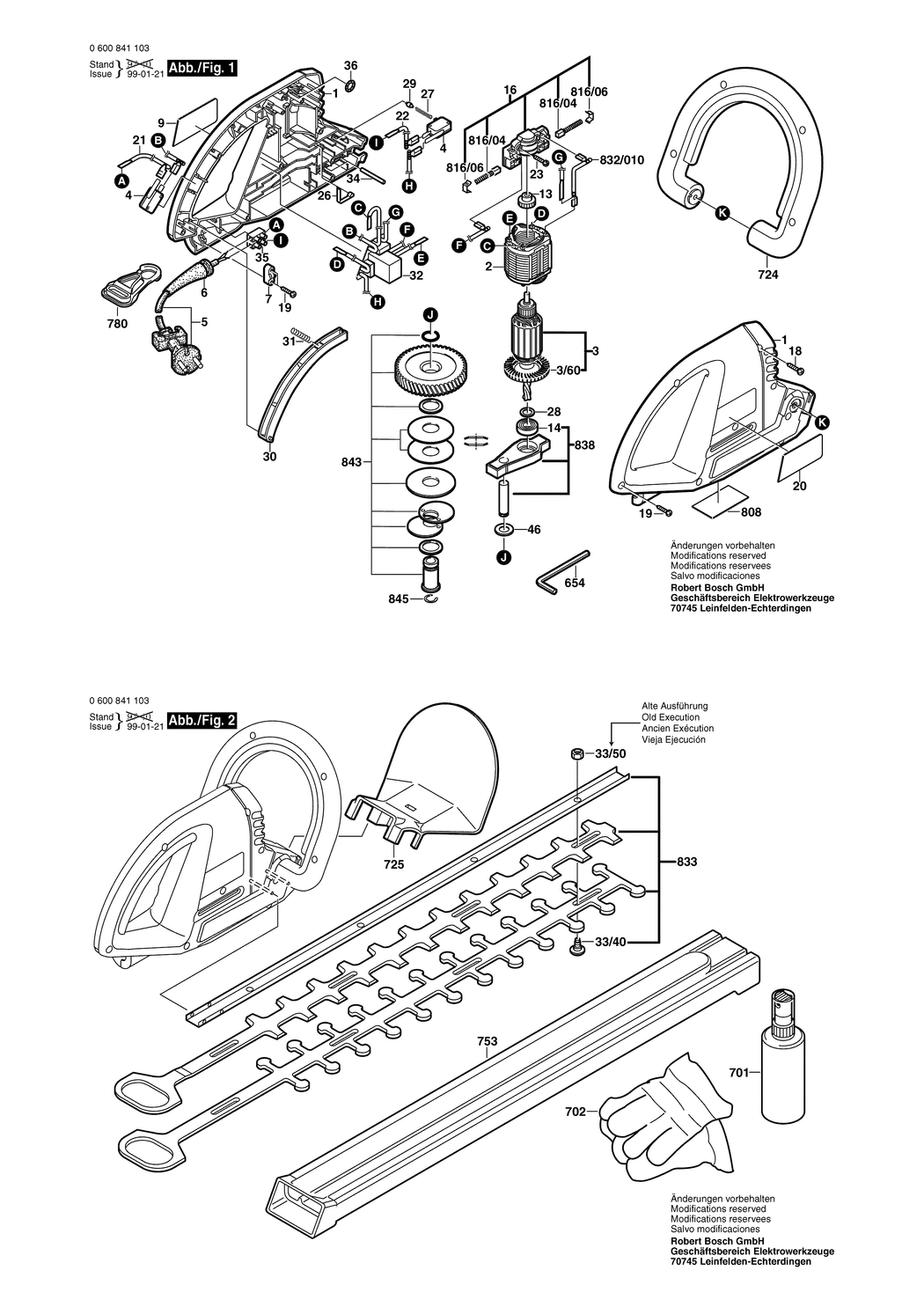

1 - HOUSING SECTION
BSD-2605104512.A19
2605104512
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A179
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-230V
BSD-2604010604.A40
2604010604
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A57
2606610027
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200316.A18
2607200316
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 0.4m 2 x 1.0mm H07 RN-F
BSD-2604460183.A25
2604460183
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A427
2600703017
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.3-dia8.6x76 MM
BSD-2600703018.A145
2600703018
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia8.7-dia9.6x76 MM
BSD-2600703019.A42
2600703019
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2609
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118361.A5
2601118361
|
-
|
|
|
|
13 - BUSHING
BSD-2600300077.A36
2600300077
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A56
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-2609992625.A31
2609992625
|
-
|
|
|
|
18 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A856
2603490024
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2333
2603490022
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601118342.A8
2601118342
|
-
|
|
|
|
21 - CONNECTING CABLE L=243 MM
BSD-2604448171.A14
2604448171
|
-
|
|
|
|
22 - CONNECTING CABLE L=273 MM
BSD-2604448162.A26
2604448162
|
-
|
|
|
|
23 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A403
2603490023
|
£1.75
|
£2.10
|
|
|
26 - CONTACT SPRING
BSD-2601329057.A134
2601329057
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604619013.A17
2604619013
|
-
|
|
|
|
28 - SPACER RING
BSD-2600209003.A72
2600209003
|
£2.16
|
£2.59
|
|
|
29 - SHIFTER ROD
BSD-2608040076.A36
2608040076
|
£1.75
|
£2.10
|
|
|
30 - SWITCH SEGMENT
BSD-2608001011.A42
2608001011
|
-
|
|
|
|
31 - COMPRESSION SPRING
BSD-2604610028.A45
2604610028
|
£1.75
|
£2.10
|
|
|
32 - CONTROL UNIT
BSD-2607230025.A24
2607230025
|
-
|
|
|
|
33/40 - THREAD-FORMING TAP. SCREW
BSD-2603413032.A38
2603413032
|
-
|
|
|
|
33/50 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A246
2915011006
|
-
|
|
|
|
34 - STRAIGHT PIN
BSD-2609002714.A129
2609002714
|
£1.75
|
£2.10
|
|
|
35 - SOCKET-TERMINAL STRIP
BSD-1901091101.A22
1901091101
|
-
|
|
|
|
36 - O-RING 5.0x1.5 MM
BSD-1900210000.A73
1900210000
|
£1.75
|
£2.10
|
|
|
46 - SHIM 0.3 MM
BSD-2600101617.A344
2600101617
|
£1.75
|
£2.10
|
|
|
654 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A739
1907950006
|
£4.26
|
£5.11
|
|
|
701 - OIL SPRAY TIN
BSD-1609200399.A118
1609200399
|
£8.74
|
£10.49
|
|
|
702 - PROTECTIVE GLOVE
BSD-2607000134.A83
2607000134
|
-
|
|
|
|
724 - STRAP-SHAPED HANDLE
BSD-2602025106.A38
2602025106
|
-
|
|
|
|
725 - PROTECTIVE SHIELD
BSD-2607001192.A39
2607001192
|
-
|
|
|
|
753 - KNIFE GUARD
BSD-2605411052.A22
2605411052
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4276
160111A3H3
|
£2.61
|
£3.13
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014005.A26
2607014005
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A338
2601322013
|
£1.75
|
£2.10
|
|
|
832/010 - CONNECTING CABLE L=34 MM
BSD-2604448173.A41
2604448173
|
£1.32
|
£1.58
|
|
|
833 - SET OF KNIVES 480 MM
BSD-2607001213.A1
2607001213
|
-
|
|
|
|
838 - BUSHING
BSD-2605807926.A30
2605807926
|
-
|
|
|
|
843 - OVERLOAD CLUTCH
BSD-2606319901.A21
2606319901
|
-
|
|
|
|
845 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A105
2916080910
|
£2.16
|
£2.59
|
|
