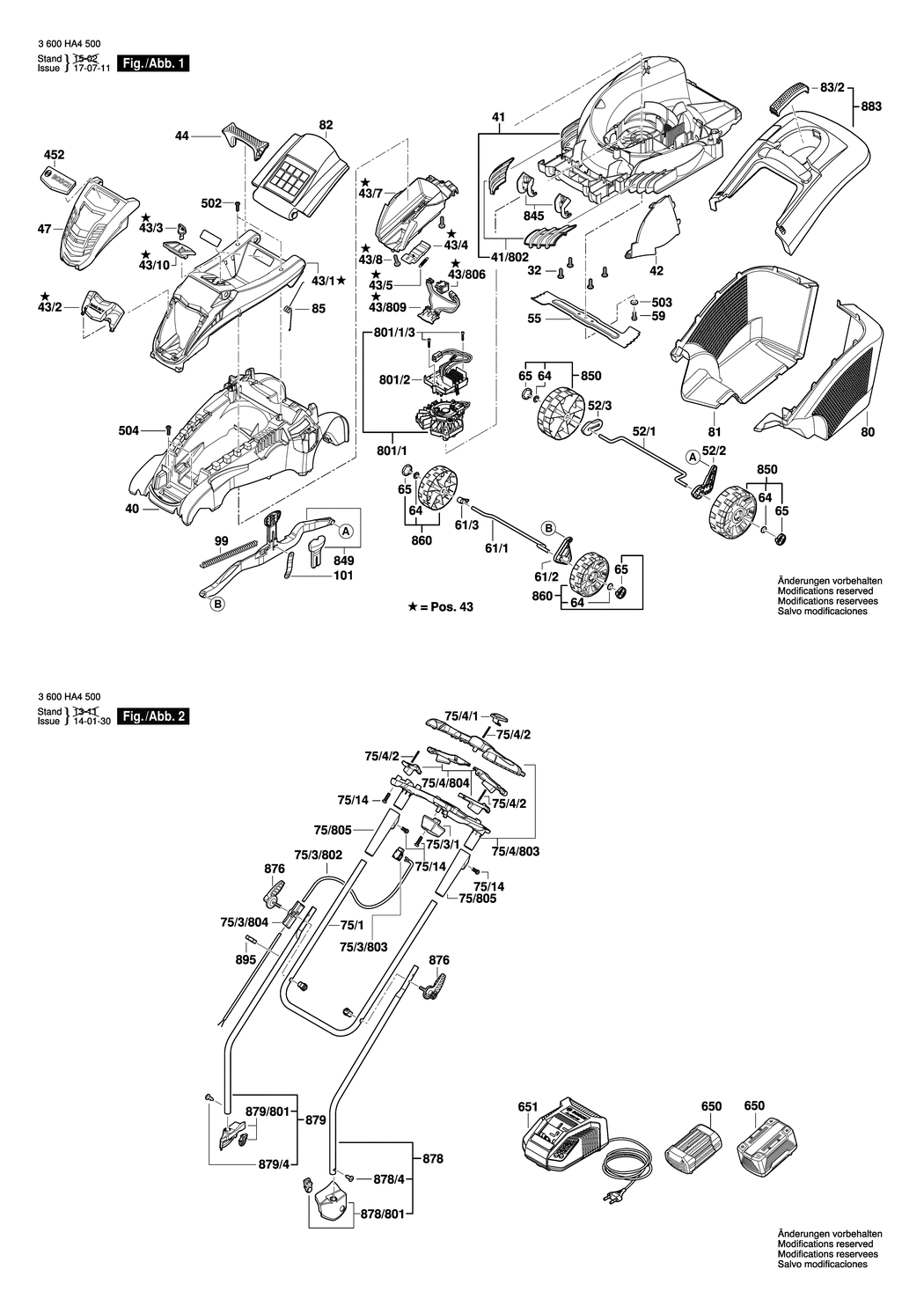

32 - SCREW
BSD-F016L66162.A91
F016L66162
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L69542.A20
F016L69542
|
£23.86
|
£28.63
|
|
|
41 - HOUSING
BSD-F016L68166.A3
F016L68166
|
£37.72
|
£45.27
|
|
|
41/802 - COVER PANEL
BSD-F016104304.A27
F016104304
|
£3.80
|
£4.56
|
|
|
42 - COVER PANEL
BSD-F016L66041.A63
F016L66041
|
£5.01
|
£6.01
|
|
|
43 - MOTOR HOOD
BSD-F016L68080.A26
F016L68080
|
£45.67
|
£54.80
|
|
|
43/1 - MOTOR HOOD
BSD-F016L68081.A9
F016L68081
|
£13.41
|
£16.09
|
|
|
43/2 - COVER
BSD-F016L68086.A27
F016L68086
|
£2.52
|
£3.02
|
|
|
43/3 - KEY
BSD-F016L68003.A18
F016L68003
|
£2.49
|
£2.99
|
|
|
43/4 - RELEASE LEVER
BSD-F016L68004.A27
F016L68004
|
£1.95
|
£2.34
|
|
|
43/5 - SPRING
BSD-F016L66108.A66
F016L66108
|
£1.75
|
£2.10
|
|
|
43/7 - BATTERY TRAY
BSD-F016L68082.A27
F016L68082
|
£6.61
|
£7.93
|
|
|
43/8 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A710
F016T49429
|
£1.75
|
£2.10
|
|
|
43/10 - COVER
BSD-F016L68083.A8
F016L68083
|
£2.33
|
£2.80
|
|
|
43/806 - SWITCH
BSD-F016104250.A25
F016104250
|
£8.67
|
£10.41
|
|
|
43/809 - WIRING HARNESS
BSD-F016104654.A34
F016104654
|
-
|
|
|
|
44 - CARRYING HANDLE
BSD-F016L68084.A27
F016L68084
|
£2.16
|
£2.59
|
|
|
47 - GRILLE
BSD-F016L69088.A1
F016L69088
|
£8.49
|
£10.19
|
|
|
52/1 - AXLE
BSD-F016L68529.A19
F016L68529
|
£4.75
|
£5.70
|
|
|
52/2 - LEVER
BSD-F016L90582.A153
F016L90582
|
-
|
|
|
|
52/3 - SPACER
BSD-F016L90583.A39
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L68217.A8
F016L68217
|
£37.26
|
£44.71
|
|
|
59 - BOLT M10x30
BSD-F016L66141.A6
F016L66141
|
£2.61
|
£3.13
|
|
|
61/1 - AXLE
BSD-F016L68528.A42
F016L68528
|
£5.01
|
£6.01
|
|
|
61/2 - LEVER
BSD-F016L90581.A38
F016L90581
|
£7.78
|
£9.33
|
|
|
61/3 - SPACER
BSD-F016L90585.A154
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP
BSD-F016L68095.A52
F016L68095
|
£1.75
|
£2.10
|
|
|
65 - COVER
BSD-F016L68116.A62
F016L68116
|
£1.75
|
£2.10
|
|
|
75/1 - HANDLE
BSD-F016L90608.A95
F016L90608
|
£16.41
|
£19.69
|
|
|
75/3/1 - CONNECTOR HOUSING
BSD-F016L67218.A42
F016L67218
|
£5.30
|
£6.36
|
|
|
75/3/802 - CONNECTING CABLE
BSD-F016104165.A46
F016104165
|
£13.41
|
£16.09
|
|
|
75/3/803 - SWITCH KIT
BSD-F016104163.A60
F016104163
|
£14.91
|
£17.89
|
|
|
75/3/804 - CABLE GUIDE
BSD-F016104213.A111
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A78
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A63
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/803 - HOUSING SET
BSD-F016104360.A58
F016104360
|
£16.41
|
£19.69
|
|
|
75/4/804 - SWITCH SEGMENT
BSD-F016104160.A29
F016104160
|
£10.82
|
£12.99
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A695
F016T49429
|
£1.75
|
£2.10
|
|
|
75/805 - SLEEVE
BSD-F016104361.A27
F016104361
|
£4.26
|
£5.11
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A53
F016L64304
|
£21.68
|
£26.01
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A95
F016L64338
|
£16.41
|
£19.69
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A189
F016L66137
|
£13.32
|
£15.99
|
|
|
83/2 - HANDLE
BSD-F016L66441.A207
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A1
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A219
F016L59327
|
£2.80
|
£3.36
|
|
|
101 - LEAF SPRING
BSD-F016L68117.A17
F016L68117
|
£1.75
|
£2.10
|
|
|
452 - COMPANY LOGO
BSD-F016L90683.A1
F016L90683
|
£4.75
|
£5.70
|
|
|
502 - TORX HEAD SCREW
BSD-F016L68124.A43
F016L68124
|
£1.75
|
£2.10
|
|
|
503 - SPRING WASHER 1/2
BSD-F016L66173.A101
F016L66173
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A696
F016T49429
|
£1.75
|
£2.10
|
|
|
650 - BATTERY PACK GBA 36V 2.6Ah H-B Li
BSD-2607336633.A20
2607336633
|
£187.56
|
£225.07
|
|
|
651 - CHARGER EU 230V/14.4-36V
BSD-2607225657.A17
2607225657
|
£70.24
|
£84.29
|
|
|
801/1 - DC MOTOR
BSD-F016104031.A64
F016104031
|
£218.41
|
£262.09
|
|
|
801/1/3 - PAN HEAD SCREW 4x35
BSD-F016L69251.A31
F016L69251
|
£1.75
|
£2.10
|
|
|
801/1/3 - SCREW M4x35
BSD-F016L66662.A44
F016L66662
|
£1.75
|
£2.10
|
|
|
801/2 - PRINTED-BOARD ASSEMBLY
BSD-F016104888.A60
F016104888
|
£93.88
|
£112.65
|
|
|
845 - COVER PANEL
BSD-F016104425.A19
F016104425
|
£3.34
|
£4.01
|
|
|
849 - LINKAGE PART
BSD-F016104303.A16
F016104303
|
£8.49
|
£10.19
|
|
|
850 - WHEEL
BSD-F016104306.A49
F016104306
|
£8.67
|
£10.41
|
|
|
860 - WHEEL
BSD-F016104305.A12
F016104305
|
£10.10
|
£12.12
|
|
|
876 - CLAMPING LEVER
BSD-F016L67530.A139
F016L67530
|
£11.30
|
£13.56
|
|
|
878 - BOTTOM HANDLE
BSD-F016104928.A1
F016104928
|
£13.41
|
£16.09
|
|
|
878/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A262
F016L36542
|
£2.61
|
£3.13
|
|
|
878/801 - MOUNTING BRACKET
BSD-F016104426.A20
F016104426
|
£5.87
|
£7.04
|
|
|
879 - BOTTOM HANDLE
BSD-F016104929.A27
F016104929
|
£8.49
|
£10.19
|
|
|
879/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A261
F016L36542
|
£2.61
|
£3.13
|
|
|
879/801 - MOUNTING BRACKET
BSD-F016104927.A25
F016104927
|
£3.80
|
£4.56
|
|
|
883 - COVER
BSD-F016103608.A152
F016103608
|
£27.23
|
£32.68
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A195
F016L66895
|
£1.75
|
£2.10
|
|
