Bosch PRT 23 / 0603239532 / CH 220 Volt Spare Parts

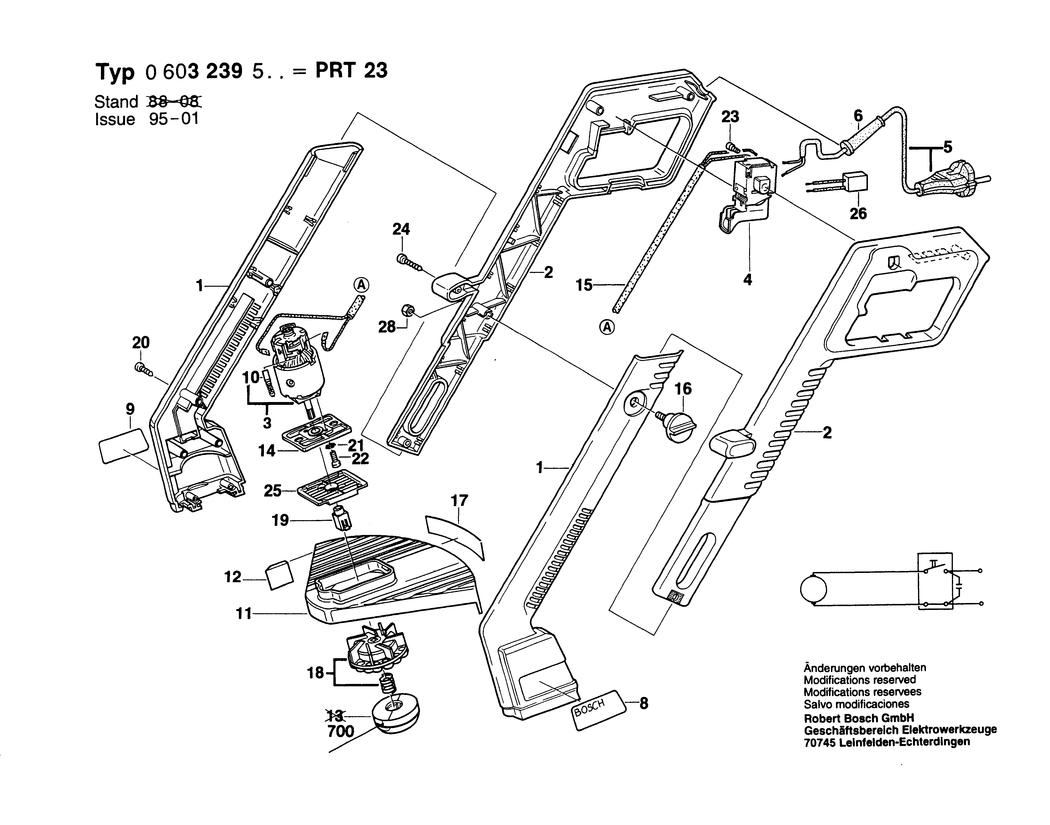

An exploded drawing and listing for the Bosch PRT 23 / 0603239532 / CH 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING HALF BSD-1609202313.A3 1609202313	-
2 - HOUSING HALF BSD-1609202314.A0 1609202314	-
3 - ALTERNATING-CURRENT MOTOR BSD-1609202322.A2 1609202322	-
4 - ON-OFF SWITCH BSD-2607200261.A24 2607200261	-
5 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F BSD-1604460437.A18 1604460437	£7.36	£8.83
6 - GROMMET BSD-1609201893.A7 1609201893	-
8 - NAMEPLATE BSD-1601110620.A0 1601110620	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601110623.A2 1601110623	-
10 - CARBON-BRUSH SET BSD-1609202316.A3 1609202316	-
11 - PROTECTIVE SHIELD BSD-1609201894.A11 1609201894	-
12 - CUTTER PLATE 24x7x0.8 MM BSD-1609202358.A2 1609202358	-
14 - MOTOR PLATE BSD-1609202317.A11 1609202317	-
15 - CONNECTING CABLE BSD-1609202318.A3 1609202318	-
16 - WING SCREW M 4x12 MM BSD-1609201897.A6 1609201897	-
17 - REFERENCE PLATE BSD-1601110536.A5 1601110536	-
18 - FAN BSD-1609201898.A9 1609201898	-
19 - SUPPORT CLAMP BSD-1609202324.A11 1609202324	£2.16	£2.59
20 - TAPPING SCREW 3.5x20 MM BSD-1609202016.A6 1609202016	-
21 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A65 2916030006	£1.75	£2.10
22 - OVAL-HEAD SCREW DIN 7985-M4X8-4.8 BSD-2910641118.A9 2910641118	-
23 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1166 2603410001	£1.75	£2.10
24 - TAPPING SCREW 3.5x35 MM BSD-1609202017.A12 1609202017	-
25 - INSULATING PLATE BSD-1609202319.A11 1609202319	-
26 - SUPPRESSION FILTER BSD-1607328034.A377 1607328034	£4.26	£5.11
28 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A383 2915011005	£1.75	£2.10
700 - CUTTING LINE CARTRIDGE BSD-F016102388.A38 F016102388	-

Attribute Name	Value
Brand	Bosch
