Bosch PHG 600 CE / 0603268503 / EU 230 Volt Spare Parts

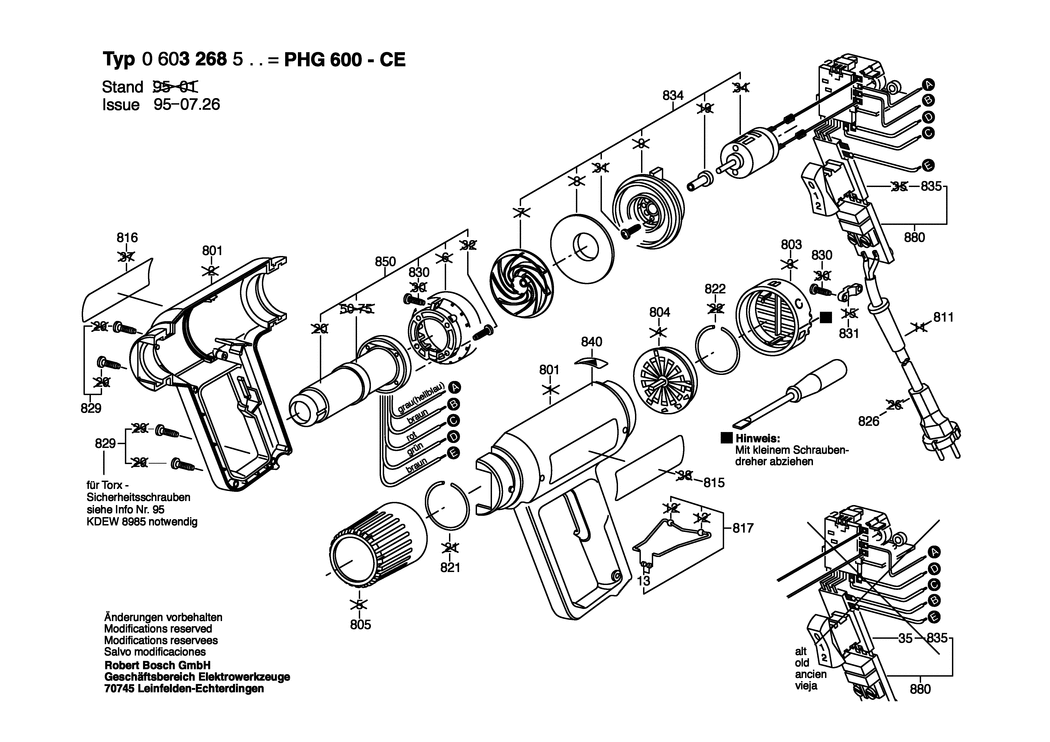

An exploded drawing and listing for the Bosch PHG 600 CE / 0603268503 / EU 230 Volt

	Ex VAT	Inc VAT
801 - HOUSING SECTION BSD-1609202789.A0 1609202789	-
803 - SEALING CAP BSD-1609201571.A1 1609201571	-
804 - SLOTTED DISC BSD-1609202791.A1 1609202791	£2.80	£3.36
805 - PROTECTIVE TUBE BSD-1609202792.A0 1609202792	-
811 - GROMMET BSD-1609202793.A1 1609202793	£2.33	£2.80
815 - MANUFACTURER'S NAMEPLATE BSD-1601110585.A4 1601110585	-
816 - NAMEPLATE BSD-1601118284.A0 1601118284	-
817 - TRANSPORT BRACKET BSD-1609202794.A15 1609202794	£2.52	£3.02
821 - RETAINING RING CA.dia2.3xdia47 MM BSD-1609201490.A12 1609201490	£1.95	£2.34
822 - RETAINING RING dia 60.0 MM BSD-1609202796.A1 1609202796	-
826 - POWER SUPPLY CORD BSD-1609202797.A0 1609202797	£21.68	£26.01
829 - TAPPING SCREW BZ 2.9x16. SW I-TORX T10 BSD-1609203349.A8 1609203349	-
830 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H BSD-2910614406.A19 2910614406	£1.66	£1.99
831 - FASTENING CLAMP BSD-1609203102.A0 1609203102	£1.66	£1.99
834 - DC MOTOR 230-240V BSD-1609202798.A0 1609202798	£27.23	£32.68
835 - ON-OFF SWITCH BSD-1609202799.A1 1609202799	-
840 - STICKER BSD-1601110369.A2 1601110369	-
850 - CYLINDRICAL HEATING ELEM 230-240V BSD-1609203100.A0 1609203100	£68.42	£82.10
880 - CONNECTING BLOCK 220-240V BSD-1609203101.A1 1609203101	£72.18	£86.62

Attribute Name	Value
Brand	Bosch
