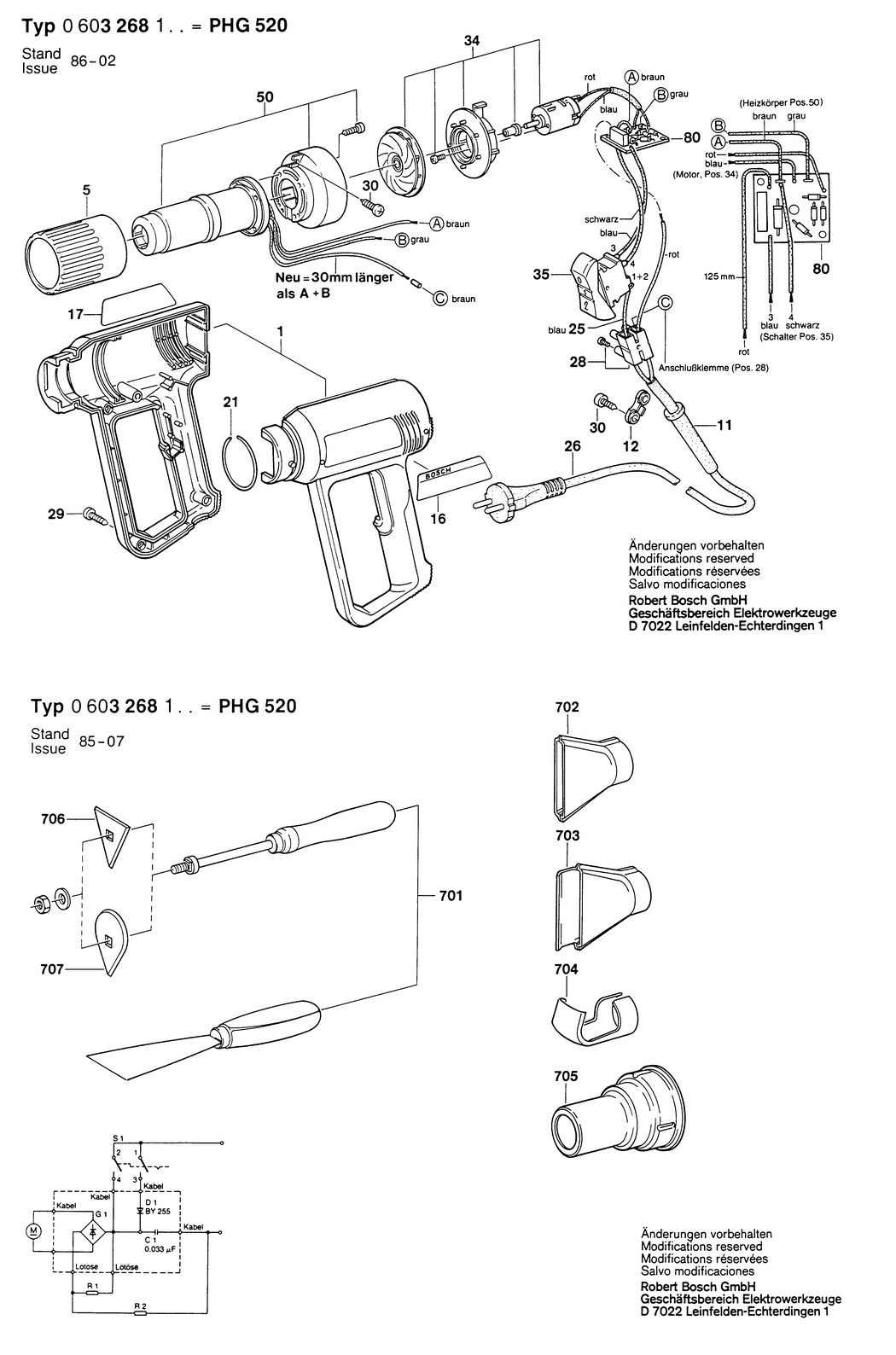

1 - MOTOR HOUSING
BSD-1609201722.A0
1609201722
|
-
|
|
|
|
5 - PROTECTIVE TUBE
BSD-1609201484.A15
1609201484
|
£10.10
|
£12.12
|
|
|
11 - GROMMET
BSD-1609202793.A17
1609202793
|
£2.61
|
£3.13
|
|
|
12 - FASTENING CLAMP
BSD-1609201487.A6
1609201487
|
-
|
|
|
|
16 - MANUFACTURER'S NAMEPLATE
BSD-1601110414.A2
1601110414
|
-
|
|
|
|
17 - NAMEPLATE
BSD-1601110422.A0
1601110422
|
-
|
|
|
|
21 - RETAINING RING CA.dia2.3xdia47 MM
BSD-1609201490.A5
1609201490
|
£2.16
|
£2.59
|
|
|
25 - CABLE
BSD-1609201492.A6
1609201492
|
-
|
|
|
|
26 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460124.A121
1604460124
|
-
|
|
|
|
28 - CONNECTING TERMINAL
BSD-1609390042.A45
1609390042
|
£3.51
|
£4.21
|
|
|
29 - TAPPING SCREW DIN 7983-B2.9x16
BSD-2910615507.A23
2910615507
|
£1.32
|
£1.58
|
|
|
30 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H
BSD-2910614406.A1
2910614406
|
£1.84
|
£2.21
|
|
|
34 - DC MOTOR 115-240V
BSD-1609201572.A15
1609201572
|
£16.41
|
£19.69
|
|
|
35 - ON-OFF SWITCH
BSD-1609201500.A10
1609201500
|
£11.87
|
£14.24
|
|
|
50 - HEATING ELEMENT 240V
BSD-1609201503.A2
1609201503
|
-
|
|
|
|
80 - PRINTED-BOARD ASSEMBLY 220-240V
BSD-1609201505.A6
1609201505
|
-
|
|
|
|
701 - PARTS SET 75 MM
BSD-1609390450.A2
1609390450
|
-
|
|
|
|
702 - WIDE ANGLE NOZZLE 75 MM
BSD-1609390451.A28
1609390451
|
£10.49
|
£12.59
|
|
|
703 - FLAT-SPRAY NOZZLE 75 MM
BSD-1609390452.A2
1609390452
|
£8.47
|
£10.16
|
|
|
704 - CYLINDRICAL-SPRAY NOZZLE
BSD-1609390453.A28
1609390453
|
£8.74
|
£10.49
|
|
|
705 - REDUCTION SLEEVE dia 22/20 MM
BSD-1609201648.A14
1609201648
|
£6.99
|
£8.39
|
|
|
706 - BLADE
BSD-1609201745.A11
1609201745
|
-
|
|
|
|
707 - SCRAPER
BSD-1609201746.A19
1609201746
|
-
|
|
|
|
708 - ANGULAR JET NOZZLE
BSD-1609201751.A11
1609201751
|
£12.24
|
£14.69
|
|
|
709 - EXTENSION CABLE
BSD-1609201752.A10
1609201752
|
-
|
|
|
|
710 - FLAT SUCTION NOZZLE 50 MM
BSD-1609201795.A2
1609201795
|
£12.85
|
£15.42
|
|
|
711 - FLAT-SPRAY NOZZLE 50 MM
BSD-1609201796.A20
1609201796
|
£12.85
|
£15.42
|
|
|
720 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A71
2915011009
|
£2.74
|
£3.29
|
|
|
721 - PLAIN WASHER 8.4 DIN 433-ST
BSD-2916011015.A63
2916011015
|
£1.84
|
£2.21
|
|
