Bosch 400 WATT-SERIE / 0607561111 / --- Spare Parts

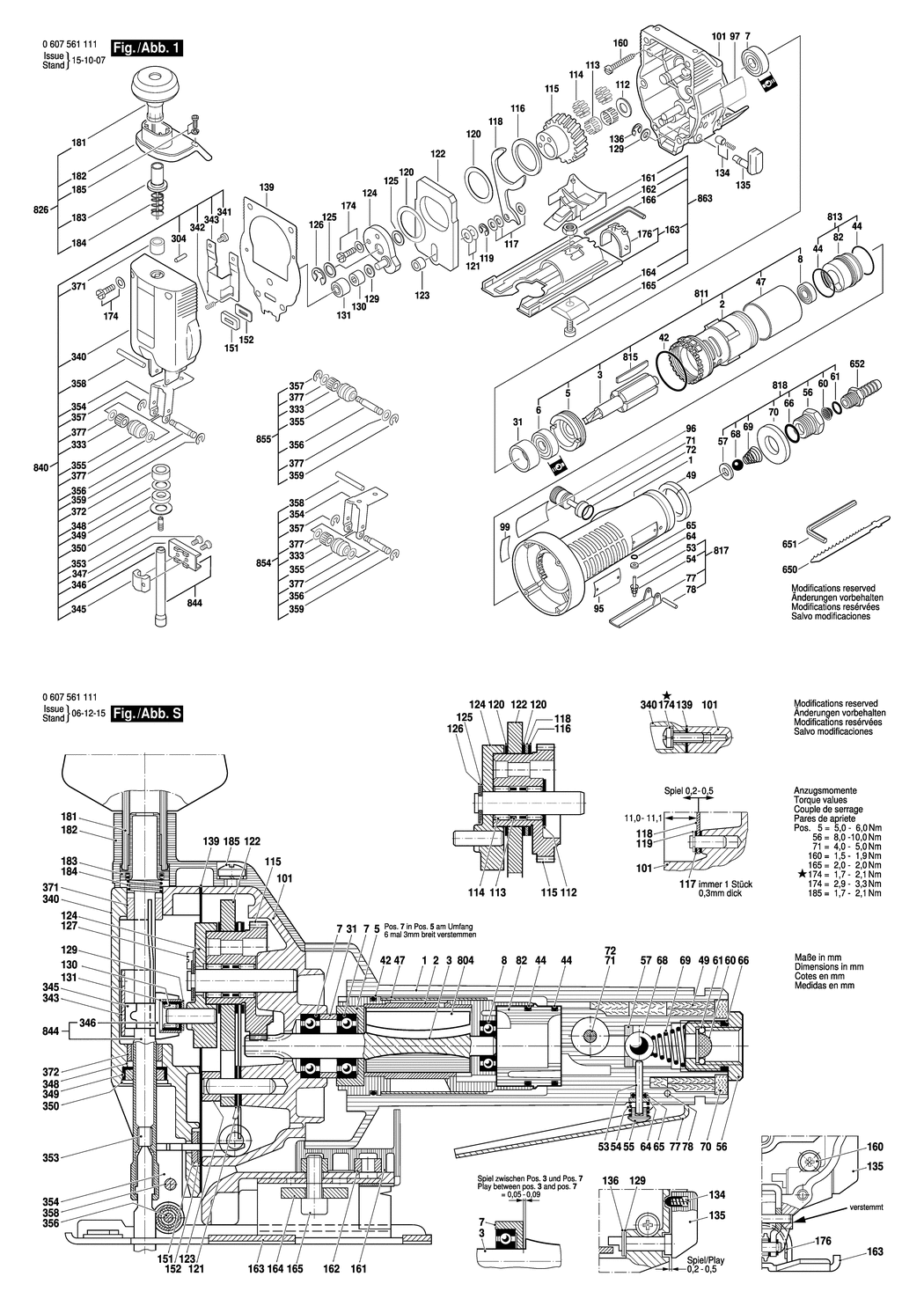

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607561111 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108084.A3 3605108084	£40.80	£48.96
2 - STATOR 400W BSD-3604090046.A12 3604090046	£102.57	£123.08
3 - ROTOR BSD-3604220047.A13 3604220047	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700076.A68 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A593 2600905021	£8.67	£10.41
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A24 1900905028	£33.74	£40.49
31 - INTERMEDIATE RING BSD-3600200058.A9 3600200058	£21.52	£25.83
42 - O-RING 33.0x2.0 MM BSD-2600210019.A31 2600210019	£1.75	£2.10
44 - O-RING 26.0x1.5 MM BSD-2600210018.A12 2600210018	£3.72	£4.47
47 - SPIGOT BSD-3600700032.A18 3600700032	£21.68	£26.01
49 - SILENCER BSD-3601010006.A85 3601010006	£1.75	£2.10
53 - NEEDLE ROLLER BSD-3603201050.A26 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A41 3604611006	£2.16	£2.59
56 - FITTING BSD-3603458008.A11 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A8 3600206006	-
60 - STRAINER BSD-3600002000.A155 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A212 1900210306	£1.75	£2.10
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A37 2916011006	£1.75	£2.10
65 - O-RING 2.4x1.9 MM BSD-2600210007.A61 2600210007	£2.16	£2.59
66 - O-RING 16x1.25 MM BSD-3600210036.A55 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A33 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A8 3604616008	-
70 - SILENCER BSD-3600105002.A8 3600105002	£10.10	£12.12
71 - VALVE PISTON BSD-3608750028.A9 3608750028	£5.58	£6.70
72 - O-RING BSD-1900210307.A0 1900210307	£4.26	£5.11
77 - CONTROL LEVER BSD-3601902001.A75 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A24 2917700040	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A13 3608750027	£14.91	£17.89
95 - NAMEPLATE BSD-160111A3H5.A505 160111A3H5	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A13 3601110039	£5.30	£6.36
97 - STICKER BSD-2601110055.A8 2601110055	£4.26	£5.11
99 - REFERENCE PLATE BSD-3601119236.A1377 3601119236	£3.72	£4.47
101 - GEAR HOUSING BSD-3605808005.A2 3605808005	-
112 - SHIM 0.5 MM BSD-2600101616.A454 2600101616	-
113 - NEEDLE-ROLLER CAGE BSD-2600913036.A47 2600913036	£1.75	£2.10
114 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A138 2603201037	£2.61	£3.13
115 - ECCENTRIC COG WHEEL BSD-1619P02581.A1 1619P02581	£21.68	£26.01
116 - SHIM 1.0 MM BSD-2600102653.A152 2600102653	£1.75	£2.10
117 - SHIM 0.3 MM BSD-2600100515.A179 2600100515	£2.61	£3.13
117 - SHIM 0.5 MM BSD-2600100516.A53 2600100516	£2.16	£2.59
118 - FORK LEVER BSD-2601923004.A119 2601923004	£2.80	£3.36
119 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A343 2916080007	£2.61	£3.13
120 - SHIM 0.5 MM BSD-2600102652.A76 2600102652	£1.75	£2.10
121 - SHIM 0.1 MM BSD-2600100625.A158 2600100625	-
121 - SHIM 0.2 MM BSD-2600100626.A70 2600100626	-
121 - SHIM 0.3 MM BSD-2600100627.A186 2600100627	-
121 - SHIM 0.5 MM BSD-2600100628.A94 2600100628	£1.75	£2.10
122 - COUNTERWEIGHT BSD-2601098003.A58 2601098003	£8.67	£10.41
123 - SPACER SLEEVE BSD-2600309009.A122 2600309009	£1.75	£2.10
124 - ECCENTRIC DISC BSD-2601072901.A8 2601072901	£7.36	£8.83
125 - SHIM 0.2 MM BSD-2600100575.A286 2600100575	£2.16	£2.59
125 - SHIM 0.3 MM BSD-2600100576.A4 2600100576	-
125 - SHIM 0.5 MM BSD-2600100577.A293 2600100577	£1.75	£2.10
126 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A280 2916080910	£2.16	£2.59
129 - SHIM 0.5 MM BSD-2600100568.A289 2600100568	£1.75	£2.10
129 - SHIM 1.0 MM BSD-2600100569.A4 2600100569	£1.75	£2.10
129 - SHIM 0.3 MM BSD-2600100607.A832 2600100607	£1.75	£2.10
130 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A808 2600914010	£2.80	£3.36
131 - BEARING SLEEVE BSD-2600400012.A38 2600400012	£4.26	£5.11
131 - NEEDLE BEARING BSD-2600917900.A299 2600917900	£8.67	£10.41
134 - RATCHET CAP BSD-2600590006.A1008 2600590006	£1.75	£2.10
135 - ROTARY KNOB BSD-2602026036.A136 2602026036	-
136 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A207 2916080908	£1.75	£2.10
139 - SEAL BSD-2601015050.A59 2601015050	£2.61	£3.13
151 - SEALING PLATE BSD-2601015055.A1 2601015055	£1.95	£2.34
152 - FIXING PLATE 0.6 MM BSD-2601015008.A40 2601015008	£2.16	£2.59
160 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1073 2912401020	£2.16	£2.59
161 - SEALING CAP BSD-3605500035.A13 3605500035	£5.30	£6.36
162 - HEX NUT BSD-3603435044.A48 3603435044	£2.16	£2.59
163 - BASE PLATE BSD-2601016903.A142 2601016903	£16.41	£19.69
164 - PROFILE BEADING BSD-2601030019.A77 2601030019	£2.61	£3.13
165 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A93 2910141197	£1.75	£2.10
166 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A489 1907950006	£4.26	£5.11
174 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A125 2914551176	£1.75	£2.10
176 - SCALE PLATE BSD-2601328044.A167 2601328044	£2.61	£3.13
181 - HANDLE BSD-2603231002.A31 2603231002	£14.91	£17.89
182 - FLANGED FITTING BSD-3605703051.A6 3605703051	-
183 - RATCHET SLEEVE BSD-2600421000.A18 2600421000	£7.36	£8.83
184 - COMPRESSION SPRING BSD-2604616001.A44 2604616001	£1.75	£2.10
185 - SCREW AND WASHER ASSEMBLY DIN 7985-M 5x10 MM-4.8 BSD-2914501022.A3 2914501022	£1.75	£2.10
304 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A441 1903201042	£2.16	£2.59
333 - NEEDLE BEARING BSD-2600917000.A10 2600917000	£5.58	£6.70
340 - GEAR COVER BSD-2605808079.A0 2605808079	-
341 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A299 2603410048	£1.75	£2.10
342 - COMPRESSION SPRING BSD-2604613000.A134 2604613000	£1.75	£2.10
343 - GUIDE BRACKET BSD-1616B00224.A204 1616B00224	£11.32	£13.58
345 - CLAMPING SADDLE BSD-2602329011.A267 2602329011	£4.75	£5.70
346 - SLIDING PIECE 31/35 MM BSD-2601321022.A94 2601321022	-
347 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A123 2603421040	£1.75	£2.10
348 - SUPPORTING DISC 0.5 MM BSD-2600112031.A15 2600112031	£1.75	£2.10
349 - SEAL RING 0.5 MM BSD-2600290017.A126 2600290017	£1.75	£2.10
350 - SHIM 0.5 MM BSD-2600101612.A84 2600101612	£1.75	£2.10
353 - CLAMP SCREW BSD-2603400000.A196 2603400000	£4.26	£5.11
354 - ROLLER LEVER BSD-2601321901.A33 2601321901	-
355 - GUIDE ROLLER BSD-2600326019.A17 2600326019	£5.58	£6.70
356 - BEARING BOLT BSD-2603105089.A9 2603105089	£1.75	£2.10
357 - LOCKING WASHER BSD-2600116011.A122 2600116011	£2.16	£2.59
358 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A14 2917530101	£2.80	£3.36
359 - LOCKING WASHER BSD-2916080905.A18 2916080905	£1.75	£2.10
371 - SINTERED-METAL BUSHING BSD-2600301046.A69 2600301046	£3.72	£4.47
372 - BUSHING BSD-2600301045.A158 2600301045	£2.80	£3.36
377 - SHIM 0.2 MM BSD-2600100032.A108 2600100032	£1.75	£2.10
650 - SAW BLADE SET BSD-2607010403.A47 2607010403	£7.78	£9.33
652 - HOSE FITTING BSD-2603386002.A209 2603386002	£5.30	£6.36
658 - AIR HOSE BSD-3607000026.A1 3607000026	-
811 - ROTOR BSD-3607030124.A7 3607030124	£306.65	£367.98
813 - ASSEMBLY OF SERVICE PARTS BSD-3607030028.A11 3607030028	£12.04	£14.45
815 - ROTOR LAMELLA BSD-3607030030.A0 3607030030	£31.64	£37.97
817 - CONTROL LEVER BSD-3607030032.A20 3607030032	£13.12	£15.75
818 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A0 3607030033	£31.64	£37.97
826 - ASSEMBLY OF SERVICE PARTS BSD-3607030130.A7 3607030130	-
829 - BASE PLATE BSD-3607030131.A0 3607030131	£23.86	£28.63
840 - GEAR COVER BSD-2605808916.A26 2605808916	-
844 - LIFTING ROD BSD-2600780913.A27 2600780913	-
854 - ROLLER LEVER BSD-2601321902.A0 2601321902	-
855 - ROLLER SET BSD-1619P01375.A75 1619P01375	£11.30	£13.56
