Bosch 400 WATT-SERIE / 0607561120 / --- Spare Parts

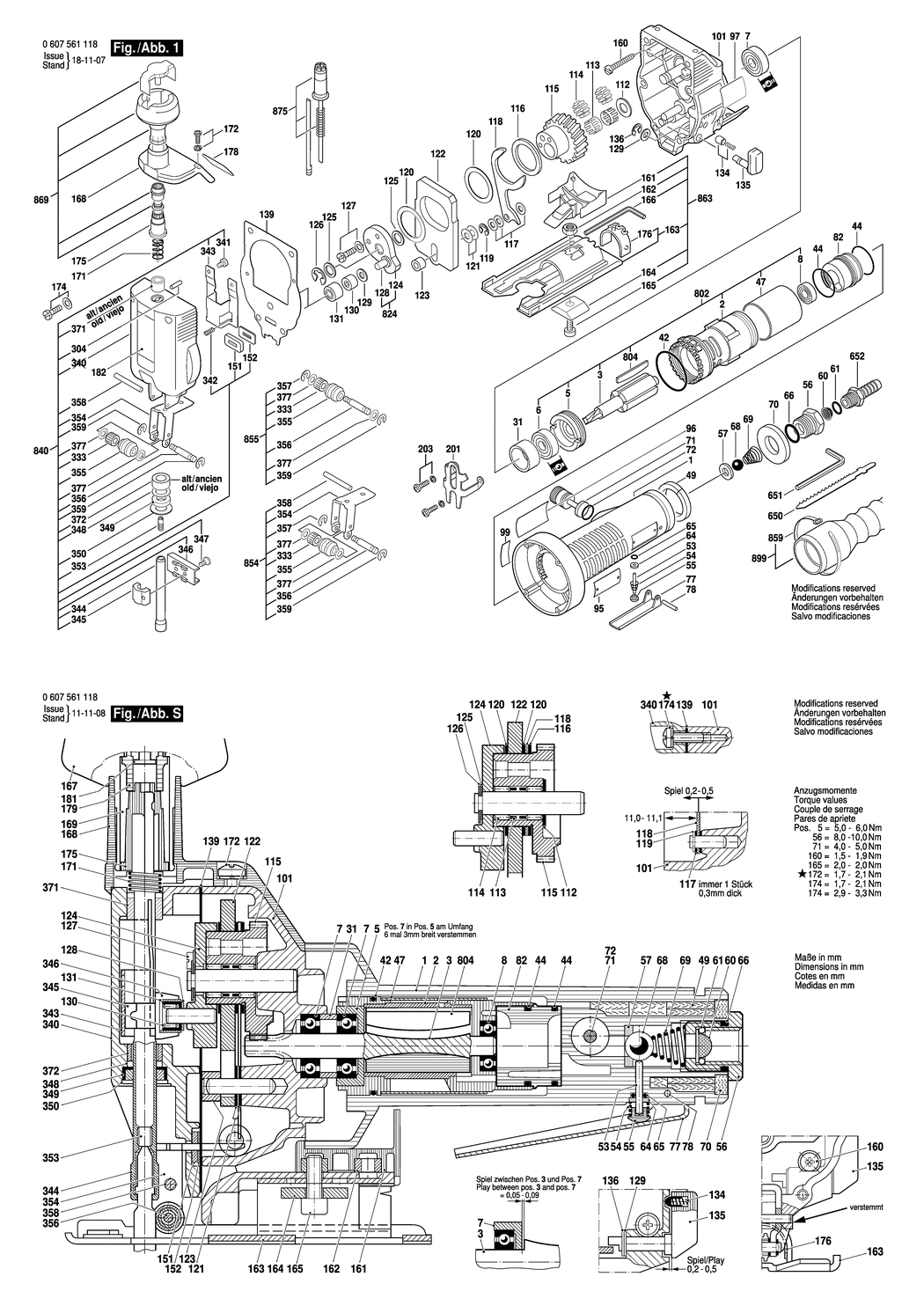

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607561120 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108084.A1 3605108084	£40.80	£48.96
2 - STATOR 400W BSD-3604090046.A0 3604090046	£102.57	£123.08
3 - ROTOR BSD-3604220047.A10 3604220047	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700076.A59 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A354 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A11 1900905028	£33.74	£40.49
31 - INTERMEDIATE RING BSD-3600200058.A4 3600200058	£21.52	£25.83
42 - O-RING 33.0x2.0 MM BSD-2600210019.A35 2600210019	£1.75	£2.10
44 - O-RING 26.0x1.5 MM BSD-2600210018.A11 2600210018	£3.72	£4.47
47 - SPIGOT BSD-3600700032.A15 3600700032	£21.68	£26.01
49 - SILENCER BSD-3601010006.A90 3601010006	£1.75	£2.10
53 - NEEDLE ROLLER BSD-3603201050.A22 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A56 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A65 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458010.A4 3603458010	£16.41	£19.69
57 - SEALING DISK BSD-3600206006.A5 3600206006	-
60 - STRAINER BSD-3600002000.A197 3600002000	£3.72	£4.47
61 - SHIM 0.5 MM BSD-1600100617.A49 1600100617	£1.75	£2.10
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A31 2916011006	£1.75	£2.10
65 - O-RING 2.4x1.9 MM BSD-2600210007.A45 2600210007	£2.16	£2.59
66 - O-RING 16x1.25 MM BSD-3600210036.A54 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A14 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A6 3604616008	-
70 - SILENCER BSD-3600105002.A7 3600105002	£10.10	£12.12
71 - VALVE PISTON BSD-3608750028.A11 3608750028	£5.58	£6.70
72 - O-RING BSD-1900210307.A4 1900210307	£4.26	£5.11
77 - CONTROL LEVER BSD-3601902001.A90 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A0 2917700040	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A11 3608750027	£14.91	£17.89
95 - NAMEPLATE BSD-160111A3HF.A148 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A12 3601110039	£5.30	£6.36
97 - STICKER BSD-2601110055.A6 2601110055	£4.26	£5.11
99 - REFERENCE PLATE BSD-3601119236.A1310 3601119236	£3.72	£4.47
101 - GEAR HOUSING BSD-3605808008.A2 3605808008	£81.81	£98.17
112 - SHIM 0.5 MM BSD-2600101616.A451 2600101616	-
113 - NEEDLE-ROLLER CAGE BSD-2600913036.A41 2600913036	£1.75	£2.10
114 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A131 2603201037	£2.61	£3.13
115 - ECCENTRIC COG WHEEL BSD-1619P02581.A8 1619P02581	£21.68	£26.01
116 - SHIM 1.0 MM BSD-2600102653.A161 2600102653	£1.75	£2.10
117 - SHIM 0.3 MM BSD-2600100515.A176 2600100515	£2.61	£3.13
117 - SHIM 0.5 MM BSD-2600100516.A55 2600100516	£2.16	£2.59
118 - FORK LEVER BSD-2601923004.A118 2601923004	£2.80	£3.36
119 - LOCKING WASHER 4 DIN 6799 BSD-2916080907.A14 2916080907	£2.16	£2.59
120 - SHIM 0.5 MM BSD-2600102652.A67 2600102652	£1.75	£2.10
121 - SHIM 0.1 MM BSD-2600100625.A151 2600100625	-
121 - SHIM 0.2 MM BSD-2600100626.A77 2600100626	-
121 - SHIM 0.3 MM BSD-2600100627.A179 2600100627	-
121 - SHIM 0.5 MM BSD-2600100628.A101 2600100628	£1.75	£2.10
122 - COUNTERWEIGHT BSD-2601098003.A49 2601098003	£8.67	£10.41
123 - SPACER SLEEVE BSD-2600309009.A115 2600309009	£1.75	£2.10
124 - ECCENTRIC DISC BSD-2601072901.A6 2601072901	£7.36	£8.83
125 - SHIM 0.2 MM BSD-2600100575.A284 2600100575	£2.16	£2.59
125 - SHIM 0.3 MM BSD-2600100576.A6 2600100576	-
125 - SHIM 0.5 MM BSD-2600100577.A291 2600100577	£1.75	£2.10
126 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A281 2916080910	£2.16	£2.59
127 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A124 2914551176	£1.75	£2.10
127 - SCREW AND WASHER ASSEMBLY M 4x12 MM BSD-2914501028.A12 2914501028	£1.75	£2.10
128 - SHIM 0.5 MM BSD-2600100568.A286 2600100568	£1.75	£2.10
129 - SHIM 0.5 MM BSD-2600100568.A287 2600100568	£1.75	£2.10
129 - SHIM 1.0 MM BSD-2600100569.A6 2600100569	£1.75	£2.10
129 - SHIM 0.3 MM BSD-2600100607.A821 2600100607	£1.75	£2.10
130 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A803 2600914010	£2.80	£3.36
131 - BEARING SLEEVE BSD-2600400012.A34 2600400012	£4.26	£5.11
134 - RATCHET CAP BSD-2600590006.A1004 2600590006	£1.75	£2.10
135 - ROTARY KNOB BSD-2602026036.A129 2602026036	-
136 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A205 2916080908	£1.75	£2.10
139 - SEAL BSD-2601015050.A50 2601015050	£2.61	£3.13
151 - SEALING PLATE BSD-2601015055.A10 2601015055	£1.95	£2.34
152 - FIXING PLATE 0.6 MM BSD-2601015008.A33 2601015008	£2.16	£2.59
160 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1080 2912401020	£2.16	£2.59
161 - SEALING CAP BSD-3605500035.A10 3605500035	£5.30	£6.36
162 - HEX NUT BSD-3603435044.A45 3603435044	£2.16	£2.59
163 - BASE PLATE BSD-2601016903.A133 2601016903	£16.41	£19.69
164 - PROFILE BEADING BSD-2601030019.A70 2601030019	£2.61	£3.13
165 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A89 2910141197	£1.75	£2.10
166 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A485 1907950006	£4.26	£5.11
168 - FLANGED ELBOW FITTING BSD-3605703057.A4 3605703057	£12.04	£14.45
171 - COMPRESSION SPRING BSD-2604617003.A65 2604617003	-
172 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A63 2603410054	£2.61	£3.13
174 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A139 2603410049	£1.75	£2.10
175 - COUPLING HALF BSD-2606491001.A4 2606491001	-
176 - SCALE PLATE BSD-2601328044.A157 2601328044	£2.61	£3.13
178 - STICKER BSD-2601110930.A27 2601110930	£1.32	£1.58
182 - STICKER BSD-2601110764.A14 2601110764	-
201 - SAFETY DEVICE BSD-2601322021.A65 2601322021	£4.26	£5.11
203 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A364 2910011128	£1.75	£2.10
304 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A446 1903201042	£2.16	£2.59
333 - NEEDLE BEARING BSD-2600917000.A17 2600917000	£5.58	£6.70
340 - GEAR COVER BSD-2605808079.A1 2605808079	-
341 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A292 2603410048	£1.75	£2.10
342 - COMPRESSION SPRING BSD-2604613000.A141 2604613000	£1.75	£2.10
343 - GUIDE BRACKET BSD-1616B00224.A194 1616B00224	£11.32	£13.58
344 - LIFTING ROD BSD-1619P12765.A5 1619P12765	£16.41	£19.69
345 - CLAMPING SADDLE BSD-2602329011.A265 2602329011	£4.75	£5.70
346 - SLIDING PIECE BSD-1619P12767.A0 1619P12767	£9.47	£11.36
347 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A121 2603421040	£1.75	£2.10
348 - SUPPORTING DISC 0.5 MM BSD-2600112031.A6 2600112031	£1.75	£2.10
349 - SEAL RING 0.5 MM BSD-2600290017.A118 2600290017	£1.75	£2.10
350 - SHIM 0.5 MM BSD-2600101612.A88 2600101612	£1.75	£2.10
353 - CLAMP SCREW BSD-2603490006.A3 2603490006	-
354 - ROLLER LEVER BSD-2601321046.A0 2601321046	£7.78	£9.33
355 - GUIDE ROLLER BSD-2600326019.A14 2600326019	£5.58	£6.70
356 - BEARING BOLT BSD-2603105089.A3 2603105089	£1.75	£2.10
357 - LOCKING WASHER BSD-2600116011.A120 2600116011	£2.16	£2.59
358 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A18 2917530101	£2.80	£3.36
359 - LOCKING WASHER BSD-2916080905.A21 2916080905	£1.75	£2.10
371 - SINTERED-METAL BUSHING BSD-2600301046.A77 2600301046	£3.72	£4.47
372 - BUSHING BSD-2600301045.A150 2600301045	£2.80	£3.36
377 - SHIM 0.2 MM BSD-2600100032.A99 2600100032	£1.75	£2.10
650 - SAW BLADE SET BSD-2607010403.A40 2607010403	£7.78	£9.33
651 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A488 1907950006	£4.26	£5.11
652 - HOSE FITTING BSD-3603386068.A31 3603386068	£21.52	£25.83
802 - ROTOR BSD-3607030124.A5 3607030124	£306.65	£367.98
804 - ROTOR LAMELLA BSD-3607030030.A10 3607030030	£31.64	£37.97
840 - GEAR COVER BSD-2605808920.A26 2605808920	£70.24	£84.29
854 - ROLLER LEVER BSD-2601321902.A11 2601321902	-
855 - ROLLER SET BSD-1619P01375.A67 1619P01375	£11.30	£13.56
859 - HOLDING BELT BSD-3604710062.A38 3604710062	£1.75	£2.10
863 - BASE PLATE BSD-3607030131.A8 3607030131	£23.86	£28.63
869 - HANDLE BSD-3602025030.A0 3602025030	-
875 - MODIFICATION SET 100-240V BSD-2606491917.A69 2606491917	£21.52	£25.83
899 - AIR HOSE BSD-3607000027.A6 3607000027	£33.74	£40.49
