Black & Decker BPSM1510 Type 1 Mitre Saw Spare Parts

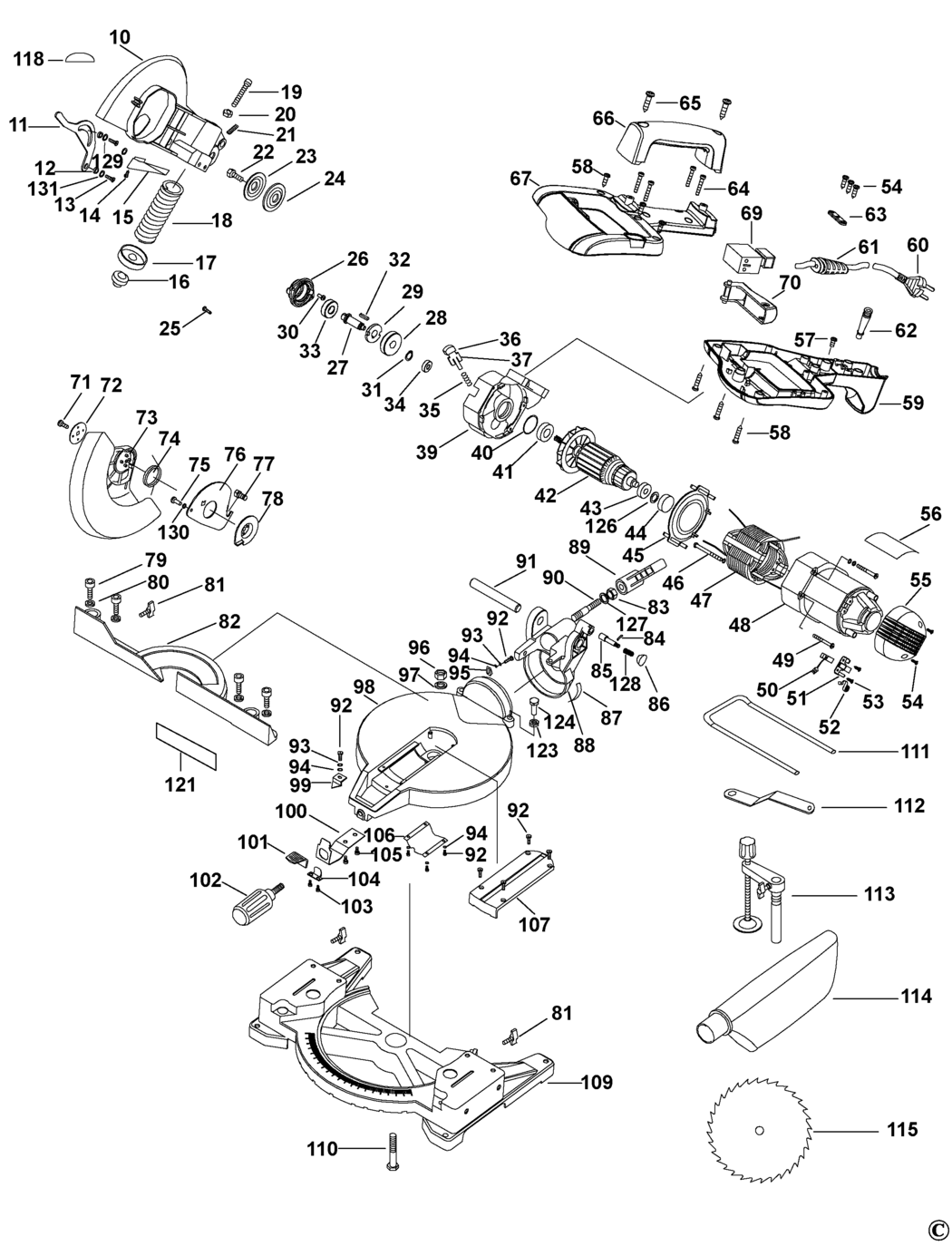

An exploded drawing and spare parts listing for the Black & Decker BPSM1510 Type 1 Mitre Saw

	Ex VAT	Inc VAT
10 - SHIELD BDE-5140015-10.A4 5140015-10	£47.08	£56.49
11 - SHIELD BDE-5140015-11.A0 5140015-11	£3.80	£4.56
12 - RING BDE-5140015-12.A4 5140015-12	-
13 - SCREW BDE-5140015-13.A0 5140015-13	£1.66	£1.99
14 - SCREW BDE-5140015-14.A4 5140015-14	£1.66	£1.99
15 - TUBE EXTRACTION BDE-5140015-15.A0 5140015-15	£1.66	£1.99
16 - PIN BDE-5140015-16.A4 5140015-16	£1.66	£1.99
17 - STOP PLATE BDE-5140015-17.A0 5140015-17	£1.66	£1.99
18 - SPRING BDE-5140015-18.A4 5140015-18	£7.18	£8.62
19 - BOLT BDE-5140015-19.A0 5140015-19	£1.66	£1.99
20 - NUT BDE-5140015-20.A4 5140015-20	£1.66	£1.99
21 - SCREW BDE-5140015-21.A0 5140015-21	£1.66	£1.99
22 - BOLT BDE-5140015-22.A4 5140015-22	£1.66	£1.99
23 - OUTER FLANGE BDE-5140015-23.A0 5140015-23	£2.78	£3.34
24 - INNER FLANGE BDE-5140069-57.A2 5140069-57	-
25 - SCREW BDE-5140015-25.A4 5140015-25	£1.66	£1.99
26 - COVER BDE-5140015-26.A0 5140015-26	£3.30	£3.96
27 - SPINDLE BDE-5140069-58.A1 5140069-58	£5.88	£7.06
28 - GEAR BDE-5140069-59.A3 5140069-59	£9.41	£11.29
29 - FLANGE BDE-5140069-60.A1 5140069-60	£1.66	£1.99
30 - SCREW BDE-5140015-30.A4 5140015-30	£1.66	£1.99
31 - RING BDE-5140015-31.A0 5140015-31	£1.66	£1.99
32 - KEY BDE-5140069-61.A3 5140069-61	£1.66	£1.99
33 - BEARING BDE-5140015-33.A4 5140015-33	£5.88	£7.06
34 - BEARING BALL BDE-5170007-06.A1 5170007-06	£3.80	£4.56
35 - SPRING BDE-5140015-35.A3 5140015-35	£1.66	£1.99
36 - SPRING BDE-5140015-35.A4 5140015-35	£1.66	£1.99
37 - SPINDLE LOCK BDE-5140015-37.A4 5140015-37	£1.66	£1.99
39 - GEAR CASE SA BDE-5170007-07.A3 5170007-07	£12.17	£14.60
40 - O RING BDE-5140015-40.A3 5140015-40	£1.66	£1.99
41 - BEARING BDE-5140015-41.A1 5140015-41	£1.66	£1.99
42 - ARMATURE BDE-5140012-94.A3 5140012-94	£51.90	£62.28
43 - BEARING BDE-5140015-43.A3 5140015-43	£7.18	£8.62
44 - SLEEVE BDE-5140015-44.A1 5140015-44	£1.66	£1.99
45 - BAFFLE FAN BDE-5140015-45.A3 5140015-45	£1.66	£1.99
46 - SCREW BDE-5140015-46.A1 5140015-46	£1.66	£1.99
47 - STATOR BDE-5140012-96.A1 5140012-96	£47.08	£56.49
48 - FIELD CASE BDE-5140047-27.A1 5140047-27	-
49 - SCREW BDE-5140015-49.A3 5140015-49	£1.66	£1.99
51 - BRUSH HOLDER BDE-5140015-51.A4 5140015-51	£1.66	£1.99
52 - SPRING BDE-5140015-52.A0 5140015-52	£1.66	£1.99
53 - SCREW BDE-5140015-53.A4 5140015-53	£1.66	£1.99
54 - SCREW BDE-5140015-54.A0 5140015-54	£1.66	£1.99
55 - CAP BDE-5140047-28.A0 5140047-28	-
57 - SCREW BDE-5140069-64.A1 5140069-64	£1.66	£1.99
58 - SCREW BDE-5140069-65.A3 5140069-65	£1.66	£1.99
59 - HANDLE & COVER BDE-5140047-29.A1 5140047-29	-
61 - CORD PROTECTOR BDE-5140047-30.A0 5140047-30	£1.66	£1.99
62 - PROTECTOR BDE-5140015-62.A4 5140015-62	£1.66	£1.99
63 - CORD CLAMP BDE-5140069-67.A1 5140069-67	£1.66	£1.99
64 - SCREW BDE-5140047-31.A4 5140047-31	£1.66	£1.99
65 - SCREW BDE-5140047-32.A0 5140047-32	£1.66	£1.99
66 - HANDLE BDE-5140047-33.A1 5140047-33	-
67 - CLAMSHELL BDE-5140047-34.A0 5140047-34	-
69 - SWITCH BDE-5140047-35.A3 5140047-35	£7.18	£8.62
70 - TRIGGER BDE-5140047-36.A1 5140047-36	£1.66	£1.99
71 - SCREW BDE-5140015-71.A3 5140015-71	£1.66	£1.99
72 - SHIELD BDE-5140015-72.A1 5140015-72	£1.66	£1.99
73 - SHIELD BDE-5140015-73.A3 5140015-73	£12.17	£14.60
74 - SPRING TORSION BDE-5140015-74.A1 5140015-74	£1.66	£1.99
75 - SCREW BDE-5140015-75.A3 5140015-75	£1.66	£1.99
76 - PLATE BDE-5140015-76.A1 5140015-76	£2.78	£3.34
77 - BOLT BDE-5140015-77.A3 5140015-77	£1.66	£1.99
78 - SHIELD BDE-5140015-78.A1 5140015-78	£1.66	£1.99
79 - SCREW BDE-5140015-79.A3 5140015-79	£1.66	£1.99
80 - WASHER BDE-5140015-80.A1 5140015-80	£1.66	£1.99
81 - KNOB BDE-5170005-82.A3 5170005-82	£1.66	£1.99
82 - BAFFLE BDE-5140015-82.A3 5140015-82	£24.39	£29.27
83 - NUT BDE-5140015-83.A1 5140015-83	£1.66	£1.99
84 - PIN BDE-5140015-84.A3 5140015-84	£1.66	£1.99
85 - LOCKING PIN BDE-5140015-85.A1 5140015-85	£1.66	£1.99
86 - CAP BDE-5170005-83.A1 5170005-83	£1.66	£1.99
87 - BEVEL SCALE BDE-5140015-87.A3 5140015-87	£1.66	£1.99
88 - TRUNNION BDE-5140015-88.A1 5140015-88	£24.39	£29.27
89 - HANDLE BDE-5140015-89.A1 5140015-89	£4.69	£5.63
90 - STUD BDE-5140015-90.A0 5140015-90	£1.66	£1.99
91 - SHAFT BDE-5140015-91.A4 5140015-91	£2.78	£3.34
92 - SCREW BDE-5140015-92.A0 5140015-92	£1.66	£1.99
93 - WASHER BDE-5140015-93.A4 5140015-93	£1.66	£1.99
94 - WASHER BDE-5140015-94.A0 5140015-94	£1.66	£1.99
95 - POINTER BDE-5140015-95.A4 5140015-95	£1.66	£1.99
96 - NUT BDE-5140015-96.A0 5140015-96	£1.66	£1.99
97 - WASHER BDE-5140015-97.A4 5140015-97	£1.66	£1.99
98 - TABLE BDE-5140015-98.A0 5140015-98	£65.52	£78.62
99 - POINTER BDE-5140015-99.A4 5140015-99	£1.66	£1.99
100 - SPRING BDE-5140016-00.A0 5140016-00	£2.26	£2.71
101 - BUTTON BDE-5140016-01.A4 5140016-01	£1.66	£1.99
102 - HANDLE BDE-5170005-84.A1 5170005-84	-
103 - SCREW BDE-5140016-03.A3 5140016-03	£1.66	£1.99
104 - CLAMP BDE-5140016-04.A1 5140016-04	£1.66	£1.99
105 - SCREW BDE-5140016-05.A3 5140016-05	£1.66	£1.99
106 - PLATE BDE-5140016-06.A1 5140016-06	£3.80	£4.56
107 - PLATE BDE-5140016-07.A3 5140016-07	£4.69	£5.63
109 - BASE BDE-5140016-09.A4 5140016-09	£80.98	£97.18
110 - BOLT BDE-5140016-10.A0 5140016-10	£1.66	£1.99
111 - BRACKET BDE-5140016-11.A4 5140016-11	£9.41	£11.29
112 - WRENCH SPECIAL BDE-5140016-12.A0 5140016-12	£1.66	£1.99
113 - CLAMP BDE-5170005-85.A0 5170005-85	£9.41	£11.29
114 - DUSTBAG BDE-5140016-14.A1 5140016-14	£3.30	£3.96
115 - BLADE BDE-5140016-15.A0 5140016-15	-
123 - NUT M8 BDE-5170007-24.A4 5170007-24	£1.66	£1.99
124 - SCREW BDE-186769-00.A0 186769-00	£1.66	£1.99
126 - WASHER SPRING BDE-5140069-69.A3 5140069-69	£1.66	£1.99
127 - WASHER BDE-5140069-70.A1 5140069-70	£1.66	£1.99
128 - SPRING BDE-5140069-71.A3 5140069-71	£1.66	£1.99
129 - WASHER BDE-5140069-72.A1 5140069-72	£1.66	£1.99
130 - WASHER BDE-5140069-73.A3 5140069-73	£1.66	£1.99
131 - WASHER SPRING BDE-5140069-74.A1 5140069-74	£1.66	£1.99
