Black & Decker KS901SEK Type 1 Jigsaw Spare Parts

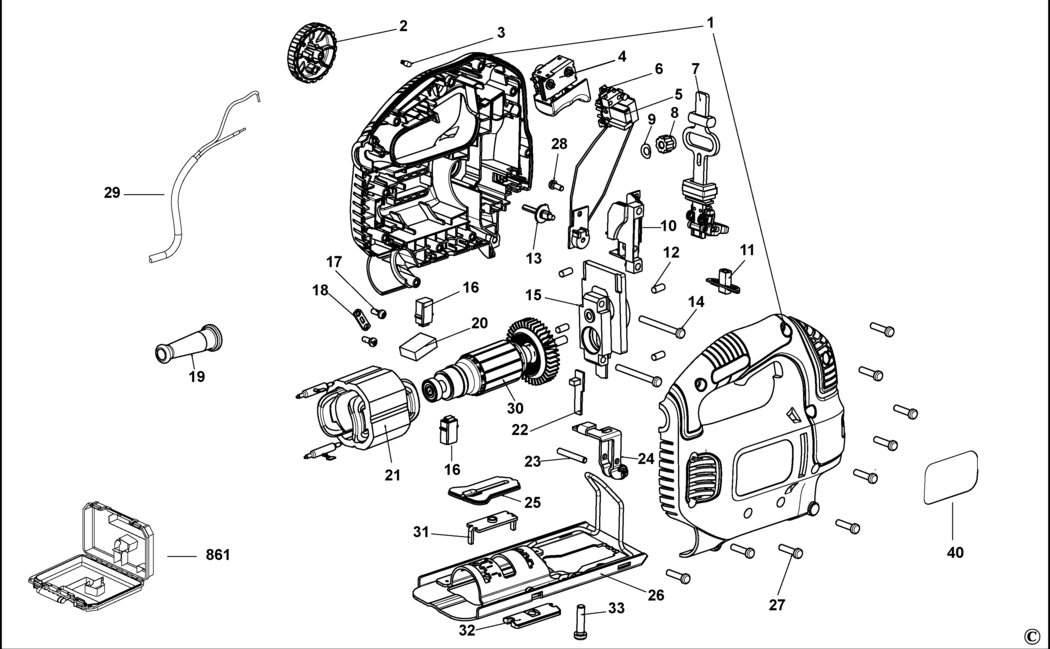

An exploded drawing and spare parts listing for the Black & Decker KS901SEK Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SA BDE-90610219.A1 90610219	£16.52	£19.82
2 - KNOB SA BDE-90610225.A0 90610225	£1.66	£1.99
3 - DETENT BDE-N403227.A40 N403227	£1.66	£1.99
4 - SWITCH SA BDE-90603224-02.A1 90603224-02	£7.40	£8.88
5 - PCB SA BDE-90605341.A1 90605341	£18.00	£21.60
6 - SUPPORT BDE-90610226.A1 90610226	£1.66	£1.99
7 - SHAFT SA BDE-90517289.A0 90517289	£12.53	£15.04
8 - ROLLER BDE-795688-00.A16 795688-00	£1.66	£1.99
9 - WASHER BDE-823954.A34 823954	£1.66	£1.99
10 - SUPPORT BDE-90514323.A8 90514323	£1.66	£1.99
11 - LENS BDE-90609090 90609090	£1.66	£1.99
12 - PIN BDE-90517281.A9 90517281	£1.66	£1.99
13 - CAM BDE-90514375.A8 90514375	£1.66	£1.99
14 - SCREW BDE-330019-17.A20 330019-17	£1.66	£1.99
15 - TRANSMISSION SA BDE-90532016.A5 90532016	£20.50	£24.60
16 - BRUSHBOX SA BDE-90549938.A6 90549938	£3.39	£4.07
17 - SCREW.TEMP BDE-330019-01.A34 330019-01	£1.66	£1.99
18 - CORD CLAMP BDE-329301-00.A233 329301-00	£1.66	£1.99
19 - CORD PROTECTOR BDE-90567404.A10 90567404	£1.66	£1.99
20 - CAPACITOR BDE-90610227.A0 90610227	£1.66	£1.99
21 - FIELD SA BDE-90610234.A0 90610234	£15.01	£18.01
22 - PLATE THRUST BDE-90514354.A7 90514354	£1.66	£1.99
23 - PIN BDE-90514424.A0 90514424	£1.66	£1.99
24 - ROLLER SA BDE-90545786.A8 90545786	£4.83	£5.80
25 - LOWER GUARD SA BDE-90609237.A1 90609237	£1.66	£1.99
26 - SHOE SA BDE-90609430 90609430	£10.85	£13.02
27 - SCREW BDE-330019-13.A170 330019-13	£1.66	£1.99
28 - SCREW BDE-330019-31.A5 330019-31	£1.66	£1.99
29 - CORDSET GB BDE-90578997-03.A4 90578997-03	£12.53	£15.04
30 - ARMATURE SA BDE-90610232.A1 90610232	£19.48	£23.37
31 - PLATE LOCK BDE-90608807.A0 90608807	£1.66	£1.99
32 - PLATE LOCK BDE-90610122.A1 90610122	£1.66	£1.99
33 - SCREW BDE-90610329.A1 90610329	£1.66	£1.99
40 - RATING LABEL GB BDE-90609611 90609611	£1.66	£1.99
861 - KIT BOX BDE-90607906.A1 90607906	£18.00	£21.60

Attribute Name	Value
Brand	Black & Decker
