Bosch SDI 115 / 3601H68T00 / --- 10.8 Volt Spare Parts

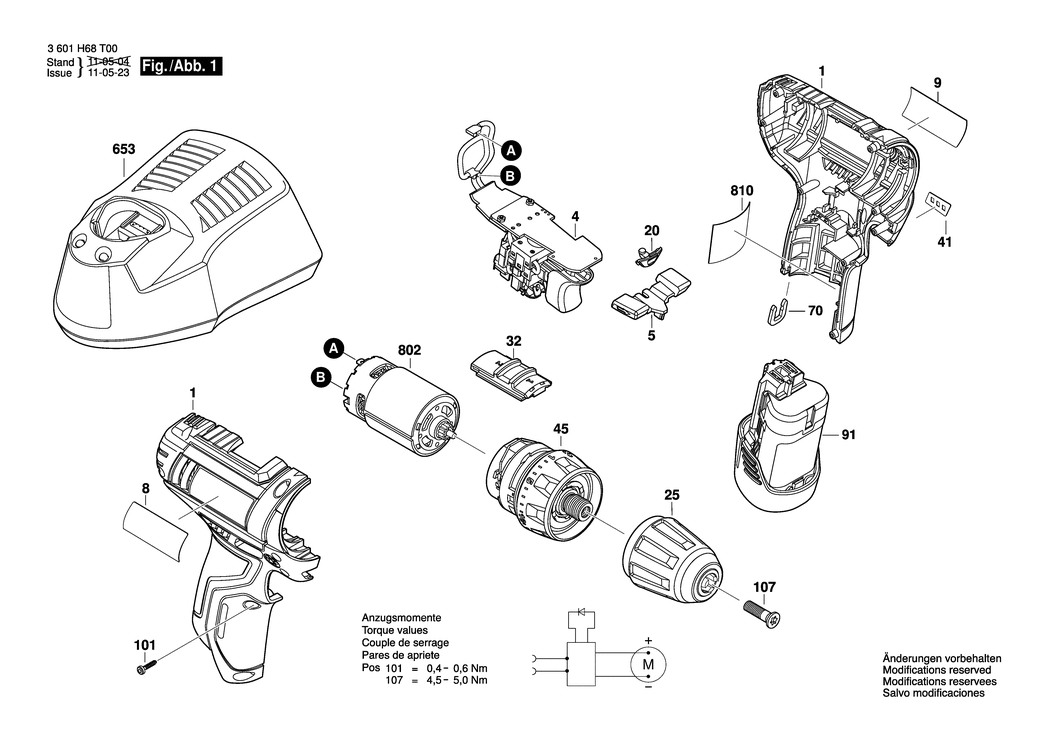

An exploded drawing and listing for the Bosch SDI 115 / 3601H68T00 / --- 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100971.A1 2609100971	£21.52	£25.83
4 - ELECTRONICS MODULE BSD-1607233487.A2 1607233487	£54.42	£65.30
5 - CHANGEOVER LEVER BSD-2609100975.A2 2609100975	£2.16	£2.59
8 - MANUFACTURER'S NAMEPLATE SDI 115 BSD-2609133212.A0 2609133212	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE SDI 115 BSD-2609133213.A0 2609133213	£2.61	£3.13
20 - LENS BSD-2609100826.A8 2609100826	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2609111245.A0 2609111245	£31.64	£37.97
32 - SWITCHOVER UNIT BSD-2609199353.A2 2609199353	£1.75	£2.10
41 - STICKER BSD-2609132948.A5 2609132948	£2.61	£3.13
45 - GEAR BOX BSD-2609199786.A9 2609199786	£36.63	£43.96
70 - CLIP BSD-2609110537.A88 2609110537	£1.75	£2.10
91 - ACCUMULATOR BATTERY 10.8V 1.3Ah. Li BSD-2607336213.A1 2607336213	£58.76	£70.51
91 - BATTERY PACK 10.8V. 1.5Ah. LI BSD-2607336981.A0 2607336981	£58.76	£70.51
101 - SCREW BSD-2609110883.A8 2609110883	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A186 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/10.8V.30 MIN. BSD-2607225403.A3 2607225403	-
802 - DC MOTOR 10.8V - 12V BSD-2609199258.A14 2609199258	£21.52	£25.83
810 - NAMEPLATE BSD-2609133219.A0 2609133219	-
