Bosch ANGLE EXACT 30-380 / 0602492603 / --- 14.4 Volt Spare Parts

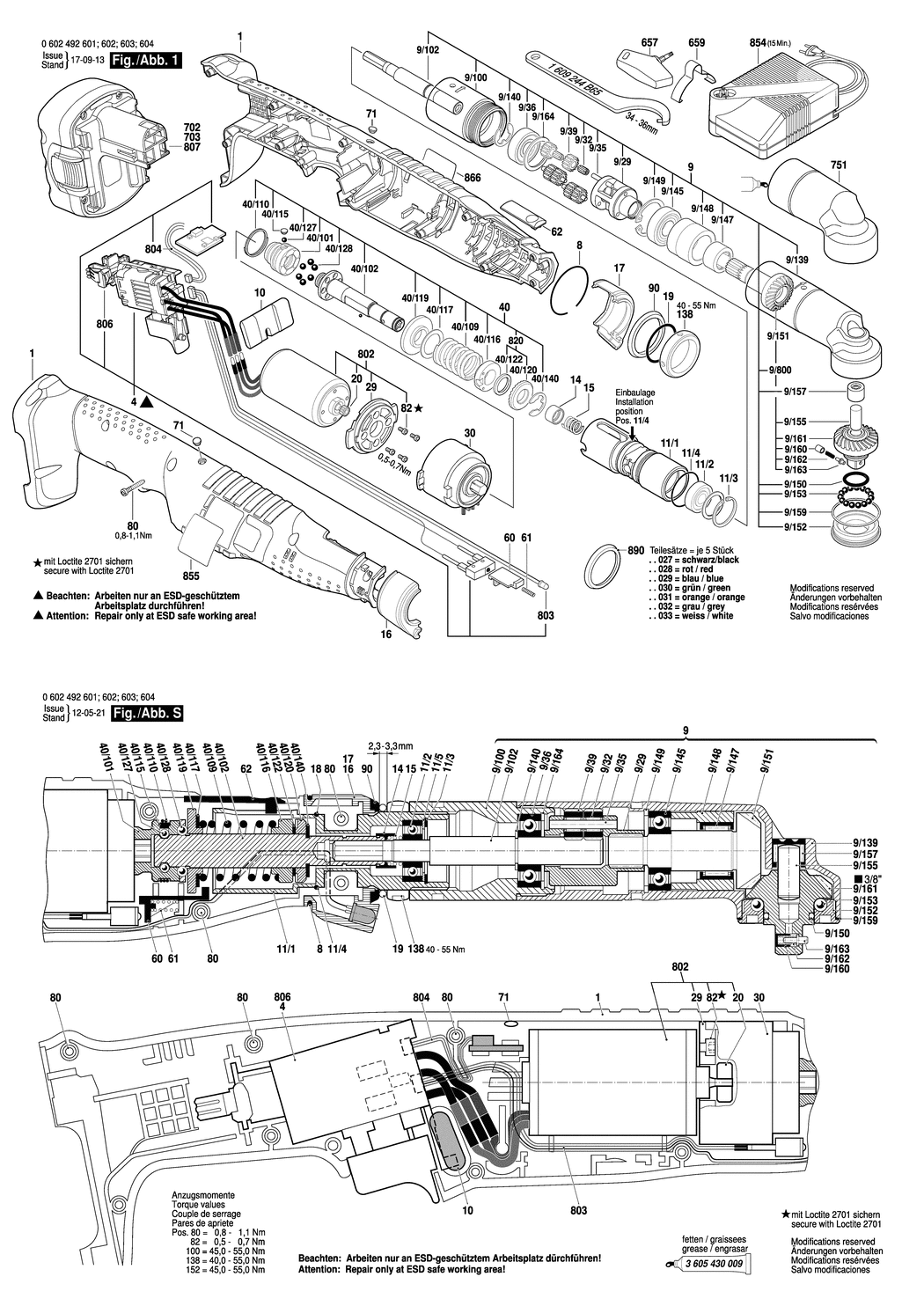

An exploded drawing and listing for the Bosch ANGLE EXACT 30-380 / 0602492603 / --- 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-3609202A34.A0 3609202A34	£66.68	£80.01
4 - ELECTRONIC ASSEMBLY BSD-3607200114.A2 3607200114	£525.48	£630.58
8 - RETAINING RING dia36.6xdia1.5 BSD-1614601016.A7 1614601016	£2.94	£3.53
9 - ANGLE SCREWDRIVER HEAD BSD-3609202A44.A1 3609202A44	£1578.12	£1893.74
9/29 - PLANETARY-GEAR CARRIER BSD-3606337219.A4 3606337219	£251.67	£302.00
9/32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A295 3600913000	£4.26	£5.11
9/35 - STRAIGHT PIN DIN 6325-3M6x24 BSD-2917530083.A15 2917530083	£1.75	£2.10
9/36 - GROOVE BALL BEARING BSD-3600905023.A55 3600905023	£22.60	£27.12
9/39 - CYLINDRICAL GEAR Z=16 BSD-3606316099.A110 3606316099	£22.76	£27.31
9/100 - HOUSING BSD-3609202A32.A2 3609202A32	£57.14	£68.57
9/102 - DRIVE SHAFT BSD-3609202A36.A3 3609202A36	£48.38	£58.06
9/139 - SPINDLE HOUSING BSD-3605106093.A6 3605106093	£525.48	£630.58
9/140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A135 2916080012	£1.84	£2.21
9/145 - GROOVE BALL BEARING BSD-3600905015.A88 3600905015	£17.22	£20.67
9/147 - NEEDLE BEARING BSD-3600917020.A16 3600917020	£15.65	£18.78
9/148 - SPACER BSD-3608874921.A6 3608874921	£18.96	£22.75
9/149 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A55 2916660011	£1.75	£2.10
9/150 - O-RING 14.0x2.0 MM BSD-1610210116.A4 1610210116	£2.80	£3.36
9/151 - BEVEL GEAR BSD-3606333079.A3 3606333079	£264.25	£317.10
9/152 - BEARING FLANGE BSD-3605700190.A8 3605700190	£62.51	£75.01
9/153 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A127 1903230008	£1.75	£2.10
9/155 - STRAIGHT PIN BSD-3603100000.A19 3603100000	£5.01	£6.01
9/157 - NEEDLE BEARING INA 8.00x12.00x10.00 BSD-3608874669.A11 3608874669	£13.78	£16.54
9/159 - SHIM 0.1 BSD-3608874923.A11 3608874923	£15.65	£18.78
9/159 - SHIM 0.05 BSD-3608874924.A6 3608874924	£16.41	£19.69
9/160 - GUIDE SLEEVE BSD-3600320016.A12 3600320016	£15.65	£18.78
9/161 - CROWN GEAR BSD-3606333078.A7 3606333078	£375.13	£450.16
9/162 - COMPRESSION SPRING BSD-1604611004.A49 1604611004	£2.80	£3.36
9/163 - PRESSURE SPINDLE BSD-1603124060.A45 1603124060	£5.58	£6.70
9/164 - SPRING RETAINING RING BSD-3600118006.A13 3600118006	£2.74	£3.29
9/800 - BEVEL GEAR BSD-3609202B05.A5 3609202B05	£458.51	£550.21
10 - SWITCH SLIDE BSD-3601099003.A9 3601099003	£2.80	£3.36
11/1 - ANGLE FLANGE BSD-3609202A33.A9 3609202A33	£107.69	£129.23
11/2 - BALL BEARING 8x22x7 BSD-1900905029.A353 1900905029	£22.60	£27.12
11/3 - SPRING RETAINING RING BSD-2600119000.A9 2600119000	£1.84	£2.21
11/4 - O-RING 20.0x1.0 MM BSD-3600210012.A68 3600210012	£2.94	£3.53
14 - SLEEVE BSD-3600423004.A44 3600423004	£5.58	£6.70
15 - COMPRESSION SPRING BSD-3604611037.A40 3604611037	£5.57	£6.68
16 - LED-HOLDER BSD-3605105019.A34 3605105019	£11.87	£14.24
17 - LED-HOLDER BSD-3605105020.A9 3605105020	£11.30	£13.56
19 - O-RING 25x2.5 MM BSD-1900210125.A11 1900210125	£7.36	£8.83
20 - PINION BSD-3606309061.A10 3606309061	£50.80	£60.96
29 - INTERMEDIATE FLANGE BSD-2605719011.A86 2605719011	£3.72	£4.47
30 - PLANETARY GEAR TRAIN BSD-3607030471.A0 3607030471	£176.07	£211.28
40 - ASSEMBLY KIT BSD-3607031568.A12 3607031568	£205.02	£246.03
40/101 - CLUTCH ELEMENT BSD-3606445043.A9 3606445043	£102.57	£123.08
40/102 - OUTPUT SHAFT BSD-3603124034.A17 3603124034	£53.78	£64.54
40/109 - COMPRESSION SPRING BSD-3604619003.A28 3604619003	£5.58	£6.70
40/110 - RETAINING RING BSD-3600224053.A122 3600224053	£1.84	£2.21
40/115 - SEALING PLATE BSD-3601023011.A29 3601023011	£2.61	£3.13
40/116 - SETTING RING BSD-3600134014.A3 3600134014	£31.64	£37.97
40/119 - SUPPORT DISC BSD-3600190036.A77 3600190036	£9.11	£10.93
40/120 - CATCH DISK BSD-3603344047.A119 3603344047	£23.86	£28.63
40/127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A387 1903230006	£2.27	£2.72
40/128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A125 1903230008	£1.75	£2.10
40/140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A134 2916080012	£1.84	£2.21
60 - SWITCHING ELEMENT BSD-3601923022.A94 3601923022	£5.30	£6.36
61 - COMPRESSION SPRING BSD-3604611022.A88 3604611022	£3.72	£4.47
62 - PUSHER BSD-3601923029.A94 3601923029	£5.30	£6.36
71 - LIGHT CONDUCTOR BSD-3604460132.A21 3604460132	£2.94	£3.53
80 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A261 2603490018	£1.75	£2.10
82 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A101 2603414048	£1.84	£2.21
90 - RING BSD-3600106021.A0 3600106021	£2.80	£3.36
138 - THREADED RING BSD-3603344057.A5 3603344057	£37.27	£44.72
657 - SCREWDRIVER BSD-3607950027.A51 3607950027	£15.65	£18.78
659 - SUSPENSION LOOP BSD-3601923024.A34 3601923024	£11.30	£13.56
702 - SLIDE-IN ACCU PACKAGE BSD-2607335881.A14 2607335881	£161.73	£194.08
703 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah BSD-2607335655.A6 2607335655	£167.68	£201.22
751 - PROTECTIVE CAP BSD-3609202A29.A12 3609202A29	£13.78	£16.54
802 - DC MOTOR 14.4V BSD-3607031632.A4 3607031632	£264.25	£317.10
803 - WIRING HARNESS BSD-3609202B02.A5 3609202B02	£72.18	£86.62
804 - WIRING HARNESS BSD-3609202B03.A13 3609202B03	£19.91	£23.89
806 - CONTACT RETAINER BSD-1609280416.A9 1609280416	£10.61	£12.73
807 - SLIDE-IN ACCU PACKAGE 14.4V.2.4Ah BSD-2607335655.A7 2607335655	£167.68	£201.22
820 - CATCH DISK BSD-3603344047.A120 3603344047	£23.86	£28.63
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A43 2607225027	£126.12	£151.34
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN. BSD-2607225029.A119 2607225029	£92.47	£110.96
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A38 2607225031	£98.11	£117.73
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A101 2607225033	-
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN. BSD-2607225035.A29 2607225035	-
854 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A37 2607224435	£120.11	£144.13
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN. BSD-2607225039.A100 2607225039	£84.64	£101.57
855 - NAMEPLATE BSD-16070312BG.A0 16070312BG	£4.48	£5.37
866 - MANUFACTURER'S NAMEPLATE BSD-3601110520.A0 3601110520	£11.87	£14.24
890 - PARTS SET BSD-3600106027.A23 3600106027	£21.68	£26.01
890 - PARTS SET BSD-3600106028.A45 3600106028	£21.52	£25.83
890 - PARTS SET BSD-3600106029.A23 3600106029	£21.68	£26.01
890 - PARTS SET BSD-3600106030.A45 3600106030	£21.68	£26.01
890 - PARTS SET BSD-3600106031.A23 3600106031	£23.86	£28.63
890 - PARTS SET BSD-3600106032.A45 3600106032	£21.68	£26.01
890 - PARTS SET BSD-3600106033.A23 3600106033	£21.52	£25.83
