Bosch BACS-10.8 V-LI / 3601J92002 / EU 10.8 Volt Spare Parts

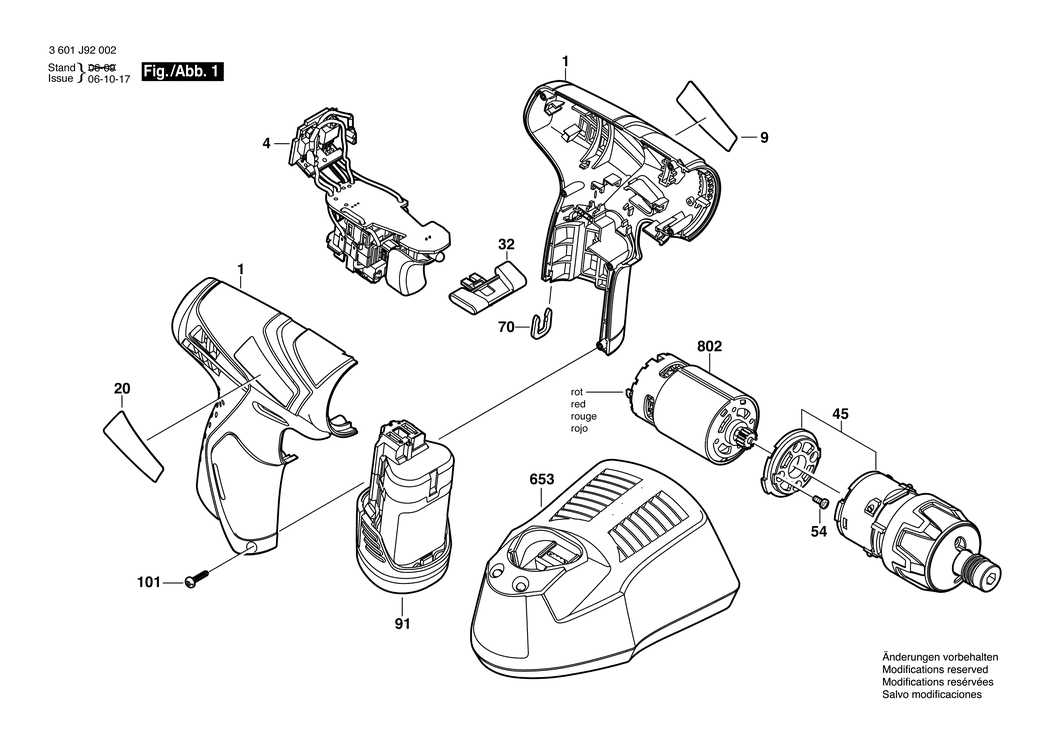

An exploded drawing and listing for the Bosch BACS-10.8 V-LI / 3601J92002 / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105121.A0 2605105121	£16.74	£20.09
4 - ELECTRONICS MODULE BSD-1607233353.A0 1607233353	£51.22	£61.47
9 - MANUFACTURER'S NAMEPLATE BACS 10.8V LI BSD-2601115178.A1 2601115178	£3.34	£4.01
20 - NAMEPLATE BACS 10.8V LI BSD-2601115179.A0 2601115179	£2.80	£3.36
32 - ADJUSTING SLIDE BSD-2601099172.A1 2601099172	£4.26	£5.11
45 - PLANETARY GEAR TRAIN BSD-2606200229.A4 2606200229	£45.67	£54.80
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A164 2603414048	£1.75	£2.10
70 - PICKUP CLIP BSD-2601250009.A2 2601250009	£1.75	£2.10
91 - BATTERY PACK 10.8V 1.3Ah. Li BSD-2607336669.A1 2607336669	£58.76	£70.51
101 - TORX OVAL-HEAD SCREW BSD-2603415206.A3 2603415206	£1.75	£2.10
653 - FAST CHARGER BERNER EU 230/10.8V. 30 MIN. BSD-2607225295.A1 2607225295	£51.22	£61.47
802 - DC MOTOR 10.8V BSD-2607022838.A6 2607022838	£31.64	£37.97
