Bosch S 10-A Power / 3601J92U01 / EU 10.8 Volt Spare Parts

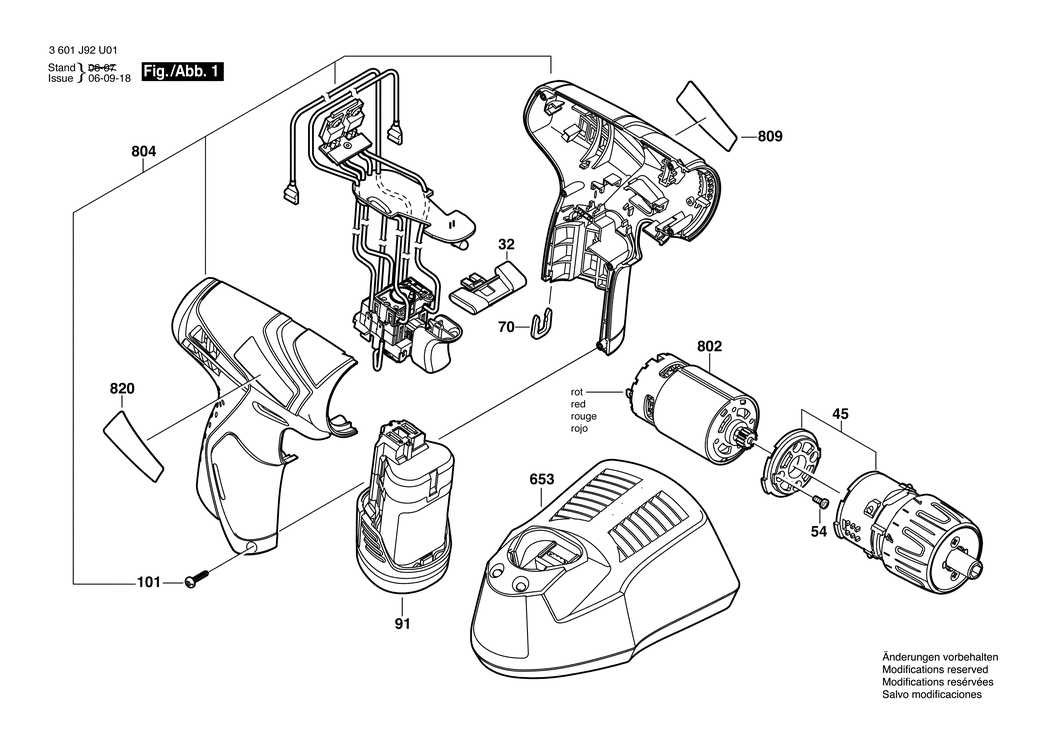

An exploded drawing and listing for the Bosch S 10-A Power / 3601J92U01 / EU 10.8 Volt

	Ex VAT	Inc VAT
32 - ADJUSTING SLIDE BSD-2601099153.A3 2601099153	£1.92	£2.30
45 - PLANETARY GEAR TRAIN BSD-2606200186.A1 2606200186	-
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A157 2603414048	£1.75	£2.10
70 - PICKUP CLIP BSD-2601250009.A14 2601250009	£1.75	£2.10
91 - BATTERY PACK 10.8V. 1.3Ah LI BSD-2607336017.A4 2607336017	£61.98	£74.38
101 - TORX OVAL-HEAD SCREW BSD-2603415205.A2 2603415205	-
653 - FAST CHARGER EU 10.8V. 30 MIN. AL 30-LI PL BSD-2607225197.A3 2607225197	£59.53	£71.44
802 - DC MOTOR 10.8V BSD-2607022840.A1 2607022840	£31.64	£37.97
804 - ELECTRONICS MODULE BSD-2607233074.A0 2607233074	-
809 - MANUFACTURER'S NAMEPLATE S 10-A Power BSD-2601115069.A0 2601115069	-
820 - NAMEPLATE BSD-2601115070.A0 2601115070	£3.34	£4.01
