Bosch BHD-2-24 / 3611BA0B00 / EU 230 Volt Spare Parts

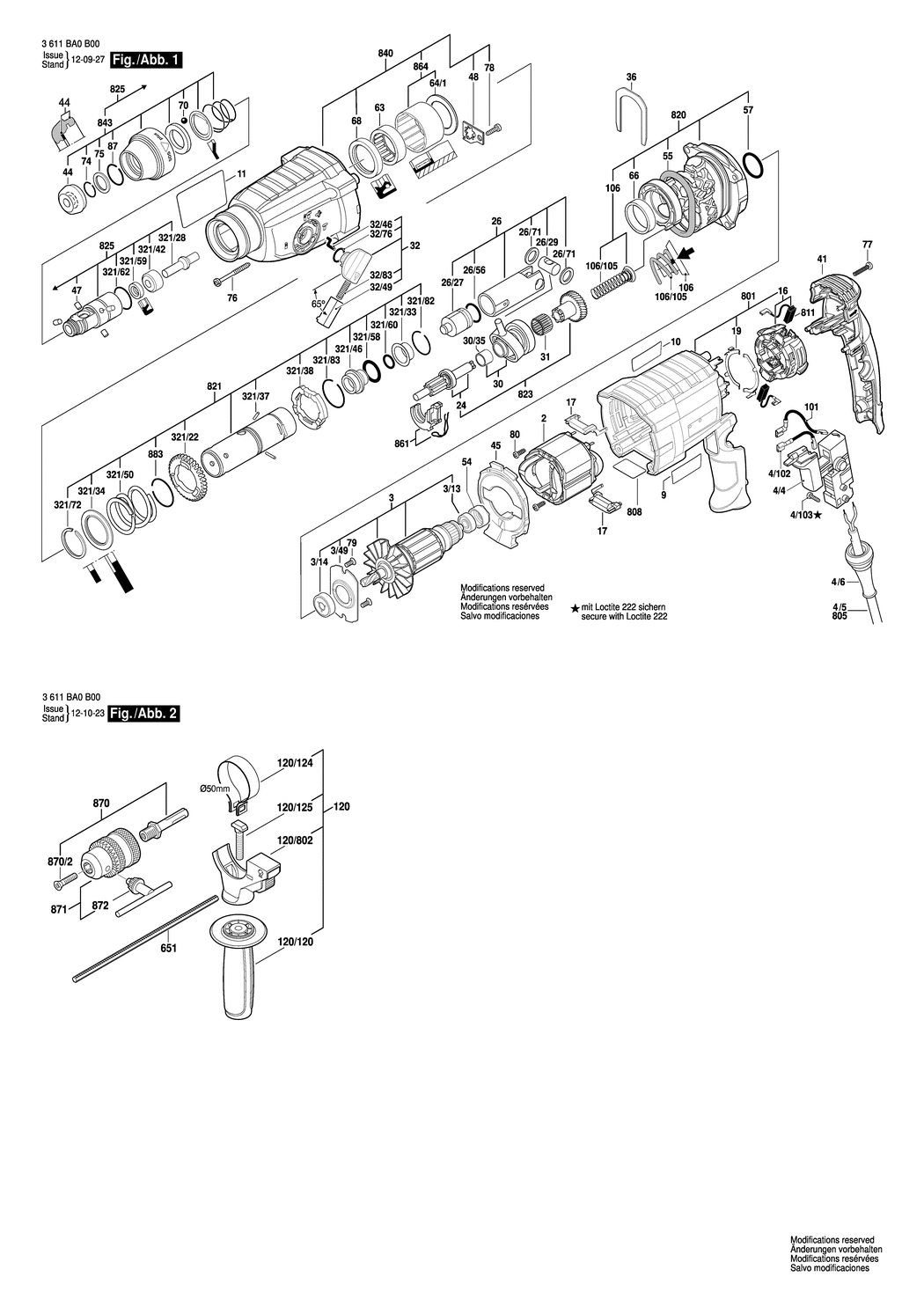

An exploded drawing and listing for the Bosch BHD-2-24 / 3611BA0B00 / EU 230 Volt

	Ex VAT	Inc VAT
2 - POLE SHOE 230V BSD-1614220227.A3 1614220227	£27.23	£32.68
3 - ARMATURE 230V BSD-1614010275.A0 1614010275	£57.02	£68.42
3/13 - GROOVE BALL BEARING 7x19x6 BSD-1610905032.A10 1610905032	£5.30	£6.36
3/14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A123 1610905048	£8.67	£10.41
3/49 - END SHIELD BSD-1615700044.A155 1615700044	£2.16	£2.59
4/4 - SWITCH BSD-1617200546.A4 1617200546	£21.68	£26.01
4/6 - GROMMET dia7.3-dia8.6x66 MM BSD-1600703034.A170 1600703034	£2.61	£3.13
4/102 - CONNECTING CABLE BSD-1614449015.A73 1614449015	£1.75	£2.10
4/103 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A381 1613435034	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-161111C00P.A0 161111C00P	£2.61	£3.13
10 - MANUFACTURER'S NAMEPLATE BSD-161111C00R.A0 161111C00R	£2.61	£3.13
11 - REFERENCE PLATE BSD-1611110W39.A0 1611110W39	£2.61	£3.13
16 - BRUSH PLATE BSD-1600A00137.A9 1600A00137	£18.96	£22.75
17 - SUPPRESSION FILTER BSD-1614465011.A176 1614465011	£6.52	£7.83
19 - SWITCH CONTACT BSD-1611329024.A174 1611329024	£1.75	£2.10
24 - TOOTHED SHAFT BSD-1617000556.A62 1617000556	£40.80	£48.96
26 - HAMMER PISTON BSD-1617000557.A14 1617000557	£36.63	£43.96
26/27 - STRIKER BSD-1610311018.A62 1610311018	£18.96	£22.75
26/29 - PISTON PIN BSD-1613105012.A46 1613105012	£3.72	£4.47
26/56 - O-RING BSD-1610210187.A70 1610210187	£2.16	£2.59
26/71 - SHIM WASHER 1.2 MM BSD-1610101011.A442 1610101011	£1.75	£2.10
30 - DRIVE BEARING BSD-1615819028.A71 1615819028	£33.45	£40.14
30/35 - PLAIN BEARING BSD-1610202024.A62 1610202024	£5.30	£6.36
31 - NEEDLE-ROLLER ASSEMBLY BSD-1610913016.A75 1610913016	£3.72	£4.47
32 - CLAMP HANDLE BSD-1612026101.A10 1612026101	£12.04	£14.45
32/46 - DRIVER PIN BSD-1614690002.A251 1614690002	£1.75	£2.10
32/49 - SWITCH BUTTON BSD-1612026035.A207 1612026035	£1.75	£2.10
32/76 - O-RING 10.5x2.7 MM BSD-1610210046.A422 1610210046	£2.16	£2.59
32/83 - COMPRESSION SPRING BSD-1614611006.A148 1614611006	£3.72	£4.47
36 - HOLDING PLATE BSD-1611016003.A75 1611016003	£2.16	£2.59
41 - HOUSING COVER BSD-161550044G.A2 161550044G	£11.30	£13.56
44 - PROTECTIVE CAP BSD-1610508047.A245 1610508047	£2.29	£2.75
45 - AIR-DEFLECTOR RING BSD-1610522015.A2 1610522015	£2.16	£2.59
47 - NEEDLE ROLLER BSD-1613100030.A11 1613100030	£2.80	£3.36
48 - TAB WASHER BSD-1611098008.A69 1611098008	£2.16	£2.59
54 - RUBBER BUSHING BSD-1610502016.A22 1610502016	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A96 1610290226	£3.72	£4.47
57 - O-RING 24.0x2.5 MM BSD-1610210068.A386 1610210068	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A255 1610910063	£5.58	£6.70
64/1 - SUPPORTING DISC BSD-1610190060.A31 1610190060	£2.16	£2.59
66 - PLAIN BEARING BSD-1610202021.A75 1610202021	£2.61	£3.13
68 - ROTARY SHAFT LIP SEAL BSD-1610283036.A84 1610283036	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A217 1903230013	£2.16	£2.59
74 - RETAINING RING BSD-1614601027.A73 1614601027	£1.75	£2.10
75 - RETAINING WASHER BSD-1610101629.A120 1610101629	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-1613435022.A3 1613435022	£1.75	£2.10
77 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A213 2603490024	£1.75	£2.10
78 - SCREW 4x16 BSD-2603490022.A487 2603490022	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A115 1613435023	£1.75	£2.10
80 - SCREW BSD-1613435043.A61 1613435043	£1.75	£2.10
87 - RETAINING RING DIN 7993-A22 BSD-2916540012.A108 2916540012	-
101 - CONNECTING CABLE BSD-1614449014.A78 1614449014	£2.16	£2.59
106 - PLAIN BEARING BSD-1614611022.A75 1614611022	£2.61	£3.13
106/105 - COMPRESSION SPRING BSD-1614611021.A18 1614611021	£1.75	£2.10
120 - AUXILIARY HANDLE BSD-1602025074.A2 1602025074	£18.96	£22.75
120/120 - AUXILIARY HANDLE BSD-1602025073.A1 1602025073	£6.52	£7.83
120/124 - CLAMPING BAND dia50 MM BSD-1611316021.A17 1611316021	£2.80	£3.36
120/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A48 1613490002	£4.26	£5.11
120/802 - SUPPORT CLAMP BSD-1617000476.A2 1617000476	£2.80	£3.36
321/22 - CYLINDRICAL GEAR BSD-1616312004.A116 1616312004	£12.04	£14.45
321/28 - STRIKER PIN BSD-1613124081.A58 1613124081	£10.10	£12.12
321/33 - HOLDING JACKET BSD-1610590014.A45 1610590014	£2.16	£2.59
321/34 - SUPPORTING DISC BSD-1610190067.A3 1610190067	£2.16	£2.59
321/37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A236 1613100019	£1.75	£2.10
321/38 - CATCH DISK BSD-1600A008AG.A98 1600A008AG	£3.72	£4.47
321/42 - THRUST RING BSD-1610102073.A33 1610102073	£5.30	£6.36
321/46 - GUIDE BUSHING BSD-1610390051.A54 1610390051	£6.52	£7.83
321/50 - COMPRESSION SPRING BSD-1614611020.A75 1614611020	£2.80	£3.36
321/58 - O-RING BSD-1610210178.A100 1610210178	£1.75	£2.10
321/59 - ROTARY SHAFT LIP SEAL BSD-1610283035.A25 1610283035	£5.58	£6.70
321/60 - O-RING 9.0x3.5 MM BSD-1610210176.A80 1610210176	£1.75	£2.10
321/62 - O-RING BSD-1610210179.A5 1610210179	£2.61	£3.13
321/72 - RETAINING RING BSD-1604601027.A126 1604601027	£1.75	£2.10
321/82 - RETAINING RING BSD-1614601034.A62 1614601034	£2.16	£2.59
321/83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A161 1604601028	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A509 1613001009	£3.72	£4.47
801 - MOTOR HOUSING BSD-1617000A4A.A2 1617000A4A	£37.27	£44.72
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000392.A178 1607000392	£21.52	£25.83
808 - NAMEPLATE BSD-160111A3HD.A134 160111A3HD	£2.61	£3.13
811 - CARBON-BRUSH SET BSD-1617000525.A245 1617000525	£11.30	£13.56
820 - INTERMEDIATE FLANGE BSD-16170006DX.A75 16170006DX	£30.28	£36.33
821 - PIPE BSD-1617000564.A5 1617000564	£63.50	£76.20
823 - TOOTHED SHAFT BSD-16170006ET.A1 16170006ET	£46.37	£55.64
825 - TOOL HOLDING FIXTURE BSD-1617000598.A43 1617000598	£57.02	£68.42
840 - GEAR HOUSING BSD-1617000A4C.A0 1617000A4C	£48.38	£58.06
843 - PROTECTION SLEEVE BSD-1617000582.A45 1617000582	£11.30	£13.56
861 - SWITCHING ELEMENT BSD-1615820097.A154 1615820097	£5.30	£6.36
864 - SUPPORTING DISC BSD-1617000A07.A34 1617000A07	£11.30	£13.56
870 - DRILL CHUCK SHANK 1/2. SDS-Plus BSD-1613523011.A66 1613523011	-
870/2 - COUNTERSUNK-HEAD SCREW M6x27-Kdia11 BSD-2603421207.A135 2603421207	£1.75	£2.10
871 - KEY CHUCK BSD-1608571089.A2 1608571089	£27.23	£32.68
872 - CHUCK WRENCH SG2 BSD-2607950007.A1767 2607950007	£6.52	£7.83
883 - RETAINING RING A22 DIN 7993 BSD-1604601028.A162 1604601028	£1.75	£2.10
