Dewalt DW729KN Type 1 Radial Arm Saw Spare Parts

Home Details Reviews Delivery

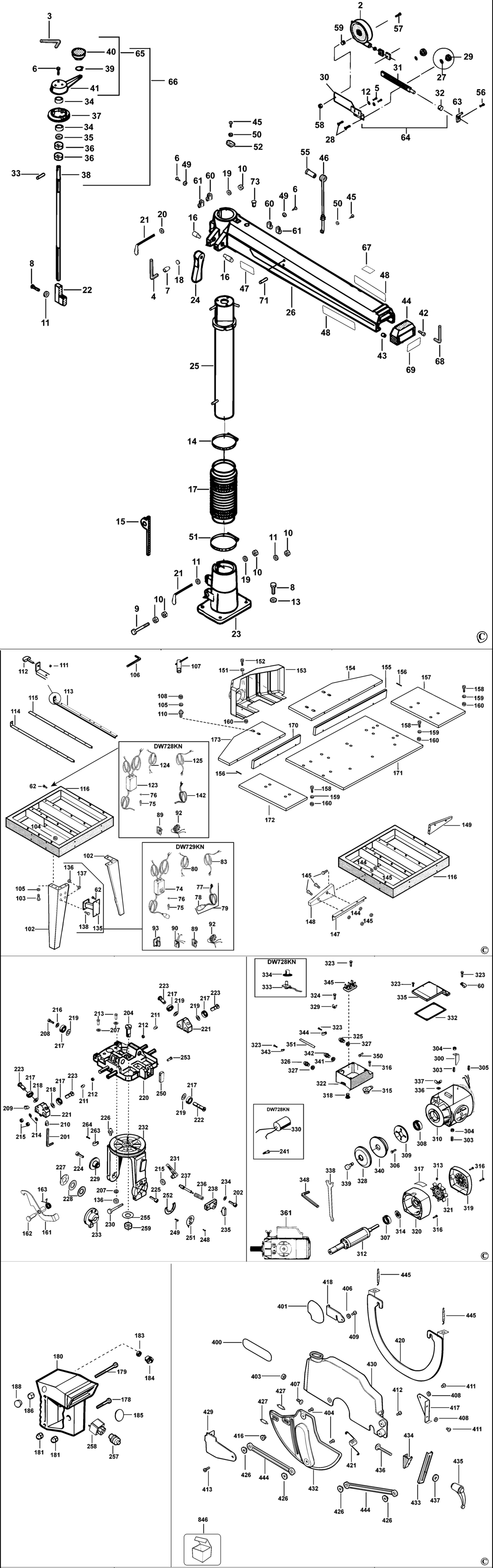

An exploded drawing and spare parts listing for the Dewalt DW729KN Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
2 - AUTO SAFETY RETURN BDE-863929-00.A0 863929-00	£139.42	£167.30
3 - WRENCH 6 MM BDE-860098-04.A17 860098-04	£1.66	£1.99
4 - HEX KEY 8 MM BDE-860098-05.A97 860098-05	£3.39	£4.07
5 - SCREW BDE-860093-14.A7 860093-14	£1.66	£1.99
6 - SCREW BDE-860093-02.A45 860093-02	£1.66	£1.99
7 - SCREW BDE-860088-07.A9 860088-07	£1.66	£1.99
8 - SCREW BDE-949702-05.A0 949702-05	£1.66	£1.99
9 - BOLT BDE-949702-09.A12 949702-09	£1.66	£1.99
10 - NUT BDE-860083-06.A0 860083-06	£1.66	£1.99
11 - WASHER BDE-860073-05.A74 860073-05	£1.66	£1.99
12 - WASHER BDE-860074-03.A427 860074-03	£1.66	£1.99
13 - WASHER BDE-860074-05.A41 860074-05	£1.66	£1.99
14 - CLIP BDE-949700-06.A0 949700-06	£7.40	£8.88
15 - PROTECTOR BDE-33024.A8 33024	£2.26	£2.71
16 - SCREW BDE-863900-00.A0 863900-00	£9.69	£11.63
17 - PROTECTOR BDE-863901-00.A13 863901-00	£48.48	£58.17
18 - INSERT BDE-863909-00.A0 863909-00	£1.66	£1.99
19 - WASHER BDE-860073-05.A73 860073-05	£1.66	£1.99
20 - WASHER BDE-860074-05.A42 860074-05	£1.66	£1.99
21 - HANDLE BDE-862069-00.A4 862069-00	£25.12	£30.15
22 - NUT BDE-862047-00.A9 862047-00	£76.38	£91.65
23 - COLUMN BDE-862237-02.A6 862237-02	£135.41	£162.49
24 - LATCH BDE-862241-00.A0 862241-00	£35.02	£42.02
25 - COLUMN BDE-N045687.A1 N045687	£539.69	£647.63
26 - ARM BDE-N045686.A2 N045686	£1201.31	£1441.57
27 - WASHER BDE-720959-00.A3 720959-00	£1.66	£1.99
28 - SCREW BDE-860301-00.A7 860301-00	£1.66	£1.99
29 - KNOB BDE-946469-00.A8 946469-00	£1.66	£1.99
30 - BRACKET BDE-863724-00.A19 863724-00	£16.52	£19.82
31 - NUT BDE-860083-04.A36 860083-04	£1.66	£1.99
32 - STOP RUBBER BDE-860786-00.A19 860786-00	£1.66	£1.99
33 - PIN BDE-330036-08.A13 330036-08	£1.66	£1.99
34 - BEARING BDE-949755-03.A3 949755-03	£19.48	£23.37
35 - WASHER BDE-863928-00.A13 863928-00	£2.32	£2.78
36 - NUT BDE-863930-00.A13 863930-00	£2.87	£3.44
37 - CAP BDE-862015-00.A9 862015-00	£11.18	£13.41
38 - SCREW BDE-865647-00.A3 865647-00	£38.48	£46.17
39 - CIRCLIP BDE-860079-02.A47 860079-02	£1.66	£1.99
40 - KNOB BDE-860018-00.A10 860018-00	£18.00	£21.60
41 - HANDLE BDE-173251.A0 173251	£25.12	£30.15
42 - SCREW BDE-860093-21.A4 860093-21	£1.66	£1.99
43 - BUMPER BDE-860429-00.A4 860429-00	£1.66	£1.99
44 - END CAP BDE-861219-01.A2 861219-01	£4.83	£5.80
45 - SCREW BDE-860238-00.A1 860238-00	£1.66	£1.99
46 - SUPPORT BDE-863912-00.A56 863912-00	£7.40	£8.88
48 - WARNING LABEL BDE-861738-03.A1 861738-03	£9.69	£11.63
49 - WASHER BDE-860073-00.A183 860073-00	£1.66	£1.99
50 - WASHER BDE-860074-01.A162 860074-01	£1.66	£1.99
51 - CLAMP BDE-949700-05.A13 949700-05	£9.69	£11.63
52 - POINTER BDE-860237-00.A73 860237-00	£3.92	£4.70
55 - PROTECTOR BDE-863259-00.A14 863259-00	£3.92	£4.70
56 - SCREW.TEMP BDE-860093-05.A25 860093-05	£1.66	£1.99
57 - SCREW BDE-860085-20.A17 860085-20	£1.66	£1.99
58 - NUT BDE-860083-04.A38 860083-04	£1.66	£1.99
59 - SPACER BDE-867190-01.A8 867190-01	£3.39	£4.07
60 - CLAMP BDE-860843-01.A1 860843-01	£1.66	£1.99
61 - BRACKET BDE-860843-02.A81 860843-02	£1.66	£1.99
62 - SCREW BDE-760998-00.A94 760998-00	£1.66	£1.99
63 - LOCK BDE-33612.A0 33612	£7.40	£8.88
64 - STOP BDE-869356-09.A1 869356-09	£197.90	£237.48
65 - HANDLE SA BDE-864655-01.A7 864655-01	£26.47	£31.76
66 - ELEVATING SA BDE-864462-03.A3 864462-03	£139.42	£167.30
67 - WARNING LABEL BDE-N034454.A4 N034454	£6.06	£7.27
68 - WRENCH 6 MM BDE-860098-04.A18 860098-04	£1.66	£1.99
69 - LABEL BDE-862598-02.A3 862598-02	£1.66	£1.99
71 - PIN BDE-330036-08.A14 330036-08	£1.66	£1.99
73 - PLUG BDE-865856-00.A6 865856-00	£1.66	£1.99
75 - INLET BDE-947322-01.A7 947322-01	£3.39	£4.07
76 - NUT BDE-947321-01.A4 947321-01	£1.66	£1.99
102 - LEG BDE-863866-05.A13 863866-05	£46.49	£55.79
103 - SCREW BDE-942831-00.A13 942831-00	£1.66	£1.99
104 - NUT RH BDE-860083-05.A176 860083-05	£1.66	£1.99
105 - WASHER BDE-860074-04.A8 860074-04	£1.66	£1.99
106 - WRENCH 4 MM BDE-949882-01.A100 949882-01	£1.66	£1.99
107 - SPANNER BDE-949752-01.A7 949752-01	£3.92	£4.70
108 - NUT BDE-949726-07.A12 949726-07	£1.66	£1.99
110 - STUD BDE-863880-00.A1 863880-00	£18.00	£21.60
111 - SPACER BDE-863882-00.A12 863882-00	£1.66	£1.99
112 - KNOB BDE-866974-02.A10 866974-02	£1.66	£1.99
113 - BRACKET RH BDE-863682-03.A2 863682-03	£18.00	£21.60
114 - BRACKET LH BDE-863683-03.A4 863683-03	£18.00	£21.60
115 - BRACKET BDE-863684-03.A2 863684-03	£16.52	£19.82
116 - BASE BDE-N038256.A1 N038256	£450.25	£540.30
135 - BRACKET BDE-863426-04.A3 863426-04	£30.98	£37.18
136 - NUT BDE-860083-03.A440 860083-03	£1.66	£1.99
137 - WASHER BDE-860074-02.A28 860074-02	£1.66	£1.99
138 - SCREW.TEMP BDE-760992-00.A26 760992-00	£1.66	£1.99
144 - WASHER M8 BDE-860073-03.A582 860073-03	£1.66	£1.99
145 - BOLT BDE-860085-03.A64 860085-03	£1.66	£1.99
147 - BRACKET BDE-863867-03.A1 863867-03	£8.08	£9.70
148 - BRACKET LH BDE-861238-02.A3 861238-02	£16.52	£19.82
149 - BRACKET RH BDE-861237-02.A6 861237-02	£16.52	£19.82
151 - WASHER BDE-941602-00.A86 941602-00	£1.66	£1.99
152 - SCREW BDE-860085-04.A31 860085-04	£1.66	£1.99
153 - DUST COLLECTOR BDE-N034822.A0 N034822	£161.89	£194.27
154 - ELEMENT BDE-N034815.A0 N034815	£102.45	£122.94
155 - GUIDE BDE-N034816.A3 N034816	£46.49	£55.79
156 - PIN BDE-N032917.A3 N032917	£1.66	£1.99
157 - TABLE BDE-N034814.A3 N034814	£53.46	£64.15
158 - SCREW BDE-949703-09.A1 949703-09	-
159 - WASHER M8 BDE-860073-03.A583 860073-03	£1.66	£1.99
160 - NUT BDE-860083-04.A37 860083-04	£1.66	£1.99
161 - LEVER BDE-N034823.A3 N034823	£25.12	£30.15
162 - BOLT BDE-N034670.A1 N034670	£7.40	£8.88
163 - SPRING BDE-N032405.A1 N032405	£2.87	£3.44
170 - GUIDE BDE-N037575.A2 N037575	£38.48	£46.17
171 - TABLE CENTRE BDE-N034817.A0 N034817	£179.88	£215.85
172 - TABLE BDE-N034811.A0 N034811	£56.97	£68.36
173 - ELEMENT BDE-N037576.A1 N037576	£80.46	£96.55
178 - SCREW BDE-949701-12.A1 949701-12	£1.66	£1.99
179 - SCREW BDE-860089-39.A32 860089-39	£1.66	£1.99
180 - HANDLE BDE-N031178.A6 N031178	£15.01	£18.01
181 - NUT BDE-860083-02.A20 860083-02	£1.66	£1.99
183 - NUT BDE-944590-00.A76 944590-00	£1.66	£1.99
184 - GLAND BDE-949747-07.A22 949747-07	£1.66	£1.99
185 - LABEL BDE-N032401.A7 N032401	£3.39	£4.07
186 - CAP BDE-949747-18.A11 949747-18	£1.66	£1.99
188 - CAP BDE-949747-18.A12 949747-18	£1.66	£1.99
201 - KEY BDE-938539-00.A67 938539-00	£1.66	£1.99
202 - SCREW BDE-860093-02.A44 860093-02	£1.66	£1.99
204 - PIN BDE-N045688.A2 N045688	£19.48	£23.37
207 - WASHER BDE-860075-00.A216 860075-00	£1.66	£1.99
208 - SCREW BDE-760219-00.A35 760219-00	£1.66	£1.99
209 - SCREW BDE-860088-27.A22 860088-27	£1.66	£1.99
210 - SCREW BDE-949853-03.A12 949853-03	£1.88	£2.26
211 - PIN BDE-860088-10.A27 860088-10	£1.66	£1.99
212 - NUT BDE-860083-03.A438 860083-03	£1.66	£1.99
213 - BOLT BDE-941959-00.A1 941959-00	£1.66	£1.99
214 - WASHER BDE-860074-04.A9 860074-04	£1.66	£1.99
215 - NUT RH BDE-860083-05.A177 860083-05	£1.66	£1.99
216 - WASHER BDE-860073-14.A81 860073-14	£1.66	£1.99
217 - BEARING BDE-861721-07.A6 861721-07	£7.40	£8.88
218 - WASHER BDE-863971-00.A28 863971-00	£1.66	£1.99
219 - WASHER BDE-860226-02.A6 860226-02	£1.66	£1.99
220 - ROLLER HEAD SA BDE-N045690.A0 N045690	£283.82	£340.58
221 - BRACKET BDE-862259-90.A12 862259-90	£39.97	£47.96
222 - SHAFT BDE-862380-00.A1 862380-00	£12.53	£15.04
223 - SHAFT BDE-863969-00.A3 863969-00	£6.06	£7.27
224 - SCREW BDE-949886-06.A1 949886-06	£1.88	£2.26
225 - SCREW BDE-949886-07.A12 949886-07	£2.87	£3.44
226 - NIPPLE BDE-860650-01.A10 860650-01	£1.66	£1.99
227 - WASHER BDE-863989-00.A13 863989-00	£1.66	£1.99
228 - WASHER BDE-863991-00.A0 863991-00	£1.66	£1.99
229 - TRUNNION BDE-862261-90.A12 862261-90	£18.00	£21.60
230 - SCREW BDE-949702-04.A13 949702-04	£1.66	£1.99
231 - LOCK HANDLE BDE-942518-00.A10 942518-00	£8.08	£9.70
232 - YOKE BDE-N045689.A1 N045689	£224.87	£269.84
233 - TRUNNION BDE-862260-90.A1 862260-90	£45.47	£54.56
234 - WASHER M8 BDE-860073-03.A584 860073-03	£1.66	£1.99
235 - KNOB BDE-946469-00.A9 946469-00	£1.66	£1.99
236 - SPRING BDE-860112-11.A16 860112-11	£1.66	£1.99
237 - PIN BDE-863977-00.A16 863977-00	£15.01	£18.01
238 - SUPPORT BDE-860835-01.A12 860835-01	£25.12	£30.15
248 - SCREW BDE-860238-04.A5 860238-04	£1.66	£1.99
249 - SCREW BDE-860205-06.A19 860205-06	£1.66	£1.99
250 - CLAMP BDE-N037691.A1 N037691	£11.18	£13.41
251 - POINTER BDE-862721-01.A56 862721-01	£6.06	£7.27
252 - POINTER BDE-860829-00.A71 860829-00	£6.06	£7.27
253 - SCREW BDE-98104-16.A1 98104-16	£1.66	£1.99
255 - WASHER BDE-N039458.A2 N039458	£1.88	£2.26
257 - BUTTON START BDE-N031511.A2 N031511	£53.46	£64.15
258 - CONTACT BDE-N031510.A2 N031510	£45.14	£54.17
259 - NUT BDE-N034810.A2 N034810	£6.06	£7.27
263 - CLAMP BDE-860843-01.A0 860843-01	£1.66	£1.99
264 - SCREW BDE-860094-03.A231 860094-03	£1.66	£1.99
300 - STOP BDE-N034825.A0 N034825	£7.40	£8.88
303 - PIN BDE-860088-10.A28 860088-10	£1.66	£1.99
304 - NUT BDE-860083-03.A439 860083-03	£1.66	£1.99
305 - SCREW BDE-941880-00.A57 941880-00	£1.66	£1.99
306 - SCREW BDE-949889-02.A14 949889-02	£1.66	£1.99
307 - BEARING BDE-868768-07.A41 868768-07	£8.08	£9.70
308 - BEARING BDE-868768-11.A4 868768-11	£35.02	£42.02
309 - FLANGE BDE-862003-00.A1 862003-00	£7.40	£8.88
313 - SCREW BDE-860088-27.A24 860088-27	£1.66	£1.99
314 - RING BDE-860080-02.A12 860080-02	£1.66	£1.99
315 - GASKET BDE-863410-01.A7 863410-01	£1.66	£1.99
316 - SCREW BDE-949870-04.A4 949870-04	£1.66	£1.99
317 - LABEL BDE-863503-00.A1 863503-00	£2.32	£2.78
318 - GROMMET BDE-944653-00.A3 944653-00	£3.39	£4.07
319 - END CAP BDE-862124-01.A7 862124-01	£18.00	£21.60
320 - COVER BDE-862165-00.A5 862165-00	£25.12	£30.15
321 - FAN BDE-862126-00.A4 862126-00	£35.02	£42.02
322 - HOUSING BDE-862217-92.A11 862217-92	£16.52	£19.82
323 - SCREW BDE-860094-03.A234 860094-03	£1.66	£1.99
324 - SCREW BDE-860094-01.A68 860094-01	£1.66	£1.99
325 - CAP BDE-949747-18.A17 949747-18	£1.66	£1.99
326 - CAP BDE-949747-18.A18 949747-18	£1.66	£1.99
327 - NUT BDE-944590-00.A79 944590-00	£1.66	£1.99
328 - OUTER FLANGE >182011 BDE-N071379.A3 N071379	£46.49	£55.79
328 - FLANGE SET SA BDE-N413359.A5 N413359	£86.95	£104.34
329 - WASHER SPRING BDE-944650-00.A5 944650-00	£1.66	£1.99
332 - GASKET BDE-863716-00.A10 863716-00	£3.92	£4.70
335 - COVER BDE-862219-00.A15 862219-00	£25.12	£30.15
336 - WASHER BDE-860074-04.A118 860074-04	£1.66	£1.99
337 - NUT BDE-949758-02.A2 949758-02	£1.66	£1.99
338 - WRENCH PIN BDE-938733.A162 938733	£7.40	£8.88
339 - BOLT BDE-N034818.A1 N034818	£53.46	£64.15
340 - INNER FLANGE BDE-N071378.A3 N071378	£42.48	£50.98
340 - FLANGE SET SA BDE-N413359.A2 N413359	£86.95	£104.34
341 - NUT BDE-944590-00.A23 944590-00	£1.66	£1.99
342 - RETAINER BDE-944654-00.A16 944654-00	£1.66	£1.99
343 - STRAP BDE-123106-00.A35 123106-00	£1.66	£1.99
344 - STRAP BDE-860843-03.A19 860843-03	£1.66	£1.99
345 - CONNECTOR BDE-946085-00.A13 946085-00	£1.88	£2.26
348 - HEX. KEY 10 MM BDE-N039459.A3 N039459	£20.50	£24.60
350 - PROTECTOR BDE-863259-00.A28 863259-00	£3.92	£4.70
351 - CABLE BDE-949863-57.A12 949863-57	£15.01	£18.01
400 - LABEL BDE-869125-00.A8 869125-00	£3.92	£4.70
401 - TUBE EXTRACTION BDE-864095-00.A20 864095-00	£8.08	£9.70
404 - SCREW BDE-249412-20.A32 249412-20	£1.66	£1.99
406 - WASHER BDE-860074-01.A57 860074-01	£1.66	£1.99
407 - WASHER BDE-860074-02.A158 860074-02	£1.66	£1.99
408 - WASHER BDE-860074-03.A132 860074-03	£1.66	£1.99
409 - SCREW BDE-943023-00.A4 943023-00	£1.66	£1.99
411 - SCREW BDE-760273-00.A40 760273-00	£1.66	£1.99
413 - SCREW BDE-860094-12.A9 860094-12	£1.66	£1.99
416 - BUSH BDE-863705-00.A70 863705-00	£1.88	£2.26
417 - BRACKET BDE-863707-01.A66 863707-01	£9.69	£11.63
418 - SQUARE BDE-863708-00.A5 863708-00	£11.18	£13.41
420 - PROTECTOR BDE-863711-02.A9 863711-02	£16.52	£19.82
421 - SPRING BDE-861222-00.A1 861222-00	£2.87	£3.44
426 - WASHER BDE-864053-00.A33 864053-00	£3.92	£4.70
427 - ROLLER BDE-864054-00.A41 864054-00	£1.88	£2.26
429 - SQUARE BDE-863793-01.A1 863793-01	£3.92	£4.70
430 - GUARD BDE-N036977.A12 N036977	£67.48	£80.98
432 - LOWER GUARD SA BDE-869325-00.A8 869325-00	£46.49	£55.79
433 - GUARD BDE-863621-00.A10 863621-00	£6.06	£7.27
434 - BRACKET BDE-863620-00.A3 863620-00	£6.06	£7.27
435 - HANDLE BDE-861840-00.A28 861840-00	£8.08	£9.70
436 - SCREW BDE-860301-16.A17 860301-16	£1.66	£1.99
437 - WASHER BDE-941602-00.A7 941602-00	£1.66	£1.99
444 - LEVER BDE-862089-01.A9 862089-01	£18.00	£21.60
445 - SPRING BDE-861221-00.A35 861221-00	£2.87	£3.44
846 - GUARD BDE-N045265 N045265	£479.76	£575.71

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW729KN Type 1 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt DW729KN Type 1 Radial Arm Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt DW729KN Type 1 Radial Arm Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
