Dewalt DW721KN Type 1 Radial Arm Saw Spare Parts

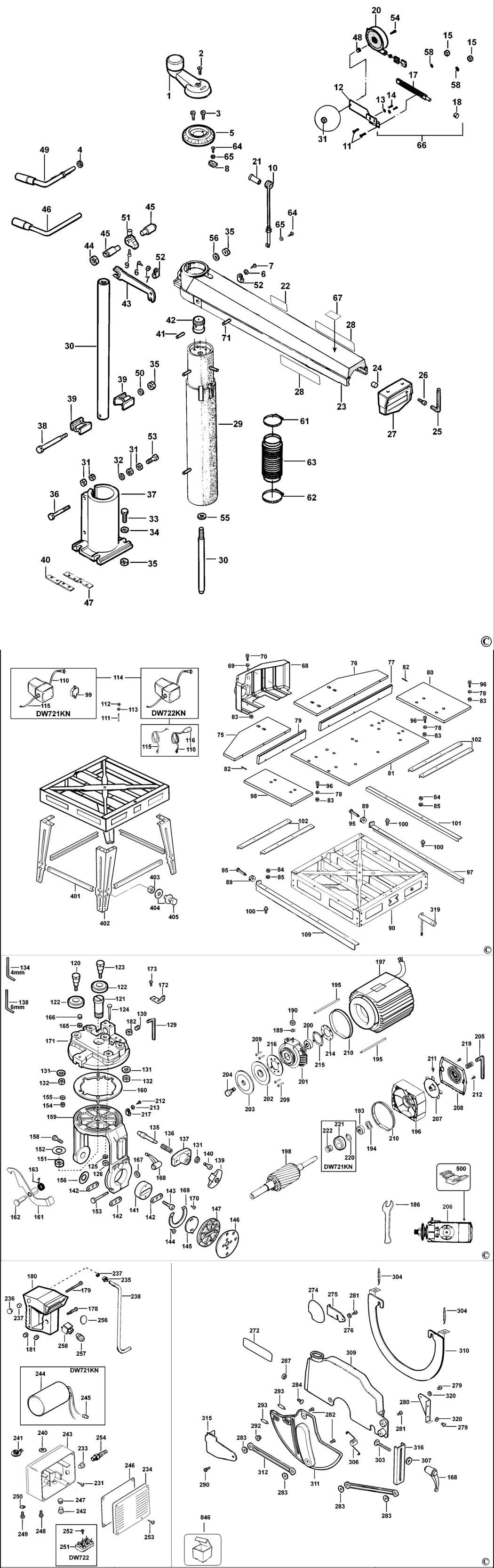

An exploded drawing and spare parts listing for the Dewalt DW721KN Type 1 Radial Arm Saw

	Ex VAT	Inc VAT
1 - KNOB SA BDE-860792-00.A20 860792-00	£3.80	£4.56
2 - SCREW BDE-934401-00.A55 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A78 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A3 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A42 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A18 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A182 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A72 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-11.A10 860085-11	£1.50	£1.80
10 - SUPPORT BDE-863912-00.A57 863912-00	£7.18	£8.62
11 - SCREW BDE-860301-16.A62 860301-16	£1.50	£1.80
12 - BRACKET BDE-863724-00.A20 863724-00	£16.03	£19.24
13 - WASHER BDE-860074-03.A431 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-14.A6 860093-14	£1.50	£1.80
15 - NUT BDE-860083-03.A443 860083-03	£1.50	£1.80
17 - BAR BDE-864080-00.A2 864080-00	-
18 - TIP BDE-864081-00.A2 864081-00	£7.18	£8.62
20 - AUTO SAFETY RETURN BDE-863929-00.A1 863929-00	£135.36	£162.43
21 - PROTECTOR BDE-863259-00.A15 863259-00	£3.80	£4.56
22 - RATING PLATE GB BDE-N034446 N034446	£5.72	£6.87
23 - ARM BDE-N045681.A0 N045681	£804.38	£965.26
24 - BUMPER BDE-860429-00.A3 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A73 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A26 860093-05	£1.50	£1.80
27 - CAP BDE-861111-01.A10 861111-01	£17.48	£20.97
28 - BRAND LABEL BDE-861738-01.A1 861738-01	£7.85	£9.42
29 - COLUMN SA BDE-N045682.A4 N045682	£336.69	£404.03
30 - TUBE ELEVATING SA BDE-860791-00.A16 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A33 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A575 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A47 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A8 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A178 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A21 860085-02	£1.82	£2.19
37 - BASE SA BDE-860909-03.A2 860909-03	£104.31	£125.17
38 - SCREW BDE-860086-00.A45 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A49 860065-00	£1.82	£2.19
40 - SPACER LH BDE-860273-00.A38 860273-00	£10.85	£13.02
41 - PIN BDE-860096-06.A10 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A59 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A16 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A1 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A59 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A35 864723-01	£34.00	£40.80
47 - SPACER RH BDE-860273-02.A1 860273-02	£10.85	£13.02
48 - SPACER BDE-867190-01.A10 867190-01	£3.30	£3.96
49 - LEVER BDE-860795-00.A15 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A6 860074-04	£1.50	£1.80
51 - LATCH BDE-861240-00.A2 861240-00	£71.44	£85.73
52 - BRACKET BDE-860843-02.A82 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A27 949853-11	£37.35	£44.82
54 - SCREW BDE-860093-00.A60 860093-00	£1.50	£1.80
55 - WASHER BDE-860226-01.A48 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A41 860802-90	£1.50	£1.80
58 - WASHER BDE-720959-00.A4 720959-00	£1.50	£1.80
61 - CLIP BDE-949700-06.A1 949700-06	£7.18	£8.62
62 - STRAP BDE-949700-07.A21 949700-07	£9.41	£11.29
63 - PROTECTOR BDE-863324-00.A13 863324-00	£25.70	£30.84
64 - SCREW BDE-860238-03.A34 860238-03	£1.50	£1.80
65 - WASHER BDE-860074-01.A164 860074-01	£1.50	£1.80
66 - STOP BDE-869356-09.A0 869356-09	£192.14	£230.57
67 - WARNING LABEL BDE-N034454.A2 N034454	£5.88	£7.06
68 - DUST COLLECTOR BDE-N032402.A0 N032402	£131.46	£157.75
69 - WASHER BDE-941602-00.A84 941602-00	£1.50	£1.80
70 - SCREW BDE-860085-04.A34 860085-04	£1.50	£1.80
71 - PIN BDE-330036-08.A15 330036-08	£1.50	£1.80
75 - ELEMENT BDE-N027622.A2 N027622	£74.15	£88.98
76 - ELEMENT BDE-N030449.A2 N030449	£96.55	£115.86
77 - GUIDE BDE-N027624.A2 N027624	£38.80	£46.56
78 - WASHER M8 BDE-860073-03.A576 860073-03	£1.50	£1.80
79 - GUIDE BDE-N029923.A4 N029923	£38.80	£46.56
80 - TABLE BDE-N027626.A2 N027626	£55.30	£66.36
81 - TABLE BDE-N027625.A2 N027625	£157.18	£188.61
82 - PIN BDE-N032917.A4 N032917	£1.50	£1.80
83 - NUT BDE-860083-14.A56 860083-14	£1.50	£1.80
84 - NUT BDE-860083-04.A34 860083-04	£1.50	£1.80
85 - WASHER BDE-860074-03.A430 860074-03	£1.50	£1.80
89 - NUT BDE-864078-00.A4 864078-00	£3.80	£4.56
90 - BASE BDE-869320-00.A0 869320-00	£958.68	£1150.41
95 - SCREW BDE-N035392.A4 N035392	£7.85	£9.42
96 - SCREW BDE-949703-09.A3 949703-09	£1.50	£1.80
97 - SUPPORT BDE-N030068.A4 N030068	£45.14	£54.17
98 - EXTENSION BDE-N027627.A3 N027627	£45.14	£54.17
99 - OVERLOAD PROTECTOR GB BDE-868878-06 868878-06	£36.42	£43.70
100 - SCREW.SPECIAL BDE-868459-00.A8 868459-00	£3.30	£3.96
101 - TABLE SUPPORT BDE-N034713.A3 N034713	£34.00	£40.80
102 - SUPPORT BRACKET BDE-863130-04.A1 863130-04	£10.85	£13.02
109 - SUPPORT LH BDE-N033664.A1 N033664	£45.14	£54.17
110 - CABLE SA GB BDE-861278-00.A2 861278-00	-
111 - SCREW BDE-949701-03.A0 949701-03	£1.50	£1.80
112 - NUT BDE-860083-02.A19 860083-02	£1.50	£1.80
113 - WASHER BDE-860073-01.A33 860073-01	£1.50	£1.80
114 - SWITCHBOX SA GB BDE-N033753 N033753	-
115 - CABLE BDE-861896-00.A1 861896-00	£113.07	£135.68
120 - SHAFT BDE-760421-00.A1 760421-00	£7.85	£9.42
121 - PIN BDE-N045683.A0 N045683	£17.48	£20.97
122 - BEARING BDE-860154-00.A1 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A62 760417-00	£10.85	£13.02
124 - SCREW BDE-860093-20.A28 860093-20	£1.50	£1.80
124 - SCREW.TEMP BDE-860085-26.A1 860085-26	£1.50	£1.80
125 - WASHER BDE-860074-02.A26 860074-02	£1.50	£1.80
125 - WASHER BDE-931429-00.A12 931429-00	£3.30	£3.96
126 - NUT BDE-860083-03.A442 860083-03	£1.50	£1.80
129 - KEY BDE-938539-00.A68 938539-00	£1.50	£1.80
130 - SCREW BDE-941880-00.A59 941880-00	£1.50	£1.80
131 - WASHER BDE-860074-03.A428 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A62 860083-08	£1.50	£1.80
134 - WRENCH 4 MM BDE-949882-01.A99 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A18 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A18 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A0 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A16 860098-04	£1.50	£1.80
139 - KNOB BDE-942453-00.A30 942453-00	£3.80	£4.56
140 - SCREW BDE-860093-00.A59 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A47 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A13 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-00.A58 860093-00	£1.50	£1.80
144 - SCREW BDE-860531-00.A17 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A58 862721-01	£5.88	£7.06
146 - PLATE BDE-N032399.A0 N032399	£7.85	£9.42
147 - SHIELD BDE-860827-00.A60 860827-00	£14.57	£17.48
151 - NUT BDE-N032397.A4 N032397	£3.30	£3.96
152 - WASHER BDE-N035393.A0 N035393	£1.82	£2.19
153 - SCREW BDE-860086-11.A31 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A91 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A5 720959-00	£1.50	£1.80
156 - DISC BDE-864160-00.A21 864160-00	£1.50	£1.80
158 - SCREW BDE-864058-00.A18 864058-00	£5.88	£7.06
159 - YOKE BDE-N045684.A13 N045684	£96.55	£115.86
160 - RING BDE-863157-00.A0 863157-00	£14.57	£17.48
161 - LEVER BDE-N030650.A4 N030650	£25.70	£30.84
162 - BOLT BDE-N034670.A3 N034670	£7.18	£8.62
163 - SPRING BDE-N032405.A2 N032405	£2.78	£3.34
165 - WASHER BDE-860073-01.A34 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A58 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A429 860074-03	£1.50	£1.80
168 - LEVER BDE-861840-03.A12 861840-03	£7.29	£8.75
169 - POINTER BDE-860829-00.A70 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A17 860205-06	£1.50	£1.80
171 - ROLLER HEAD BDE-N045685.A0 N045685	£65.52	£78.62
172 - BRACKET BDE-863726-00.A0 863726-00	£2.26	£2.71
173 - SCREW BDE-860094-02.A30 860094-02	£1.50	£1.80
178 - SCREW BDE-949701-12.A0 949701-12	£1.50	£1.80
179 - SCREW BDE-860089-39.A34 860089-39	£1.50	£1.80
180 - HANDLE BDE-N031178.A7 N031178	£14.57	£17.48
181 - NUT BDE-860083-02.A18 860083-02	£1.50	£1.80
182 - NUT M6 BDE-860083-12.A147 860083-12	£1.50	£1.80
186 - SPANNER 10-13MM BDE-949751-07.A26 949751-07	£3.80	£4.56
189 - WASHER M8 BDE-860073-03.A577 860073-03	£1.50	£1.80
190 - NUT BDE-860083-04.A39 860083-04	£1.50	£1.80
193 - BEARING BDE-868768-07.A39 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A13 860080-02	£1.50	£1.80
195 - BOLT BDE-860446-01.A6 860446-01	£1.50	£1.80
196 - END CAP SA BDE-861863-00.A11 861863-00	£55.30	£66.36
197 - STATOR SA 230V GB BDE-868401-01.A0 868401-01	£301.55	£361.86
198 - ROTOR 1 PH BDE-N037012.A0 N037012	£113.07	£135.68
200 - BEARING BDE-868768-10.A60 868768-10	£14.57	£17.48
201 - HOUSING BDE-862162-00.A21 862162-00	£24.39	£29.27
202 - FLANGE BDE-N026918.A1 N026918	£30.08	£36.10
203 - OUTER FLANGE BDE-N071377.A4 N071377	£41.24	£49.49
204 - BLADE BOLT BDE-869245-00.A72 869245-00	£3.54	£4.25
205 - WRENCH 6 MM BDE-860098-04.A19 860098-04	£1.50	£1.80
206 - NO LONGER AVAILABLE GB BDE-000000-00.A63406 000000-00	-
207 - FAN BDE-945841-00.A44 945841-00	£2.78	£3.34
208 - END CAP BDE-N027614.A2 N027614	£7.85	£9.42
209 - SCREW BDE-860538-00.A29 860538-00	£1.50	£1.80
210 - SEAL BDE-860718-00.A41 860718-00	£7.18	£8.62
211 - SCREW BDE-860088-25.A17 860088-25	£1.50	£1.80
212 - SCREW BDE-860094-01.A67 860094-01	£1.50	£1.80
213 - WASHER BDE-933652-00.A75 933652-00	£1.50	£1.80
214 - CAP BDE-123302-01.A11 123302-01	£3.80	£4.56
215 - GASKET BDE-863878-00.A33 863878-00	£3.30	£3.96
216 - PLATE BDE-864085-01.A15 864085-01	£5.88	£7.06
217 - CLAMP BDE-860843-01.A4 860843-01	£1.50	£1.80
219 - SPRING BDE-869246-00.A6 869246-00	£1.50	£1.80
220 - CIRCLIP BDE-949727-06.A10 949727-06	£1.50	£1.80
221 - BRAKE ADAPTER BDE-861336-05.A9 861336-05	£10.85	£13.02
222 - SPRING BDE-861338-05.A9 861338-05	£1.50	£1.80
231 - SCREW BDE-860094-03.A230 860094-03	£1.50	£1.80
233 - NUT BDE-N033752.A3 N033752	£1.50	£1.80
234 - COVER BDE-868961-00.A5 868961-00	£5.88	£7.06
235 - GLAND BDE-949747-07.A20 949747-07	£1.50	£1.80
236 - CAP BDE-949747-18.A16 949747-18	£1.50	£1.80
237 - NUT BDE-944590-00.A77 944590-00	£1.50	£1.80
238 - LEAD BDE-N032403.A3 N032403	£7.85	£9.42
240 - GROMMET BDE-868963-00.A5 868963-00	£1.50	£1.80
241 - GROMMET BDE-944652-00.A65 944652-00	£4.69	£5.63
242 - RETAINER BDE-868965-01.A2 868965-01	£1.50	£1.80
243 - HOUSING BDE-N036361.A1 N036361	£7.85	£9.42
244 - CAPACITOR GB BDE-949772-50.A4 949772-50	£14.57	£17.48
245 - CONNECTOR BDE-861257-00.A7 861257-00	£1.50	£1.80
246 - GASKET BDE-868962-00.A1 868962-00	£1.50	£1.80
247 - NUT BDE-868965-00.A3 868965-00	£1.50	£1.80
248 - SCREW.TEMP BDE-860094-00.A30 860094-00	£1.50	£1.80
249 - SCREW BDE-860094-02.A29 860094-02	£1.50	£1.80
250 - WASHER BDE-933652-00.A76 933652-00	£1.50	£1.80
253 - SCREW BDE-860084-04.A18 860084-04	£1.50	£1.80
254 - INLET BDE-947322-01.A9 947322-01	£3.30	£3.96
256 - LABEL BDE-N032401.A5 N032401	£3.30	£3.96
257 - BUTTON START BDE-N031511.A0 N031511	£51.90	£62.28
258 - CONTACT BDE-N031510.A4 N031510	£45.14	£54.17
272 - LABEL BDE-869125-00.A4 869125-00	£3.80	£4.56
274 - TUBE EXTRACTION BDE-864095-00.A39 864095-00	£7.85	£9.42
275 - BRACKET BDE-N032220.A3 N032220	£9.41	£11.29
276 - WASHER BDE-860074-01.A161 860074-01	£1.50	£1.80
279 - SCREW BDE-943023-00.A25 943023-00	£1.50	£1.80
280 - BRACKET BDE-863707-01.A16 863707-01	£9.41	£11.29
281 - SCREW BDE-760998-00.A93 760998-00	£1.50	£1.80
282 - SCREW BDE-249412-20.A98 249412-20	£1.50	£1.80
283 - WASHER BDE-864053-00.A36 864053-00	£3.80	£4.56
284 - SCREW BDE-860301-16.A61 860301-16	£1.50	£1.80
287 - NUT BDE-860083-03.A437 860083-03	£1.50	£1.80
290 - SCREW.TEMP BDE-860085-09.A20 860085-09	£1.50	£1.80
292 - BUSH BDE-863705-00.A1 863705-00	£1.82	£2.19
293 - ROLLER BDE-864054-00.A38 864054-00	£1.82	£2.19
303 - SCREW.TEMP BDE-949891-01.A4 949891-01	£1.50	£1.80
304 - SPRING BDE-861221-00.A14 861221-00	£2.78	£3.34
306 - SPRING BDE-861239-00.A20 861239-00	£5.88	£7.06
307 - WASHER BDE-860076-04.A0 860076-04	£1.50	£1.80
309 - GUARD BDE-N032412.A1 N032412	£80.98	£97.18
310 - PROTECTOR BDE-863773-02.A18 863773-02	£14.57	£17.48
311 - GUARD BDE-862426-00.A22 862426-00	£16.03	£19.24
312 - LEVER BDE-862082-01.A1 862082-01	£10.85	£13.02
315 - BRACKET BDE-863205-02.A18 863205-02	£3.80	£4.56
316 - BRACKET BDE-863437-00.A3 863437-00	£19.90	£23.88
319 - SPANNER BOX BDE-869235-00.A71 869235-00	£17.48	£20.97
320 - WASHER BDE-860073-01.A32 860073-01	£1.50	£1.80
401 - CROSSBAR LONG BDE-860009-09.A2 860009-09	£25.70	£30.84
402 - LEG BDE-860008-00.A29 860008-00	£58.69	£70.43
403 - NUT BDE-860083-04.A40 860083-04	£1.50	£1.80
404 - WASHER M8 BDE-860073-03.A578 860073-03	£1.50	£1.80
405 - SCREW BDE-860085-04.A33 860085-04	£1.50	£1.80
500 - REPAIR KIT GB BDE-N107595 N107595	£454.04	£544.85
846 - GUARD BDE-N045264.A2 N045264	£258.10	£309.72

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW721KN Type 1 Radial Arm Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
