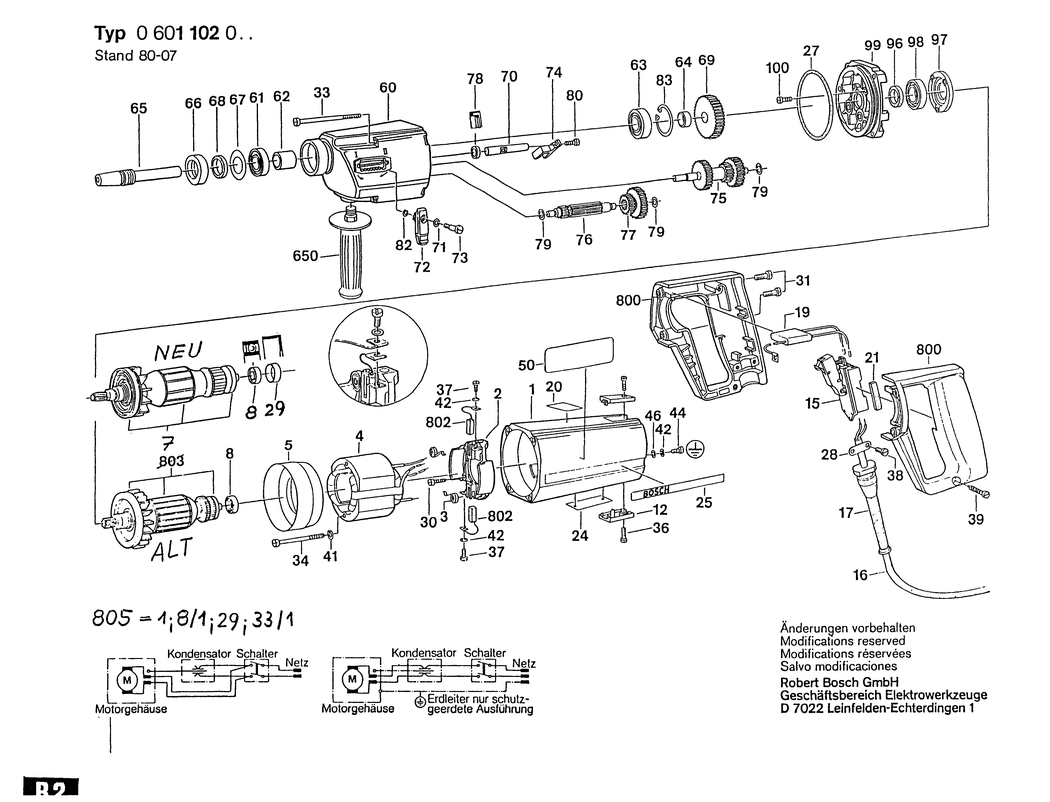

1 - MOTOR HOUSING
BSD-3605108094.A50
3605108094
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336005.A56
1604336005
|
-
|
|
|
|
3 - SPIRAL SPRING
BSD-1604652001.A47
1604652001
|
-
|
|
|
|
4 - FIELD 220-230V
BSD-1604220082.A36
1604220082
|
-
|
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209002.A94
1600209002
|
£5.30
|
£6.36
|
|
|
7 - ARMATURE 220-240V
BSD-1609991109.A26
1609991109
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A272
2600905032
|
£5.57
|
£6.68
|
|
|
12 - SEALING CAP
BSD-3605500057.A177
3605500057
|
-
|
|
|
|
15 - SWITCH
BSD-1607200078.A44
1607200078
|
£42.84
|
£51.41
|
|
|
15 - SWITCH
BSD-1607200037.A90
1607200037
|
£47.95
|
£57.54
|
|
|
16 - POWER SUPPLY CORD
BSD-3607030489.A20
3607030489
|
£31.64
|
£37.97
|
|
|
17 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1056
3600703011
|
£2.94
|
£3.53
|
|
|
19 - SUPPRESSION CAPACITOR
BSD-1607328012.A37
1607328012
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-1601110058.A244
1601110058
|
£1.75
|
£2.10
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A337
1602381001
|
-
|
|
|
|
24 - NAMEPLATE
BSD-160111A3H3.A412
160111A3H3
|
£2.74
|
£3.29
|
|
|
25 - MANUFACTURER'S NAMEPLATE
BSD-1601110004.A136
1601110004
|
-
|
|
|
|
27 - O-RING 74.0x3.0 MM
BSD-1600210006.A26
1600210006
|
£1.84
|
£2.21
|
|
|
28 - FASTENING CLAMP
BSD-1601302014.A988
1601302014
|
£2.74
|
£3.29
|
|
|
29 - INTERMEDIATE RING
BSD-1600502011.A30
1600502011
|
£2.74
|
£3.29
|
|
|
30 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1754
2910211019
|
£1.84
|
£2.21
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A60
2910021154
|
£1.75
|
£2.10
|
|
|
33 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A30
1603435006
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-8.8
BSD-2910021176.A120
2910021176
|
-
|
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A366
2910021125
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1170
2910021118
|
£1.84
|
£2.21
|
|
|
39 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A37
2910211220
|
-
|
|
|
|
41 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A227
2916680006
|
-
|
|
|
|
42 - SPRING WASHER DIN 137-A4
BSD-1600150006.A369
1600150006
|
-
|
|
|
|
44 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A28
2910110116
|
£1.84
|
£2.21
|
|
|
46 - PLAIN WASHER A 4.3 DIN 125-ST
BSD-2916010410.A42
2916010410
|
-
|
|
|
|
60 - SPINDLE BEARING
BSD-1605806186.A24
1605806186
|
-
|
|
|
|
61 - GROOVE BALL BEARING 15x32x8
BSD-1900900201.A104
1900900201
|
-
|
|
|
|
62 - SPACER BUSHING
BSD-1600300026.A69
1600300026
|
-
|
|
|
|
63 - GROOVE BALL BEARING 15x35x11
BSD-1900900303.A4
1900900303
|
-
|
|
|
|
64 - SPACER BUSHING
BSD-1600300027.A38
1600300027
|
-
|
|
|
|
65 - DRILLING SPINDLE
BSD-1603124039.A6
1603124039
|
-
|
|
|
|
66 - RETAINING SNAP RING
BSD-3607030355.A124
3607030355
|
£19.91
|
£23.89
|
|
|
67 - SHIM 0.5 MM
BSD-1600102003.A110
1600102003
|
£1.75
|
£2.10
|
|
|
68 - SEALING DISK
BSD-1600108000.A16
1600108000
|
-
|
|
|
|
69 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A82
1606317045
|
-
|
|
|
|
70 - ADJUSTING BOLT
BSD-1603104005.A120
1603104005
|
-
|
|
|
|
71 - SHIM 0.2 MM
BSD-1420100620.A99
1420100620
|
£1.38
|
£1.66
|
|
|
72 - CONTROL LEVER
BSD-1602026026.A105
1602026026
|
-
|
|
|
|
73 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A24
1603413005
|
£2.64
|
£3.17
|
|
|
74 - CONTROL LEVER
BSD-1602120006.A3
1602120006
|
-
|
|
|
|
75 - SPINDLE WITH GEAR Z=20/33/50
BSD-1606328048.A4
1606328048
|
-
|
|
|
|
76 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A71
1606309036
|
-
|
|
|
|
77 - CYLINDRICAL GEAR Z=12/20/36
BSD-1606328058.A42
1606328058
|
-
|
|
|
|
78 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A165
1600283003
|
£4.26
|
£5.11
|
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A406
1600100631
|
£1.75
|
£2.10
|
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A564
2910021122
|
£2.27
|
£2.72
|
|
|
82 - SPRING LOCK WASHER DIN 127-B3.5
BSD-2916680004.A57
2916680004
|
-
|
|
|
|
83 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A331
2916660014
|
£1.75
|
£2.10
|
|
|
96 - FELT DISC
BSD-1600108003.A41
1600108003
|
£1.38
|
£1.66
|
|
|
97 - BEARING COVER
BSD-1600501019.A477
1600501019
|
£25.05
|
£30.06
|
|
|
99 - INTERMEDIATE BEARING
BSD-3605820033.A25
3605820033
|
-
|
|
|
|
100 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1171
2910021118
|
£1.84
|
£2.21
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A335
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A385
1602025030
|
£19.91
|
£23.89
|
|
|
651 - KEY CHUCK dia1.5-13 MM. B16
BSD-1608571027.A42
1608571027
|
-
|
|
|
|
800 - HANDLE
BSD-3605133012.A187
3605133012
|
-
|
|
|
|
802 - CARBON-BRUSH SET
BSD-1607014101.A73
1607014101
|
£11.87
|
£14.24
|
|
