Bosch GWB 10 / 0601132041 / GB 110 Volt Spare Parts

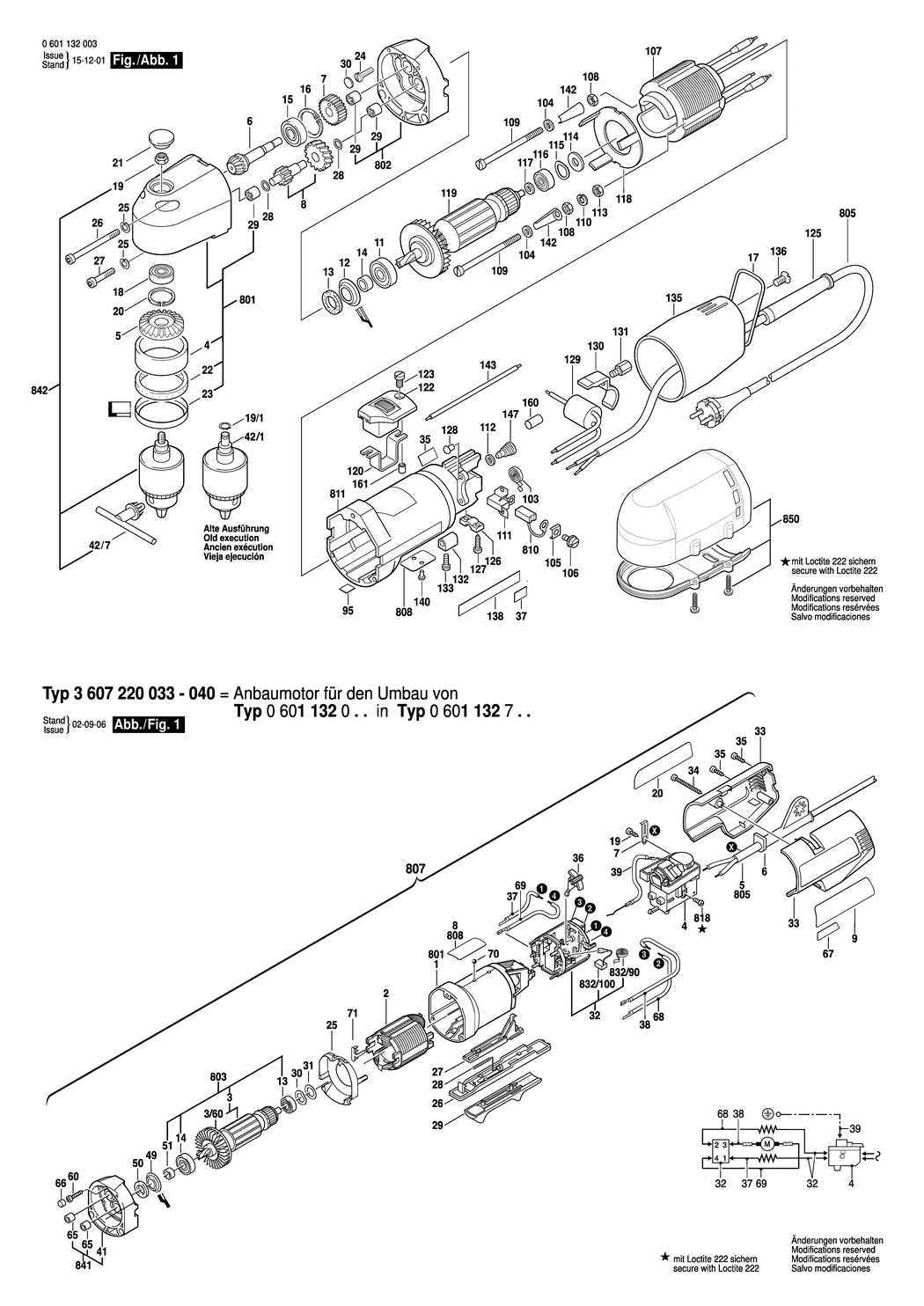

An exploded drawing and listing for the Bosch GWB 10 / 0601132041 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 100-115V BSD-2604220501.A8 2604220501	£33.74	£40.49
3/60 - FAN BSD-2606610081.A0 2606610081	£6.52	£7.83
4 - SINTERED-METAL BUSHING BSD-2600390028.A16 2600390028	£3.72	£4.47
5 - CROWN GEAR Z=36 BSD-3606333035.A1 3606333035	£37.27	£44.72
6 - BEVEL GEAR Z=18 BSD-3606333038.A17 3606333038	£54.42	£65.30
7 - CYLINDRICAL GEAR Z=21 BSD-3606317010.A17 3606317010	£21.68	£26.01
8 - TOOTHED SHAFT BSD-3606309071.A1 3606309071	£37.27	£44.72
11 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A298 3600905039	£12.04	£14.45
12 - CUPPED WASHER BSD-2600500017.A31 2600500017	£1.75	£2.10
13 - FELT WASHER BSD-2600108026.A18 2600108026	£1.75	£2.10
14 - SEAL BUSHING BSD-2600300047.A56 2600300047	£2.61	£3.13
15 - BALL BEARING 8x22x7 BSD-1900905029.A301 1900905029	£21.52	£25.83
16 - SPRING RETAINING RING DIN 472-22x1MM BSD-2916660007.A16 2916660007	£1.75	£2.10
17 - SUSPENSION LOOP BSD-1604682003.A44 1604682003	-
18 - BALL BEARING 7x19x6 BSD-2600905032.A212 2600905032	£5.30	£6.36
19 - HEX NUT DIN 985-M 5-8-A BSD-2915061003.A67 2915061003	£2.16	£2.59
19/1 - SPRING RETAINING RING DIN 471-7x0.8-FST BSD-2916640004.A59 2916640004	£1.75	£2.10
20 - SPRING RETAINING RING DIN 472-19x1MM BSD-2916660005.A31 2916660005	£1.75	£2.10
21 - PLUG BSD-3600508008.A18 3600508008	£1.75	£2.10
22 - FELT WASHER BSD-3600205001.A0 3600205001	£2.61	£3.13
23 - COVER RING BSD-3600500000.A16 3600500000	£2.80	£3.36
24 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8 BSD-2910021128.A46 2910021128	-
25 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A196 2916690003	£1.75	£2.10
26 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A282 2910141140	£1.75	£2.10
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A136 2910141122	£2.16	£2.59
28 - SHIM 0.3 MM BSD-2600100607.A605 2600100607	£1.75	£2.10
29 - SINTERED-METAL BUSHING BSD-3600300014.A31 3600300014	£1.75	£2.10
30 - PLUG BSD-3603100023.A22 3603100023	£2.16	£2.59
31 - SHIM 0.3 MM BSD-2600101617.A3 2600101617	£1.75	£2.10
32 - BRUSH HOLDER BSD-1600A004HS.A2 1600A004HS	£63.50	£76.20
33 - HOUSING COVER BSD-2605104351.A9 2605104351	£12.04	£14.45
34 - TAPPING SCREW DIN 7971-B3.9x45 BSD-2910211283.A0 2910211283	£2.61	£3.13
35 - STICKER BSD-3601110087.A3 3601110087	-
36 - CONTROL LEVER BSD-2601990004.A13 2601990004	£1.75	£2.10
38 - CONNECTING CABLE L=113 MM BSD-2604448156.A12 2604448156	£1.75	£2.10
39 - EARTH CONDUCTOR BSD-2604448163.A1 2604448163	£2.16	£2.59
41 - BEARING FLANGE BSD-3605700067.A1 3605700067	-
42/7 - CHUCK WRENCH SG2 BSD-2607950007.A1452 2607950007	£6.52	£7.83
49 - CUPPED WASHER BSD-2600500017.A32 2600500017	£1.75	£2.10
50 - FELT WASHER BSD-2600108026.A17 2600108026	£1.75	£2.10
51 - SEAL BUSHING BSD-2600300047.A57 2600300047	£2.61	£3.13
60 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A717 2910211021	£1.75	£2.10
65 - SINTERED-METAL BUSHING BSD-3600300014.A32 3600300014	£1.75	£2.10
66 - PLUG BSD-3603100023.A21 3603100023	£2.16	£2.59
67 - REFERENCE PLATE BSD-3601110216.A10 3601110216	£3.72	£4.47
68 - CONNECTING CABLE L=91 MM BSD-3604445006.A11 3604445006	£3.72	£4.47
69 - CONNECTING CABLE L=91 MM BSD-3604445007.A2 3604445007	£3.72	£4.47
70 - BALL BSD-2603230001.A9 2603230001	-
71 - CONTACT SPRING BSD-2601329037.A21 2601329037	£1.75	£2.10
103 - SPIRAL SPRING BSD-2604652000.A56 2604652000	-
104 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A651 2916011005	£1.75	£2.10
105 - CLAMPING SADDLE BSD-2601321005.A27 2601321005	-
106 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A242 2914501011	£1.75	£2.10
108 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A34 2915011003	£1.75	£2.10
109 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A12 2910011074	£1.75	£2.10
110 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A47 2916690001	-
111 - BRUSH HOLDER BSD-2601323016.A6 2601323016	£2.80	£3.36
112 - PLAIN WASHER dia 2.6 MM-ST BSD-2916021007.A20 2916021007	-
113 - HEX NUT DIN 439-BM 3 BSD-2915051103.A68 2915051103	£1.75	£2.10
114 - SHIM BSD-2600100699.A10 2600100699	£1.75	£2.10
115 - SHIM BSD-2600150002.A10 2600150002	-
116 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A271 1900905015	£30.42	£36.51
117 - SHIM 0.3 MM BSD-2600100612.A34 2600100612	£2.61	£3.13
118 - SEAL RING BSD-2600113019.A87 2600113019	£2.80	£3.36
119 - ARMATURE 115V BSD-2604010829.A0 2604010829	£59.53	£71.44
120 - INSULATING PART BSD-2601322002.A29 2601322002	£1.75	£2.10
122 - SWITCH BSD-2607200045.A54 2607200045	-
123 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 963-5.8 BSD-2910771048.A21 2910771048	£1.75	£2.10
125 - GROMMET dia6.9 MM BSD-2600707059.A361 2600707059	£3.72	£4.47
125 - GROMMET dia8.8 MM BSD-2600707061.A205 2600707061	£2.80	£3.36
126 - CABLE CLIP BSD-2601035005.A66 2601035005	£1.75	£2.10
127 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A291 2910211011	£1.75	£2.10
128 - TUBULAR RIVET A2.5x0.3x4DIN7340-MS BSD-2917170554.A6 2917170554	£1.75	£2.10
129 - SUPPRESSION FILTER BSD-2607329048.A15 2607329048	-
130 - FASTENING CLAMP BSD-2601301002.A19 2601301002	£2.16	£2.59
131 - HEX SCREW BSD-2603527004.A10 2603527004	£1.75	£2.10
132 - CONNECTING TERMINAL BSD-2604490005.A5 2604490005	£1.75	£2.10
133 - SOCKET HEAD CAP SCREW BSD-2603410009.A43 2603410009	£1.32	£1.58
135 - HOUSING COVER BSD-3600508023.A0 3600508023	£13.41	£16.09
136 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A12 2910501084	-
138 - STICKER BSD-3601007011.A6 3601007011	-
140 - GROOVED NAIL BSD-3603133000.A308 3603133000	£2.61	£3.13
142 - CABLE CLIP BSD-2601099015.A65 2601099015	£1.75	£2.10
143 - CABLE BSD-2604411061.A44 2604411061	-
147 - RETAINING PIN BSD-2603123013.A13 2603123013	-
160 - PRESS-IN NUT BSD-2603349039.A17 2603349039	£1.75	£2.10
161 - PRESS-IN NUT BSD-2603349038.A10 2603349038	-
801 - GEAR HOUSING BSD-3607031170.A2 3607031170	£72.18	£86.62
802 - BEARING FLANGE BSD-3607031169.A16 3607031169	£63.50	£76.20
803 - ARMATURE 110-115V BSD-3604010067.A0 3604010067	£93.88	£112.65
805 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05VV-F BSD-2604460206.A7 2604460206	-
807 - UN. FLANGE-MTD. MOTOR 110V BSD-3607220038.A0 3607220038	-
808 - NAMEPLATE BSD-160111A3H3.A2140 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2604320905.A6 2604320905	-
811 - MOTOR HOUSING BSD-2605108032.A1 2605108032	-
818 - SOCKET HEAD CAP SCREW M3.5x7 MM BSD-1603429002.A48 1603429002	£1.75	£2.10
832/90 - SPIRAL SPRING BSD-1604652013.A936 1604652013	£1.75	£2.10
832/100 - CARBON-BRUSH SET BSD-160701417J.A21 160701417J	£10.10	£12.12
842 - KEY CHUCK BSD-3608571007.A1 3608571007	£72.18	£86.62
850 - COVER BSD-3605500201.A2 3605500201	£21.68	£26.01
