Bosch GBM 6 RE / 3601D72630 / CH 230 Volt Spare Parts

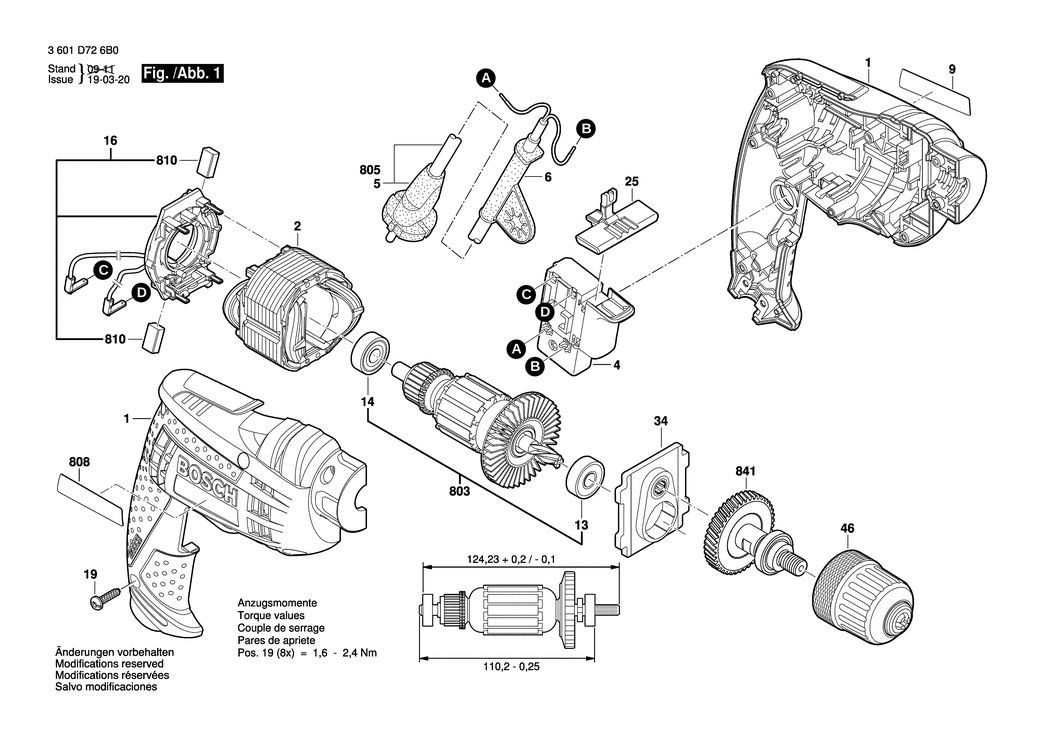

An exploded drawing and listing for the Bosch GBM 6 RE / 3601D72630 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100741.A0 2609100741	£16.41	£19.69
2 - FIELD 230V BSD-2609120279.A2 2609120279	£16.41	£19.69
4 - SWITCH BSD-2607200623.A0 2607200623	£14.91	£17.89
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460401.A117 1604460401	£19.45	£23.34
6 - GROMMET dia7x8.4 MM BSD-2600707062.A20 2600707062	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GBM 6 RE BSD-2609131664.A1 2609131664	£2.61	£3.13
13 - BALL BEARING BSD-2609110745.A0 2609110745	£3.72	£4.47
14 - BALL BEARING BSD-2609110491.A11 2609110491	£5.30	£6.36
16 - BRUSH PLATE BSD-2609120356.A5 2609120356	£11.30	£13.56
19 - SCREW 4x16 BSD-2603490022.A569 2603490022	£1.75	£2.10
25 - REVERSING SWITCH BSD-2609100618.A1 2609100618	£1.75	£2.10
34 - BEARING BRACKET BSD-2609199157.A1 2609199157	£11.30	£13.56
46 - KEYLESS CHUCK 3/8 BSD-2610910300.A2 2610910300	£45.67	£54.80
803 - ARMATURE SET 230-240V BSD-2609120337.A1 2609120337	£23.86	£28.63
808 - NAMEPLATE BSD-2609135675.A0 2609135675	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2610391290.A130 2610391290	£8.67	£10.41
841 - SPINDLE ASSEMBLY BSD-2609120405.A1 2609120405	£16.41	£19.69

Attribute Name	Value
Brand	Bosch
