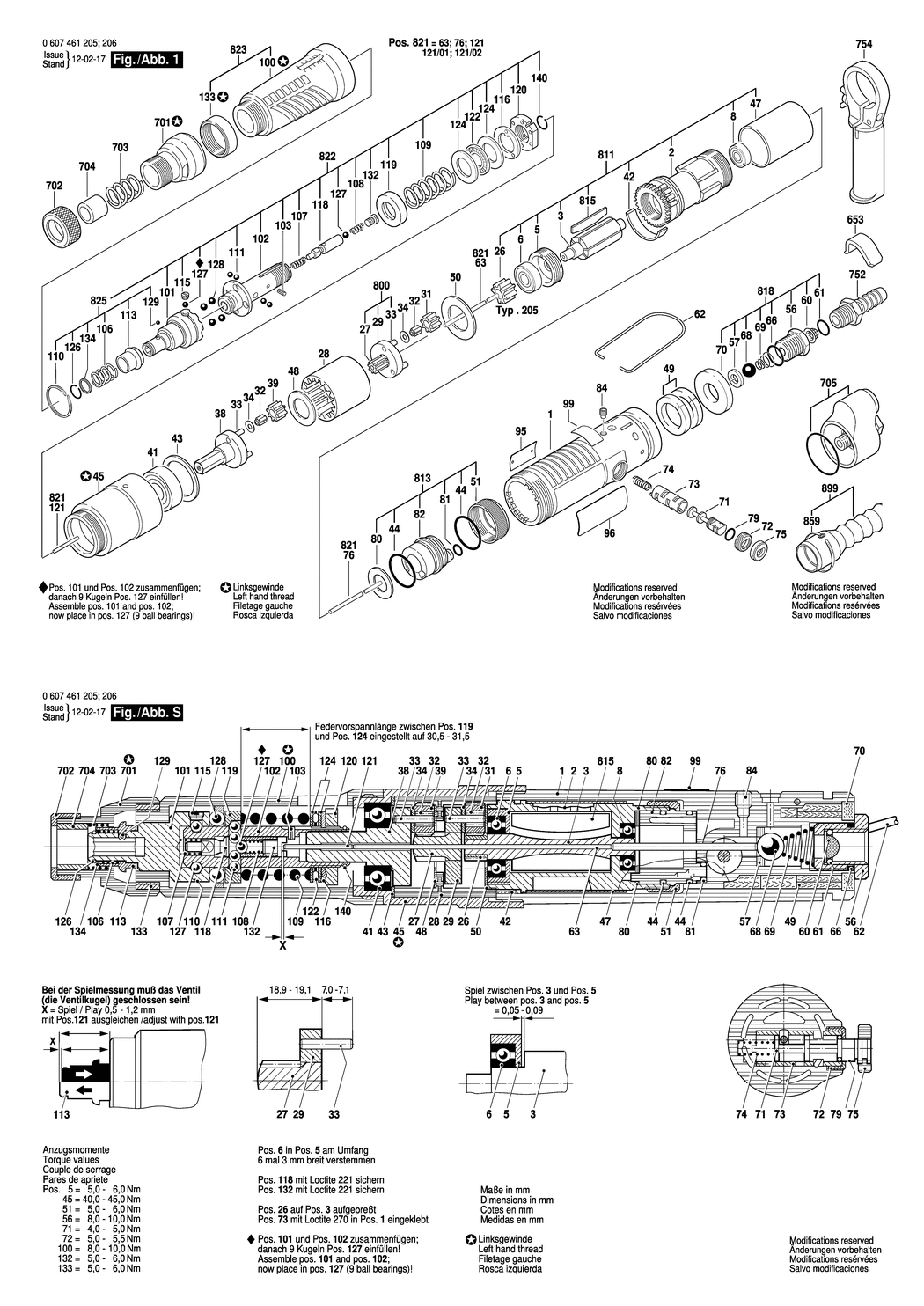

1 - MOTOR HOUSING
BSD-3605108071.A1
3605108071
|
£31.64
|
£37.97
|
|
|
2 - STATOR 320-400W
BSD-3604090044.A5
3604090044
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220063.A9
3604220063
|
£93.88
|
£112.65
|
|
|
5 - BEARING FLANGE
BSD-3605700076.A32
3605700076
|
£48.38
|
£58.06
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A80
3600905039
|
£12.04
|
£14.45
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A221
1900905028
|
£33.74
|
£40.49
|
|
|
27 - PINION Z=12
BSD-3606300071.A9
3606300071
|
£33.74
|
£40.49
|
|
|
28 - RING GEAR Z=42
BSD-3606334054.A17
3606334054
|
£10.10
|
£12.12
|
|
|
29 - CARRIER
BSD-3606337115.A9
3606337115
|
£31.64
|
£37.97
|
|
|
31 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A2
3606316075
|
£13.41
|
£16.09
|
|
|
32 - NEEDLE-ROLLER CAGE
BSD-3600913006.A21
3600913006
|
£7.36
|
£8.83
|
|
|
33 - NEEDLE ROLLER
BSD-3603201047.A12
3603201047
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.20 MM
BSD-2600100586.A73
2600100586
|
£1.75
|
£2.10
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337118.A7
3606337118
|
£68.42
|
£82.10
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316116.A9
3606316116
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905045.A25
3600905045
|
£16.41
|
£19.69
|
|
|
42 - NON-WOVEN FABRIC
BSD-3601010028.A5
3601010028
|
-
|
|
|
|
43 - STOP DISC
BSD-3600102021.A31
3600102021
|
£3.72
|
£4.47
|
|
|
44 - O-RING 26.0x1.5 MM
BSD-2600210018.A82
2600210018
|
£3.72
|
£4.47
|
|
|
45 - GEAR HOUSING
BSD-3605125038.A4
3605125038
|
£48.38
|
£58.06
|
|
|
47 - SPIGOT
BSD-3600700032.A20
3600700032
|
£21.68
|
£26.01
|
|
|
48 - STOP DISC
BSD-3600101040.A18
3600101040
|
£2.16
|
£2.59
|
|
|
49 - SILENCER
BSD-3601010006.A33
3601010006
|
£1.75
|
£2.10
|
|
|
50 - RETAINING WASHER
BSD-3600101036.A18
3600101036
|
£4.26
|
£5.11
|
|
|
51 - UNION NUT
BSD-3603313001.A25
3603313001
|
£14.91
|
£17.89
|
|
|
56 - FITTING
BSD-3603458008.A111
3603458008
|
£8.67
|
£10.41
|
|
|
57 - SEALING DISK
BSD-3600206006.A29
3600206006
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A99
3600002000
|
£3.72
|
£4.47
|
|
|
61 - O-RING 10x2 MM
BSD-1900210306.A47
1900210306
|
£1.75
|
£2.10
|
|
|
62 - SUSPENSION LOOP
BSD-3604720004.A35
3604720004
|
£2.80
|
£3.36
|
|
|
63 - STRAIGHT PIN
BSD-3604710055.A11
3604710055
|
£7.36
|
£8.83
|
|
|
66 - O-RING 16x1.25 MM
BSD-3600210036.A2
3600210036
|
£2.16
|
£2.59
|
|
|
68 - BALL DIN 5401-9.5MM-III-ST
BSD-1903230528.A83
1903230528
|
£1.75
|
£2.10
|
|
|
69 - COMPRESSION SPRING
BSD-3604616008.A32
3604616008
|
-
|
|
|
|
70 - SILENCER
BSD-3600105002.A66
3600105002
|
£10.10
|
£12.12
|
|
|
71 - CONTROL PISTON
BSD-3608750023.A5
3608750023
|
£45.67
|
£54.80
|
|
|
72 - THREADED RING
BSD-3603344023.A8
3603344023
|
£31.64
|
£37.97
|
|
|
73 - VALVE BUSHING
BSD-3600340005.A4
3600340005
|
£54.42
|
£65.30
|
|
|
74 - COMPRESSION SPRING
BSD-3604611006.A170
3604611006
|
£2.16
|
£2.59
|
|
|
75 - RETAINING SNAP RING
BSD-3600202012.A4
3600202012
|
£10.10
|
£12.12
|
|
|
76 - STRAIGHT PIN
BSD-3604710051.A18
3604710051
|
£10.10
|
£12.12
|
|
|
79 - O-RING 9.0x1.2 MM
BSD-3600210038.A119
3600210038
|
£2.61
|
£3.13
|
|
|
80 - SEALING PLATE
BSD-3600054004.A11
3600054004
|
£6.52
|
£7.83
|
|
|
81 - O-RING 8.0x1.5 MM
BSD-1900210103.A32
1900210103
|
£2.80
|
£3.36
|
|
|
82 - INTERMEDIATE PIECE
BSD-3608750027.A23
3608750027
|
£14.91
|
£17.89
|
|
|
84 - SET SCREW M 5x5-DIN 913-45H
BSD-2912041147.A9
2912041147
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A459
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110039.A25
3601110039
|
£5.30
|
£6.36
|
|
|
97 - REFERENCE PLATE
BSD-3601110574.A28
3601110574
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A872
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125035.A11
3605125035
|
£16.41
|
£19.69
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445032.A19
3606445032
|
£135.25
|
£162.30
|
|
|
102 - DRIVE SHAFT
BSD-3606122008.A4
3606122008
|
£120.11
|
£144.13
|
|
|
103 - COILED SPRING PIN DIN 7343-2x5
BSD-2917800033.A60
2917800033
|
£1.75
|
£2.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604615009.A7
3604615009
|
£2.16
|
£2.59
|
|
|
107 - COMPRESSION SPRING
BSD-3604610003.A86
3604610003
|
£3.72
|
£4.47
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A24
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING dia 4 MM
BSD-3604619000.A4
3604619000
|
£7.36
|
£8.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A30
3604601001
|
£2.16
|
£2.59
|
|
|
111 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A603
1903230007
|
£1.75
|
£2.10
|
|
|
113 - CLAMPING SLEEVE
BSD-3600422005.A14
3600422005
|
£8.67
|
£10.41
|
|
|
115 - SEALING PLATE
BSD-3600001000.A86
3600001000
|
£2.80
|
£3.36
|
|
|
116 - ADJUSTING DISC
BSD-3600134000.A107
3600134000
|
£2.80
|
£3.36
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A3
3603150203
|
£45.67
|
£54.80
|
|
|
119 - COUPLING PLATE
BSD-3600114001.A70
3600114001
|
£18.96
|
£22.75
|
|
|
120 - ROUND NUT
BSD-3603301004.A88
3603301004
|
£21.68
|
£26.01
|
|
|
121 - STRAIGHT PIN 35.3 MM
BSD-3603201002.A17
3603201002
|
£5.30
|
£6.36
|
|
|
122 - ROLLER THRUST BEARING
BSD-3600921000.A13
3600921000
|
£6.52
|
£7.83
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A60
3600101002
|
£2.16
|
£2.59
|
|
|
126 - RETAINING RING
BSD-3600224006.A150
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A617
1903230009
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A326
1903230011
|
£2.61
|
£3.13
|
|
|
129 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A324
1903230004
|
£2.16
|
£2.59
|
|
|
132 - SCREW PLUG
BSD-3603463000.A59
3603463000
|
£2.61
|
£3.13
|
|
|
133 - KNURLED NUT
BSD-3603340019.A14
3603340019
|
£16.41
|
£19.69
|
|
|
134 - STOP DISC dia11.15xdia12.85 MM
BSD-3600101039.A7
3600101039
|
£2.16
|
£2.59
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A156
2916600008
|
£2.80
|
£3.36
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A209
3601329007
|
£4.26
|
£5.11
|
|
|
701 - SCREW CAP
BSD-3600508014.A4
3600508014
|
£10.10
|
£12.12
|
|
|
702 - UNION NUT
BSD-3603313002.A1
3603313002
|
£16.41
|
£19.69
|
|
|
703 - COMPRESSION SPRING
BSD-3604615000.A90
3604615000
|
£1.75
|
£2.10
|
|
|
704 - GUIDE SLEEVE
BSD-3600329000.A14
3600329000
|
£7.36
|
£8.83
|
|
|
705 - AIR HOSE SET
BSD-3607030024.A26
3607030024
|
£37.72
|
£45.27
|
|
|
752 - HOSE FITTING
BSD-2603386002.A72
2603386002
|
£5.30
|
£6.36
|
|
|
754 - AUXILIARY HANDLE
BSD-3602025009.A11
3602025009
|
£18.96
|
£22.75
|
|
|
800 - PLANETARY-GEAR CARRIER
BSD-3606337111.A6
3606337111
|
£68.42
|
£82.10
|
|
|
811 - MOTOR
BSD-3607030075.A2
3607030075
|
£357.27
|
£428.72
|
|
|
813 - ASSEMBLY OF SERVICE PARTS
BSD-3607030057.A1
3607030057
|
£27.23
|
£32.68
|
|
|
815 - ROTOR LAMELLA
BSD-3607030030.A40
3607030030
|
£31.64
|
£37.97
|
|
|
818 - ASSEMBLY OF SERVICE PARTS
BSD-3607030033.A18
3607030033
|
£31.64
|
£37.97
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607030059.A4
3607030059
|
£37.27
|
£44.72
|
|
|
822 - ASSEMBLY OF SERVICE PARTS
BSD-3607030079.A1
3607030079
|
£410.78
|
£492.94
|
|
|
823 - ASSEMBLY OF SERVICE PARTS
BSD-3607030062.A5
3607030062
|
£37.27
|
£44.72
|
|
|
825 - ASSEMBLY OF SERVICE PARTS
BSD-3607030064.A11
3607030064
|
£14.91
|
£17.89
|
|
|
859 - HOLDING BELT
BSD-3604710062.A70
3604710062
|
£1.75
|
£2.10
|
|
|
899 - AIR HOSE
BSD-3607000027.A27
3607000027
|
£33.74
|
£40.49
|
|
