Bosch GWS 23-180 + SDS / 0601753173 / EU 230 Volt Spare Parts

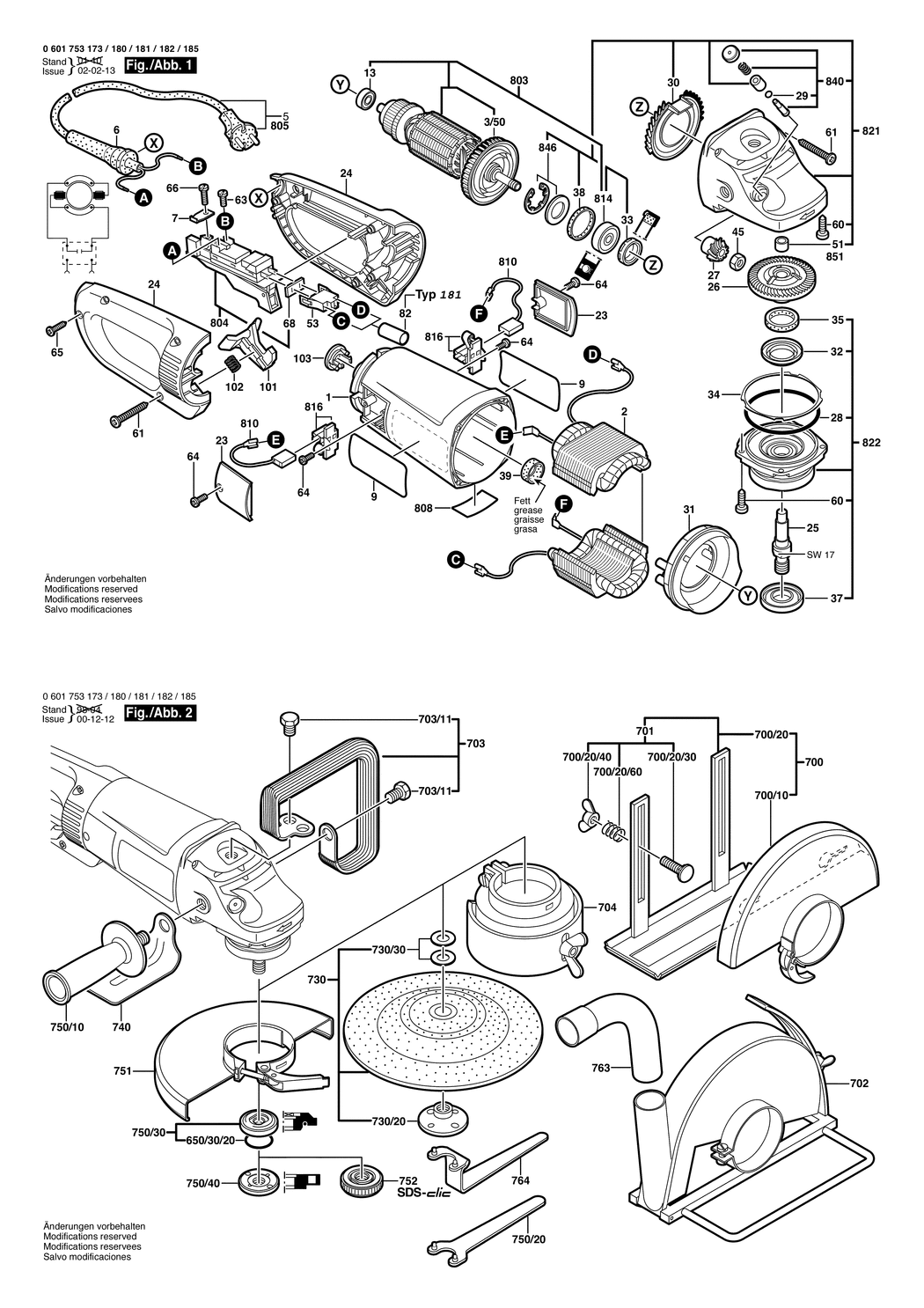

An exploded drawing and listing for the Bosch GWS 23-180 + SDS / 0601753173 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108190.A101 1605108190	£18.96	£22.75
2 - FIELD 220-240V BSD-1604220381.A14 1604220381	£37.72	£45.27
3/50 - FAN BSD-1600A00J93.A31 1600A00J93	£2.80	£3.36
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A126 1600703023	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A539 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118687.A4 1601118687	£3.72	£4.47
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A851 1600905011	£5.58	£6.70
23 - SEALING CAP BSD-1618B00802.A51 1618B00802	£4.27	£5.12
24 - HANDLE BSD-1605132130.A84 1605132130	£11.78	£14.13
25 - GRINDING SPINDLE BSD-160312305U.A284 160312305U	£13.12	£15.75
26 - CROWN GEAR Z=53 BSD-1606333618.A25 1606333618	-
27 - BEVEL GEAR Z=17 BSD-1606333237.A60 1606333237	-
28 - O-RING 79.0x1.78 MM BSD-1600210033.A933 1600210033	£1.75	£2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A45 1600210034	£1.75	£2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A330 1600591029	£2.61	£3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A8 1600591028	£2.33	£2.80
32 - RETAINING SNAP RING BSD-1600290019.A538 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A117 1600290013	£2.61	£3.13
34 - SHIM 0.15 MM BSD-1600190020.A133 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A694 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A133 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A110 1600205034	£1.75	£2.10
37 - SEAL RING BSD-1600290036.A463 1600290036	£2.16	£2.59
38 - RUBBER RING 7 MM BSD-1600206020.A564 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A127 1600206030	£1.75	£2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A62 1603300019	£1.75	£2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A576 1600200031	£2.80	£3.36
53 - SOCKET HOUSING BSD-1605190068.A222 1605190068	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A149 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A142 2912401038	£1.75	£2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A25 1603410014	£1.75	£2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A554 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A337 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1217 2910211019	£1.75	£2.10
68 - SEALING PLATE BSD-1601006011.A446 1601006011	£2.61	£3.13
101 - CATCH SLIDE BSD-1601990004.A97 1601990004	£2.61	£3.13
102 - COMPRESSION SPRING BSD-1604616022.A1 1604616022	£1.75	£2.10
103 - CABLE ROUTING BSD-1602388035.A149 1602388035	£1.75	£2.10
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A1396 1600210039	£2.16	£2.59
700 - PARTS SET dia180 MM BSD-1607000250.A55 1607000250	-
700/10 - PROTECTIVE COVER dia180 MM BSD-1605510222.A55 1605510222	-
700/20 - GUIDE BLOCK BSD-1608135003.A125 1608135003	-
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A99 2910281244	-
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A286 2915191007	£3.72	£4.47
700/20/60 - COMPRESSION SPRING BSD-1604643003.A72 1604643003	£6.52	£7.83
701 - GUIDE BLOCK BSD-1608135003.A124 1608135003	-
702 - SUCTION HOOD dia180 MM BSD-1605510179.A4 1605510179	£61.24	£73.49
703 - STRAP-SHAPED HANDLE BSD-1607000247.A33 1607000247	£50.82	£60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A246 2603450007	£5.58	£6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A28 1605510181	-
730 - BACKING PAD dia180 MM BSD-1608601006.A10 1608601006	-
730/20 - ROUND NUT M14 BSD-1603345004.A208 1603345004	£7.87	£9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A46 2916011022	£1.75	£2.10
740 - PROTECTING COVER BSD-1601329013.A29 1601329013	£11.37	£13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A216 2602025075	£10.30	£12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A76 1607950048	£4.88	£5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A211 1605703099	£7.45	£8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A333 1603340040	£6.20	£7.44
751 - PROTECTIVE COVER dia180 MM BSD-1605510222.A56 1605510222	-
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A94 1603340027	£46.82	£56.18
763 - SUCTION BEND dia 35 MM BSD-1600793007.A78 1600793007	£19.24	£23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A149 1607950004	£8.33	£10.00
803 - ARMATURE 220-240V BSD-1604011932.A17 1604011932	£80.61	£96.73
804 - SWITCH BSD-1607000967.A87 1607000967	£31.64	£37.97
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A136 1607000228	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A4747 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A572 1607014171	£14.91	£17.89
814 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A124 1600905023	£12.04	£14.45
816 - BRUSH HOLDER BSD-1604336048.A391 1604336048	£7.36	£8.83
821 - GEAR HOUSING BSD-1607000968.A34 1607000968	-
822 - BEARING FLANGE dia180 MM BSD-1607000986.A93 1607000986	-
840 - PUSH-BUTTON BSD-1607000206.A271 1607000206	£11.30	£13.56
846 - RETAINING WASHER BSD-1607000342.A246 1607000342	£3.72	£4.47
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A367 2600910001	£4.26	£5.11
