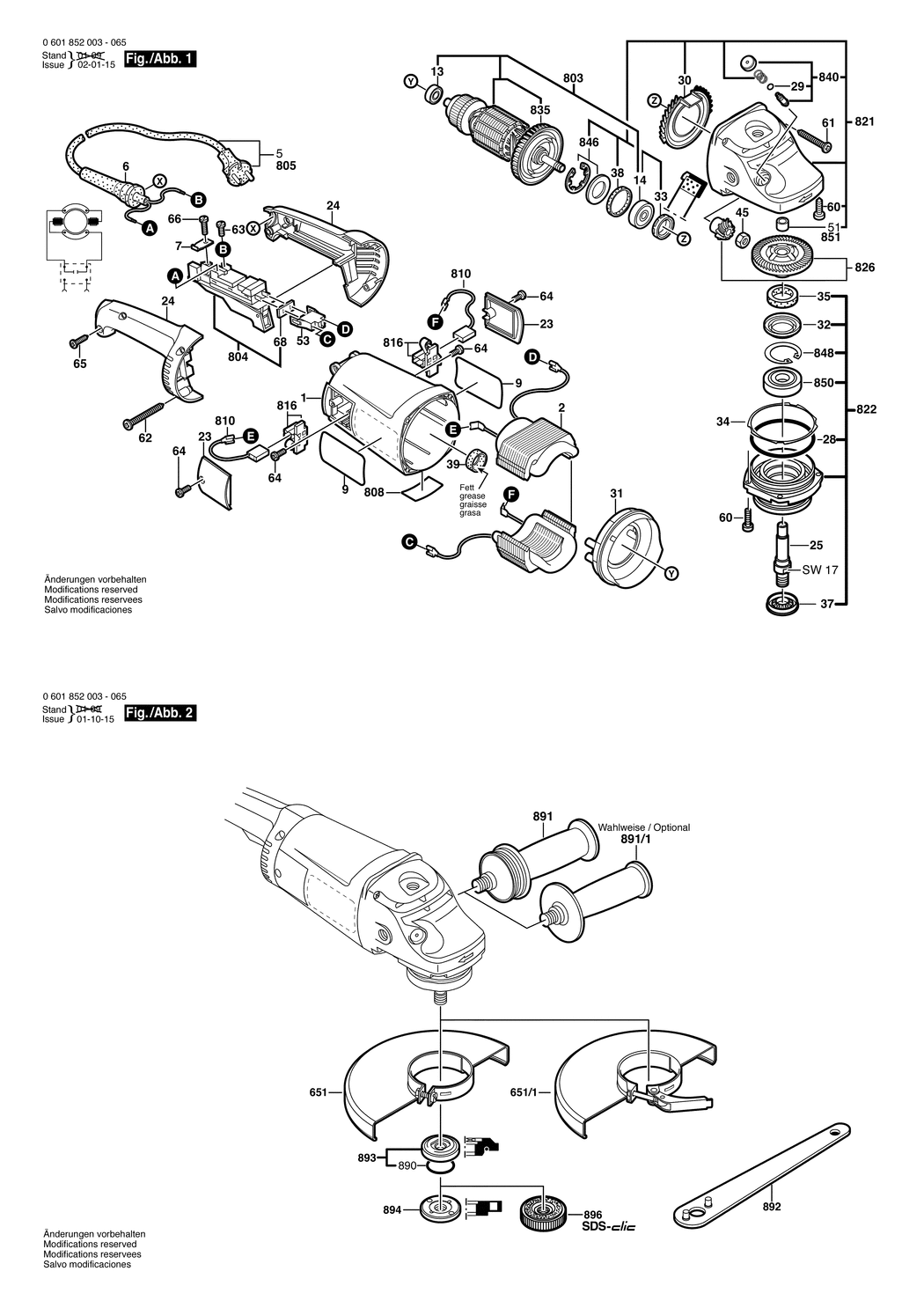

An exploded drawing and listing for the Bosch GWS 21-230 H / 0601852013 / D 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108275.A127 1605108275 £16.41 £19.69
2 - FIELD 220-240V BSD-1604220380.A153 1604220380 £33.74 £40.49
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A120 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A575 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118C83.A0 1601118C83 £2.80 £3.36
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A831 1600905011 £5.58 £6.70
14 - GROOVE BALL BEARING BSD-1600905028.A41 1600905028 £12.04 £14.45
23 - SEALING CAP BSD-1618B00802.A9 1618B00802 £4.27 £5.12
24 - HANDLE BSD-1619P11545.A11 1619P11545 £12.04 £14.45
25 - GRINDING SPINDLE BSD-160312305U.A334 160312305U £13.12 £15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A916 1600210033 £1.75 £2.10
29 - O-RING 8.0x1.0 MM BSD-1600210045.A5 1600210045 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A289 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A49 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A570 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A85 1600290013 £2.61 £3.13
34 - SHIM 0.15 MM BSD-1600190020.A83 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A744 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A83 1600190022 £1.75 £2.10
34 - SHIM 0.2 MM BSD-1600190037.A380 1600190037 £1.75 £2.10
34 - SHIM 0.25 MM BSD-1600190038.A24 1600190038 £1.75 £2.10
34 - SHIM 0.35 MM BSD-1600190039.A362 1600190039 £1.75 £2.10
34 - SHIM 0.4 MM BSD-1600190040.A25 1600190040 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A126 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A497 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A547 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A144 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A9 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A562 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A203 1605190068 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A107 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A163 2912401038 £1.75 £2.10
62 - TAPPING SCREW 4.8x55 BSD-1603435060.A164 1603435060 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A59 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A529 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A316 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1168 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A394 1601006011 £2.61 £3.13
651/1 - PROTECTIVE COVER BSD-1600A00XM0.A14 1600A00XM0 £21.68 £26.01
803 - ARMATURE 220-240V BSD-1604011930.A26 1604011930 £70.24 £84.29
804 - SWITCH BSD-1607000967.A101 1607000967 £31.64 £37.97
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A635 1607000227 £23.86 £28.63
808 - NAMEPLATE BSD-160111A3H3.A4711 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A600 1607014171 £14.91 £17.89
810 - CARBON-BRUSH SET 10 x 1 607 014 171 BSD-1607000480.A218 1607000480 £102.57 £123.08
816 - BRUSH HOLDER BSD-1604336048.A410 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000C03.A18 1607000C03 £48.38 £58.06
822 - BEARING FLANGE dia230 MM BSD-1607000C05.A4 1607000C05 £27.31 £32.77
826 - BEVEL GEAR SET BSD-1607000CV1.A43 1607000CV1 £31.64 £37.97
835 - FAN BSD-1600A00J93.A30 1600A00J93 £2.80 £3.36
840 - PUSH-BUTTON BSD-1607000354.A24 1607000354 £6.52 £7.83
846 - RETAINING WASHER BSD-1607000342.A296 1607000342 £3.72 £4.47
848 - RETAINING CLIP BSD-1600119010.A602 1600119010 £1.75 £2.10
850 - GROOVE BALL BEARING 17x40x12 BSD-1600905026.A312 1600905026 £8.67 £10.41
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A335 2600910001 £4.26 £5.11
890 - O-RING 20.35x1.78 MM BSD-1600210039.A1385 1600210039 £2.16 £2.59
891 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A906 1602025030 £18.96 £22.75
891/1 - AUXILIARY HANDLE M14 BSD-1602025022.A1113 1602025022 £13.41 £16.09
892 - PIN-TYPE FACE-WRENCH BSD-1607950061.A601 1607950061 £5.42 £6.50
893 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A152 2605703014 £7.36 £8.83
894 - ROUND NUT M14 BSD-1603345043.A189 1603345043 £8.67 £10.41
896 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A145 1603340027 £46.82 £56.18
