Bosch PSS 240 AE / 0603368732 / CH 230 Volt Spare Parts

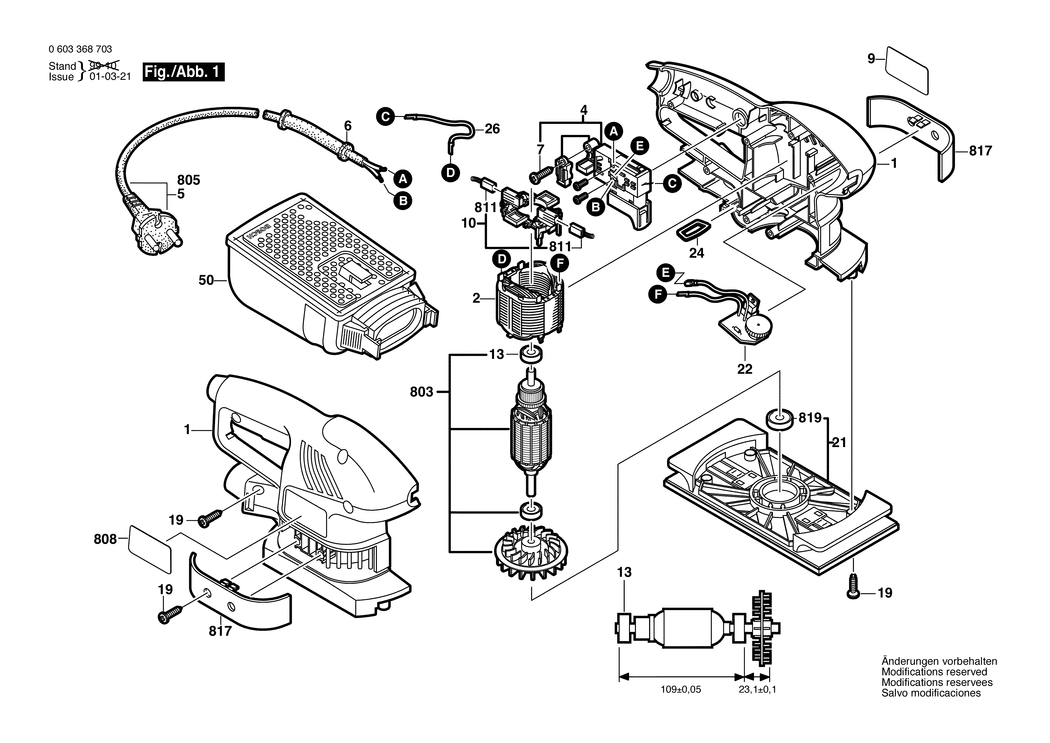

An exploded drawing and listing for the Bosch PSS 240 AE / 0603368732 / CH 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104660.A3 2605104660	-
2 - FIELD 220-240V BSD-2604220636.A20 2604220636	£18.96	£22.75
4 - SWITCH BSD-2607200526.A29 2607200526	-
5 - POWER SUPPLY CORD CH 2.65m 2 x 0.75mm H05 VV-F BSD-1604460433.A42 1604460433	£11.87	£14.24
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A484 2600703017	£2.74	£3.29
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A192 2603490017	£2.27	£2.72
9 - MANUFACTURER'S NAMEPLATE BSD-2601119894.A3 2601119894	-
10 - BRUSH PLATE BSD-2604337088.A6 2604337088	£11.87	£14.24
13 - GROOVE BALL BEARING BSD-2600905078.A67 2600905078	£6.52	£7.83
19 - SCREW 4x16 BSD-2603490022.A2496 2603490022	£1.84	£2.21
21 - SANDER PLATE BSD-2608000230.A2 2608000230	-
22 - RPM ACTUATOR 230-240V BSD-2607233045.A5 2607233045	-
24 - SEAL RING BSD-2600290039.A23 2600290039	£1.84	£2.21
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A30 3604440527	£1.75	£2.10
28 - DAMPING RUBBER BSD-2603100056.A64 2603100056	£1.84	£2.21
50 - DUST CONTAINER BSD-2605411121.A21 2605411121	-
803 - ARMATURE 220-240V BSD-2604010974.A9 2604010974	-
808 - NAMEPLATE BSD-2601117159.A0 2601117159	-
811 - CARBON-BRUSH SET BSD-2604321925.A94 2604321925	£9.11	£10.93
817 - COVER PANEL BSD-2605500910.A22 2605500910	£5.26	£6.31
819 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A32 2600905045	£17.22	£20.67
