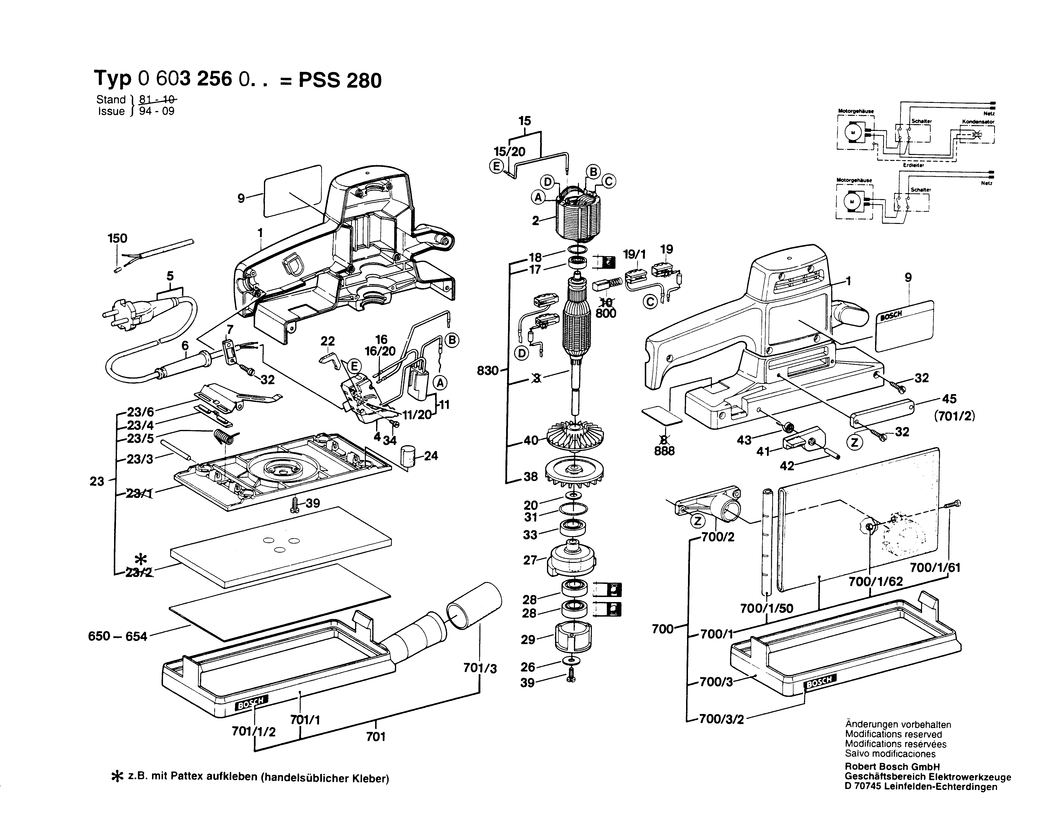

1 - HOUSING SECTION
BSD-2605104970.A13
2605104970
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220207.A10
1604220207
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A383
2607200260
|
£11.87
|
£14.24
|
|
|
4 - SWITCH
BSD-2607200084.A70
2607200084
|
£10.10
|
£12.12
|
|
|
5 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A112
1607000388
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A133
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A78
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2166
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110603.A0
2601110603
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329095.A24
2607329095
|
-
|
|
|
|
11/20 - BLADE TERMINAL
BSD-2601355007.A111
2601355007
|
-
|
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A28
2604448001
|
£1.95
|
£2.34
|
|
|
15/20 - BLADE TERMINAL
BSD-2601355007.A112
2601355007
|
-
|
|
|
|
16 - CABLE L=233 MM
BSD-1614431010.A51
1614431010
|
£3.72
|
£4.47
|
|
|
16/20 - BLADE TERMINAL
BSD-2601355007.A110
2601355007
|
-
|
|
|
|
17 - BALL BEARING 7x22x7
BSD-1900905018.A38
1900905018
|
£19.91
|
£23.89
|
|
|
17 - BALL BEARING
BSD-2600905027.A7
2600905027
|
-
|
|
|
|
18 - O-RING 20x2.5 MM
BSD-1900210119.A40
1900210119
|
-
|
|
|
|
19 - SUPPRESSION FILTER
BSD-2604465054.A45
2604465054
|
-
|
|
|
|
20 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A143
2600100041
|
£1.84
|
£2.21
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A317
2601022000
|
£1.75
|
£2.10
|
|
|
23 - BASE PLATE
BSD-1601038029.A5
1601038029
|
-
|
|
|
|
23/3 - STRAIGHT PIN
BSD-2603101029.A8
2603101029
|
-
|
|
|
|
23/4 - PRESSURE BAR
BSD-2602329022.A8
2602329022
|
-
|
|
|
|
23/5 - COMPRESSION SPRING
BSD-1604651004.A30
1604651004
|
-
|
|
|
|
23/6 - CLAMPING LEVER
BSD-2601961000.A6
2601961000
|
-
|
|
|
|
24 - ROUND RUBBER
BSD-1603106001.A1
1603106001
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-1600100025.A0
1600100025
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-1602210015.A12
1602210015
|
-
|
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A106
1900905122
|
£10.61
|
£12.73
|
|
|
29 - BEARING FLANGE
BSD-1600501066.A17
1600501066
|
-
|
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A10
1900210128
|
£2.61
|
£3.13
|
|
|
32 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A453
2910611019
|
£2.94
|
£3.53
|
|
|
32 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A210
2912401020
|
£2.16
|
£2.59
|
|
|
32 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A458
2910611019
|
£2.94
|
£3.53
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A103
1900905162
|
£18.96
|
£22.75
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1679
2603410001
|
£1.84
|
£2.21
|
|
|
38 - FAN
BSD-1606610117.A15
1606610117
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A282
2910021154
|
£1.75
|
£2.10
|
|
|
40 - FAN
BSD-1606610118.A2
1606610118
|
-
|
|
|
|
41 - CONTROL LEVER
BSD-1602099001.A5
1602099001
|
-
|
|
|
|
42 - SPLIT PIN
BSD-2604681000.A8
2604681000
|
-
|
|
|
|
43 - SPIRAL SPRING
BSD-1604652004.A17
1604652004
|
£2.74
|
£3.29
|
|
|
45 - SEALING CAP
BSD-1605500115.A14
1605500115
|
-
|
|
|
|
700 - SUCTION FRAME
BSD-1607000130.A4
1607000130
|
-
|
|
|
|
700/1 - DUST BAG
BSD-2605411900.A9
2605411900
|
£22.74
|
£27.29
|
|
|
700/1/50 - SUPPORT CLAMP
BSD-2601314002.A22
2601314002
|
-
|
|
|
|
700/1/61 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A109
2910021128
|
-
|
|
|
|
700/1/62 - HEX NUT DIN 439-BM 4-04
BSD-2915051104.A48
2915051104
|
-
|
|
|
|
700/2 - FLANGED FITTING
BSD-1605702006.A7
1605702006
|
-
|
|
|
|
700/3 - SUCTION FRAME
BSD-1605190026.A16
1605190026
|
-
|
|
|
|
700/3/2 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A262
1601110013
|
-
|
|
|
|
701 - SUCTION FRAME
BSD-1607000131.A1
1607000131
|
-
|
|
|
|
701 - SUCTION FRAME
BSD-1605190027.A1
1605190027
|
-
|
|
|
|
701/1 - SEALING CAP
BSD-1605500115.A13
1605500115
|
-
|
|
|
|
701/1/2 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A263
1601110013
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014124.A11
1607014124
|
-
|
|
|
|
830 - ARMATURE 220V
BSD-1604010232.A1
1604010232
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4470
160111A3H3
|
£2.74
|
£3.29
|
|
