Bosch PSS 180 AC / 0603366103 / EU 230 Volt Spare Parts

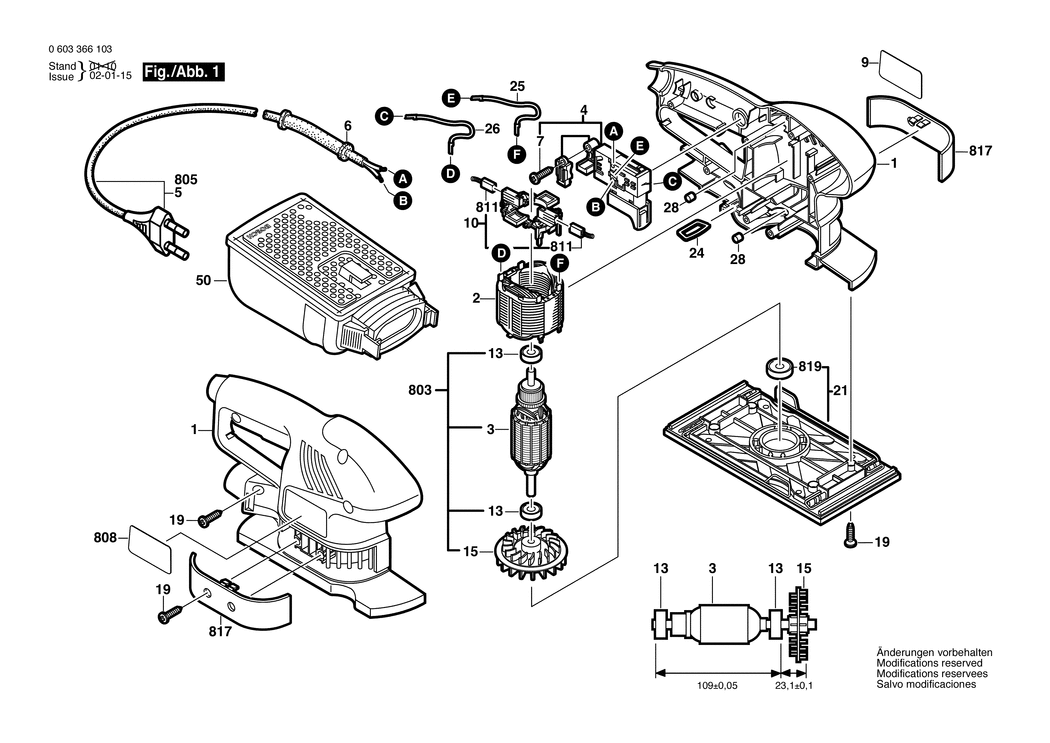

An exploded drawing and listing for the Bosch PSS 180 AC / 0603366103 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104642.A4 2605104642	£8.49	£10.19
2 - FIELD 230-240V BSD-2604220673.A0 2604220673	£14.75	£17.70
3 - ARMATURE 230-240V BSD-2604011276.A1 2604011276	£21.68	£26.01
4 - SWITCH BSD-2607200526.A11 2607200526	-
5 - POWER SUPPLY CORD EU 230V 2.7m 2 x 0.75mm H05 VV-F BSD-2604460259.A128 2604460259	£13.12	£15.75
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A506 2600703017	£2.61	£3.13
7 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A156 2603490017	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE BSD-2601116146.A3 2601116146	-
10 - BRUSH PLATE BSD-2604337091.A13 2604337091	-
13 - GROOVE BALL BEARING BSD-2600905078.A78 2600905078	£6.52	£7.83
15 - FAN BSD-2606610113.A0 2606610113	£5.58	£6.70
19 - SCREW 4x16 BSD-2603490022.A2533 2603490022	£1.75	£2.10
21 - SANDER PLATE BSD-2608000238.A3 2608000238	-
24 - SEAL RING BSD-2600290039.A30 2600290039	£1.75	£2.10
25 - CONNECTING CABLE L=160 MM BSD-2604448247.A0 2604448247	-
26 - CONNECTING CABLE L=63 MM BSD-3604440527.A45 3604440527	£1.75	£2.10
28 - DAMPING RUBBER BSD-2603100056.A54 2603100056	£1.75	£2.10
50 - DUST CONTAINER BSD-2605411121.A12 2605411121	-
803 - ARMATURE 230V BSD-2604010988.A2 2604010988	-
808 - NAMEPLATE BSD-2601116121.A0 2601116121	-
811 - CARBON-BRUSH SET BSD-2604321925.A90 2604321925	£8.67	£10.41
817 - COVER PANEL BSD-2605500910.A6 2605500910	£5.01	£6.01
819 - GROOVE BALL BEARING 12x28x8 BSD-2600905045.A15 2600905045	£16.41	£19.69
