Bosch PSM 80 A / 3603C54000 / EU 230 Volt Spare Parts

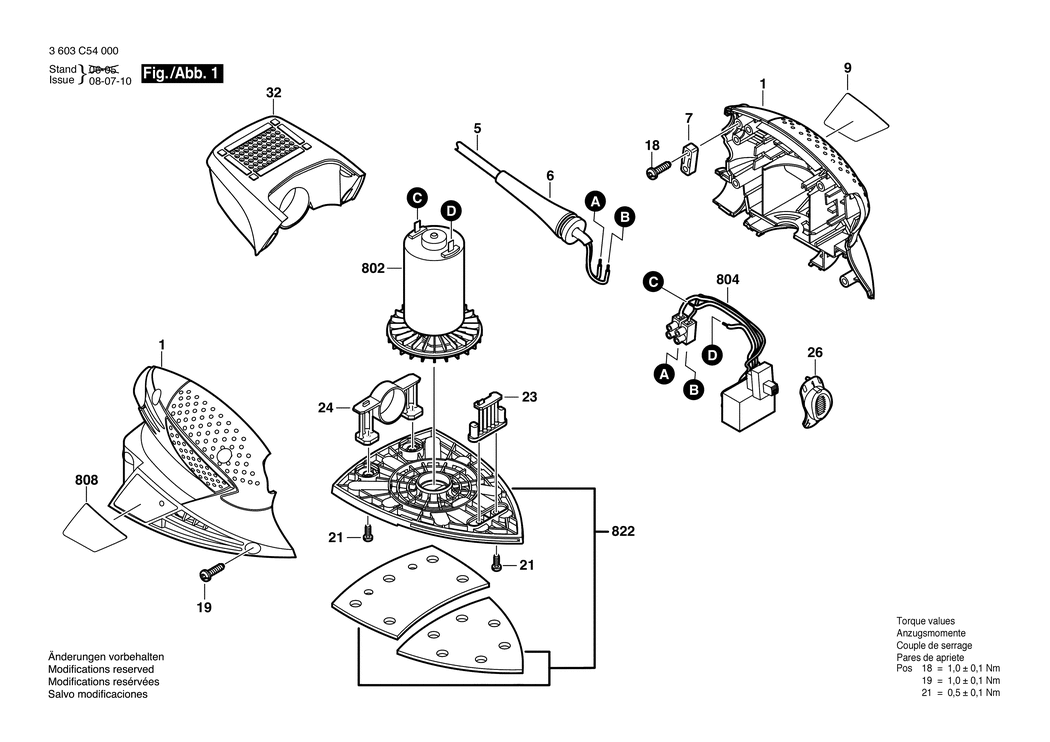

An exploded drawing and listing for the Bosch PSM 80 A / 3603C54000 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609001234.A0 2609001234	£22.60	£27.12
5 - POWER SUPPLY CORD EU 2.7m 2 x 0.75mm H05 VV-F BSD-2604460260.A11 2604460260	£15.65	£18.78
6 - GROMMET BSD-2609002019.A79 2609002019	£2.74	£3.29
7 - CABLE CLIP BSD-2601035004.A34 2601035004	£2.27	£2.72
9 - MANUFACTURER'S NAMEPLATE PSM 80 A BSD-2609001515.A1 2609001515	£3.72	£4.47
9 - MANUFACTURER'S NAMEPLATE PSM 8100 A BSD-160111C2W5.A1 160111C2W5	-
18 - SCREW 4x16 BSD-2603490022.A984 2603490022	£1.84	£2.21
19 - SCREW 4x16 BSD-2603490022.A985 2603490022	£1.84	£2.21
21 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A903 2603490017	£2.27	£2.72
23 - OSCILLATION INSERT BSD-2609001421.A1 2609001421	£5.87	£7.04
24 - VIBRATION FOOT BSD-2609001650.A0 2609001650	£5.57	£6.68
26 - SLIDE BUTTON BSD-2609001237.A2 2609001237	£2.74	£3.29
32 - DUST CONTAINER BSD-2609001238.A1 2609001238	£15.65	£18.78
802 - DC MOTOR BSD-2609001935.A0 2609001935	£35.42	£42.51
804 - SWITCH BSD-2609001936.A3 2609001936	£23.86	£28.63
808 - NAMEPLATE BSD-160111A2W8.A0 160111A2W8	£2.74	£3.29
822 - SANDER PLATE BSD-2609001937.A0 2609001937	£14.69	£17.63
