Dewalt DW717 Type 1 Mitre Saw Spare Parts

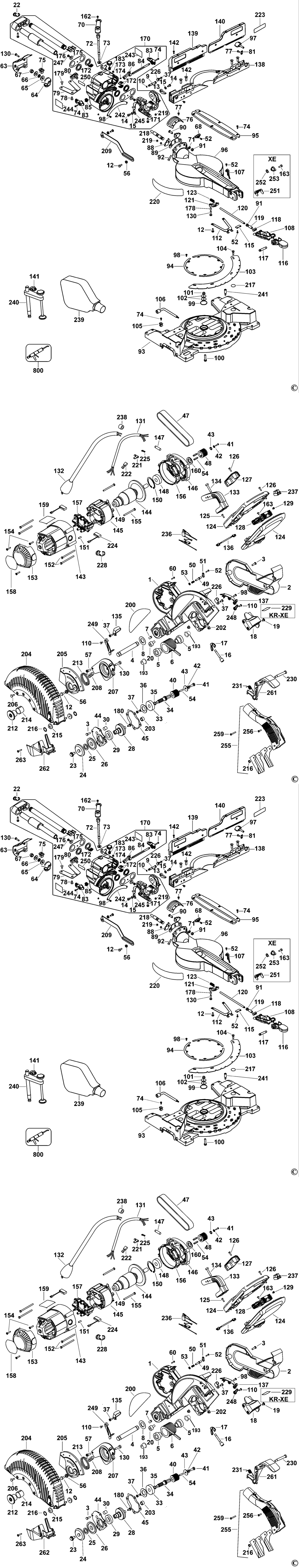

An exploded drawing and spare parts listing for the Dewalt DW717 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - ARM LX BDE-641494-01.A8 641494-01	-
1 - ARM GB BDE-641494-01.A9 641494-01	-
2 - BELT COVER BDE-641445-00.A5 641445-00	£12.17	£14.60
3 - SCREW BDE-330045-14.A13 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A29 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A38 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A20 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A42 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A72 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A35 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A15 34158-00	£1.50	£1.80
12 - SCREW.SPECIAL BDE-330045-23.A107 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A5 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A8 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A29 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A16 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A16 150718-00	£1.50	£1.80
18 - COVER BDE-N026930.A2 N026930	£3.80	£4.56
19 - SCREW BDE-385915-02.A20 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A4 618198-00	£1.50	£1.80
22 - BUSHING BDE-615851-00.A9 615851-00	£1.50	£1.80
23 - BLADE BOLT BDE-869245-00.A64 869245-00	£3.54	£4.25
24 - CLAMP OUTER BDE-151962-01.A7 151962-01	£3.80	£4.56
25 - ADAPTOR BDE-604770-00.A4 604770-00	£3.80	£4.56
26 - WASHER INNER CLAMP BDE-644999-00.A0 644999-00	£5.88	£7.06
28 - GEAR & SPINDLE SA BDE-641465-00.A8 641465-00	£60.94	£73.13
29 - BEARING BALL BDE-330003-66.A29 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A29 391616-00	£4.69	£5.63
33 - BEARING BDE-605040-69.A2 605040-69	£5.88	£7.06
34 - PINION BDE-641454-00.A0 641454-00	-
35 - RETAINER BDE-153752-00.A4 153752-00	£1.50	£1.80
36 - RETAINING PLATE BDE-618244-01.A1 618244-01	£1.50	£1.80
37 - SCREW BDE-330045-49.A56 330045-49	£1.50	£1.80
40 - PULLEY BDE-641477-00.A2 641477-00	-
41 - SCREW BDE-153778-00.A6 153778-00	£1.50	£1.80
42 - WASHER BDE-098198-05.A16 098198-05	£1.50	£1.80
43 - WASHER BDE-153782-00.A10 153782-00	£1.50	£1.80
44 - GEARCASE COVER SA BDE-641495-00.A0 641495-00	£84.42	£101.30
44 - GEARCASE COVER SA BDE-641495-00SV.A1 641495-00SV	£87.82	£105.39
45 - GASKET BDE-641459-00.A5 641459-00	£7.18	£8.62
47 - BELT BDE-641463-00.A1 641463-00	£18.91	£22.69
48 - NO LONGER AVAILABLE BDE-000000-00.A63276 000000-00	-
48 - DRIVE PULLEY BDE-153554-00.A8 153554-00	£10.85	£13.02
49 - LOCKING PIN BDE-153561-00.A13 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A17 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A31 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A26 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A19 153559-00	£1.50	£1.80
54 - KEY BDE-153638-00.A13 153638-00	£1.82	£2.19
56 - SLEEVE BDE-146740-00.A6 146740-00	£1.66	£1.99
57 - SCREW LX BDE-641470-00.A24 641470-00	£1.50	£1.80
57 - SCREW GB BDE-641470-00.A25 641470-00	£1.50	£1.80
60 - SCREW BDE-330045-15.A156 330045-15	£1.50	£1.80
62 - LOCK KNOB BDE-618156-00.A4 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-641455-00.A5 641455-00	£4.69	£5.63
64 - BUSHING BDE-618145-00.A8 618145-00	£3.30	£3.96
65 - WASHER THRUST BDE-153769-01.A10 153769-01	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A8 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A4 625393-00	£1.50	£1.80
68 - POINTER BDE-641425-00.A5 641425-00	£1.50	£1.80
70 - HANDLE BDE-618236-00.A14 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A14 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A7 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A5 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A193 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A4 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A11 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A17 098103-18	£1.50	£1.80
78 - SCREW BDE-98104-17.A11 98104-17	£1.50	£1.80
79 - SPRING BDE-641466-00.A3 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A10 641467-00	£7.18	£8.62
81 - PLATE GB BDE-641484-00.A14 641484-00	£1.50	£1.80
81 - PLATE LX BDE-641484-00.A15 641484-00	£1.50	£1.80
83 - LEVER SA BDE-N019349.A7 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A1 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A13 618259-00	£1.50	£1.80
86 - CAM BDE-618232-00.A3 618232-00	-
88 - PLATE BDE-641471-00.A2 641471-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A63277 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A63278 000000-00	-
89 - PLATE BDE-641468-00.A2 641468-00	-
90 - CARRIAGE BOLT BDE-98130-25.A7 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A11 330015-03	£1.50	£1.80
92 - SCREW BDE-391346-00.A19 391346-00	£1.50	£1.80
93 - BASE SA BDE-641486-00.A0 641486-00	£165.92	£199.11
93 - BASE SA BDE-641486-00SV.A1 641486-00SV	£245.11	£294.13
94 - PLATE BDE-641416-00.A5 641416-00	£1.50	£1.80
95 - PLATE BDE-641453-00.A6 641453-00	£5.88	£7.06
96 - TABLE SA LX BDE-641498-01.A2 641498-01	-
96 - TABLE SA GB BDE-641498-01.A3 641498-01	-
97 - KNOB LOWER LX BDE-147107-07.A5 147107-07	£3.80	£4.56
97 - KNOB LOWER GB BDE-147107-07.A6 147107-07	£3.80	£4.56
98 - SCREW BDE-330045-05.A13 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A2 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A7 98025-35	£1.50	£1.80
101 - LOCK NUT BDE-641449-00.A2 641449-00	£1.42	£1.70
102 - WASHER BDE-153792-00.A33 153792-00	£1.50	£1.80
103 - DETENT BDE-641443-00.A5 641443-00	£25.70	£30.84
104 - SCREW BDE-604410-00.A13 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A60 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-608563-01.A10 608563-01	£7.18	£8.62
107 - POINTER BDE-641452-00.A0 641452-00	£1.50	£1.80
108 - ACTUATOR BDE-641446-00.A1 641446-00	£2.78	£3.34
110 - SCREW BDE-330045-44.A41 330045-44	£1.50	£1.80
112 - SPRING BDE-397070-00.A22 397070-00	£3.80	£4.56
115 - RETAINER BDE-641448-00.A1 641448-00	£1.50	£1.80
116 - LEVER BDE-641456-00.A1 641456-00	£5.88	£7.06
117 - PIN BDE-659090-00.A1 659090-00	£2.26	£2.71
118 - PIN BDE-624460-00.A1 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A18 624461-00	£1.50	£1.80
120 - ROD BDE-641447-00.A5 641447-00	£3.30	£3.96
121 - BLOCK BDE-641424-00.A1 641424-00	£7.18	£8.62
123 - SPRING COMPRESSION BDE-618253-00.A13 618253-00	£1.50	£1.80
124 - HANDLE SA BDE-624730-00.A1 624730-00	£16.03	£19.24
125 - SCREW BDE-330045-18.A11 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A169 330019-32	£1.50	£1.80
127 - COVER BDE-618270-00.A11 618270-00	£2.78	£3.34
128 - SWITCH BDE-N548978V.A4 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A74 384127-01	£1.50	£1.80
130 - SCREW.SPECIAL BDE-330045-23.A106 330045-23	£1.50	£1.80
131 - MOTOR CABLE BDE-618276-00.A11 618276-00	£16.03	£19.24
132 - CORDSET GB BDE-330060-91.A9 330060-91	£51.90	£62.28
132 - CORDSET LX BDE-N045586.A9 N045586	£51.90	£62.28
133 - HANDLE BDE-641438-00.A5 641438-00	£3.80	£4.56
134 - SCREW BDE-330019-22.A43 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-659008-00.A1 659008-00	£1.42	£1.70
136 - CABLE SA BDE-N467585.A8 N467585	£9.41	£11.29
137 - COVER BDE-641430-00.A2 641430-00	£1.50	£1.80
138 - FENCE GB BDE-641411-01.A0 641411-01	-
138 - FENCE LX BDE-641411-01.A1 641411-01	-
138 - FENCE BDE-641411-00 641411-00	-
139 - FENCE LH LX BDE-641474-01.A0 641474-01	£34.00	£40.80
139 - FENCE LH GB BDE-641474-01.A1 641474-01	£34.00	£40.80
139 - FENCE LH BDE-641474-00 641474-00	-
140 - FENCE RH GB BDE-641475-01SV.A1 641475-01SV	£99.47	£119.36
140 - FENCE RH BDE-641475-00 641475-00	-
140 - FENCE RH LX BDE-641475-01SV.A0 641475-01SV	£99.47	£119.36
141 - KNOB LOWER BDE-147107-02.A51 147107-02	£2.26	£2.71
142 - SCREW BDE-098105-03.A19 098105-03	£3.80	£4.56
143 - FIELDCASE BDE-391317-00.A23 391317-00	£12.17	£14.60
144 - ARMATURE SA GB BDE-N065988SV.A4 N065988SV	£108.20	£129.84
144 - ARMATURE & FAN LX BDE-396004-02SV.A2 396004-02SV	-
145 - FIELD GB BDE-391318-01SV.A15 391318-01SV	-
145 - FIELD 115V LX BDE-391318-00SV.A4 391318-00SV	-
145 - FIELD BDE-391318-01SV.A14 391318-01SV	-
146 - PLATE BDE-394036-00.A2 394036-00	£14.57	£17.48
147 - SCREW BDE-394034-00.A27 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A13 605040-32	£7.92	£9.50
149 - BEARING BDE-330003-60.A83 330003-60	£2.78	£3.34
150 - CIRCLIP BDE-144803-00.A70 144803-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A55 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A37 98094-55	£1.50	£1.80
153 - END CAP BDE-391933-00.A32 391933-00	£4.69	£5.63
154 - SCREW BDE-330019-13.A46 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A23 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A7 391375-00	-
157 - BRUSH PLATE BDE-389512-01.A2 389512-01	£16.03	£19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A29919 000000-00	-
158 - IDENTITY LABEL BDE-391325-00.A4 391325-00	-
159 - RATING PLATE LX BDE-641598-00 641598-00	£1.42	£1.70
159 - RATING PLATE GB BDE-641503-00 641503-00	£1.42	£1.70
160 - RING BDE-153783-00.A3 153783-00	£1.50	£1.80
162 - SCREW BDE-330045-13.A53 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A65 330019-12	£1.50	£1.80
170 - TRUNION LX BDE-641496-00.A6 641496-00	£336.69	£404.03
170 - TRUNION GB BDE-641496-00.A7 641496-00	£336.69	£404.03
170 - TRUNION BDE-641496-00.A8 641496-00	£336.69	£404.03
171 - SCREW BDE-603390-00.A3 603390-00	£1.50	£1.80
172 - GUIDE BDE-397118-00.A16 397118-00	£3.30	£3.96
173 - SCREW BDE-153576-04.A30 153576-04	£1.50	£1.80
174 - THRUST PLATE BDE-613497-00.A27 613497-00	£1.50	£1.80
175 - WASHER BDE-153586-00.A20 153586-00	£1.50	£1.80
176 - BUSHING BDE-660786-00.A2 660786-00	-
176 - PROTECTOR LX BDE-863259-00.A5 863259-00	£3.80	£4.56
176 - PROTECTOR GB BDE-863259-00.A6 863259-00	£3.80	£4.56
178 - SLEEVE BDE-641444-00.A1 641444-00	£1.50	£1.80
179 - SCREW BDE-330045-24.A11 330045-24	£1.50	£1.80
180 - SCREW BDE-385915-04.A22 385915-04	£2.78	£3.34
183 - SPRING BDE-659919-00.A2 659919-00	£1.50	£1.80
193 - BUSHING BDE-645746-00.A10 645746-00	£1.66	£1.99
200 - LABEL BDE-395021-00.A18 395021-00	£3.30	£3.96
202 - INSERT GB BDE-148608-03.A6 148608-03	£2.26	£2.71
202 - INSERT LX BDE-148608-03.A7 148608-03	£2.26	£2.71
202 - INSERT BDE-148608-00.A7 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A25 386780-00	£2.26	£2.71
204 - GUARD LOWER GB BDE-641434-01.A8 641434-01	-
204 - GUARD LOWER LX BDE-641434-01.A9 641434-01	-
204 - GUARD LOWER BDE-641434-01.A10 641434-01	-
205 - GUARD PLATE BDE-N592582.A0 N592582	£12.17	£14.60
206 - SCREW BDE-385915-04.A21 385915-04	£2.78	£3.34
207 - PIVOT BLOCK BDE-N041988.A4 N041988	£14.57	£17.48
208 - BUMPER BDE-146768-00.A3 146768-00	£1.66	£1.99
209 - LINK BDE-641436-00.A0 641436-00	£7.18	£8.62
212 - RETAINING PLATE BDE-146750-03.A32 146750-03	£2.78	£3.34
213 - SPRING BDE-661454-00.A14 661454-00	£1.58	£1.90
214 - SLEEVE BDE-148295-00.A27 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A26 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A36 142273-00	£1.50	£1.80
217 - LABEL BDE-394976-00.A5 394976-00	£1.82	£2.19
218 - STUD BDE-618234-00.A9 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A5 153666-00	£1.50	£1.80
221 - TERMINAL BDE-145332-00.A31 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A3 450212-00	£2.78	£3.34
223 - LABEL GB BDE-395301-00.A7 395301-00	£1.50	£1.80
223 - WARNING LABEL BDE-618279-00 618279-00	£1.42	£1.70
223 - LABEL LX BDE-395301-00.A6 395301-00	£1.50	£1.80
224 - BRUSH & LEAD BDE-381028-08.A23 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A16 395716-00	£1.50	£1.80
226 - CORD CLAMP BDE-660029-00.A1 660029-00	£1.50	£1.80
228 - BUSH BDE-682149-00.A6 682149-00	£5.88	£7.06
230 - BOLT BDE-152852-00.A34 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A31 386196-00	£1.66	£1.99
236 - LEAD SA BDE-618159-01.A7 618159-01	£16.03	£19.24
237 - TERMINAL BLOCK BDE-393520-00.A7 393520-00	£5.88	£7.06
238 - BUSH GB BDE-388414-01.A31 388414-01	£1.50	£1.80
238 - BUSH LX BDE-N045491.A1 N045491	£10.57	£12.68
239 - DUSTBAG BDE-147734-06.A3 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-630065-00.A10 630065-00	£14.57	£17.48
241 - SCREW BDE-641442-00.A1 641442-00	£1.50	£1.80
242 - BEVEL SCALE BDE-641426-00.A1 641426-00	£3.30	£3.96
243 - LABEL PIVOT BDE-618277-00.A6 618277-00	£1.50	£1.80
244 - LABEL PIVOT BDE-618278-00.A8 618278-00	£1.50	£1.80
245 - LINK BDE-641427-00.A5 641427-00	£1.50	£1.80
247 - SCREW BDE-616001-00.A32 616001-00	£1.50	£1.80
248 - DEFLECTOR BDE-641482-00.A5 641482-00	£1.50	£1.80
249 - DEFLECTOR BDE-641481-00.A1 641481-00	£1.50	£1.80
250 - LABEL BDE-641483-00.A1 641483-00	£1.50	£1.80
255 - DUST PORT BDE-N175841.A5 N175841	£10.85	£13.02
256 - SCREW BDE-330019-02.A133 330019-02	£1.50	£1.80
259 - SCREW BDE-330019-05.A15 330019-05	£1.50	£1.80
261 - PADDLE BDE-661663-00.A4 661663-00	£4.69	£5.63
262 - GUARD BDE-661662-00.A2 661662-00	£4.69	£5.63
263 - SCREW.TEMP BDE-330019-11.A13 330019-11	£1.50	£1.80
800 - GREASE BDE-93488-00.A39 93488-00	£17.48	£20.97
800 - GREASE BDE-5140061-28.A74 5140061-28	£51.90	£62.28
837 - S.T.SQUARE BDE-559626-99.A28 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW717 Type 1 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
