Dewalt DW718XPS Type 3 Mitre Saw Spare Parts

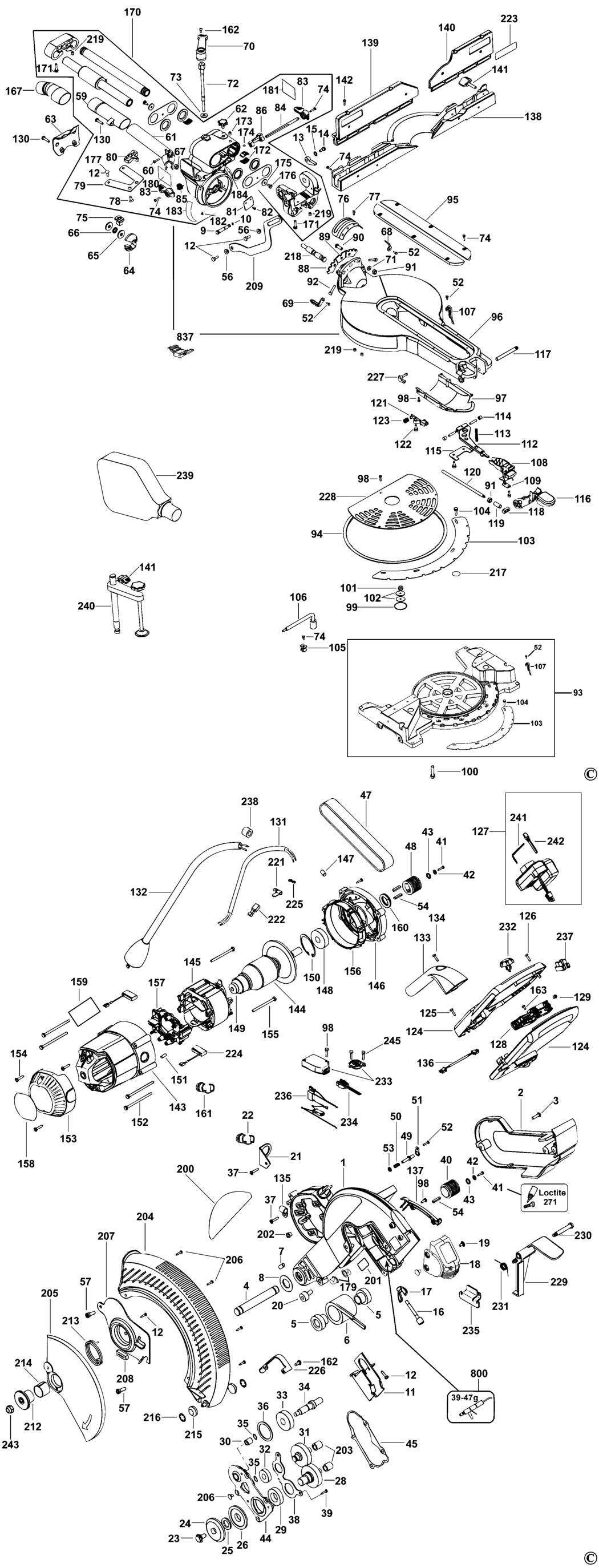

An exploded drawing and spare parts listing for the Dewalt DW718XPS Type 3 Mitre Saw

	Ex VAT	Inc VAT
1 - ARM BDE-618175-01SV.A6 618175-01SV	-
2 - BELT COVER BDE-618193-00.A4 618193-00	£14.57	£17.48
3 - SCREW BDE-330045-14.A11 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A25 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A37 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A22 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A43 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A67 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A30 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A13 34158-00	£1.50	£1.80
11 - GUARD REAR BDE-618190-00.A2 618190-00	£7.18	£8.62
12 - SCREW.SPECIAL BDE-330045-23.A104 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A2 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A5 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A32 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A18 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A15 150718-00	£1.50	£1.80
18 - LED & POWER SUPPLY KIT GB BDE-DWS7085.A14 DWS7085	£114.00	£136.80
18 - LED & POWER SUPPLY KIT LX BDE-DWS7085.A15 DWS7085	£114.00	£136.80
19 - SCREW BDE-385915-02.A18 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A2 618198-00	£1.50	£1.80
21 - BRACKET BDE-624195-01.A3 624195-01	£1.50	£1.80
22 - BUSHING BDE-615851-00.A12 615851-00	£1.50	£1.80
23 - BLADE BOLT BDE-869245-00.A71 869245-00	£3.54	£4.25
24 - CLAMP OUTER BDE-604765-00.A48 604765-00	£5.88	£7.06
25 - WASHER INNER CLAMP BDE-N081035.A3 N081035	£10.85	£13.02
26 - WASHER INNER CLAMP BDE-N081035.A4 N081035	£10.85	£13.02
28 - SPINDLE & GEAR BDE-N086159.A7 N086159	£25.70	£30.84
29 - BEARING BALL BDE-330003-66.A27 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A27 391616-00	£4.69	£5.63
31 - GEAR SA BDE-NA135793.A12 NA135793	£44.14	£52.97
32 - BEARING BDE-605040-59.A10 605040-59	£3.30	£3.96
33 - BEARING BDE-605040-33.A6 605040-33	£5.88	£7.06
34 - PULLEY SA BDE-N105443.A9 N105443	£51.90	£62.28
35 - RETAINER BDE-153752-00.A2 153752-00	£1.50	£1.80
36 - RETAINING PLATE BDE-618244-00.A15 618244-00	£1.50	£1.80
37 - SCREW BDE-330045-49.A60 330045-49	£1.50	£1.80
38 - BEARING PLATE BDE-391310-00.A9 391310-00	£1.82	£2.19
39 - SCREW BDE-98094-13.A4 98094-13	£1.50	£1.80
40 - PULLEY BDE-153796-00.A11 153796-00	£10.85	£13.02
41 - BOLT BDE-616717-00.A1 616717-00	£1.50	£1.80
42 - WASHER BDE-931429-00.A13 931429-00	£3.30	£3.96
43 - WASHER BDE-153782-00.A8 153782-00	£1.50	£1.80
44 - GEARCASE BDE-653809-01.A7 653809-01	£12.17	£14.60
45 - GASKET BDE-391315-00.A11 391315-00	£2.78	£3.34
47 - BELT BDE-153555-00.A8 153555-00	£19.90	£23.88
48 - DRIVE PULLEY BDE-153554-00.A11 153554-00	£10.85	£13.02
49 - LOCKING PIN BDE-153561-00.A15 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A15 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A29 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A31 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A17 153559-00	£1.50	£1.80
54 - KEY BDE-153638-00.A15 153638-00	£1.82	£2.19
56 - SLEEVE BDE-146740-00.A8 146740-00	£1.66	£1.99
57 - SCREW BDE-394589-01.A31 394589-01	£1.50	£1.80
59 - DUCT BDE-618157-00.A7 618157-00	-
60 - SCREW BDE-330045-15.A166 330045-15	£1.50	£1.80
61 - DUCT BDE-624719-00.A6 624719-00	£12.17	£14.60
62 - LOCK KNOB BDE-618156-00.A2 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-618238-00.A2 618238-00	-
64 - BUSHING BDE-618145-00.A10 618145-00	£3.30	£3.96
65 - WASHER THRUST BDE-153769-01.A12 153769-01	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A6 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A3 625393-00	£1.50	£1.80
68 - POINTER BDE-618211-00.A7 618211-00	£1.42	£1.70
69 - POINTER BDE-618235-00.A2 618235-00	£1.42	£1.70
70 - HANDLE BDE-618236-00.A11 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A9 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A5 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A4 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A191 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A2 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A9 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A19 098103-18	£1.50	£1.80
78 - SCREW BDE-98104-17.A9 98104-17	£1.50	£1.80
79 - SPRING BDE-641466-00.A5 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A8 641467-00	£7.18	£8.62
81 - COVER BDE-618162-00.A7 618162-00	£1.50	£1.80
82 - SCREW BDE-330045-44.A35 330045-44	£1.50	£1.80
83 - LEVER SA BDE-N019349.A9 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A3 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A10 618259-00	£1.50	£1.80
86 - CAM BDE-618232-00.A1 618232-00	-
88 - PLATE BDE-641471-00.A4 641471-00	-
89 - PLATE BDE-641468-00.A4 641468-00	-
90 - CARRIAGE BOLT BDE-98130-25.A5 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A9 330015-03	£1.50	£1.80
92 - SCREW BDE-391346-00.A18 391346-00	£1.50	£1.80
93 - BASE SA BDE-645751-00SV.A10 645751-00SV	£336.69	£404.03
94 - PLATE BDE-N528183.A6 N528183	£7.18	£8.62
95 - PLATE BDE-618199-00.A7 618199-00	£3.80	£4.56
96 - TABLE SA BDE-630711-03.A9 630711-03	£192.14	£230.57
97 - COVER BDE-N401778.A11 N401778	£7.18	£8.62
98 - SCREW BDE-330045-05.A19 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A3 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A5 98025-35	£1.50	£1.80
101 - LOCK NUT BDE-N044739.A12 N044739	£1.50	£1.80
102 - WASHER BDE-153792-00.A29 153792-00	£1.50	£1.80
103 - PLATE BDE-618168-00.A5 618168-00	£24.39	£29.27
104 - SCREW BDE-604410-00.A12 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A57 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-608563-01.A7 608563-01	£7.18	£8.62
107 - POINTER BDE-618209-00.A1 618209-00	£1.42	£1.70
108 - ACTUATOR BDE-618169-00.A3 618169-00	£4.69	£5.63
109 - PLATE BDE-618243-00.A2 618243-00	-
112 - DETENT BDE-N488468.A6 N488468	£41.24	£49.49
113 - SPRING COMPRESSION BDE-618176-00.A6 618176-00	£1.50	£1.80
114 - BEARING NEEDLE BDE-093128-00.A23 093128-00	£1.50	£1.80
115 - RETAINER BDE-618254-00.A4 618254-00	£1.50	£1.80
116 - LEVER BDE-N082785.A7 N082785	£5.88	£7.06
117 - PIN BDE-618187-00.A4 618187-00	£3.30	£3.96
118 - PIN BDE-624460-00.A3 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A16 624461-00	£1.50	£1.80
120 - ROD BDE-618186-00.A6 618186-00	£5.88	£7.06
121 - BLOCK BDE-618185-00.A6 618185-00	£5.88	£7.06
122 - SCREW BDE-385915-03.A2 385915-03	£1.50	£1.80
123 - SPRING COMPRESSION BDE-618253-00.A15 618253-00	£1.50	£1.80
124 - HANDLE SA BDE-N502790.A7 N502790	£25.70	£30.84
125 - SCREW BDE-330045-18.A8 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A180 330019-32	£1.50	£1.80
127 - SA POWER SUPPLY GB BDE-DWS7085.A35 DWS7085	£114.00	£136.80
128 - SWITCH BDE-N548978V.A2 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A78 384127-01	£1.50	£1.80
130 - SCREW.TEMP BDE-330045-25.A18 330045-25	£1.50	£1.80
131 - MOTOR CABLE BDE-N029242.A2 N029242	£12.17	£14.60
132 - CORDSET GB BDE-604807-03.A1 604807-03	-
132 - CORDSET LX BDE-N045585.A4 N045585	£59.41	£71.29
133 - HANDLE BDE-N083060.A9 N083060	£7.85	£9.42
134 - SCREW BDE-330019-22.A38 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-398443-00.A15 398443-00	£1.50	£1.80
136 - CABLE SA BDE-N467585.A13 N467585	£9.41	£11.29
137 - COVER BDE-618269-00.A5 618269-00	£1.42	£1.70
138 - FENCE BDE-618202-01.A1 618202-01	-
139 - FENCE LH BDE-618203-01.A9 618203-01	-
140 - FENCE RH BDE-N024409.A4 N024409	-
141 - KNOB LOWER BDE-147107-02.A33 147107-02	£2.26	£2.71
142 - SCREW BDE-098105-03.A3 098105-03	£3.80	£4.56
143 - FIELDCASE BDE-391317-00.A26 391317-00	£12.17	£14.60
144 - ARMATURE SA GB BDE-N093107.A0 N093107	£157.49	£188.99
144 - ARMATURE 115V LX BDE-N093108.A4 N093108	£165.92	£199.11
145 - FIELD 230V GB BDE-869045-00.A11 869045-00	£47.08	£56.49
145 - FIELD 115V LX BDE-869045-01.A10 869045-01	£47.08	£56.49
146 - MOUNTING BRACKET BDE-391282-00.A8 391282-00	£16.03	£19.24
147 - SCREW BDE-394034-00.A34 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A23 605040-32	£7.92	£9.50
149 - BEARING BDE-330003-60.A35 330003-60	£2.78	£3.34
150 - CIRCLIP BDE-144803-00.A93 144803-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A72 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A4 98094-55	£1.50	£1.80
153 - END CAP BDE-391933-00.A47 391933-00	£4.69	£5.63
154 - SCREW BDE-330019-13.A178 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A85 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A26 391375-00	-
157 - BRUSH PLATE BDE-389512-01.A11 389512-01	£16.03	£19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A63403 000000-00	-
159 - RATING PLATE GB BDE-N028769 N028769	£2.21	£2.65
159 - RATING PLATE LX BDE-N028770 N028770	£2.21	£2.65
160 - RING BDE-153783-00.A13 153783-00	£1.50	£1.80
161 - BUSHING BDE-605155-00.A15 605155-00	£1.66	£1.99
162 - SCREW BDE-330045-13.A77 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A48 330019-12	£1.50	£1.80
167 - ADAPTOR BDE-618240-00.A6 618240-00	-
170 - TRUNION BDE-650852-00.A6 650852-00	-
171 - SCREW BDE-603390-00.A8 603390-00	£1.50	£1.80
172 - GUIDE BDE-397118-00.A7 397118-00	£3.30	£3.96
173 - SCREW BDE-153576-04.A20 153576-04	£1.50	£1.80
174 - THRUST PLATE BDE-613497-00.A19 613497-00	£1.50	£1.80
175 - WASHER BDE-153586-00.A30 153586-00	£1.50	£1.80
176 - SCREW BDE-616001-00.A19 616001-00	£1.50	£1.80
179 - BUSHING BDE-645746-00.A1 645746-00	£1.66	£1.99
180 - LABEL PIVOT BDE-618278-00.A12 618278-00	£1.50	£1.80
181 - LABEL PIVOT BDE-618277-00.A2 618277-00	£1.50	£1.80
182 - RIVET BDE-147439-07.A6 147439-07	£1.42	£1.70
183 - SCALE LH BDE-618262-00.A5 618262-00	£1.42	£1.70
184 - SCALE RH BDE-618261-00.A2 618261-00	£1.42	£1.70
200 - LABEL BDE-393706-00.A6 393706-00	£1.50	£1.80
201 - WARNING LABEL BDE-662575-00.A7 662575-00	£7.85	£9.42
202 - INSERT BDE-148608-00.A18 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A16 386780-00	£2.26	£2.71
204 - GUARD LOWER BDE-618231-01.A12 618231-01	£24.39	£29.27
205 - PLATE BDE-N020822.A1 N020822	£12.17	£14.60
206 - SCREW BDE-385915-01.A9 385915-01	£1.50	£1.80
207 - PLATE BDE-621037-00.A9 621037-00	£7.18	£8.62
208 - BUMPER BDE-146768-00.A18 146768-00	£1.66	£1.99
209 - LINK BDE-N142523.A7 N142523	£17.48	£20.97
212 - FSO KIT BDE-N390418.A28 N390418	£7.85	£9.42
213 - SPRING BDE-661454-00.A24 661454-00	£1.58	£1.90
214 - SLEEVE BDE-148295-00.A17 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A17 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A28 142273-00	£1.50	£1.80
217 - LABEL BDE-394976-00.A20 394976-00	£1.82	£2.19
218 - STUD BDE-618234-00.A13 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A12 153666-00	£1.50	£1.80
220 - WARNING LABEL BDE-618274-00.A2 618274-00	£1.42	£1.70
221 - TERMINAL BDE-145332-00.A21 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A13 450212-00	£2.78	£3.34
223 - LABEL BDE-395301-00.A14 395301-00	£1.50	£1.80
224 - BRUSH & LEAD BDE-381028-08.A2 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A24 395716-00	£1.50	£1.80
226 - GUARD BDE-623957-00.A14 623957-00	£3.80	£4.56
227 - NO LONGER AVAILABLE BDE-000000-00.A63404 000000-00	-
228 - COVER BDE-391355-00.A8 391355-00	£15.63	£18.76
229 - LEVER LOCK BDE-624399-00.A1 624399-00	-
230 - BOLT BDE-152852-00.A14 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A41 386196-00	£1.66	£1.99
232 - KNOB BDE-392131-00.A17 392131-00	£1.50	£1.80
233 - CONTROL MODULE SA LX BDE-628744-01.A6 628744-01	£76.16	£91.39
233 - CONTROL MODULE SA GB BDE-N033994.A12 N033994	£93.62	£112.35
234 - LEAD SA BDE-622950-00.A6 622950-00	£34.00	£40.80
235 - PLATE BDE-393791-00.A10 393791-00	£1.50	£1.80
236 - LEAD SA BDE-618159-00.A0 618159-00	£17.48	£20.97
237 - TERMINAL BLOCK BDE-393520-00.A25 393520-00	£5.88	£7.06
238 - BUSH BDE-388414-01.A9 388414-01	£1.50	£1.80
239 - DUSTBAG BDE-147734-06.A19 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-630065-00.A19 630065-00	£14.57	£17.48
241 - HEX KEY 2.5 MM BDE-604407-01.A13 604407-01	£3.30	£3.96
242 - SWITCH LOCK OFF BDE-627271-00.A4 627271-00	£1.50	£1.80
243 - FSO KIT BDE-N390418.A29 N390418	£7.85	£9.42
245 - SCREW BDE-330019-03.A126 330019-03	£1.50	£1.80
800 - GREASE BDE-429698-00.A49 429698-00	£84.42	£101.30
800 - GREASE BDE-93488-00.A62 93488-00	£17.48	£20.97
837 - S.T.SQUARE BDE-559626-99.A20 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW718XPS Type 3 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
