Metabo DS D 6175 / 06175001 / 3 / 400V/50Hz Spare Parts

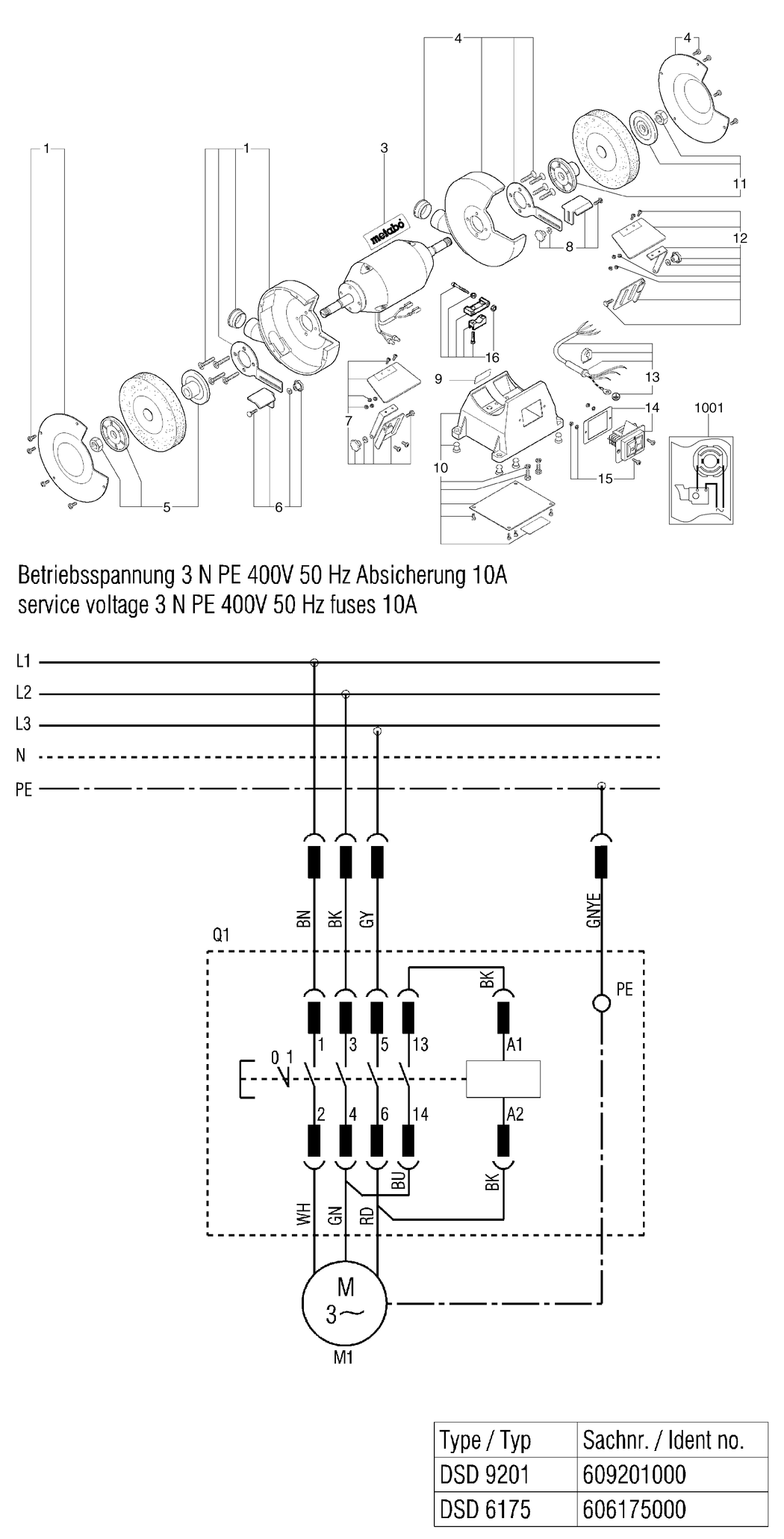

An exploded diagram and spare parts listing for the Metabo DS D 6175 / 06175001 / 3 / 400V/50Hz

	Ex VAT	Inc VAT
1 - WHEEL GUARD COMPL.LEFT MET-316040810.A0 316040810	-
3 - METABO LABEL MET-338115980.A4 338115980	£3.82	£4.59
4 - WHEEL GUARD COMPL.RIGHT MET-316040800.A0 316040800	-
5 - CLAMPING FLANGE COMPL.LEFT MET-316040830.A1 316040830	£41.44	£49.73
6 - SUPPORING ANGLE COMPL.LEFT MET-316040870.A1 316040870	£32.61	£39.13
7 - SPARK PROTECTION W.EYE PROTECTION LEFT MET-316040850.A1 316040850	-
8 - SUPPORING ANGLE COMPL.RIGHT MET-316040860.A0 316040860	£32.61	£39.13
9 - RATING PLATE MET-338048090.A0 338048090	-
10 - FOOT COMPL. MET-316040880.A0 316040880	£76.70	£92.04
11 - CLAMPING FLANGE COMPL.RIGHT MET-316040820.A0 316040820	£60.03	£72.04
12 - SPARK PROTECTION W.EYE PROTECTION RIGHT MET-316040840.A0 316040840	£30.06	£36.07
13 - CABLE W.CEE PLUG COMPL. MET-316040920.A1 316040920	-
14 - SWITCH MET-343408420.A1 343408420	£9.82	£11.79
15 - SCREW SET COMPL. MET-316037440.A0 316037440	-
16 - CABLE STRAIN-RELIEF COMPL. MET-316039830.A1 316039830	-
1001 - WIRING DIAGRAM 230V MET-338504530.A0 338504530	-

Attribute Name	Value
Brand	Metabo
