Bosch GBM 23-2 E / 0601121641 / GB 110 Volt Spare Parts

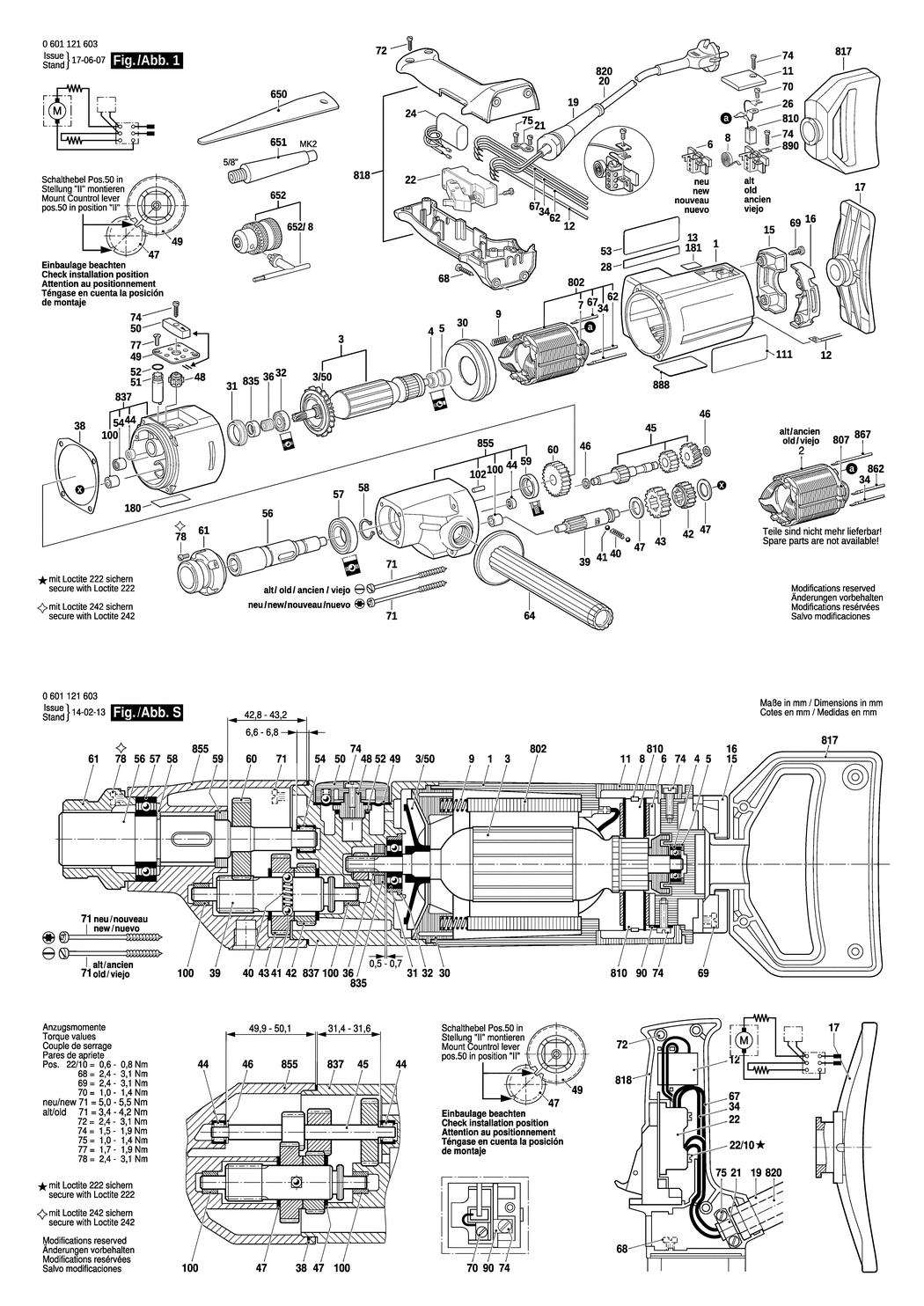

An exploded drawing and listing for the Bosch GBM 23-2 E / 0601121641 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108091.A2 3605108091	£35.42	£42.51
3 - ARMATURE BSD-1619P13763.A2 1619P13763	£98.57	£118.28
3/50 - FAN BSD-1606610122.A106 1606610122	£2.94	£3.53
4 - BALL BEARING 7x19x6 BSD-2600905032.A2234 2600905032	£5.57	£6.68
5 - INTERMEDIATE RING BSD-1600502011.A328 1600502011	£2.74	£3.29
6 - BRUSH HOLDER BSD-3604336012.A156 3604336012	£5.58	£6.70
7 - WIRE GUIDE BSD-3601025003.A5 3601025003	£1.75	£2.10
8 - SPIRAL SPRING BSD-1604652006.A375 1604652006	£1.84	£2.21
9 - COMPRESSION SPRING BSD-1604613006.A71 1604613006	£1.75	£2.10
11 - SEALING CAP BSD-3605500063.A124 3605500063	£4.48	£5.37
12 - CONNECTING CABLE L=290 MM BSD-1604445006.A15 1604445006	£5.58	£6.70
15 - SEALING CAP BSD-3605500058.A78 3605500058	£13.78	£16.54
16 - SEALING CAP BSD-3605500059.A24 3605500059	£14.91	£17.89
17 - PRESSURE PLATE BSD-3601012003.A13 3601012003	£9.11	£10.93
19 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A179 3600703011	£2.94	£3.53
20 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F BSD-1604460203.A56 1604460203	£33.74	£40.49
21 - FASTENING CLAMP BSD-1601302014.A552 1601302014	£2.74	£3.29
22 - SWITCH BSD-1607200076.A6 1607200076	£126.12	£151.34
26 - BLADE TERMINAL BSD-1604477001.A45 1604477001	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600502019.A42 1600502019	£3.72	£4.47
31 - INTERMEDIATE RING BSD-1600221003.A144 1600221003	£2.74	£3.29
32 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A29 3600905131	£11.87	£14.24
34 - CONNECTING CABLE L=330 MM BSD-1604438012.A88 1604438012	£7.36	£8.83
36 - INTERMEDIATE RING BSD-1600300090.A21 1600300090	£3.72	£4.47
38 - SEALING PLATE BSD-1601015013.A19 1601015013	£1.75	£2.10
39 - TOOTHED SHAFT Z=9 BSD-1606309066.A18 1606309066	£85.90	£103.08
40 - COMPRESSION SPRING BSD-1604611022.A50 1604611022	£1.75	£2.10
41 - BALL DIN 5401-5 G28 BSD-1903230009.A888 1903230009	£1.84	£2.21
42 - CYLINDRICAL GEAR Z=32 BSD-1606317074.A102 1606317074	£33.22	£39.87
43 - CYLINDRICAL GEAR Z=43 BSD-1606317082.A41 1606317082	£37.27	£44.72
44 - NEEDLE BEARING BSD-1600910013.A9 1600910013	£5.58	£6.70
45 - PINION SHAFT Z=14/24/33 BSD-1606309065.A25 1606309065	£85.90	£103.08
46 - SHIM 0.5 MM BSD-1600100631.A101 1600100631	£1.75	£2.10
47 - SHIM 0.6 MM BSD-1600101647.A106 1600101647	£2.27	£2.72
48 - CONTROL SHAFT Z=20 BSD-1606325025.A59 1606325025	£2.94	£3.53
49 - NOTCHED PLATE BSD-1601038025.A24 1601038025	£1.75	£2.10
50 - CONTROL LEVER BSD-1602026044.A87 1602026044	£7.36	£8.83
51 - CONTROL SHAFT Z=10 BSD-1606325027.A8 1606325027	£8.67	£10.41
52 - O-RING 8x2.5 MM BSD-1900210105.A72 1900210105	£1.75	£2.10
53 - STICKER BSD-3601110366.A9 3601110366	£3.72	£4.47
54 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A414 2600910001	£4.48	£5.37
56 - DRILLING SPINDLE BSD-3606135009.A10 3606135009	£81.81	£98.17
57 - GROOVE BALL BEARING 25x47x12 BSD-1900905126.A21 1900905126	£33.74	£40.49
58 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A84 2916650014	£1.84	£2.21
59 - SEAL RING 20x31x7 MM BSD-3600290035.A15 3600290035	£13.78	£16.54
60 - CYLINDRICAL GEAR BSD-3606316108.A18 3606316108	£33.74	£40.49
61 - FASTENING FLANGE BSD-1605703075.A22 1605703075	£50.80	£60.96
62 - CONNECTING CABLE L=375 MM BSD-3604438027.A17 3604438027	£10.61	£12.73
64 - HANDLE 400 MM BSD-1600763010.A83 1600763010	£42.84	£51.41
67 - CONNECTING CABLE L=470 MM BSD-3604438025.A11 3604438025	£7.36	£8.83
68 - TAPPING SCREW 5x30 BSD-3603435027.A8 3603435027	£1.84	£2.21
69 - TORX OVAL-HEAD SCREW BSD-2914201529.A8 2914201529	£1.75	£2.10
70 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A785 2910021118	£1.84	£2.21
71 - LENS HEAD SCREW BSD-3603435042.A31 3603435042	£1.84	£2.21
72 - TORX OVAL-HEAD SCREW BSD-2914201508.A29 2914201508	£1.84	£2.21
74 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A808 2910211019	£1.84	£2.21
75 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A809 2910211019	£1.84	£2.21
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8 BSD-2910501120.A20 2910501120	£1.84	£2.21
78 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A260 2910021154	£1.75	£2.10
100 - BUSHING BSD-3600328033.A23 3600328033	£8.49	£10.19
102 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A80 2917500121	£1.75	£2.10
111 - STICKER BSD-3601110383.A0 3601110383	£3.91	£4.69
650 - DRIFT BSD-3601030002.A8 3601030002	£12.64	£15.17
802 - FIELD 110-115V BSD-3604220112.A0 3604220112	-
807 - WIRE GUIDE BSD-1601025001.A159 1601025001	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-3607014012.A67 3607014012	£25.05	£30.06
817 - HANDLE BSD-3605133010.A9 3605133010	-
818 - HANDLE BSD-3605132031.A21 3605132031	£33.22	£39.87
835 - ROTARY SHAFT LIP SEAL BSD-3600290070.A67 3600290070	£12.64	£15.17
837 - INTERMEDIATE BEARING BSD-3607030436.A17 3607030436	£98.57	£118.28
855 - SPINDLE BEARING BSD-1605806382.A6 1605806382	£135.25	£162.30
888 - NAMEPLATE BSD-160111A3H3.A4833 160111A3H3	£2.74	£3.29
890 - TAB WASHER BSD-1601030022.A512 1601030022	£1.84	£2.21
