Makita LS0714FL Slide Compound Saw Spare Parts

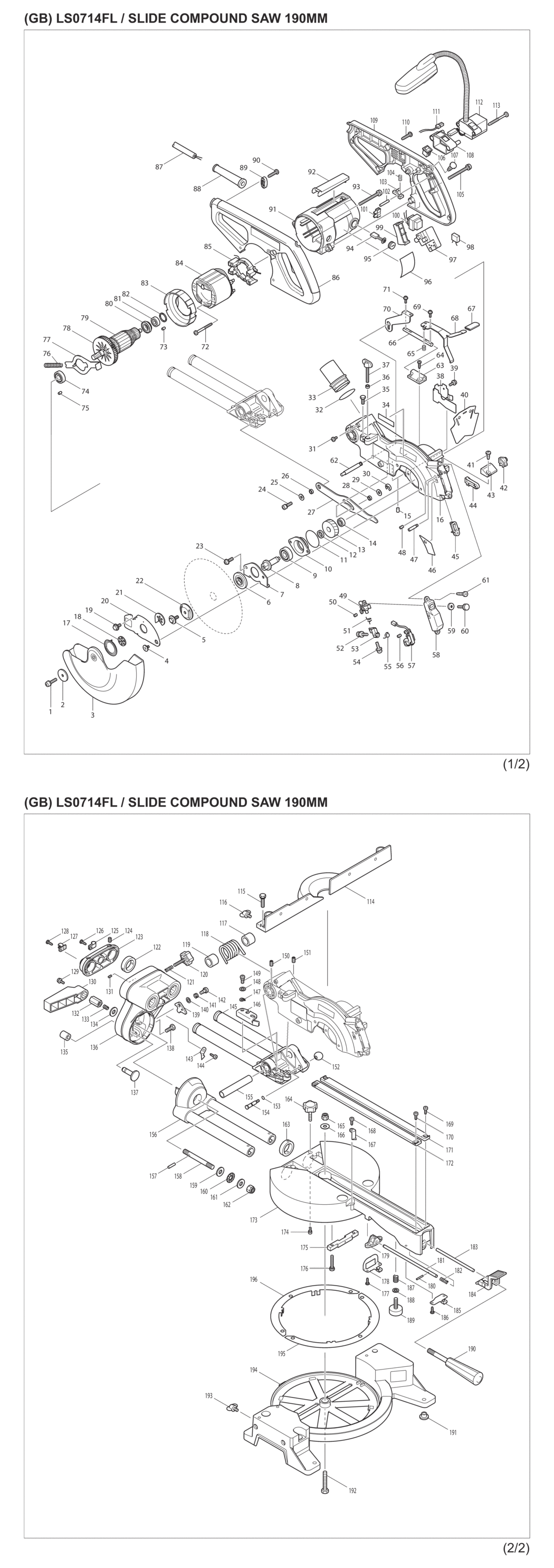

An exploded drawing and spare parts listing for the Makita LS0714FL Slide Compound Saw

	Ex VAT	Inc VAT
1-1 - HEX SOCKET HD BOLT M5X16 DA40 MSP-265491-4.A7 265491-4	£1.66	£1.99
2 - LARGE WASHER 5 LS800D/DLS714 MSP-267136-0.A7 267136-0	£1.44	£1.73
3-2 - SAFETY COVER LS0714FL MSP-453299-0.A2 453299-0	£41.23	£49.48
4 - PIVOT SCREW M5 LS800/ LS1019&L MSP-265008-3.A2 265008-3	£2.18	£2.62
5 - HEX HD SCREW M6X18 L THR MSP-265461-3.A0 265461-3	£2.48	£2.97
5-1 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266733-9.A4 266733-9	£2.45	£2.94
6-1 - INNER FLANGE 40 MT582/5704R MSP-224370-5.A8 224370-5	£5.46	£6.55
7 - BEARING RETAINER LS0714/FL MSP-285715-2.A1 285715-2	£1.44	£1.73
8 - SPINDLE LS820/713/DLS714 MSP-323798-5.A1 323798-5	£14.35	£17.22
9 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A4 211129-9	£10.14	£12.17
10 - BEARING BOX LS0714/FL MSP-317037-3.A0 317037-3	£8.58	£10.30
11 - O RING 42 LS0714/FL/DHS680 MSP-213565-5.A2 213565-5	£1.44	£1.73
12 - RING 12 5600NB/5621RDW/CA5000 MSP-257010-0.A2 257010-0	£1.44	£1.73
13 - HELICAL GEAR 47 LS0714/FL MSP-226497-7.A0 226497-7	£9.98	£11.98
14 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A43 211021-9	£8.42	£10.11
15 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A835 263005-3	£1.44	£1.73
16-2 - BLADE CASE LS0714L MSP-188245-1.A1 188245-1	£63.50	£76.20
16-2 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A22 810968-0	£1.44	£1.73
16-1 - LABEL/CAUTION MLS100LF1000 MSP-817667-5.A2 817667-5	£1.44	£1.73
16 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A20 810968-0	£1.44	£1.73
16-2 - LABEL/LASER BEAM LS0714FL/ 19L MSP-810354-5.A4 810354-5	£1.44	£1.73
16-1 - BLADE CASE LS0714L MSP-188245-1.A0 188245-1	£63.50	£76.20
16-1 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A21 810968-0	£1.44	£1.73
16 - LABEL/CAUTION MLS100LF1000 MSP-817667-5.A17 817667-5	£1.44	£1.73
16-2 - LABEL/CAUTION MLS100LF1000 MSP-817667-5.A26 817667-5	£1.44	£1.73
17 - SPIRAL SPRING 24 LS800DWB/M24 MSP-231934-8.A6 231934-8	£3.59	£4.31
18-1 - CENTRE WASHER LS0713/DLS714 MSP-345589-4.A0 345589-4	£2.48	£2.97
19-1 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266732-1.A2 266732-1	£1.44	£1.73
19 - HEX HD SCREW M6X14 W/CAPTIVE MSP-265473-6.A1 265473-6	£1.44	£1.73
20 - CENTRE COVER LS800D/BLS820 MSP-344641-5.A1 344641-5	£3.43	£4.12
21-1 - CENTRE PLATE LS800D/BLS820/L MSP-345585-2.A5 345585-2	£2.34	£2.81
21 - CENTRE PLATE LS800D/BLS820/LS MSP-345410-7.A1 345410-7	£3.59	£4.31
22-1 - OUTER FLANGE 40 MT582/5704R MSP-224275-9.A7 224275-9	£11.08	£13.29
23 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A25 911223-4	£1.44	£1.73
24 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A14 922331-6	£1.44	£1.73
25 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A43 253804-1	£1.44	£1.73
26 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A34 257461-7	£1.66	£1.99
27-1 - LINK PLATE DLS714/FL/LS0 MSP-154643-1.A0 154643-1	£15.62	£18.75
28 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A33 257461-7	£1.66	£1.99
29 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A44 253804-1	£1.44	£1.73
30 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A26 961018-5	£1.64	£1.97
31 - CT SCREW M4X8 JN1601/DLS714 MSP-266061-2.A2 266061-2	£1.44	£1.73
32 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A21 213460-9	£2.18	£2.62
33-1 - DUST NOZZLE LS1013/LS800D/BLS8 MSP-419277-0.A4 419277-0	£2.82	£3.39
34 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A99 819063-3	£1.44	£1.73
35-1 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266757-5.A3 266757-5	£1.44	£1.73
35 - HEX HD SCREW M6X16 MSP-265381-1.A0 265381-1	£1.44	£1.73
36 - URETHANE RING 5 TW0250/6905B MSP-262190-9.A7 262190-9	£1.44	£1.73
37 - WING SCREW M6X43 LS1013/DLS7 MSP-265717-4.A1 265717-4	£2.50	£3.00
38-1 - GUARD PLATE CO LS0714.BLS713 MSP-165414-1.A5 165414-1	£3.52	£4.23
39 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A20 911113-1	£1.44	£1.73
40-1 - GUARD LS0714/DLS714 MSP-421626-9.A0 421626-9	£1.88	£2.25
41 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A91 266026-4	£1.44	£1.73
42 - LEAD COVER A LS0714FL MSP-418109-8 418109-8	£1.44	£1.73
43 - LEAD COVER HOLDER LS0714FL MSP-418111-1 418111-1	£1.44	£1.73
44 - LEAD COVER B LS0714FL MSP-418110-3 418110-3	£1.44	£1.73
45 - LENS LS0714FL/ LS1019 LS1219/L MSP-418104-8.A0 418104-8	£2.34	£2.81
46-1 - LABEL/LASERLINE LS0714FL MSP-804293-9.A0 804293-9	£1.44	£1.73
47 - SHOULDER SCREW M5 LS0714FL MSP-266306-8.A5 266306-8	£2.18	£2.62
48 - HEX SOCKET SET SCREW M5X8 KP MSP-266229-0.A29 266229-0	£1.44	£1.73
49-1 - BLOCK C LS0714FL/ LS1019&L MSP-419379-2.A4 419379-2	£4.99	£5.99
50 - HSS SET SCREW M4X6 LS0714FL MSP-266318-1.A23 266318-1	£1.44	£1.73
51 - TORSION SPRING 9 LS0714/FL MSP-231664-1.A7 231664-1	£1.44	£1.73
52 - PAN HD SCREW M3X10 LS0714FL MSP-911014-3.A1 911014-3	£1.44	£1.73
52-1 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A41 911003-8	£1.44	£1.73
53-1 - BLOCK B LS0714FL/ LS1019&L MSP-419378-4.A3 419378-4	£3.59	£4.31
54-1 - PAN HD SCREW M3X6 VC3211M/ MSP-911003-8.A40 911003-8	£1.44	£1.73
54 - PAN HD SCREW M3X10 LS0714FL MSP-911014-3.A0 911014-3	£1.44	£1.73
55 - TORSION SPRING 9 LS0714/FL MSP-231664-1.A6 231664-1	£1.44	£1.73
56 - HSS SET SCREW M4X6 LS0714FL MSP-266318-1.A24 266318-1	£1.44	£1.73
57-1 - LASER CIRCUIT LS0714FL MSP-638442-4.A1 638442-4	£114.28	£137.14
58-1 - TOP COVER LS0714FL MSP-419380-7.A2 419380-7	£1.44	£1.73
59 - *THIN BLUE WASHER 5 BO3710/11 MSP-267066-5.A23 267066-5	£1.44	£1.73
60 - THUMB SCREW M5X24 LS0714/FL MSP-265753-0.A5 265753-0	£1.44	£1.73
61 - CT SCREW M4X20 BHS630/5703R MSP-266042-6.A18 266042-6	£1.44	£1.73
62 - LOCK PIN LS0714/FL/DLS714 MSP-324455-8.A1 324455-8	£2.81	£3.37
63 - ROD HOLDER LS0714/FL/2704 MSP-418655-1.A5 418655-1	£2.44	£2.93
64 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A4 266034-5	£1.44	£1.73
65 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A2 231316-4	£1.44	£1.73
66 - ROD 8 LS0714/FL MSP-324456-6.A1 324456-6	£8.27	£9.92
67 - CAP LS1013/LS800D/BLS820/LS10 MSP-421589-9.A12 421589-9	£1.44	£1.73
68-1 - LOCK LEVER LS0714/FL MSP-345807-0.A1 345807-0	£3.28	£3.93
69 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A18 911113-1	£1.44	£1.73
70 - LOCK PLATE LS0714/FL MSP-345436-9.A0 345436-9	£1.44	£1.73
71 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A19 911113-1	£1.44	£1.73
72 - PT SCREW 5X50 HR2000 MSP-266046-8.A9 266046-8	£1.44	£1.73
73 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A137 263002-9	£1.44	£1.73
74 - BALL BEARING 6001LLB JR3060T MSP-211101-1.A0 211101-1	£11.86	£14.23
75 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A136 263002-9	£1.44	£1.73
76 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A19 233092-6	£1.44	£1.73
77 - SHAFT LOCK LS0714/FL MSP-344642-3.A0 344642-3	£2.50	£3.00
78 - FAN 70 LS0714/FL MSP-240030-1.A1 240030-1	£12.79	£15.35
79 - ARMATURE ASSY 110V LS0714/FL MSP-510063-3.A1 510063-3	£68.54	£82.25
79 - ARMATURE ASSY 240V LS0714/FL MSP-510060-9.A0 510060-9	£68.54	£82.25
80 - INSULATED WASHER GA5020/GA501 MSP-681644-1.A22 681644-1	£1.44	£1.73
81 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A76 211031-6	£3.90	£4.68
82 - URETHANE WASHER 18 LS0714/FL MSP-261110-0.A0 261110-0	£1.44	£1.73
83 - BAFFLE PLATE LS0714/FL MSP-416537-1.A1 416537-1	£2.34	£2.81
84-1 - FIELD 240V LS0714/FL MSP-634559-1.A1 634559-1	£20.30	£24.36
84-1 - FIELD 110V LS0714/L MSP-634556-7.A0 634556-7	£20.30	£24.36
86-1 - HANDLE SET LS0714FL MSP-188118-8.A1 188118-8	£17.13	£20.56
86-1 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A12 810966-4	£1.44	£1.73
86 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A15 810966-4	£1.44	£1.73
87 - POWER SUPPLY CORD 1.0-2-3.0 MSP-692533-5.A1 692533-5	£30.24	£36.29
87 - POWER SUPPLY CORD 110V MSP-665925-1.A0 665925-1	£15.55	£18.66
88 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A4 682540-6	£1.44	£1.73
89 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A132 687052-4	£1.44	£1.73
89-1 - STRAIN RELIEF M9001/DVC/RP0900 MSP-687124-5.A21 687124-5	£1.44	£1.73
90 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1151 265995-6	£1.44	£1.73
91 - BRUSH HOLDER 5X11 GA5020/ MSP-643708-9.A22 643708-9	£2.34	£2.81
91 - MOTOR HOUSING LS0714/FL MSP-151900-8.A1 151900-8	£30.96	£37.15
91 - LABEL/CAUTION LC1230MLS100 MSP-810964-8.A2 810964-8	£1.44	£1.73
92 - UPPER COVER LS0714/FL MSP-416538-9.A0 416538-9	£1.44	£1.73
93 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A14 911273-9	£1.44	£1.73
94 - CARBON BRUSH CB-303 MT582 MSP-191963-2.A15 191963-2	-
95 - BRUSH HOLDER CAP 4100KB HS7611 MSP-643750-0.A22 643750-0	£1.44	£1.73
96-1 - NAME PLATE LS0714FL MSP-862823-2 862823-2	£1.44	£1.73
97 - SWITCH TG71B PC5000/5001C/KP0 MSP-651922-3.A18 651922-3	£15.42	£18.51
98 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A1 645105-5	£2.34	£2.81
98 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A90 645141-1	£3.21	£3.85
99 - SWITCH LEVER LS800D/BLS820 MSP-416534-7.A1 416534-7	£1.44	£1.73
100 - POWER SUPPLY CIRCUIT 240V LS MSP-631608-5 631608-5	£20.30	£24.36
100 - POWER SUPPLY CIRCUIT 110V LS MSP-631517-8 631517-8	£17.86	£21.43
101 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A32 654532-5	£3.74	£4.49
102 - PIN 5 LC1230/LS800DWB/2710 MSP-256098-7.A3 256098-7	£1.44	£1.73
103 - LOCK OFF LEVER LS800D/BLS820 MSP-416533-9.A0 416533-9	£1.44	£1.73
104 - COMPRESSION SPRING 4 8402D MSP-231026-3.A12 231026-3	£1.44	£1.73
105 - PAN HD SCREW M5X50 4157/HR240 MSP-911273-9.A13 911273-9	£1.44	£1.73
106 - SWITCH SLE6A LS0714FL/LH1040 MSP-651522-9.A3 651522-9	£3.90	£4.68
107 - SWITCH BUTTON REMOVABLE LS121 MSP-411478-6.A19 411478-6	£2.56	£3.07
108 - SWITCH BOX LS0714/FL MSP-153523-8 153523-8	£4.06	£4.87
109-1 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A13 810966-4	£1.44	£1.73
109 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A14 810966-4	£1.44	£1.73
109-1 - HANDLE SET LS0714FL MSP-188118-8.A0 188118-8	£17.13	£20.56
111 - LEAD UNIT LS0714FL MSP-638068-2 638068-2	£1.44	£1.73
112 - LIGHT ASSY 240V LS0714FL MSP-125222-2 125222-2	£44.88	£53.86
112 - FLOURESCENT LIGHT SET LS1040F MSP-193730-1.A5 193730-1	£5.18	£6.21
112 - LAMP BOX LS1040F MSP-152923-9.A2 152923-9	£2.18	£2.62
112 - LIGHT ASSY 110V LS0714FL MSP-125257-3 125257-3	£48.58	£58.29
115-1 - HEX HD BOLT M6X25 DLS714/LS07 MSP-922344-7.A6 922344-7	£1.44	£1.73
116 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A66 251887-5	£2.34	£2.81
117 - SLEEVE 17 LS0714/FL/DLS714 MSP-416535-5.A12 416535-5	£1.44	£1.73
118 - TORSION SPRING 28 LS0714/FL MSP-231638-2.A4 231638-2	£6.08	£7.30
120 - SCREW M6X33 SG1250/SG1251J MSP-251897-2.A4 251897-2	£4.06	£4.87
121 - COMPRESSION SPRING 6 LS0714/F MSP-231325-3.A26 231325-3	£1.59	£1.91
122 - RING 26 DLS714/FL BFL713/LS0 MSP-257214-4.A10 257214-4	£9.20	£11.04
124 - HSS BOLT M6X8 BHS630/LS0714/ MSP-266208-8.A19 266208-8	£1.44	£1.73
127-1 - CORD CLAMP DLS714/BLS713/LS71 MSP-687045-1.A6 687045-1	£1.44	£1.73
127 - WRENCH HOLDER LS800D/BLS820 MSP-416536-3.A5 416536-3	£1.44	£1.73
131 - CUP POINT GRUB-SCREW M4X8/DLS MSP-913106-4.A5 913106-4	£1.44	£1.73
132 - HEX NUT M10-17 LS1013/LS800DW MSP-252144-4.A10 252144-4	£4.68	£5.62
133 - COMPRESSION SPRING 5/DLS714 MSP-231266-3.A10 231266-3	£1.44	£1.73
134 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A58 253024-7	£1.44	£1.73
135 - CAP 16 LC1230/DLS714 MSP-286236-7.A6 286236-7	£1.44	£1.73
137 - RELEASE PIN LS0714/FL BLS71 MSP-324295-4.A5 324295-4	£2.34	£2.81
138-1 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266757-5.A12 266757-5	£1.44	£1.73
138 - HEX HD SCREW M6X16 MSP-265381-1.A5 265381-1	£1.44	£1.73
139 - STOPPER PLATE DLS714/FL/LS07 MSP-345299-3.A5 345299-3	£1.44	£1.73
140 - HARD WASHER 6 JV2000/BFL080/1 MSP-253726-5.A28 253726-5	£1.44	£1.73
141 - TORSION SPRING 8 LS0714/FL MSP-231663-3.A5 231663-3	£1.44	£1.73
142 - PAN HEAD SCREW M5 LS0714/FL MSP-265113-6.A5 265113-6	£1.44	£1.73
143 - POINTER LS0714/FL/DLS714 MSP-343678-9.A7 343678-9	£1.44	£1.73
146 - STOPPER ARM DLS714/LS0714/FL MSP-344643-1.A5 344643-1	£1.44	£1.73
147 - WAVE WASHER 8 UM140DST/DLS714 MSP-253948-7.A15 253948-7	£1.44	£1.73
149 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A22 251267-5	£1.44	£1.73
150 - SOCKET FLAT GRUB SCREW M6X10 MSP-251961-9.A30 251961-9	£1.44	£1.73
151 - HSS SET SCREW M6X16 LS0714FL MSP-266321-2.A8 266321-2	£1.44	£1.73
153 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A41 213021-5	£1.44	£1.73
154 - STOPPER PIN LS1013/DLS714 MSP-324183-5.A11 324183-5	£2.40	£2.88
156 - LABEL/BEVEL SCALE LS0714FL MSP-816392-5.A5 816392-5	£1.44	£1.73
158 - SCREW M10 LS0714/FL BLS713 MSP-266320-4.A5 266320-4	£4.37	£5.24
160 - THRUST NEEDLE GAUGE 1023/LF10 MSP-216413-7.A27 216413-7	£2.34	£2.81
165 - NYLON INSERT NUT M8-13 LS800D MSP-252105-4.A23 252105-4	£1.44	£1.73
166 - HARD WASHER 8 LS800D/DLS714 MSP-253731-2.A20 253731-2	£1.44	£1.73
167 - INDICATION PLATE LS800D/BLS8 MSP-416355-7.A5 416355-7	£1.44	£1.73
173 - CAP LS0714/FL/DLS714 MSP-344638-4.A13 344638-4	£1.44	£1.73
173 - LINEAR BALL BEARING 2560 LS0 MSP-211376-2.A10 211376-2	£29.38	£35.25
173-1 - FELT RING 25 DLS714/FL/LS714 MSP-262077-5.A13 262077-5	£2.18	£2.62
173-1 - LABEL/CAUTION LS1013BLS820 MSP-817283-3.A39 817283-3	£1.44	£1.73
175 - SQUARE ROD DLS714/FL/LS0 MSP-153580-6.A5 153580-6	£12.32	£14.79
176 - HEX BOLT M5X30 DLS714/FL/DLS7 MSP-925251-3.A7 925251-3	£1.44	£1.73
178 - LOCK PLATE LS800D/BLS820/DLS7 MSP-344601-7.A5 344601-7	£1.44	£1.73
179 - PIN HOLDER LS0714/FL/DLS714 MSP-317616-7.A5 317616-7	£8.73	£10.48
181 - LOCK PIN LS0714/FL/DLS714 MSP-324288-1.A5 324288-1	£3.59	£4.31
183 - ROD 6 LS0714/FL/DLS714 MSP-324289-9.A5 324289-9	£2.08	£2.49
184 - LOCK LEVER LS800D/BLS820/DLS7 MSP-416450-3.A5 416450-3	£3.65	£4.38
185 - LOCK LEVER PLATE LS0714/FL MSP-345272-3.A11 345272-3	£2.08	£2.50
187 - COMPRESSION SPRING 9 LC1230 MSP-231418-6.A6 231418-6	£1.44	£1.73
189-1 - ADJUST BOLT M8X27 LS0714/FL MSP-266432-3.A5 266432-3	£2.18	£2.62
191 - CAP 20 LS1030/LC1230/LS800DWB MSP-286212-1.A20 286212-1	£1.44	£1.73
192 - HEX BOLT M8X50 UM401DW/DLS714 MSP-921472-5.A5 921472-5	£1.44	£1.73
194 - BASE LS0714FL MSP-153950-9 153950-9	£101.43	£121.72
194 - LABEL/LASER BEAM CAUTION MSP-810064-4.A8 810064-4	£1.44	£1.73
194 - MITER SCALE PLATE LS0714/FL MSP-816339-9.A5 816339-9	£4.68	£5.62
197 - TORSION SPRING LS0714/DLS714 MSP-231690-0.A5 231690-0	£1.44	£1.73
198 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A29 911114-9	£1.44	£1.73
199-1 - GUARD LS0714/DLS714 MSP-346550-4.A5 346550-4	£2.40	£2.88
A02 - VICE ASSY LS800D/BLS820/DLS714 MSP-122571-8.A5 122571-8	£11.36	£13.63
A01-1 - DUST BAG ASSY LS1019/LS1019L MSP-122852-0.A22 122852-0	£8.32	£9.99
A02 - PAN HD SHOULDER SCREW M5 LS80 MSP-251370-2.A21 251370-2	£1.44	£1.73
A02 - THUMB SCREW M16X60 LS800D/BL MSP-265733-6.A6 265733-6	£6.40	£7.68
A02 - VISE ARM LS1030/LS800D/BLS82 MSP-316938-2.A14 316938-2	£25.20	£30.24
A02 - VISE PLATE LS1030/LS800D/BLS8 MSP-343651-9.A17 343651-9	£1.44	£1.73
A02 - VISE ROD LS1030/LS800D/BLS820 MSP-322313-2.A10 322313-2	£8.73	£10.48
A03 - SWITCH BUTTON REMOVABLE LS121 MSP-411478-6.A25 411478-6	£2.56	£3.07
A04 - TRIANGLE LS1019/2030/LF1000 MSP-762001-3.A25 762001-3	£1.20	£1.44
A05 - HOLDER DLS714 MSP-322312-4.A10 322312-4	£9.98	£11.98
E05 - COMPRESSION SPRING 6 LS0714 MSP-233471-8.A7 233471-8	£1.44	£1.73
E08 - NYLON INSERT NUT M6-10 LS1013 MSP-252014-7.A18 252014-7	£1.44	£1.73
E09 - CT SCREW M4X8 JN1601/DLS714 MSP-266061-2.A9 266061-2	£1.44	£1.73
E10 - SUB FENCE PLATE LS0714/BLS713 MSP-345359-1.A5 345359-1	£1.44	£1.73
E11 - COUNTERSUNK SCREW M6X35 MSP-912357-6.A10 912357-6	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita LS0714FL Slide Compound Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
