Dewalt DW718 Type 2 Mitre Saw Spare Parts

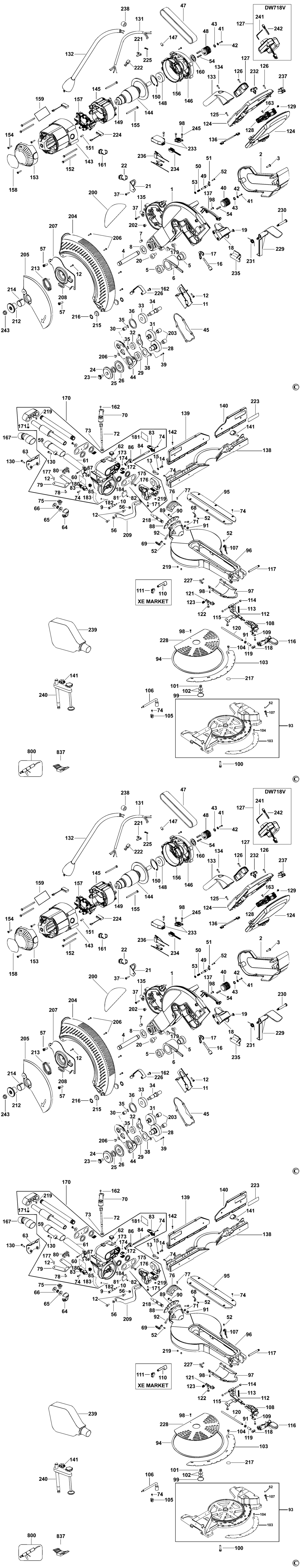

An exploded drawing and spare parts listing for the Dewalt DW718 Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - ARM GB BDE-618175-01SV.A8 618175-01SV	-
1 - ARM LX BDE-618175-01SV.A9 618175-01SV	-
2 - BELT COVER BDE-618193-00.A2 618193-00	£14.57	£17.48
3 - SCREW BDE-330045-14.A129 330045-14	£1.50	£1.80
4 - SHAFT BDE-146751-00.A46 146751-00	£3.30	£3.96
5 - SPACER BDE-146732-00.A7 146732-00	£1.50	£1.80
6 - SPRING BDE-N039404.A15 N039404	£17.48	£20.97
7 - SCREW BDE-150075-00.A8 150075-00	£1.50	£1.80
8 - WASHER BDE-148296-00.A50 148296-00	£1.50	£1.80
9 - LOCKING PIN BDE-387130-00.A61 387130-00	£4.69	£5.63
10 - SEAL BDE-34158-00.A42 34158-00	£1.50	£1.80
11 - GUARD REAR GB BDE-618190-00.A15 618190-00	£7.18	£8.62
11 - GUARD REAR LX BDE-618190-00.A16 618190-00	£7.18	£8.62
12 - SCREW.SPECIAL BDE-330045-23.A65 330045-23	£1.50	£1.80
13 - PAWL BDE-153603-01.A18 153603-01	£1.82	£2.19
14 - SCREW BDE-153639-00.A34 153639-00	£1.50	£1.80
15 - WASHER BDE-153655-00.A53 153655-00	£1.50	£1.80
16 - SCREW BDE-N185664.A11 N185664	£3.30	£3.96
17 - NUT WING BDE-150718-00.A8 150718-00	£1.50	£1.80
18 - COVER BDE-N026930.A11 N026930	£3.80	£4.56
18 - LASER buy as accessory BDE-DE7187.A0 DE7187	-
19 - SCREW BDE-385915-02.A12 385915-02	£1.50	£1.80
20 - SCREW BDE-618198-00.A10 618198-00	£1.50	£1.80
21 - BRACKET BDE-624195-01.A0 624195-01	£1.50	£1.80
22 - BUSHING BDE-615851-00.A6 615851-00	£1.50	£1.80
23 - BLADE BOLT BDE-869245-00.A61 869245-00	£3.54	£4.25
24 - CLAMP OUTER GB BDE-604765-00.A19 604765-00	£5.88	£7.06
24 - CLAMP OUTER LX BDE-604765-00.A20 604765-00	£5.88	£7.06
25 - ADAPTOR LX BDE-604770-00.A12 604770-00	£3.80	£4.56
25 - ADAPTOR GB BDE-604770-00.A13 604770-00	£3.80	£4.56
26 - WASHER INNER CLAMP LX BDE-645000-00.A3 645000-00	£14.57	£17.48
26 - WASHER INNER CLAMP GB BDE-645000-00.A4 645000-00	£14.57	£17.48
28 - SPINDLE & GEAR BDE-N086159.A3 N086159	£25.70	£30.84
29 - BEARING BALL BDE-330003-66.A23 330003-66	£14.57	£17.48
30 - BEARING NEEDLE BDE-391616-00.A18 391616-00	£4.69	£5.63
31 - GEAR SA BDE-NA135793.A16 NA135793	£44.14	£52.97
32 - BEARING BDE-605040-59.A6 605040-59	£3.30	£3.96
33 - BEARING BDE-605040-33.A10 605040-33	£5.88	£7.06
34 - PULLEY SA BDE-N105443.A1 N105443	£51.90	£62.28
35 - RETAINER BDE-153752-00.A15 153752-00	£1.50	£1.80
36 - RETAINING PLATE BDE-618244-00.A4 618244-00	£1.50	£1.80
37 - SCREW BDE-330045-49.A81 330045-49	£1.50	£1.80
38 - BEARING PLATE BDE-391310-00.A12 391310-00	£1.82	£2.19
39 - SCREW BDE-98094-13.A12 98094-13	£1.50	£1.80
40 - PULLEY BDE-153796-00.A0 153796-00	£10.85	£13.02
41 - SCREW BDE-153778-00.A2 153778-00	£1.50	£1.80
42 - WASHER BDE-098198-05.A18 098198-05	£1.50	£1.80
43 - WASHER BDE-153782-00.A19 153782-00	£1.50	£1.80
44 - GEARCASE LX BDE-653809-01.A14 653809-01	£12.17	£14.60
44 - GEARCASE GB BDE-653809-01.A15 653809-01	£12.17	£14.60
45 - GASKET BDE-391315-00.A15 391315-00	£2.78	£3.34
47 - BELT BDE-153555-00.A18 153555-00	£19.90	£23.88
48 - NO LONGER AVAILABLE BDE-000000-00.A29746 000000-00	-
48 - DRIVE PULLEY BDE-153554-00.A5 153554-00	£10.85	£13.02
49 - LOCKING PIN BDE-153561-00.A1 153561-00	£1.50	£1.80
50 - SPRING BDE-448176-00.A28 448176-00	£1.50	£1.80
51 - PLATE BDE-393071-00.A3 393071-00	£1.50	£1.80
52 - SCREW BDE-330045-45.A0 330045-45	£1.50	£1.80
53 - WASHER BDE-153559-00.A5 153559-00	£1.50	£1.80
54 - KEY BDE-153638-00.A9 153638-00	£1.82	£2.19
56 - SLEEVE BDE-146740-00.A0 146740-00	£1.66	£1.99
57 - SCREW BDE-394589-01.A49 394589-01	£1.50	£1.80
59 - DUCT BDE-618157-00.A4 618157-00	-
60 - SCREW BDE-330045-15.A86 330045-15	£1.50	£1.80
61 - DUCT BDE-624719-00.A4 624719-00	£12.17	£14.60
62 - LOCK KNOB BDE-618156-00.A7 618156-00	£3.80	£4.56
63 - SUPPORT PLATE BDE-618238-00.A5 618238-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A29747 000000-00	-
64 - BUSHING BDE-618145-00.A14 618145-00	£3.30	£3.96
65 - WASHER THRUST BDE-153769-01.A15 153769-01	£1.50	£1.80
66 - BEARING THRUST BDE-153451-00.A16 153451-00	£1.82	£2.19
67 - LOCK NUT BDE-625393-00.A7 625393-00	£1.50	£1.80
68 - POINTER BDE-618211-00.A4 618211-00	£1.42	£1.70
69 - NO LONGER AVAILABLE BDE-000000-00.A29748 000000-00	-
69 - POINTER BDE-618235-00.A5 618235-00	£1.42	£1.70
70 - HANDLE BDE-618236-00.A7 618236-00	£3.80	£4.56
71 - WASHER BDE-330016-03.A27 330016-03	£1.50	£1.80
72 - ROD BDE-618148-00.A1 618148-00	£3.80	£4.56
73 - WASHER THRUST BDE-603636-00.A7 603636-00	£1.50	£1.80
74 - SCREW BDE-330045-06.A128 330045-06	£1.50	£1.80
75 - BLOCK BDE-618160-00.A7 618160-00	£3.80	£4.56
76 - SPRING BDE-626440-00.A14 626440-00	£3.80	£4.56
77 - SCREW BDE-098103-18.A10 098103-18	£1.50	£1.80
78 - SCREW BDE-98104-17.A3 98104-17	£1.50	£1.80
79 - SPRING BDE-641466-00.A2 641466-00	£3.80	£4.56
80 - PAWL BDE-641467-00.A11 641467-00	£7.18	£8.62
81 - COVER BDE-618162-00.A3 618162-00	£1.50	£1.80
81 - NO LONGER AVAILABLE BDE-000000-00.A29749 000000-00	-
82 - SCREW BDE-330045-44.A55 330045-44	£1.50	£1.80
83 - LEVER SA BDE-N019349.A14 N019349	£1.50	£1.80
84 - ROD BDE-618153-00.A7 618153-00	£7.18	£8.62
85 - SPRING TORSION BDE-618259-00.A9 618259-00	£1.50	£1.80
86 - CAM BDE-618232-00.A6 618232-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A29750 000000-00	-
88 - PLATE BDE-641471-00.A1 641471-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A29751 000000-00	-
89 - PLATE BDE-641468-00.A1 641468-00	-
90 - CARRIAGE BOLT BDE-98130-25.A0 98130-25	£1.50	£1.80
91 - NUT BDE-330015-03.A31 330015-03	£1.50	£1.80
92 - SCREW BDE-391346-00.A22 391346-00	£1.50	£1.80
93 - BASE SA BDE-645751-00SV.A4 645751-00SV	£336.69	£404.03
94 - PLATE BDE-N528183.A0 N528183	£7.18	£8.62
95 - PLATE BDE-618199-00.A4 618199-00	£3.80	£4.56
96 - TABLE SA GB BDE-630711-03.A5 630711-03	£192.14	£230.57
96 - TABLE SA LX BDE-630711-03.A6 630711-03	£192.14	£230.57
97 - COVER BDE-N401778.A7 N401778	£7.18	£8.62
98 - SCREW BDE-330045-05.A87 330045-05	£1.50	£1.80
99 - RING BDE-49787-00.A15 49787-00	£1.50	£1.80
100 - SCREW BDE-98025-35.A0 98025-35	£1.50	£1.80
101 - LOCK NUT BDE-N044739.A6 N044739	£1.50	£1.80
101 - NUT BDE-330021-09 330021-09	£1.50	£1.80
102 - WASHER BDE-153792-00.A47 153792-00	£1.50	£1.80
103 - PLATE BDE-618168-00.A8 618168-00	£24.39	£29.27
104 - SCREW BDE-604410-00.A0 604410-00	£1.50	£1.80
105 - HOLDER BDE-391358-01.A70 391358-01	£1.50	£1.80
106 - WRENCH SPECIAL BDE-608563-01.A18 608563-01	£7.18	£8.62
107 - NO LONGER AVAILABLE BDE-000000-00.A29752 000000-00	-
107 - POINTER BDE-618209-00.A4 618209-00	£1.42	£1.70
108 - NO LONGER AVAILABLE BDE-000000-00.A29753 000000-00	-
108 - ACTUATOR BDE-618169-00.A0 618169-00	£4.69	£5.63
109 - NO LONGER AVAILABLE BDE-000000-00.A29754 000000-00	-
109 - PLATE BDE-618243-00.A5 618243-00	-
112 - DETENT BDE-N488468.A2 N488468	£41.24	£49.49
113 - SPRING COMPRESSION BDE-618176-00.A11 618176-00	£1.50	£1.80
114 - BEARING NEEDLE BDE-93128-00.A1 93128-00	£1.50	£1.80
114 - BEARING NEEDLE BDE-093128-00.A35 093128-00	£1.50	£1.80
115 - RETAINER BDE-618254-00.A5 618254-00	£1.50	£1.80
116 - LEVER BDE-N082785.A12 N082785	£5.88	£7.06
117 - PIN BDE-618187-00.A0 618187-00	£3.30	£3.96
118 - PIN BDE-624460-00.A7 624460-00	£1.50	£1.80
119 - SLEEVE BDE-624461-00.A12 624461-00	£1.50	£1.80
120 - ROD BDE-618186-00.A11 618186-00	£5.88	£7.06
121 - BLOCK BDE-618185-00.A1 618185-00	£5.88	£7.06
122 - SCREW BDE-385915-03.A5 385915-03	£1.50	£1.80
123 - SPRING COMPRESSION BDE-618253-00.A12 618253-00	£1.50	£1.80
124 - HANDLE SA GB BDE-N502790.A9 N502790	£25.70	£30.84
124 - HANDLE SA LX BDE-N502790.A10 N502790	£25.70	£30.84
125 - SCREW BDE-330045-18.A23 330045-18	£1.50	£1.80
126 - SCREW BDE-330019-32.A75 330019-32	£1.50	£1.80
127 - NO LONGER AVAILABLE DW718V BDE-000000-00.A29755 000000-00	-
127 - COVER DW718 BDE-618270-00.A4 618270-00	£2.78	£3.34
127 - SA POWER SUPPLY DW718V BDE-618212-01.A1 618212-01	-
128 - SWITCH BDE-N548978V.A20 N548978V	£19.90	£23.88
129 - SCREW BDE-384127-01.A102 384127-01	£1.50	£1.80
130 - SCREW.TEMP BDE-330045-25.A14 330045-25	£1.50	£1.80
131 - MOTOR CABLE BDE-618276-00.A5 618276-00	£16.03	£19.24
132 - CORDSET LX BDE-N045585.A8 N045585	£59.41	£71.29
132 - CORDSET GB BDE-604807-03.A5 604807-03	-
133 - HANDLE BDE-N083060.A11 N083060	£7.85	£9.42
134 - SCREW BDE-330019-22.A55 330019-22	£1.50	£1.80
135 - CABLE CLAMP BDE-398443-00.A6 398443-00	£1.50	£1.80
136 - CABLE SA BDE-N467585.A1 N467585	£9.41	£11.29
137 - NO LONGER AVAILABLE BDE-000000-00.A29756 000000-00	-
137 - COVER BDE-618269-00.A9 618269-00	£1.42	£1.70
138 - NO LONGER AVAILABLE BDE-000000-00.A29757 000000-00	-
138 - FENCE BDE-618202-01.A4 618202-01	-
139 - FENCE LH GB BDE-618203-01.A5 618203-01	-
139 - FENCE LH LX BDE-618203-01.A6 618203-01	-
140 - FENCE RH LX BDE-N024409.A10 N024409	-
140 - FENCE RH GB BDE-N024409.A11 N024409	-
141 - KNOB LOWER BDE-147107-02.A49 147107-02	£2.26	£2.71
142 - SCREW BDE-098105-03.A20 098105-03	£3.80	£4.56
143 - FIELDCASE LX BDE-391317-00.A19 391317-00	£12.17	£14.60
143 - FIELDCASE GB BDE-391317-00.A20 391317-00	£12.17	£14.60
144 - ARMATURE SA GB BDE-N093107.A11 N093107	£157.49	£188.99
144 - NO LONGER AVAILABLE LX BDE-000000-00.A29758 000000-00	-
145 - FIELD 115V LX BDE-391318-00SV.A2 391318-00SV	-
145 - FIELD GB BDE-391318-01SV.A17 391318-01SV	-
146 - MOUNTING BRACKET BDE-391282-00.A12 391282-00	£16.03	£19.24
147 - SCREW BDE-394034-00.A30 394034-00	£1.50	£1.80
148 - BEARING BALL BDE-605040-32.A12 605040-32	£7.92	£9.50
149 - BEARING BDE-330003-60.A66 330003-60	£2.78	£3.34
150 - CIRCLIP BDE-144803-00.A67 144803-00	£1.50	£1.80
151 - PLUG BDE-145312-00.A49 145312-00	£1.50	£1.80
152 - SCREW BDE-98094-55.A38 98094-55	£1.50	£1.80
153 - END CAP BDE-391933-00.A35 391933-00	£4.69	£5.63
154 - SCREW BDE-330019-13.A64 330019-13	£1.50	£1.80
155 - SCREW BDE-330019-19.A33 330019-19	£1.50	£1.80
156 - BAFFLE FAN BDE-391375-00.A16 391375-00	-
157 - BRUSH PLATE BDE-389512-01.A5 389512-01	£16.03	£19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A29759 000000-00	-
158 - IDENTITY LABEL BDE-391325-00.A1 391325-00	-
159 - RATING PLATE DW718 LX BDE-N003093 N003093	£1.42	£1.70
159 - RATING PLATE DW718V GB BDE-N003381 N003381	£1.42	£1.70
159 - RATING PLATE DW718V LX BDE-N003094 N003094	£1.42	£1.70
159 - RATING PLATE DW718 GB BDE-N003097 N003097	£1.42	£1.70
160 - RING BDE-153783-00.A0 153783-00	£1.50	£1.80
161 - BUSHING BDE-605155-00.A4 605155-00	£1.66	£1.99
162 - SCREW BDE-330045-13.A51 330045-13	£1.50	£1.80
163 - SCREW BDE-330019-12.A62 330019-12	£1.50	£1.80
167 - ADAPTOR BDE-618240-00.A3 618240-00	-
167 - NO LONGER AVAILABLE BDE-000000-00.A29760 000000-00	-
170 - TRUNION BDE-650852-00.A8 650852-00	-
171 - SCREW BDE-603390-00.A4 603390-00	£1.50	£1.80
172 - GUIDE BDE-397118-00.A14 397118-00	£3.30	£3.96
173 - SCREW BDE-153576-04.A33 153576-04	£1.50	£1.80
174 - THRUST PLATE BDE-613497-00.A30 613497-00	£1.50	£1.80
175 - WASHER BDE-153586-00.A16 153586-00	£1.50	£1.80
176 - SCREW BDE-616001-00.A29 616001-00	£1.50	£1.80
179 - BUSHING BDE-645746-00.A12 645746-00	£1.66	£1.99
180 - LABEL PIVOT BDE-618278-00.A9 618278-00	£1.50	£1.80
181 - LABEL PIVOT BDE-618277-00.A5 618277-00	£1.50	£1.80
182 - RIVET BDE-147439-07.A3 147439-07	£1.42	£1.70
182 - NO LONGER AVAILABLE BDE-000000-00.A29761 000000-00	-
183 - SCALE LH BDE-618262-00.A4 618262-00	£1.42	£1.70
184 - SCALE RH BDE-618261-00.A3 618261-00	£1.42	£1.70
200 - LABEL BDE-393706-00.A2 393706-00	£1.50	£1.80
202 - INSERT BDE-148608-00.A10 148608-00	£1.50	£1.80
203 - BEARING BDE-386780-00.A24 386780-00	£2.26	£2.71
204 - GUARD LOWER LX BDE-618231-01.A4 618231-01	£24.39	£29.27
204 - GUARD LOWER GB BDE-618231-01.A5 618231-01	£24.39	£29.27
205 - PLATE BDE-N020822.A5 N020822	£12.17	£14.60
206 - SCREW BDE-385915-01.A20 385915-01	£1.50	£1.80
207 - PLATE BDE-621037-00.A5 621037-00	£7.18	£8.62
208 - BUMPER BDE-146768-00.A5 146768-00	£1.66	£1.99
209 - LINK BDE-N142523.A13 N142523	£17.48	£20.97
209 - LINK BDE-N142523.A11 N142523	£17.48	£20.97
212 - RETAINER BDE-N391680.A0 N391680	-
212 - FSO KIT BDE-N390418.A20 N390418	£7.85	£9.42
213 - SPRING BDE-661454-00.A16 661454-00	£1.58	£1.90
214 - SLEEVE BDE-148295-00.A26 148295-00	£1.66	£1.99
215 - ROLLER BDE-625825-00.A28 625825-00	£1.66	£1.99
216 - RING BDE-142273-00.A39 142273-00	£1.50	£1.80
217 - LABEL BDE-394976-00.A8 394976-00	£1.82	£2.19
218 - STUD BDE-618234-00.A7 618234-00	£7.18	£8.62
219 - SCREW BDE-153666-00.A4 153666-00	£1.50	£1.80
220 - WARNING LABEL BDE-618274-00.A5 618274-00	£1.42	£1.70
221 - TERMINAL BDE-145332-00.A32 145332-00	£1.50	£1.80
222 - TERMINAL BDE-450212-00.A2 450212-00	£2.78	£3.34
223 - LABEL LX BDE-395301-00.A9 395301-00	£1.50	£1.80
223 - LABEL GB BDE-395301-00.A10 395301-00	£1.50	£1.80
224 - BRUSH & LEAD BDE-381028-08.A26 381028-08	£7.18	£8.62
225 - TERMINAL BDE-395716-00.A14 395716-00	£1.50	£1.80
226 - GUARD BDE-623957-00.A7 623957-00	£3.80	£4.56
227 - NO LONGER AVAILABLE BDE-000000-00.A29762 000000-00	-
228 - COVER BDE-391355-00.A12 391355-00	£15.63	£18.76
229 - LEVER LOCK BDE-624399-00.A4 624399-00	-
230 - BOLT BDE-152852-00.A39 152852-00	£1.82	£2.19
231 - SPRING BDE-386196-00.A34 386196-00	£1.66	£1.99
232 - KNOB BDE-392131-00.A4 392131-00	£1.50	£1.80
233 - CONTROL MODULE SA STATIC SENSATIVE GB BDE-N033994.A6 N033994	£93.62	£112.35
233 - CONTROL MODULE SA STATIC SENSATIVE LX BDE-628744-01.A3 628744-01	£76.16	£91.39
234 - LEAD SA BDE-622950-00.A13 622950-00	£34.00	£40.80
235 - PLATE BDE-393791-00.A17 393791-00	£1.50	£1.80
236 - LEAD SA BDE-618159-00.A4 618159-00	£17.48	£20.97
237 - TERMINAL BLOCK BDE-393520-00.A8 393520-00	£5.88	£7.06
238 - BUSH BDE-388414-01.A25 388414-01	£1.50	£1.80
239 - DUSTBAG BDE-147734-06.A4 147734-06	£16.03	£19.24
240 - CLAMP SA BDE-630065-00.A8 630065-00	£14.57	£17.48
241 - HEX KEY 2.5 MM BDE-604407-01.A21 604407-01	£3.30	£3.96
242 - SWITCH LOCK OFF BDE-627271-00.A2 627271-00	£1.50	£1.80
243 - NUT BDE-385137-00.A2 385137-00	£1.50	£1.80
243 - FSO KIT BDE-N390418.A21 N390418	£7.85	£9.42
800 - GREASE BDE-93488-00.A41 93488-00	£17.48	£20.97
800 - GREASE BDE-429698-00.A15 429698-00	£84.42	£101.30
837 - S.T.SQUARE BDE-559626-99.A26 559626-99	£108.20	£129.84

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt DW718 Type 2 Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
