Makita BFT080FZ Cordless Screwdriver Spare Parts

Home Details Reviews Delivery

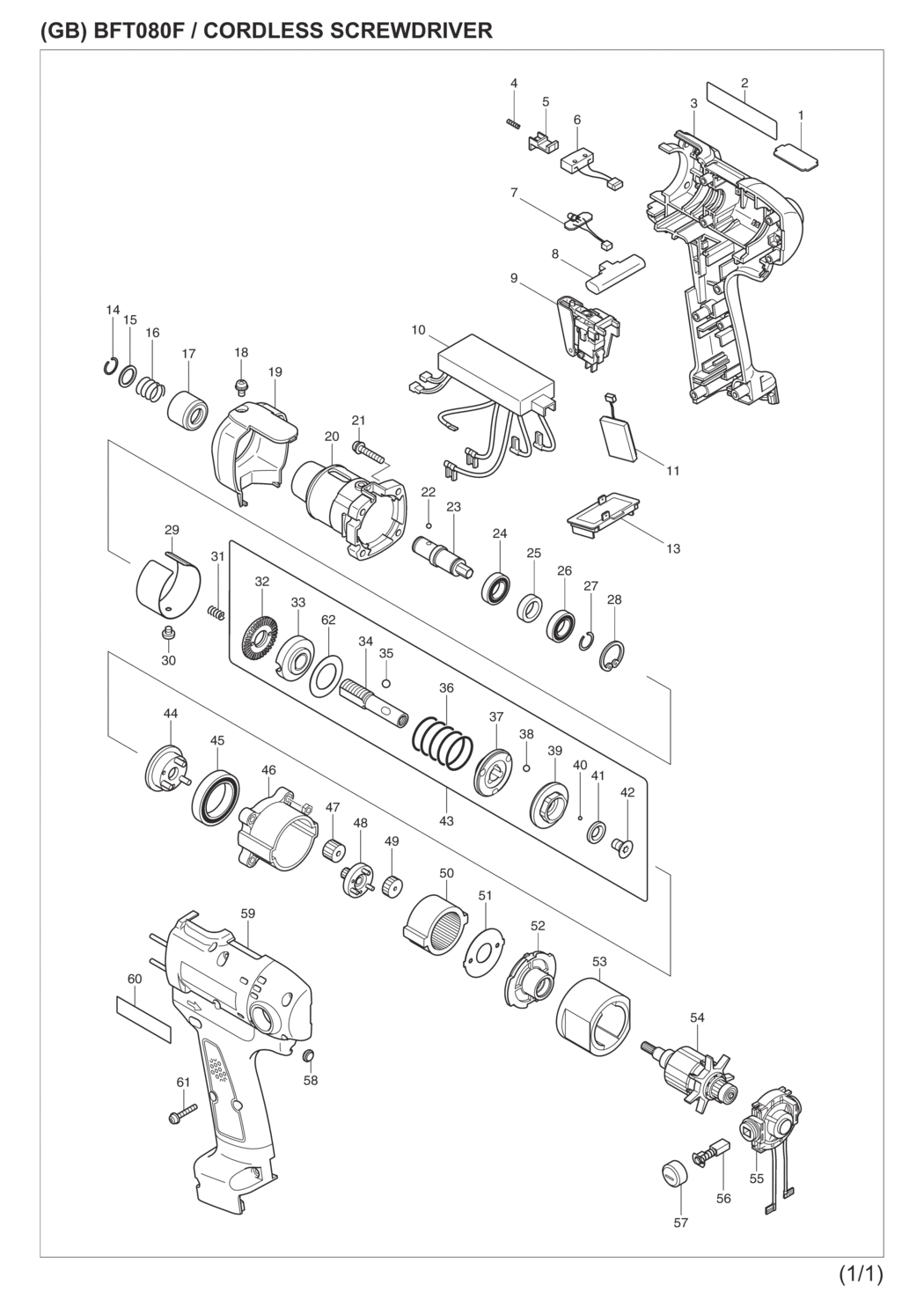

An exploded drawing and spare parts listing for the Makita BFT080FZ Cordless Screwdriver

	Ex VAT	Inc VAT
1-1 - PLATE H BFT80FZ MSP-345404-2 345404-2	£2.49	£2.99
2 - NAME PLATE BFT080FZ MSP-850532-5 850532-5	£1.66	£1.99
3 - HOUSING SET BFT040-122FZ MSP-183629-8.A8 183629-8	£26.18	£31.42
4 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A9 232472-3	£1.66	£1.99
5 - SWITCH LEVER BFL080-200FZ MSP-418002-6.A50 418002-6	£1.66	£1.99
6 - SWITCH UNIT BFT40-123FZ MSP-638274-9.A21 638274-9	£7.15	£8.58
7 - LED CIRCUIT BFL080/121FZ MSP-631513-6.A18 631513-6	£11.83	£14.20
8 - F/R CHANGE LEVER 6796D-98D/F MSP-417511-2.A17 417511-2	£2.49	£2.99
9 - SWITCH C3Z-5-01 BFL080-200FZ MSP-650536-5.A22 650536-5	£24.97	£29.96
10-1 - *CONTROLLER BFT40-122FZ MSP-638900-0.A4 638900-0	£154.98	£185.97
10 - *CONTROLLER BFT40-122FZ MSP-631560-7.A4 631560-7	£68.15	£81.78
11 - BUZZER CIRCUIT BFL080-200FZ MSP-631514-4.A12 631514-4	£10.53	£12.64
13 - TERMINAL BFL080FZ/120FZ MSP-643800-1.A2 643800-1	£5.46	£6.55
14 - RING SPRING 10 TD0101F/DF010 MSP-231965-7.A46 231965-7	£1.66	£1.99
15 - FLAT WASHER 11 TD0101F/6796D& MSP-267143-3.A8 267143-3	£1.66	£1.99
16 - COMPRESSION SPRING 13 TD126 MSP-233005-7.A89 233005-7	£1.66	£1.99
17 - SLEEVE 6796D/97D/98D & BTW/BF MSP-162218-2.A4 162218-2	£5.46	£6.55
18-1 - PAN HEAD SCREW M4X8 BFT021F MSP-265171-2.A36 265171-2	£1.66	£1.99
18 - PAN HEAD SCREW M4X8 BDF453 MSP-911108-4.A19 911108-4	£1.66	£1.99
19 - CLUTCH CASE LEVER BFT40-123FZ MSP-418289-0.A26 418289-0	£4.55	£5.46
20 - CLUTCH CASE BFT40-123FZ/DFT022 MSP-317694-7.A1 317694-7	£15.51	£18.61
21 - PAN HEAD SCREW M4X22 MSP-911143-2.A1 911143-2	£1.66	£1.99
21-1 - P HD SCREW M4X22 BTD043/063/1 MSP-265145-3.A29 265145-3	£1.66	£1.99
22 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A17 216019-1	£1.66	£1.99
23 - SPINDLE M BFT40-123FZ/DFT022 MSP-324377-2.A4 324377-2	£13.64	£16.37
24 - BALL BEARING 6801LLB BTD043/0 MSP-211136-2.A63 211136-2	£5.46	£6.55
25 - RING 12 LS800DW/DD2011/BLS82 MSP-257011-8.A27 257011-8	£1.66	£1.99
26 - BALL BEARING 6801LLB BTD043/0 MSP-211136-2.A62 211136-2	£5.46	£6.55
27 - RING SPRING 11 BTD/TD126/TL064 MSP-231951-8.A3 231951-8	£1.66	£1.99
28 - RETAININIG RING R-21 BFT MSP-962111-8.A3 962111-8	£1.66	£1.99
29 - RING 38H BFT80FZ MSP-345350-9.A0 345350-9	£7.02	£8.42
30 - SPARE PART MSP-265127-5.A31 265127-5	£1.66	£1.99
31 - COMPRESSION SPRING 5 BFL MSP-233019-6.A10 233019-6	£1.66	£1.99
32-1 - LOCK NUT M12 BFL080-200FZ MSP-324834-0.A27 324834-0	£12.22	£14.66
33-1 - ADJUST RING BFL080/121FZ MSP-158408-3.A12 158408-3	£8.45	£10.14
34 - SPINDLE BFL080-200F/DFL301/40 MSP-324296-2.A19 324296-2	£25.08	£30.10
35 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A90 216018-3	£1.66	£1.99
36 - COMPRESSION SPRING 19E BFL200 MSP-233384-3.A5 233384-3	£5.59	£6.71
37 - CAM D BFT040-123FZ/DFL301/402 MSP-223146-7.A18 223146-7	£19.25	£23.10
38 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A1 216024-8	£1.66	£1.99
39 - CAM A BFL080-200FZ.BFT80-123 MSP-223139-4.A9 223139-4	£19.47	£23.36
40 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A16 216019-1	£1.66	£1.99
41 - FLAT WASHER 7 BFL080/121FZ MSP-267247-1.A54 267247-1	£3.38	£4.06
42 - TORX CS HD SCREW M5X10 BFL MSP-266305-0.A43 266305-0	£1.66	£1.99
43-1 - CLUTCH ASSY F BFT080FZ/DFL650 MSP-125393-5.A5 125393-5	£97.20	£116.64
43-2 - CLUTCH ASSY F BFT080FZ/DFL650 MSP-125393-5.A10 125393-5	£97.20	£116.64
44 - CARRIER A BFL080/121FZ MSP-153443-6.A11 153443-6	£11.05	£13.26
45 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A51 211375-4	£14.96	£17.95
46 - GEAR CASE BFL080-200/DFL122 MSP-418004-2.A50 418004-2	£5.20	£6.24
47 - SPUR GEAR 13 BFL080/121FZ MSP-227050-2.A21 227050-2	£1.66	£1.99
48 - SPUR GEAR 20 BFL121FZ MSP-153446-0.A11 153446-0	£5.98	£7.18
49 - SPUR GEAR 19 BFL121FZ/200FZ MSP-227051-0.A10 227051-0	£1.66	£1.99
50 - INTERNAL GEAR 47 BFL080-200FZ MSP-227048-9.A14 227048-9	£5.33	£6.40
51 - LOCK WASHER BFL080/121FZ MSP-267774-8.A31 267774-8	£2.49	£2.99
52 - MOTOR BRACKET BFL080-200FZ MSP-418003-4.A10 418003-4	£2.49	£2.99
53 - YOKE UNIT BFT40-123FZ/DFT022 MSP-638191-3.A7 638191-3	£33.66	£40.39
54 - ARMATURE BFT80FZ MSP-619129-7.A4 619129-7	£19.25	£23.10
55 - ENDBELL BFT40-123FZ MSP-638195-5.A8 638195-5	£4.03	£4.84
56 - CARBON BRUSH CB-434 MSP-193466-2.A23 193466-2	£3.38	£4.06
57 - HOLDER CAP 6503DW/6314DW/6796 MSP-643933-2.A1 643933-2	£1.66	£1.99
58 - LENZ 6796-98D/FD/BFT40-123 MSP-416764-0.A6 416764-0	£3.25	£3.90
59 - HOUSING SET BFT040-122FZ MSP-183629-8.A9 183629-8	£26.18	£31.42
60 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A92 819063-3	£1.66	£1.99
61-1 - PAN HD SCREW M3X20 BTD043/063 MSP-265095-2.A7 265095-2	£1.66	£1.99
62 - FLAT WASHER 18 BFT40-123FZ MSP-267276-4.A18 267276-4	£1.66	£1.99
63 - GEAR ASSY C BFL080F/DFL122F MSP-125191-7.A4 125191-7	£43.01	£51.61

Attribute Name	Value
Brand	Makita
