Makita RBC280 Petrol Brushcutter Spare Parts

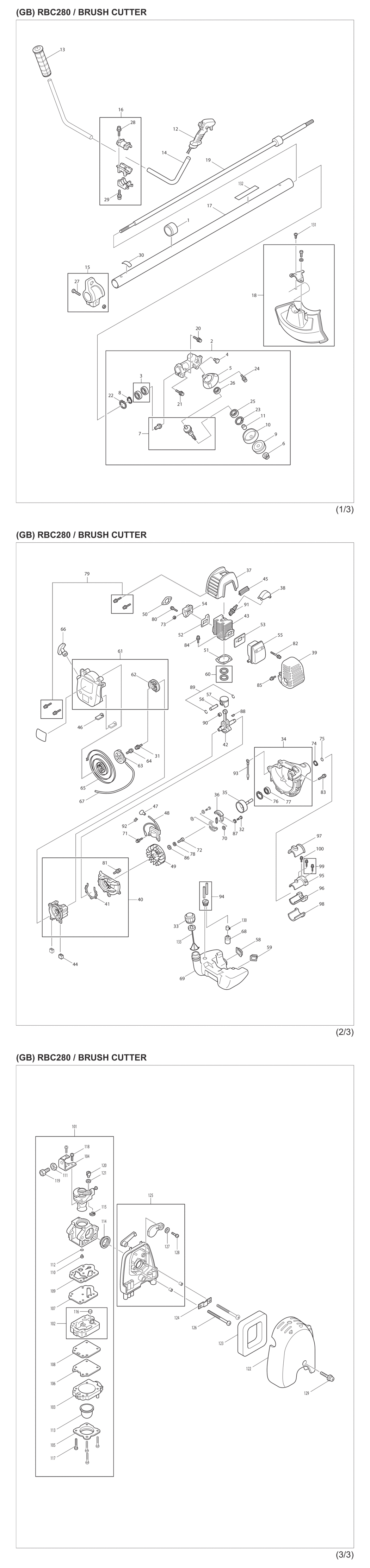

An exploded drawing and spare parts listing for the Makita RBC280 Petrol Brushcutter

	Ex VAT	Inc VAT
1 - BUSH RBC310 MSP-6254501300.A0 6254501300	£5.46	£6.55
2-4 - *GEAR CASE UNIT MS3200/RBC280 MSP-127021-8.A2 127021-8	£120.61	£144.73
3-1 - BALL BEARING 609ZZ EBH253L/BB MSP-210049-4.A11 210049-4	£4.21	£5.05
4-1 - OIL BOLT M10 RBC230/RBC420E MSP-266671-5.A1 266671-5	£4.37	£5.24
5-1 - GUARD RBC310/RBC420E/RBC3101 MSP-412099-7.A0 412099-7	£3.90	£4.68
6-2 - NUT SPRING WASHER RBC260L/U/E MSP-264018-7.A6 264018-7	£1.20	£1.44
7-2 - CUTTER SHAFT SET MS3200E MSP-6273013000.A1 6273013000	£64.94	£77.93
8 - OUTER SNAPRING RBC310/MS3200E MSP-6253502600.A0 6253502600	£1.44	£1.73
9 - *CLAMP WASHER RBC310/RBC3101 MSP-327196-5.A3 327196-5	£16.32	£19.58
10 - *RECEIVE WASHER RBC310/RBC3101 MSP-6258503600.A1 6258503600	£30.96	£37.15
11 - SPACER RBC310/RBC3101 MSP-6253501300.A4 6253501300	£5.62	£6.74
15-1 - HANGER ASSY RBC3101 MSP-6277002000.A2 6277002000	£10.77	£12.92
16-1 - HANDLE HOLDER ASS'Y RBC351 MSP-6414005001.A2 6414005001	£40.03	£48.04
17A - SHAFT PIPE RBC281 MSP-6271008000 6271008000	£149.64	£179.57
18-1 - PROTECTOR ASSY EM4251/RBC255/2 MSP-6258060002.A1 6258060002	£39.16	£46.99
18 - PROTECTOR ASSY MS3200 MSP-126915-4.A0 126915-4	£15.83	£19.00
19-2 - SHAFT MS3200/RBC320/RBC3101 MSP-6271500802.A1 6271500802	£43.30	£51.96
20-2 - BOLT ASSY M6x14 RBC410/420E MSP-0130069910.A3 0130069910	£1.44	£1.73
21-1 - BOLT ASSY M6X30 RBC280/RBC31 MSP-0130069920.A0 0130069920	£1.44	£1.73
23 - INNER SNAP RING RBC310/MS320 MSP-0031430000.A1 0031430000	£1.44	£1.73
24-1 - HEX BOLT M5X12 BHX2501/EBH253 MSP-922213-2.A11 922213-2	£1.44	£1.73
25 - BALL BEARING 6200DDU MS3200 MSP-0600109970.A1 0600109970	£12.79	£15.35
27-2 - SCREW & WASHER ASSY DBC260L/U MSP-266788-4.A5 266788-4	£1.44	£1.73
28-2 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A10 266805-0	£1.44	£1.73
29-1 - SOCKET HEAD BOLT M5X25 DBC260 MSP-266805-0.A11 266805-0	£1.44	£1.73
30-1 - LABEL/CAUTION EM2651LHEBH253 MSP-808723-2.A5 808723-2	£1.44	£1.73
30 - *LABEL/CAUTION RBC260LUMS32 MSP-6259514700.A1 6259514700	£4.06	£4.87
31 - BOLT ASSY RBC230/MS3200/HTR56 MSP-6202006000.A1 6202006000	£1.44	£1.73
33-2 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A11 452920-8	£8.58	£10.30
34 - CLUTCH CASE ASSY MS3200 MSP-6271004001.A1 6271004001	£84.29	£101.15
34-1 - CLUTCH CASE ASSY MS3200E/RBC3 MSP-6271004002.A0 6271004002	£71.44	£85.73
35 - CLUTCH DRUM MS3200/RBC32 MSP-6272002002.A0 6272002002	£34.28	£41.13
36 - CLUTCH SHOE MS3200 MSP-6272003000.A2 6272003000	£48.58	£58.29
37 - CYLINDER COVER RBC281/230/32 MSP-5315503900.A1 5315503900	£25.20	£30.24
38 - PLUG COVER MS3200/RBC320E MSP-5317500700.A0 5317500700	£4.83	£5.80
39-1 - MUFFLER COVER MS3200E/RBC320E MSP-5313503800.A0 5313503800	£10.77	£12.92
40 - CRANK CASE MS3200/RBC32 MSP-5311007000.A2 5311007000	£136.08	£163.30
41 - CRANK CASE GASKET MS3200 MSP-5311501200.A0 5311501200	£1.44	£1.73
42-1 - CRANKCASE CO MS3200E/RBC320E MSP-5312007001.A1 5312007001	£134.64	£161.57
43-1 - CYLINDER MS2810 MSP-5241500901 5241500901	£130.68	£156.82
44-1 - DAMPER RBC230/320E/MS3200E/MH MSP-424446-0.A3 424446-0	£1.44	£1.73
45 - DAMPER MS3200/RBC320E MSP-5315504100.A0 5315504100	£3.59	£4.31
46 - DAMPER MS3200/RBC320E MSP-5316503100.A2 5316503100	£3.28	£3.93
47 - PLUG CAP MS3200/RBC320E/RBC31 MSP-5317010030.A0 5317010030	£14.51	£17.41
48 - COIL MS3200/RBC320E MSP-5317010020.A2 5317010020	£124.23	£149.08
49 - FLYWHEEL MS3200/RBC320E MSP-5317010010.A0 5317010010	£77.11	£92.53
50-2 - SPACER GASKET RBC230/260/320E MSP-442177-9.A13 442177-9	£1.44	£1.73
51-1 - CYLINDER GASKET MS3200E/RBC31 MSP-5311500301.A2 5311500301	£2.18	£2.62
52 - INSULATOR GASKET MS3200/RBC31 MSP-5313502300.A2 5313502300	£1.44	£1.73
53-1 - MUFFLER GASKET MS3200E/RBC32 MSP-5313503600.A2 5313503600	£14.35	£17.22
53 - MUFFLER GASKET MS3200 MSP-5313502200.A0 5313502200	£4.68	£5.62
54 - INSULATOR RBC310/320E MSP-5313500500.A0 5313500500	£5.92	£7.11
55 - EXHAUST MUFFLER MS3200 MSP-5313009001.A0 5313009001	£50.02	£60.03
56 - PISTON PIN RBC230/260 MSP-5242500100 5242500100	£4.68	£5.62
57 - PISTON MS2810 MSP-5242500800 5242500800	£35.86	£43.03
58-1 - PLATE ER2550/ EBH251L/341U MSP-424102-2.A15 424102-2	£1.44	£1.73
59-1 - GASKET ER2550/ EBH251L/341U MSP-424103-0.A0 424103-0	£1.44	£1.73
60-1 - PISTON RING RBC260/MH2556/PB2 MSP-257979-8.A2 257979-8	£8.73	£10.48
61 - REWIND STARTER MS3200/RBC320 MSP-5315012000.A1 5315012000	£59.92	£71.91
62 - PULLEY STARTER RBC260/MS3200 MSP-5245007000.A0 5245007000	£19.58	£23.50
63 - REEL MS3200 MSP-5315007010.A2 5315007010	£12.01	£14.41
64 - SET SCREW MS3200 MSP-5315007020.A0 5315007020	£2.50	£3.00
65 - SPIRAL SPRING RBC260/MS3200 MSP-5415003020.A1 5415003020	£12.79	£15.35
66-1 - STARTER KNOB EBH341U MSP-424317-1.A1 424317-1	£3.74	£4.49
67 - STARTER ROPE RBC221/251/MS32 MSP-5235024022.A3 5235024022	£12.17	£14.60
68-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A14 163447-0	£3.42	£4.10
68-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A59 163447-0	£3.42	£4.10
69-1 - FUEL TANK MS3200/RBC280 MSP-5316502001.A0 5316502001	£35.86	£43.03
70 - WASHER MS3200/RBC320E MSP-6272500000.A0 6272500000	£1.44	£1.73
71-1 - BOLT M5X20 MS3200E MSP-0011705200.A0 0011705200	£1.44	£1.73
71 - BOLT ASSY MS3200 MSP-0011605200 11605200	£1.44	£1.73
72 - BOLT M6X16 RBC 310 MSP-0016606160.A0 0016606160	£1.44	£1.73
73-1 - NUT M5 EPH1000/RBL500/MH2556 MSP-264086-0.A5 264086-0	£1.44	£1.73
74-1 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A200 961052-5	£1.44	£1.73
75 - O RING MS3200/RBC320E MSP-0062610060.A0 0062610060	£1.44	£1.73
76-1 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A107 962151-6	£1.44	£1.73
76 - *INNER SNAP RING RBC260/EM425 MSP-0031432000.A3 0031432000	£1.44	£1.73
77 - *BALL BEARING 6201DDRBC260/31 MSP-0600129950.A0 0600129950	£11.39	£13.67
78 - SPRING WASHER M6 RBC310/RBC42 MSP-0032006000.A2 0032006000	£1.44	£1.73
82 - SOCKET H BOLT M5X55 RBC320E/M MSP-0119059670.A0 0119059670	£3.90	£4.68
83 - *SOCKET HD BOLT M5X20 DBC260L MSP-0119059730.A7 0119059730	£1.44	£1.73
84 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A2 0119059950	£1.44	£1.73
85-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A10 266809-2	£1.44	£1.73
87-2 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A7 267817-6	£1.44	£1.73
88-1 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A0 254040-2	£4.06	£4.87
89-2 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A7 233976-8	£1.44	£1.73
90 - NEEDLE ROLLER BEARING RBC230/ MSP-0610089990.A1 0610089990	£7.49	£8.99
91A1 - SPARK PLUG EH561/RBC525E/MH25 MSP-168662-1.A1 168662-1	£29.38	£35.25
92-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A19 324891-8	£1.44	£1.73
93-1 - *WIRE RBC201/MS20C/MS3200E/RB MSP-6165500201.A6 6165500201	£1.44	£1.73
94-3 - TUBE MS3200E/RBC320E MSP-0851179972.A2 0851179972	£10.77	£12.92
95-2 - PIPE BRACKET MS3200/RBC320E MSP-6271500301.A3 6271500301	£9.05	£10.86
95-1 - PIPE DAMPER (1) MS3200 MSP-6271500104.A1 6271500104	£3.90	£4.68
96-2 - PIPE BRACKET 2 MS3200/RBC320E MSP-6271500401.A1 6271500401	£9.36	£11.23
97 - PIPE BRACKET MS3200/RBC320E MSP-6271500301.A4 6271500301	£9.05	£10.86
97-2 - PIPE DAMPER (1) MS3200E/RBC32 MSP-6271500105.A2 6271500105	£4.83	£5.80
97-1 - PIPE DAMPER (1) MS3200 MSP-6271500104.A0 6271500104	£3.90	£4.68
98 - PIPE BRACKET 2 MS3200/RBC320E MSP-6271500401.A0 6271500401	£9.36	£11.23
98-2 - PIPE DAMPER (2) MS3200E/RBC32 MSP-6271500205.A0 6271500205	£4.37	£5.24
99 - *SOCKET HEAD BOLT M5X18 RBC23 MSP-0119059950.A1 0119059950	£1.44	£1.73
100 - SOCKET HEAD BOLT M5X12 DBC26 MSP-0119059900.A2 0119059900	£1.44	£1.73
101 - CARBURETOR MS3200/RBC320E MSP-5316021000.A1 5316021000	£130.68	£156.82
102-1 - PUMP BODY ASSY MS3200/RBC420 MSP-140989-1.A4 140989-1	£43.30	£51.96
103-1 - AIR PURGE BODY ASY DBC260L/U MSP-140988-3.A6 140988-3	£14.20	£17.04
104-1 - BRACKET CABLE MS3200/RBC350/4 MSP-346491-4.A4 346491-4	£9.98	£11.98
105-1 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A29 346270-0	£4.83	£5.80
106-1 - METERING DIAPHRAGM ASSY EH760 MSP-168767-7.A5 168767-7	£26.92	£32.31
107-2 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A35 DA00001144	£14.21	£17.05
108-1 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A27 442154-1	£3.59	£4.31
109-1 - PUMP GASKET HTR4900/RBC2110 MSP-442172-9.A11 442172-9	£8.27	£9.92
110 - JET RBC230/310/MS3200E/RST25 MSP-5036002010.A0 5036002010	£8.58	£10.30
111 - *CABLE ADJUST NUT RBC230/260/ MSP-5316005450.A0 5316005450	£1.44	£1.73
111-1 - CABLE ADJUST NUT M6 EB7650TH MSP-264065-8.A5 264065-8	£1.44	£1.73
112-1 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A7 213538-8	£3.59	£4.31
113-1 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A29 424314-7	£4.83	£5.80
114-1 - RING PACKING RBC230/260/310 MSP-424444-4.A4 424444-4	£2.34	£2.81
115-1 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A15 257964-1	£2.81	£3.37
116-2 - INLET SCREEN DCS230T/EA3201S MSP-WJ00014070.A20 WJ00014070	£1.44	£1.73
117-1 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A5 266582-4	£1.44	£1.73
118 - *THROTTLE COLLAR SCREW RBC420 MSP-5246001240.A3 5246001240	£2.18	£2.62
119-1 - CABLE ADJUST SCREW MS3200 MSP-326084-3.A2 326084-3	£10.30	£12.36
120-1 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A23 325922-6	£5.46	£6.55
121 - WASHER MS3200 MSP-5236052030.A2 5236052030	£4.83	£5.80
122 - AIR CLEANER ASSY MS3200/RBC32 MSP-5313503200.A0 5313503200	£5.62	£6.74
123-1 - AIR CLEANER ELEMENT RBC221/MH MSP-443167-5.A6 443167-5	£2.36	£2.83
124-1 - AIR CLEANER PLATE DBC260L/U MSP-346489-1.A0 346489-1	£2.81	£3.37
125 - AIR CLEANER PLATE MS3200/RBC3 MSP-5313015000.A2 5313015000	£13.42	£16.10
126 - SCREW M5X50 RBC260/310/320E MSP-0140059730.A2 0140059730	£1.44	£1.73
127 - WASHER RBC221/PB250/RBL250 MSP-0031104000.A3 0031104000	£1.44	£1.73
128 - TAPPING SCREW M4X8 RBC221 MSP-0150049980.A0 0150049980	£1.44	£1.73
129-1 - SCREW ASSY M5X14 EPH1000/RBC2 MSP-266809-2.A11 266809-2	£1.44	£1.73
130-1 - HOSE CLAMP ER2550/EBH251L/341 MSP-345920-4.A26 345920-4	£1.44	£1.73
131 - TAPPING SCREW RBC251/EM4251 MSP-0150059940.A4 0150059940	£1.44	£1.73
133-3 - STRAP ER2550/EBH341U MSP-140436-2.A21 140436-2	£3.96	£4.75
A01-1 - *BAND ASSY MS3200/RBC280/420E MSP-6417015003.A1 6417015003	£23.56	£28.27
A02-2 - *CUTTER COVER SET DBC260/RBC42 MSP-6418027000.A5 6418027000	£6.55	£7.86
A03-1 - STAR BLADE 230-4T C23/C26 MSP-B-14118.A2 B-14118	£16.30	£19.56
A04-1 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-6119019001.A4 6119019001	£9.73	£11.68
A04-2 - *TOOL KIT RBC260L/U/MS3200E/RB MSP-195508-8.A3 195508-8	£3.63	£4.36
A05-1 - *WRENCH 4 ER2650LH/EBH253L/ER MSP-783223-2.A11 783223-2	£1.20	£1.44
A06-1 - CUSHION MS3200 MSP-6277500201.A0 6277500201	£42.48	£50.98

Attribute Name	Value
Brand	Makita
