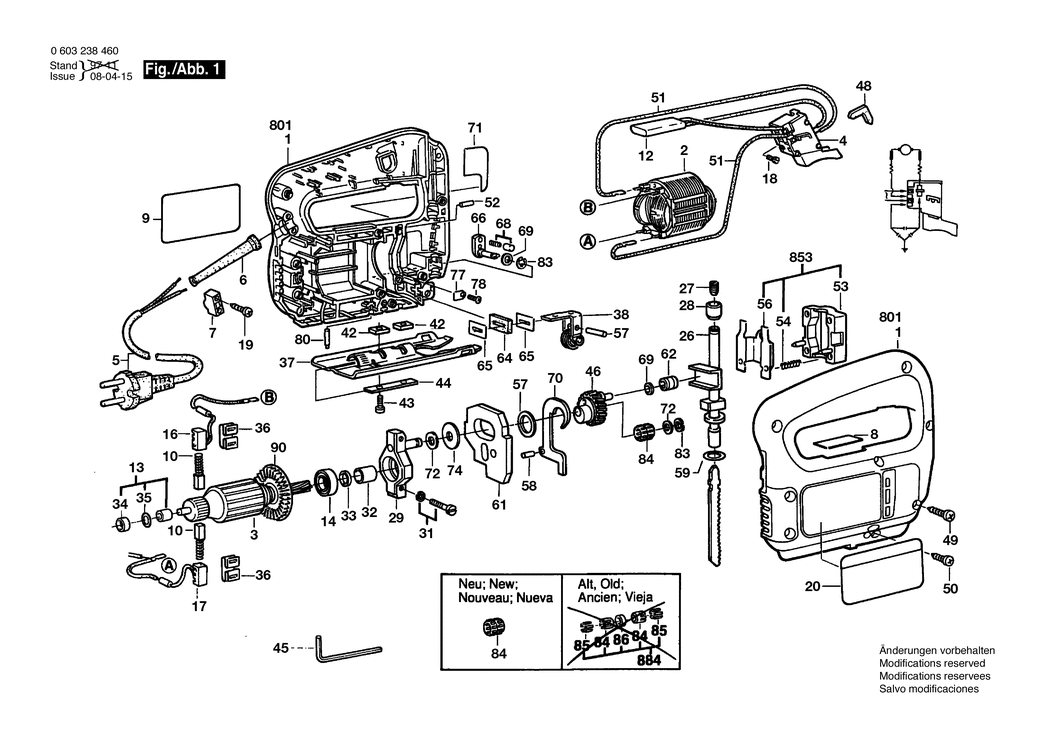

1 - HOUSING SECTION
BSD-2605104318.A0
2605104318
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A220
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 220-240V
BSD-2604010558.A5
2604010558
|
-
|
|
|
|
4 - SWITCH
BSD-2607200184.A46
2607200184
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A81
1604460427
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A320
2600703007
|
-
|
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A43
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2119
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110962.A0
2601110962
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-2604321904.A202
2604321904
|
£10.61
|
£12.73
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329004.A9
2607329004
|
£2.45
|
£2.94
|
|
|
13 - SINTERED-METAL BUSHING
BSD-1600301900.A234
1600301900
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A360
2600905039
|
£12.64
|
£15.17
|
|
|
16 - BRUSH HOLDER
BSD-2604465077.A17
2604465077
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1625
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1760
2603490022
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-2601110963.A0
2601110963
|
-
|
|
|
|
26 - LIFTING ROD
BSD-2600780041.A0
2600780041
|
-
|
|
|
|
27 - CLAMP SCREW
BSD-2603400000.A125
2603400000
|
£4.26
|
£5.11
|
|
|
28 - SINTERED-METAL BUSHING
BSD-2600302006.A17
2600302006
|
-
|
|
|
|
29 - BEARING BRACKET
BSD-2605807908.A2
2605807908
|
-
|
|
|
|
31 - OVAL-HEAD SCREW DIN 7985-M4x18-8.8-H
BSD-2910950128.A15
2910950128
|
-
|
|
|
|
31 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8
BSD-2914500009.A64
2914500009
|
-
|
|
|
|
32 - GUIDE SLEEVE
BSD-2600400024.A75
2600400024
|
£2.94
|
£3.53
|
|
|
33 - SUPPORTING DISC
BSD-2600103013.A20
2600103013
|
£1.32
|
£1.58
|
|
|
34 - FELT WASHER
BSD-1600205023.A215
1600205023
|
£1.38
|
£1.66
|
|
|
35 - O-RING 8.0x2.5 MM
BSD-1610210014.A211
1610210014
|
-
|
|
|
|
36 - HOLDING SPRING
BSD-2604690002.A0
2604690002
|
-
|
|
|
|
37 - BASE PLATE
BSD-2601016012.A14
2601016012
|
£9.11
|
£10.93
|
|
|
38 - ROLLER LEVER
BSD-2601321900.A25
2601321900
|
-
|
|
|
|
42 - FIXING PLATE
BSD-2601030006.A81
2601030006
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A362
2910021122
|
£2.27
|
£2.72
|
|
|
44 - PROFILE BEADING
BSD-2602317025.A26
2602317025
|
-
|
|
|
|
46 - ECCENTRIC COG WHEEL Z=39
BSD-2606319900.A7
2606319900
|
-
|
|
|
|
47 - CONNECTING CABLE L=213 MM
BSD-2604448118.A111
2604448118
|
£1.75
|
£2.10
|
|
|
48 - DAMPING PLATE
BSD-2601022000.A281
2601022000
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A222
2912401020
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A99
2910611018
|
-
|
|
|
|
51 - CONNECTING CABLE L=263MM
BSD-2604448119.A15
2604448119
|
£1.38
|
£1.66
|
|
|
52 - BEARING BOLT
BSD-2603201020.A31
2603201020
|
£1.84
|
£2.21
|
|
|
54 - COMPRESSION SPRING
BSD-2604613000.A63
2604613000
|
£1.84
|
£2.21
|
|
|
56 - GUIDE BRACKET
BSD-2601322014.A1
2601322014
|
-
|
|
|
|
57 - STRAIGHT PIN
BSD-2609002725.A7
2609002725
|
£1.75
|
£2.10
|
|
|
58 - STRAIGHT PIN 4M6x12DIN6325
BSD-2917530095.A29
2917530095
|
-
|
|
|
|
59 - SHIM 0.5 MM
BSD-2600101612.A335
2600101612
|
£1.84
|
£2.21
|
|
|
59 - SHIM 0.3 MM
BSD-2600116012.A50
2600116012
|
-
|
|
|
|
61 - COUNTERWEIGHT
BSD-2601098005.A11
2601098005
|
£3.80
|
£4.56
|
|
|
64 - SEALING PLATE
BSD-2601015009.A0
2601015009
|
£1.75
|
£2.10
|
|
|
65 - FIXING PLATE 0.6 MM
BSD-2601015008.A3
2601015008
|
£2.16
|
£2.59
|
|
|
66 - SWITCH HANDLE
BSD-2602026035.A26
2602026035
|
-
|
|
|
|
67 - SHIM 0.3 MM
BSD-2600101083.A32
2600101083
|
-
|
|
|
|
68 - RATCHET CAP
BSD-2600590006.A253
2600590006
|
£1.84
|
£2.21
|
|
|
69 - SHIM 0.5 MM
BSD-2600100568.A10
2600100568
|
£1.84
|
£2.21
|
|
|
69 - SHIM 0.3 MM
BSD-2600100607.A54
2600100607
|
£1.75
|
£2.10
|
|
|
70 - FORK LEVER
BSD-2601923003.A7
2601923003
|
-
|
|
|
|
71 - STICKER
BSD-2601110995.A0
2601110995
|
-
|
|
|
|
72 - SHIM 0.3 MM
BSD-2600100570.A95
2600100570
|
£1.84
|
£2.21
|
|
|
74 - SHIM 0.5 MM
BSD-2600102014.A32
2600102014
|
-
|
|
|
|
76 - PRESS-IN SOCKET
BSD-2600506008.A1
2600506008
|
-
|
|
|
|
77 - SUPPORT PLATE
BSD-2601098006.A22
2601098006
|
£1.84
|
£2.21
|
|
|
78 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A819
2603490017
|
£2.27
|
£2.72
|
|
|
79 - COMPRESSION SPRING
BSD-2604610009.A30
2604610009
|
-
|
|
|
|
80 - DETENT PIN
BSD-2603120019.A34
2603120019
|
£1.75
|
£2.10
|
|
|
84 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913002.A23
2600913002
|
-
|
|
|
|
85 - NEEDLE ROLLER 1.5x5.8 MM
BSD-2603201037.A40
2603201037
|
£2.74
|
£3.29
|
|
|
90 - FAN
BSD-2606610022.A41
2606610022
|
£4.26
|
£5.11
|
|
|
201 - PROTECTING ANGLE
BSD-2601322009.A0
2601322009
|
-
|
|
|
|
202 - TAPPING SCREW DIN 7981-B 3.9x9.5
BSD-2910611017.A10
2910611017
|
-
|
|
|
|
203 - CLAMP PIN
BSD-2603104002.A0
2603104002
|
-
|
|
|
|
204 - HEX SOCKET HEAD CAP SCREW
BSD-2603414004.A0
2603414004
|
-
|
|
|
|
825 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A68
2916080005
|
-
|
|
|
|
853 - SUPPORT PLATE
BSD-2602316900.A3
2602316900
|
-
|
|
|
|
860 - NEEDLE BEARING
BSD-2600917900.A115
2600917900
|
£9.11
|
£10.93
|
|
|
883 - LOCKING WASHER DIN 6799-5-FSt
BSD-2916080008.A62
2916080008
|
-
|
|
|
