Bosch 400 WATT-SERIE / 0607661101 / --- Spare Parts

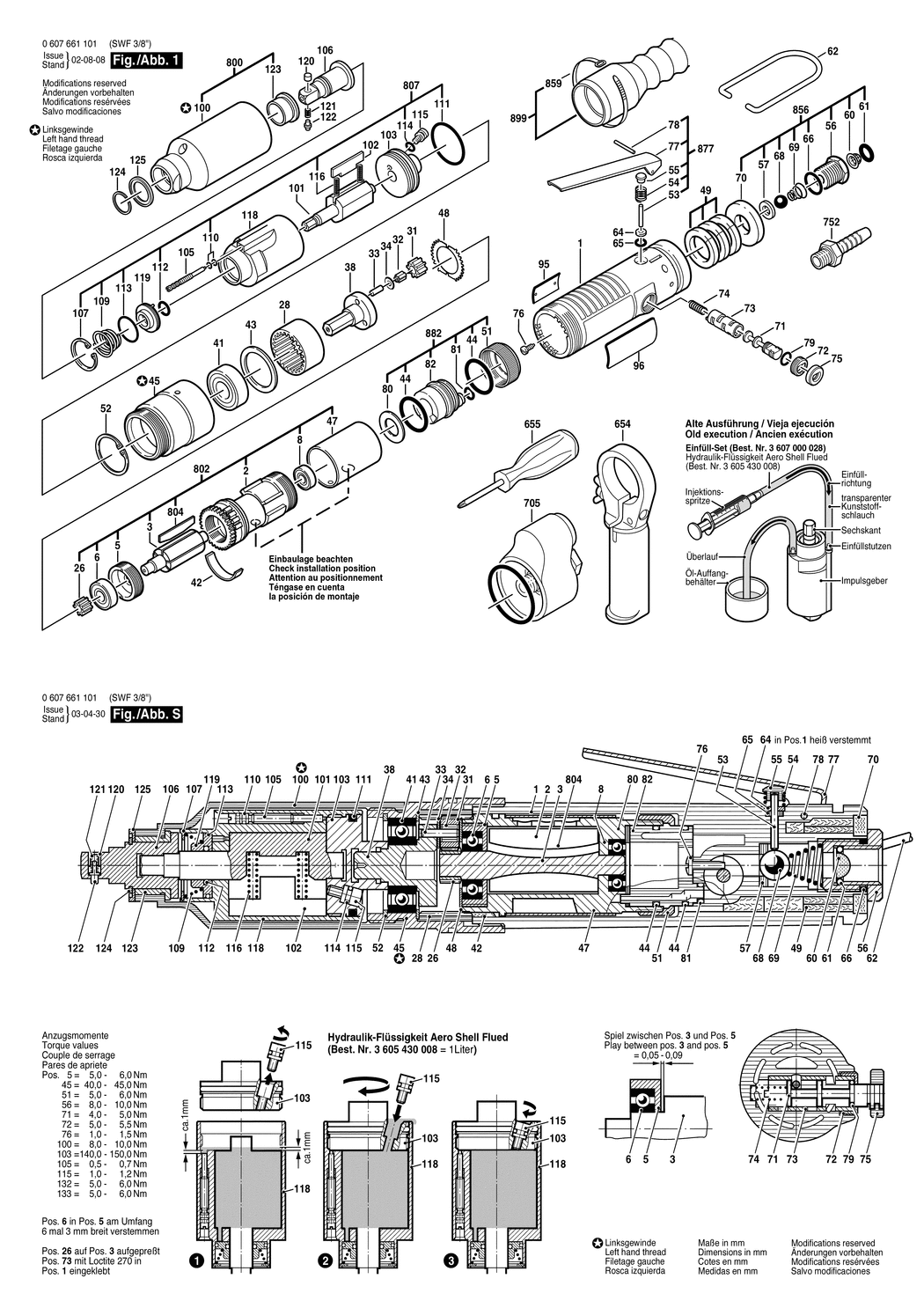

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607661101 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108072.A5 3605108072	£31.64	£37.97
2 - STATOR 320-400W BSD-3604090044.A24 3604090044	£81.81	£98.17
3 - ROTOR BSD-3604220060.A16 3604220060	£63.50	£76.20
5 - BEARING FLANGE BSD-3605700076.A56 3605700076	£48.38	£58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A346 3600905039	£12.04	£14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A21 1900905028	£33.74	£40.49
26 - CYLINDRICAL GEAR Z=15 BSD-3606316063.A18 3606316063	£37.27	£44.72
28 - RING GEAR Z=42 BSD-3606334055.A10 3606334055	£21.52	£25.83
31 - CYLINDRICAL GEAR Z=15 BSD-3606316059.A2 3606316059	-
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A68 3600913006	£7.36	£8.83
33 - NEEDLE ROLLER BSD-3603201047.A51 3603201047	£1.75	£2.10
34 - SHIM 0.20 MM BSD-2600100586.A1 2600100586	£1.75	£2.10
38 - PLANETARY-GEAR CARRIER BSD-3606337138.A5 3606337138	£72.18	£86.62
41 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A2 1900905234	£31.64	£37.97
42 - NON-WOVEN FABRIC BSD-3601010028.A15 3601010028	-
43 - STOP DISC BSD-3600102021.A7 3600102021	£3.72	£4.47
44 - O-RING 26.0x1.5 MM BSD-2600210018.A5 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125043.A0 3605125043	£54.42	£65.30
47 - SPIGOT BSD-3600700032.A11 3600700032	£21.68	£26.01
48 - RETAINING WASHER BSD-3600101036.A57 3600101036	£4.26	£5.11
49 - SILENCER BSD-3601010006.A87 3601010006	£1.75	£2.10
51 - UNION NUT BSD-3603313001.A9 3603313001	£14.91	£17.89
52 - SPRING RETAINING RING BSD-3600118008.A5 3600118008	£1.75	£2.10
53 - NEEDLE ROLLER BSD-3603201050.A21 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A53 3604611006	£2.16	£2.59
55 - VALVE CONE BSD-3603132000.A61 3603132000	£2.80	£3.36
56 - FITTING BSD-3603458008.A13 3603458008	£8.67	£10.41
57 - SEALING DISK BSD-3600206006.A3 3600206006	-
60 - STRAINER BSD-3600002000.A193 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A210 1900210306	£1.75	£2.10
62 - SUSPENSION LOOP BSD-3604720004.A118 3604720004	£2.80	£3.36
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A33 2916011006	£1.75	£2.10
65 - O-RING 2.4x1.9 MM BSD-2600210007.A49 2600210007	£2.16	£2.59
66 - O-RING 16x1.25 MM BSD-3600210036.A49 3600210036	£2.16	£2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A10 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A3 3604616008	-
70 - SILENCER BSD-3600105002.A0 3600105002	£10.10	£12.12
71 - CONTROL PISTON BSD-3608750023.A11 3608750023	£45.67	£54.80
72 - THREADED RING BSD-3603344023.A3 3603344023	£31.64	£37.97
73 - VALVE BUSHING BSD-3600340005.A9 3600340005	£54.42	£65.30
74 - COMPRESSION SPRING BSD-3604611006.A54 3604611006	£2.16	£2.59
75 - RETAINING SNAP RING BSD-3600202012.A8 3600202012	£10.10	£12.12
76 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A13 2910611006	£1.75	£2.10
77 - CONTROL LEVER BSD-3601902001.A87 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A4 2917700040	£2.80	£3.36
79 - O-RING 9.0x1.2 MM BSD-3600210038.A37 3600210038	£2.61	£3.13
80 - SEALING PLATE BSD-3600054004.A21 3600054004	£6.52	£7.83
81 - O-RING 8.0x1.5 MM BSD-1900210103.A8 1900210103	£2.80	£3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A7 3608750027	£14.91	£17.89
95 - NAMEPLATE BSD-160111A3HF.A151 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A7 3601110039	£5.30	£6.36
99 - REFERENCE PLATE BSD-3601119236.A1326 3601119236	£3.72	£4.47
100 - CONTROL HOUSING BSD-3605125042.A7 3605125042	£81.81	£98.17
101 - ROTOR BSD-3604220068.A1 3604220068	£156.22	£187.46
102 - ROTOR LAMELLA BSD-3601165018.A1 3601165018	£72.18	£86.62
103 - CARRIER BSD-3606445036.A3 3606445036	£156.22	£187.46
105 - THROTTLE SCREW BSD-3603412002.A3 3603412002	£14.91	£17.89
106 - OUTPUT SHAFT BSD-3606455032.A2 3606455032	£68.42	£82.10
107 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A165 2916660009	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604643015.A3 3604643015	£4.26	£5.11
110 - O-RING 2.5x1.0 MM BSD-3600210045.A4 3600210045	£2.16	£2.59
111 - O-RING 34.0x2.5 MM BSD-3600210046.A3 3600210046	£8.67	£10.41
112 - O-RING 10x2 MM BSD-1280210725.A0 1280210725	£3.72	£4.47
113 - O-RING 21.0x1.5 MM BSD-3600210060.A4 3600210060	£2.16	£2.59
114 - O-RING 4.0x1.5 MM BSD-3600210064.A3 3600210064	£2.61	£3.13
115 - SCREW PLUG BSD-3603414012.A4 3603414012	£5.30	£6.36
116 - COMPRESSION SPRING BSD-3604610029.A1 3604610029	£2.16	£2.59
118 - WORKING CYLINDER 400W BSD-3604090047.A2 3604090047	£306.65	£367.98
119 - POWER PISTON BSD-3600313009.A4 3600313009	£21.68	£26.01
120 - GUIDE SLEEVE BSD-3600320016.A21 3600320016	£14.91	£17.89
121 - COMPRESSION SPRING BSD-1604611004.A33 1604611004	£2.80	£3.36
122 - PRESSURE SPINDLE BSD-1603124060.A62 1603124060	£5.58	£6.70
123 - BUSHING BSD-3600322004.A3 3600322004	£21.68	£26.01
124 - RETAINING RING BSD-3600118007.A6 3600118007	£2.16	£2.59
125 - STOP DISC BSD-3600114011.A3 3600114011	£18.96	£22.75
654 - AUXILIARY HANDLE BSD-3602025009.A48 3602025009	£18.96	£22.75
655 - SCREWDRIVER BSD-1907959023.A6 1907959023	£4.75	£5.70
705 - AIR HOSE SET BSD-3607030024.A5 3607030024	£37.72	£45.27
752 - HOSE FITTING BSD-2603386002.A192 2603386002	£5.30	£6.36
800 - ASSEMBLY OF SERVICE PARTS BSD-3607030119.A1 3607030119	£102.57	£123.08
802 - ASSEMBLY OF SERVICE PARTS BSD-3607030113.A7 3607030113	£283.50	£340.20
804 - ROTOR LAMELLA BSD-3607030030.A17 3607030030	£31.64	£37.97
807 - ASSEMBLY OF SERVICE PARTS BSD-3607030117.A6 3607030117	-
856 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A6 3607030033	£31.64	£37.97
859 - HOLDING BELT BSD-3604710062.A36 3604710062	£1.75	£2.10
877 - CONTROL LEVER BSD-3607030032.A14 3607030032	£13.12	£15.75
882 - ASSEMBLY OF SERVICE PARTS BSD-3607030057.A7 3607030057	£27.23	£32.68
899 - AIR HOSE BSD-3607000027.A3 3607000027	£33.74	£40.49
