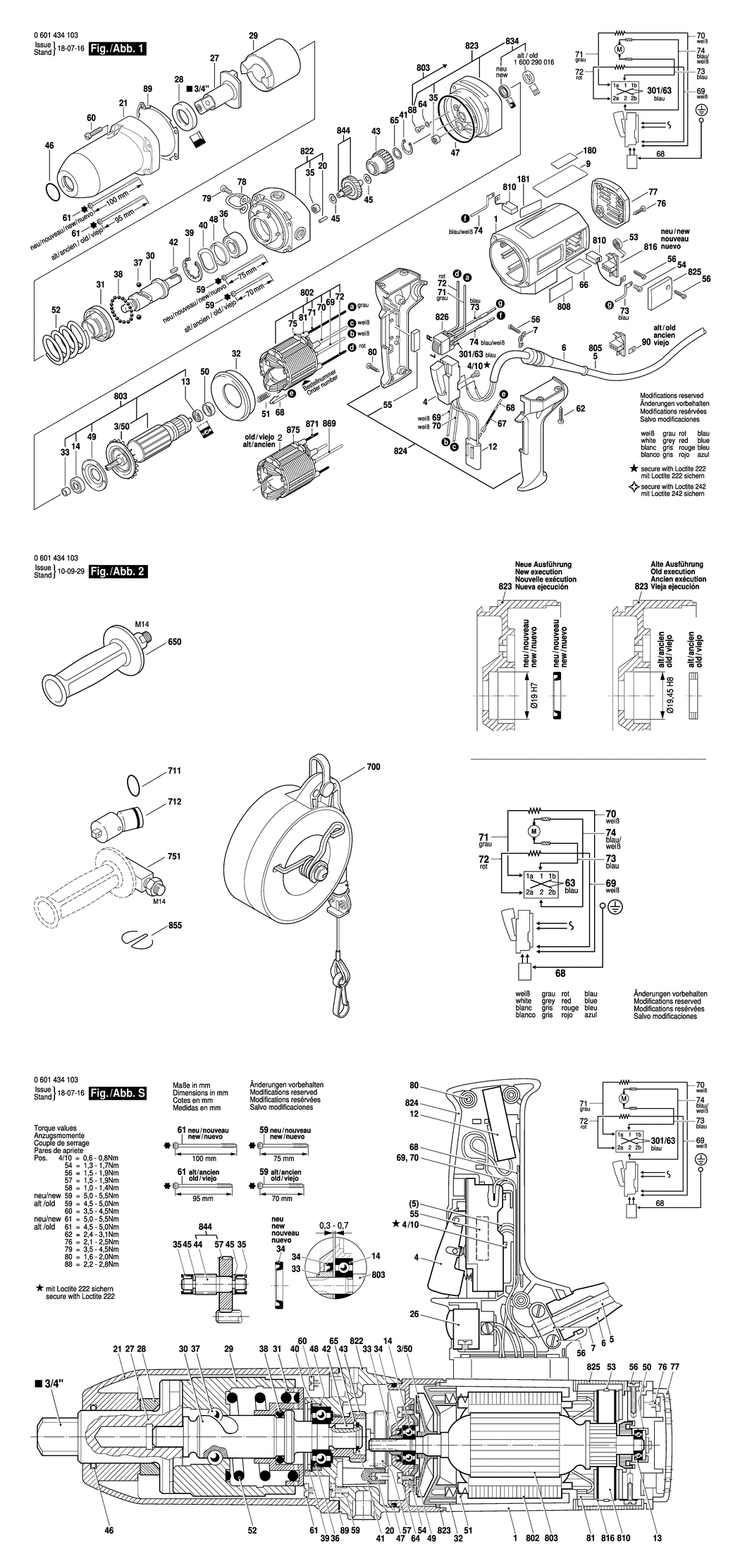

An exploded drawing and listing for the Bosch GDS 24 / 0601434141 / GB 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108091.A28 3605108091 £33.74 £40.49
3/50 - FAN BSD-1606610122.A141 1606610122 £2.80 £3.36
4 - SWITCH BSD-1607200079.A0 1607200079 £33.74 £40.49
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A10 2910011082 £1.75 £2.10
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.00mm H07 RN-F BSD-3604460074.A0 3604460074 £21.68 £26.01
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A475 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A243 1601302014 £2.61 £3.13
9 - STICKER BSD-3601110611.A4 3601110611 £2.61 £3.13
12 - SUPPRESSION FILTER BSD-2607329096.A179 2607329096 £7.36 £8.83
13 - BALL BEARING 7x19x6 BSD-2600905032.A1419 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A61 3600905131 £11.30 £13.56
20 - STRAIGHT PIN DIN 7-5H8x14 BSD-2917500119.A4 2917500119 £1.75 £2.10
21 - SPINDLE BEARING BSD-3605806220.A5 3605806220 £48.38 £58.06
27 - COUPLING HALF 3/4 BSD-1606455031.A4 1606455031 £156.22 £187.46
28 - SHIM WASHER BSD-3600114013.A2 3600114013 £21.68 £26.01
29 - STRIKER BSD-1608710018.A1 1608710018 £251.67 £302.00
30 - DRIVE SHAFT BSD-1603124077.A5 1603124077 £156.22 £187.46
31 - BACKUP RING BSD-1600220015.A3 1600220015 £102.57 £123.08
32 - AIR-DEFLECTOR RING BSD-1600502019.A2 1600502019 £3.72 £4.47
33 - INTERMEDIATE RING BSD-3600300042.A2 3600300042 £10.10 £12.12
35 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A10 1600910018 £5.30 £6.36
36 - GROOVE BALL BEARING 15x35x11 BSD-1900905279.A16 1900905279 £11.30 £13.56
37 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A4 1903230014 £1.75 £2.10
38 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A540 1903230007 £1.75 £2.10
39 - SPRING RETAINING RING DIN 472 38X1.5MM BSD-2916660017.A1 2916660017 £4.26 £5.11
40 - SPRING WASHER dia27.5x38.4 MM BSD-1600150007.A2 1600150007 £1.75 £2.10
41 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A98 2916650006 £1.75 £2.10
42 - PARALLEL KEY DIN 6885-A6X4X14 BSD-1902300083.A2 1902300083 £1.75 £2.10
43 - CYLINDRICAL GEAR Z=25 BSD-3606301006.A12 3606301006 £63.50 £76.20
45 - SHIM 0.5 MM BSD-1600100617.A16 1600100617 £1.75 £2.10
46 - O-RING 28x3 MM BSD-1900210129.A96 1900210129 £2.61 £3.13
47 - O-RING 66.0x3.0 MM BSD-1600210005.A10 1600210005 £2.80 £3.36
48 - RUBBER RING 7 MM BSD-1600206020.A712 1600206020 £1.75 £2.10
49 - BEARING COVER BSD-3605500043.A7 3605500043 £4.26 £5.11
50 - INTERMEDIATE RING BSD-1600502011.A565 1600502011 £2.61 £3.13
51 - COMPRESSION SPRING BSD-1604613006.A12 1604613006 £1.75 £2.10
52 - COMPRESSION SPRING BSD-3604610034.A4 3604610034 £14.91 £17.89
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A198 2910021118 £1.75 £2.10
55 - INSULATING STRIP BSD-3602317025.A2 3602317025 £2.61 £3.13
56 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A320 2910211019 £1.75 £2.10
59 - LENS HEAD SCREW BSD-3603435040.A18 3603435040 £1.75 £2.10
60 - HEX SOCKET HEAD CAP SCREW DIN 912-BM 5x40-10.9 BSD-2910151170.A4 2910151170 £1.75 £2.10
61 - LENS HEAD SCREW BSD-3603435041.A2 3603435041 £1.75 £2.10
62 - TAPPING SCREW 5x30 BSD-3603435027.A35 3603435027 £1.75 £2.10
64 - PLAIN WASHER DIN 7603-A4x8 BSD-3600120013.A10 3600120013 £1.75 £2.10
65 - SHIM WASHER 0.4 MM BSD-1600101600.A49 1600101600 £1.75 £2.10
66 - STICKER BSD-3601110369.A2 3601110369 £3.72 £4.47
67 - SHRINKABLE TUBE BSD-1600712027.A6 1600712027 £1.75 £2.10
68 - ELEC. CABLE W/CONNECTION L=250 MM BSD-3604448044.A9 3604448044 £3.72 £4.47
69 - CONNECTING CABLE L=470 MM BSD-3604438025.A28 3604438025 £7.36 £8.83
70 - CONNECTING CABLE L=330 MM BSD-1604438012.A57 1604438012 £7.36 £8.83
71 - CONNECTING CABLE L=330 MM BSD-3604460135.A11 3604460135 £8.67 £10.41
72 - CONNECTING CABLE L=160 MM BSD-3604438008.A13 3604438008 £8.67 £10.41
73 - SUPPRESSION FILTER L=300 MM BSD-3604503036.A4 3604503036 £5.30 £6.36
74 - SUPPRESSION FILTER L=150 MM BSD-3604503037.A9 3604503037 £5.30 £6.36
75 - WIRE GUIDE BSD-3601025003.A59 3601025003 £1.75 £2.10
76 - TORX OVAL-HEAD SCREW BSD-2914201527.A75 2914201527 £2.16 £2.59
77 - SEALING CAP BSD-3605500062.A11 3605500062 £13.12 £15.75
78 - SUSPENSION LOOP BSD-3601310013.A11 3601310013 £21.68 £26.01
79 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A2 2910131193 £1.75 £2.10
80 - TORX OVAL-HEAD SCREW BSD-2914201508.A39 2914201508 £1.75 £2.10
81 - SHRINKABLE TUBE BSD-3600707022.A112 3600707022 £3.72 £4.47
88 - SOCKET HEAD CAP SCREW BSD-3603435045.A12 3603435045 £1.75 £2.10
89 - SEAL BSD-3601023009.A4 3601023009 £6.52 £7.83
90 - TAB WASHER BSD-1601030022.A371 1601030022 £1.75 £2.10
301/63 - CONNECTING CABLE L=60 MM BSD-3604412002.A8 3604412002 £7.36 £8.83
650 - AUXILIARY HANDLE M14 BSD-1602025022.A1446 1602025022 £13.41 £16.09
650 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1335 1602025030 £18.96 £22.75
700 - SPRING PULL 6-8 KG BSD-0607950925.A2 0607950925 -
711 - O-RING 26.0x16.0 MM BSD-1600210018.A1 1600210018 -
711 - SEAL RING dia 8x14 MM BSD-1600280000.A4 1600280000 -
712 - BALL JOINT 3/4. 90 MM BSD-1608500008.A4 1608500008 -
751 - THREADED FITTING M14. L=70 MM BSD-1603527017.A12 1603527017 -
802 - FIELD 100-115V BSD-3604220139.A0 3604220139 £72.18 £86.62
803 - ARMATURE 110-115V BSD-3604010072.A2 3604010072 £156.22 £187.46
808 - NAMEPLATE BSD-160111A3H3.A4021 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-3607014012.A76 3607014012 £23.86 £28.63
816 - BRUSH HOLDER BSD-3604336012.A110 3604336012 £5.58 £6.70
822 - GEAR HOUSING BSD-3605806167.A2 3605806167 £120.11 £144.13
823 - INTERMEDIATE FLANGE BSD-3605806168.A9 3605806168 £72.18 £86.62
824 - HANDLE BSD-3605132064.A10 3605132064 £23.86 £28.63
825 - SEALING CAP BSD-3605500063.A171 3605500063 £4.26 £5.11
826 - SWITCH BSD-3607200025.A2 3607200025 £27.23 £32.68
834 - ROTARY SHAFT LIP SEAL BSD-3600290070.A41 3600290070 £12.04 £14.45
844 - GEAR SHAFT BSD-1607000C6N.A10 1607000C6N £81.81 £98.17
855 - RETAINING SPRING BSD-3607000094.A4 3607000094 £14.91 £17.89
869 - CONNECTING CABLE L=450 MM BSD-3604460009.A27 3604460009 £6.52 £7.83
871 - CONNECTING CABLE L=345 MM BSD-1604438013.A16 1604438013 £7.36 £8.83
875 - WIRE GUIDE BSD-1601025001.A104 1601025001 £1.75 £2.10
