Festool SR 201 LE-AS / 583185 Spare Parts

Home Details Reviews Delivery

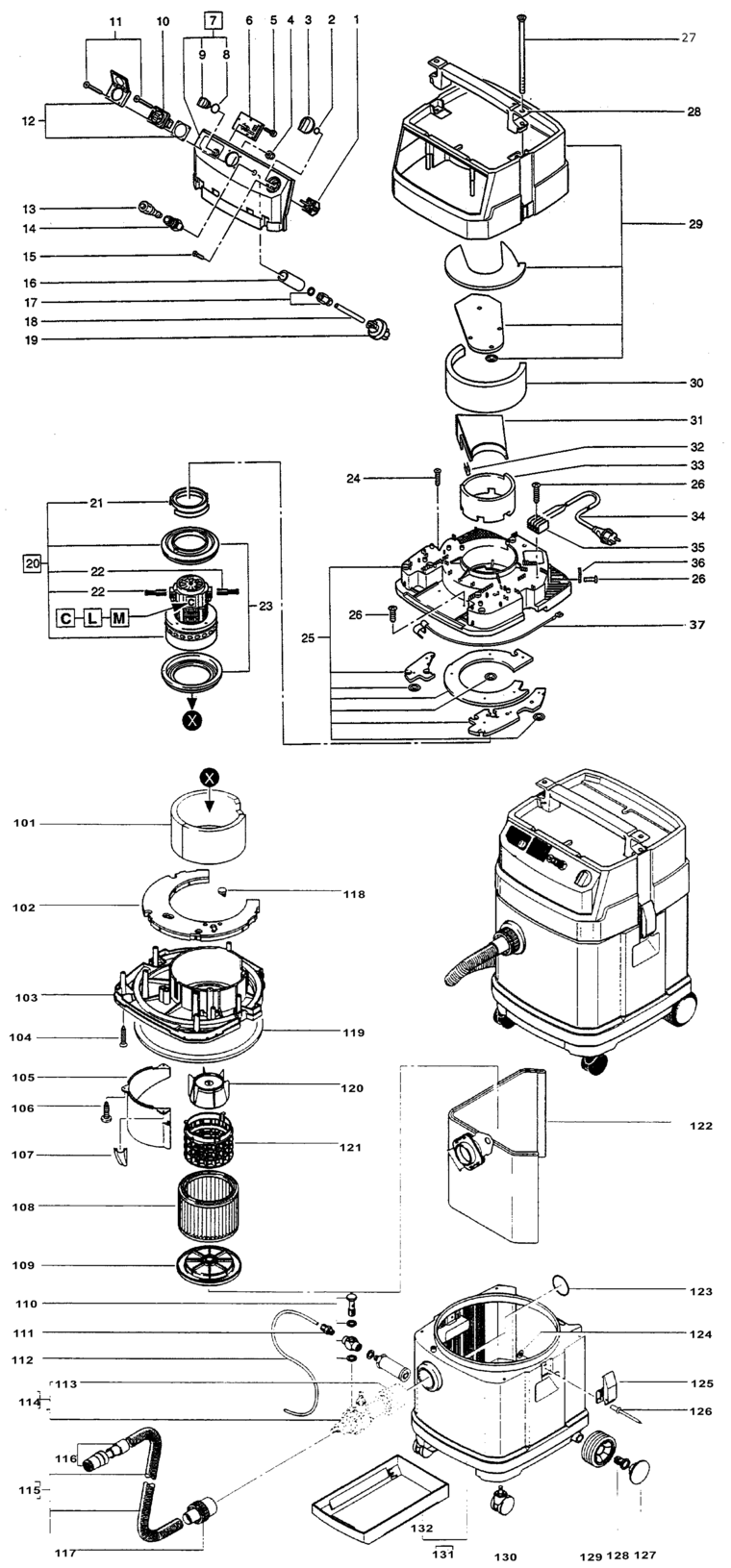

An exploded diagram and spare parts listing for the Festool SR 201 LE-AS / 583185

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE FSP-00000.A5454 00000	-
2 - O-RING FSP-625308.A21 625308	£8.48	£10.18
3 - NO LONGER AVAILABLE FSP-00000.A5438 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A5439 00000	-
6 - AUTOMATIC SWITCH FSP-450781.A12 450781	£217.48	£260.97
7 - NO LONGER AVAILABLE FSP-00000.A5440 00000	-
8 - O-RING FSP-222037.A47 222037	-
9 - ROTARY KNOB FSP-445241.A19 445241	£9.76	£11.71
10 - SOCKET EU FSP-445235.A26 445235	£40.08	£48.10
11 - CHEESE HEAD SCREW M5 X 20 FSP-446264.A9 446264	£1.75	£2.10
11 - NO LONGER AVAILABLE FSP-00000.A5443 00000	-
12 - COVER FSP-200504.A31 200504	£12.85	£15.42
13 - NO LONGER AVAILABLE FSP-00000.A5444 00000	-
14 - NO LONGER AVAILABLE FSP-00000.A5445 00000	-
15 - FLAT HEAD SCREW M4 X 12 FSP-228555.A43 228555	£2.00	£2.40
16 - NO LONGER AVAILABLE FSP-00000.A5441 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A5442 00000	-
18 - HOSE FSP-626534.A16 626534	£11.68	£14.01
19 - PRESSURE SWITCH FSP-436877.A10 436877	£46.34	£55.61
20 - MOTOR 230 V FSP-490755.A16 490755	£223.23	£267.88
21 - MOTOR BEARING RING FSP-490668.A42 490668	£29.53	£35.44
22 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A78 452876	£38.82	£46.58
22 - CARBON BRUSH FSP-625316.A27 625316	£45.55	£54.66
22 - NO LONGER AVAILABLE FSP-00000.A5381 00000	-
23 - MOTOR BEARING RING FSP-490668.A41 490668	£29.53	£35.44
24 - FLAT HEAD SCREW FSP-412054.A80 412054	£1.63	£1.96
25 - PLATE FSP-487119.A4 487119	£158.57	£190.28
26 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A13 412094	£1.63	£1.96
27 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A46 445248	£3.56	£4.27
28 - NO LONGER AVAILABLE FSP-00000.A5388 00000	-
29 - NO LONGER AVAILABLE FSP-00000.A5389 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A5390 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A5391 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A5392 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A5393 00000	-
34 - CABLE 7.5 M EU FSP-452078.A45 452078	£64.02	£76.83
35 - NO LONGER AVAILABLE FSP-00000.A5382 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A5383 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A5384 00000	-
101 - NO LONGER AVAILABLE FSP-00000.A5385 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A5386 00000	-
103 - NO LONGER AVAILABLE FSP-00000.A5387 00000	-
104 - FLAT HEAD SCREW FSP-412054.A79 412054	£1.63	£1.96
105 - NO LONGER AVAILABLE FSP-00000.A5398 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A5399 00000	-
107 - NO LONGER AVAILABLE FSP-00000.A5400 00000	-
108 - ABSOLUTE FILTER FSP-485808.A15 485808	£39.50	£47.40
109 - CLAMPING SCREW FSP-412092.A55 412092	£30.19	£36.23
110 - T-PIECE FSP-4951.A33 4951	£42.57	£51.08
111 - NO LONGER AVAILABLE FSP-00000.A5394 00000	-
112 - HOSE FSP-10014024.A32 10014024	-
113 - TAPER FSP-439584.A10 439584	£46.09	£55.31
115 - SUCTION HOSE FSP-500677.A43 500677	-
116 - CONNECTING SLEEVE FSP-577162.A62 577162	£16.25	£19.50
118 - NO LONGER AVAILABLE FSP-00000.A5397 00000	-
119 - SEALING RING FSP-412039.A17 412039	£60.31	£72.37
120 - NO LONGER AVAILABLE FSP-00000.A5395 00000	-
121 - NO LONGER AVAILABLE FSP-00000.A5396 00000	-
122 - TWO-PLY FILTER BAG FSP-487070.A12 487070	£38.21	£45.85
123 - NO LONGER AVAILABLE FSP-00000.A5412 00000	-
124 - WASHER 4.3 MM FSP-200576.A57 200576	£2.00	£2.40
125 - FLAP FSP-438702.A52 438702	£36.57	£43.88
126 - NO LONGER AVAILABLE FSP-00000.A5413 00000	-
127 - PLASTIC PLUG FSP-445211.A24 445211	-
128 - PLASTIC PLUG FSP-445210.A12 445210	£7.72	£9.26
129 - WHEEL FSP-445209.A24 445209	£20.94	£25.13
130 - GUIDE ROLL FSP-445212.A12 445212	£30.31	£36.37
131 - NO LONGER AVAILABLE FSP-00000.A5414 00000	-
132 - NO LONGER AVAILABLE FSP-00000.A5415 00000	-
