Fein FSC 2.0 X (50/60Hz 110/120V) / 72363824110 Spare Parts

Fein FSC 2.0 X ⡐/60Hz 110/120V) / 72363824110 Spare Parts

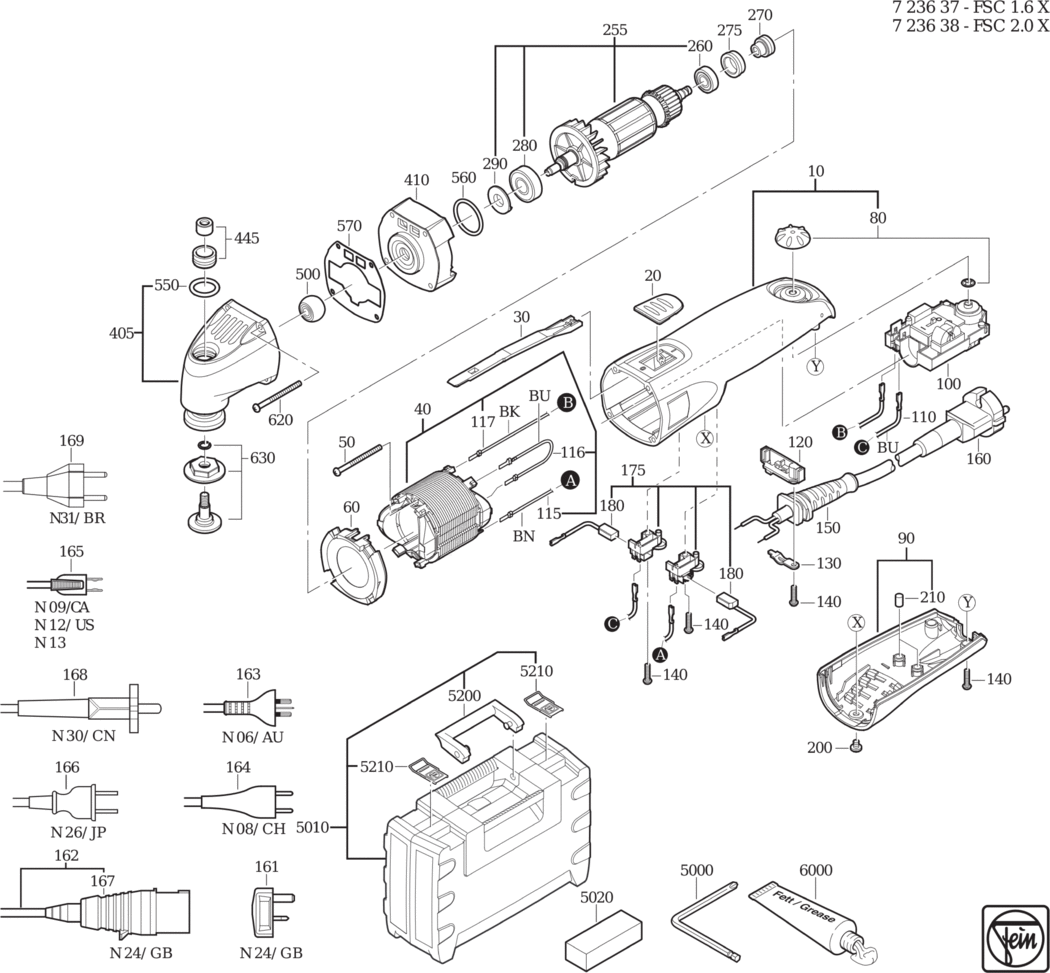

An exploded diagram and spare parts listing for the Fein FSC 2.0 X (50/60Hz 110/120V) / 72363824110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901150010.A5 31901150010	£45.19	£54.23
20 - SLIDE SWITCH FEI-32805195001.A13 32805195001	£3.36	£4.03
30 - CONTROL ROD FEI-32816060001.A1 32816060001	£10.15	£12.18
40 - STATOR FEI-51274010110.A6 51274010110	£72.00	£86.40
50 - SCREW FEI-43074005000.A42 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428151009.A18 31428151009	£4.35	£5.22
80 - ROTARY KNOB SET FEI-32805194016.A17 32805194016	£7.08	£8.50
90 - COVER FEI-32427120011.A20 32427120011	£13.28	£15.94
100 - SPEED SETTING SWITCH 100-120V/50 60HZ FEI-30762483990.A2 30762483990	£129.15	£154.98
110 - CONNECTING CABLE FEI-30719696010.A18 30719696010	£1.60	£1.92
115 - CONNECTING CABLE FEI-30719693010.A6 30719693010	£1.60	£1.92
116 - CONNECTING CABLE FEI-30719695010.A6 30719695010	£2.31	£2.77
117 - CONNECTING CABLE FEI-30719694010.A11 30719694010	£1.60	£1.92
120 - CABLE CLAMPING PIECE FEI-32431044000.A12 32431044000	-
130 - CABLE CLAMPING PIECE FEI-32431043002.A227 32431043002	£1.60	£1.92
140 - SCREW FEI-43070038007.A45 43070038007	£1.60	£1.92
150 - CABLE GROMMET FEI-31413229000.A8 31413229000	£2.25	£2.70
162 - CABLE WITH PLUG FEI-30707409018.A4 30707409018	-
175 - BRUSH HOLDER FEI-30712091024.A10 30712091024	£42.30	£50.76
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711146001.A21 30711146001	£12.88	£15.46
200 - FILLISTER HEAD SCREW FEI-43041040048.A58 43041040048	£1.60	£1.92
210 - PRESSURE PIECE FEI-31415095009.A23 31415095009	£1.60	£1.92
255 - ARMATURE FEI-53274015110.A4 53274015110	£197.48	£236.97
260 - GROOVED BALL BEARING FEI-41701001260.A419 41701001260	£7.11	£8.53
270 - RING MAGNET FEI-31428152002.A14 31428152002	£25.65	£30.78
275 - RING FEI-32619024000.A7 32619024000	£3.78	£4.54
280 - GROOVED BALL BEARING FEI-41701007038.A96 41701007038	£10.17	£12.20
290 - RING FEI-32603037009.A4 32603037009	£32.26	£38.71
405 - GEARBOX HOUSING FEI-31508253018.A9 31508253018	£223.63	£268.36
410 - INTERMEDIATE GEAR BOX FEI-31506369022.A2 31506369022	-
445 - BUSH FEI-30507234010.A0 30507234010	-
500 - NEEDLE BEARING FEI-41706041005.A9 41706041005	£28.72	£34.46
550 - SEALING RING FEI-40612024009.A16 40612024009	£1.60	£1.92
560 - SEALING RING FEI-40612093004.A12 40612093004	£1.60	£1.92
570 - SEAL FEI-30610035002.A11 30610035002	£2.65	£3.18
620 - SCREW FEI-43074006000.A12 43074006000	£1.60	£1.92
630 - SCREW FEI-33001039017.A9 33001039017	£41.32	£49.59
5000 - ALLEN KEY FEI-62907037003.A37 62907037003	£4.06	£4.87
5010 - TOOL CASE FEI-33901118200.A0 33901118200	£63.76	£76.51
5200 - HANDLE FEI-32119122000.A113 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A111 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A26 32160003014	-
9000 - OPERATING INSTRUCTIONS FSC1.6X/2.0X FEI-34101112060.A0 34101112060	-

Attribute Name	Value
Brand	Fein
