Fein ABOP 6 (18V) / 71050100940 Spare Parts

Fein ABOP 6 ⠘V) / 71050100940 Spare Parts

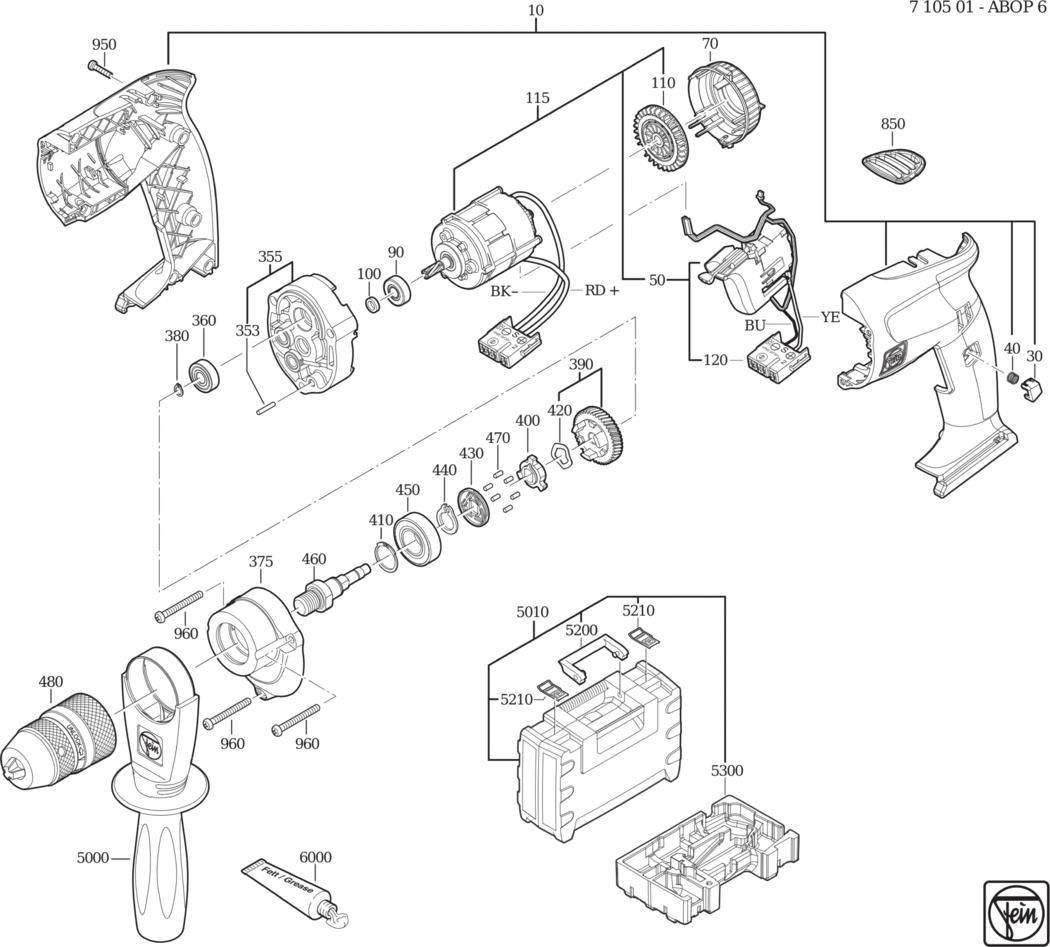

An exploded diagram and spare parts listing for the Fein ABOP 6 (18V) / 71050100940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A12 31912104020	£45.22	£54.27
30 - STOP BUTTON FEI-32816063000.A7 32816063000	£3.01	£3.61
40 - SPIRAL SPRING FEI-30901387000.A7 30901387000	-
50 - SWITCH 18V FEI-30701318990.A4 30701318990	-
70 - AIR GUIDE RING FEI-31428172000.A12 31428172000	-
90 - GROOVED BALL BEARING FEI-41701027250.A2 41701027250	£8.08	£9.69
100 - SEALING RING FEI-32612084001.A21 32612084001	£3.44	£4.13
110 - FAN WHEEL FEI-31004051000.A8 31004051000	-
115 - MOTOR FEI-54113029800.A1 54113029800	-
120 - PLUG 18V FEI-30703054000.A12 30703054000	£5.78	£6.94
353 - PIN FEI-40242051000.A9 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378040.A2 31506378040	-
360 - GROOVED BALL BEARING FEI-41701118160.A19 41701118160	-
375 - GEARBOX HOUSING FEI-31508266010.A0 31508266010	-
380 - CIRCLIP FEI-42616047007.A1 42616047007	-
390 - GEAR-WHEEL Z=43 FEI-33657183010.A1 33657183010	£37.08	£44.50
400 - CLUTCH RING FEI-30103053000.A2 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A29 42644018007	-
420 - SPRING WASHER FEI-42446023000.A9 42446023000	£1.60	£1.92
430 - DISC FEI-30109191000.A3 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A114 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A82 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403115000.A0 33403115000	-
470 - ROLLER FEI-41709005007.A22 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205036010.A8 63205036010	£108.76	£130.51
850 - COVER FEI-30240284000.A6 30240284000	-
950 - SCREW FEI-43074010000.A7 43074010000	£1.60	£1.92
960 - SCREW FEI-43072010009.A41 43072010009	£1.60	£1.92
5000 - HANDLE FEI-32119123020.A0 32119123020	£39.94	£47.93
5010 - TOOL CASE FEI-33901131080.A1 33901131080	£78.68	£94.41
5200 - HANDLE FEI-32119122000.A168 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A239 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904432000.A2 33904432000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A153 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A691 34130054061	-
