Fein FMM 250 Q (50/60Hz 220/230V) / 72293724230 Spare Parts

Fein FMM 250 Q ⡐/60Hz 220/230V) / 72293724230 Spare Parts

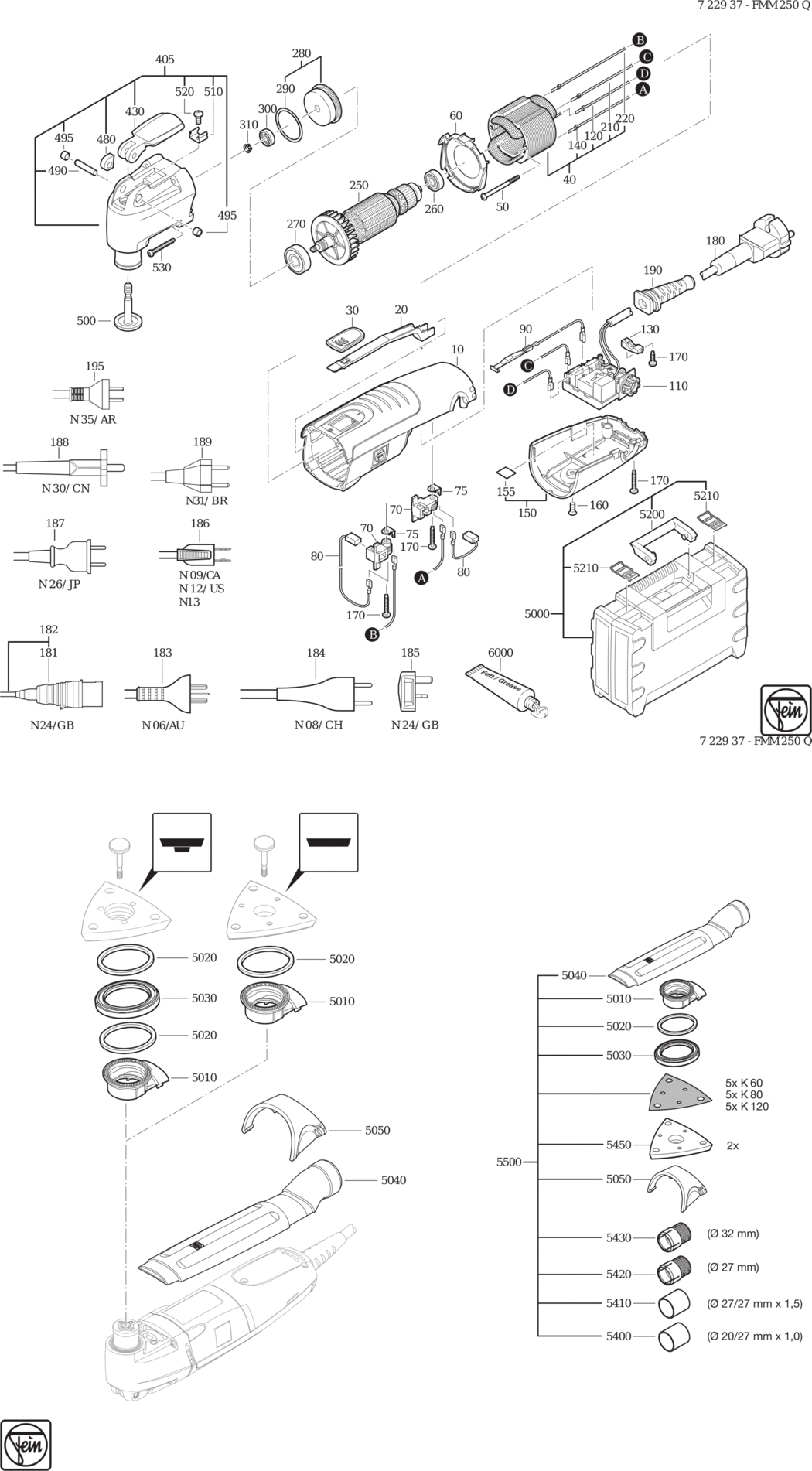

An exploded diagram and spare parts listing for the Fein FMM 250 Q (50/60Hz 220/230V) / 72293724230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901146000.A5 31901146000	£37.80	£45.36
20 - CONTROL ROD FEI-32816066000.A16 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A7 32805226000	£2.91	£3.49
40 - STATOR FEI-51278002230.A4 51278002230	£70.33	£84.40
50 - SCREW FEI-43074005000.A34 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A39 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A61 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A78 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A58 30711129009	£6.73	£8.08
90 - CONTACT SPRING FEI-32803019010.A46 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A14 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A9 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A55 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A43 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A11 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A9 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A31 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A37 43074002000	£1.60	£1.92
185 - CABLE WITH PLUG FEI-30707350010.A3 30707350010	£30.95	£37.14
190 - CABLE GROMMET FEI-31413229000.A4 31413229000	£2.25	£2.70
210 - CONNECTING CABLE FEI-30719644010.A8 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A43 30719643010	£1.60	£1.92
250 - ARMATURE FEI-53278001230.A8 53278001230	£88.65	£106.38
260 - GROOVED BALL BEARING FEI-41701001032.A15 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007038.A88 41701007038	£10.17	£12.20
280 - BUSH SET FEI-30508043010.A3 30508043010	£11.88	£14.25
290 - SEALING RING FEI-40612167000.A20 40612167000	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701000020.A27 41701000020	£13.58	£16.30
310 - CIRCLIP FEI-42616046003.A28 42616046003	£1.60	£1.92
405 - TOOL HEAD FEI-31508261020.A1 31508261020	£134.89	£161.87
430 - LEVER FEI-32805238000.A1 32805238000	£14.63	£17.56
480 - ECCENTRIC RING FEI-32636042000.A23 32636042000	£3.54	£4.25
490 - STRAIGHT PIN FEI-40242064000.A22 40242064000	£1.60	£1.92
495 - BUSH FEI-30507220000.A24 30507220000	£2.60	£3.12
500 - CLAMPING UNIT FEI-30240271000.A10 30240271000	£27.06	£32.47
510 - LOCKING SPRING FEI-30907067000.A14 30907067000	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064023045.A85 43064023045	£1.60	£1.92
530 - SCREW FEI-43074004000.A17 43074004000	£1.60	£1.92
5000 - CARRYING CASE UNFILLED FEI-33901131980.A0 33901131980	£62.68	£75.21
5010 - EXTRACTOR HOOD FEI-33218151000.A11 33218151000	£6.03	£7.24
5020 - FELT RING FEI-30601106007.A17 30601106007	£2.38	£2.86
5030 - ADAPTER FEI-30605112000.A4 30605112000	£6.71	£8.05
5040 - PIPE FEI-33218123000.A8 33218123000	-
5050 - HOLDER FEI-30232049000.A2 30232049000	£10.48	£12.57
5200 - HANDLE FEI-32119122000.A118 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A103 30232050000	£10.78	£12.94
5400 - ADAPTER HOSE FEI-30605110008.A11 30605110008	£2.37	£2.84
5410 - ADAPTER HOSE FEI-30605109006.A4 30605109006	£2.37	£2.84
5420 - HOSE SLEEVE FEI-30517029001.A12 30517029001	£6.26	£7.51
5430 - HOSE SLEEVE FEI-30517028007.A3 30517028007	£5.12	£6.15
5450 - SANDING PAD SET PERFORATED FEI-63806136220.A5 63806136220	£25.44	£30.53
5500 - DUST EXTRACTION SET FEI-92602092000.A13 92602092000	£70.78	£84.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A19 32160003014	-
