Fein DSke 636 Kinetik (50/60Hz 220/230V) / 72024500227 Spare Parts

Fein DSke 636 Kinetik ⡐/60Hz 220/230V) / 72024500227 Spare Parts

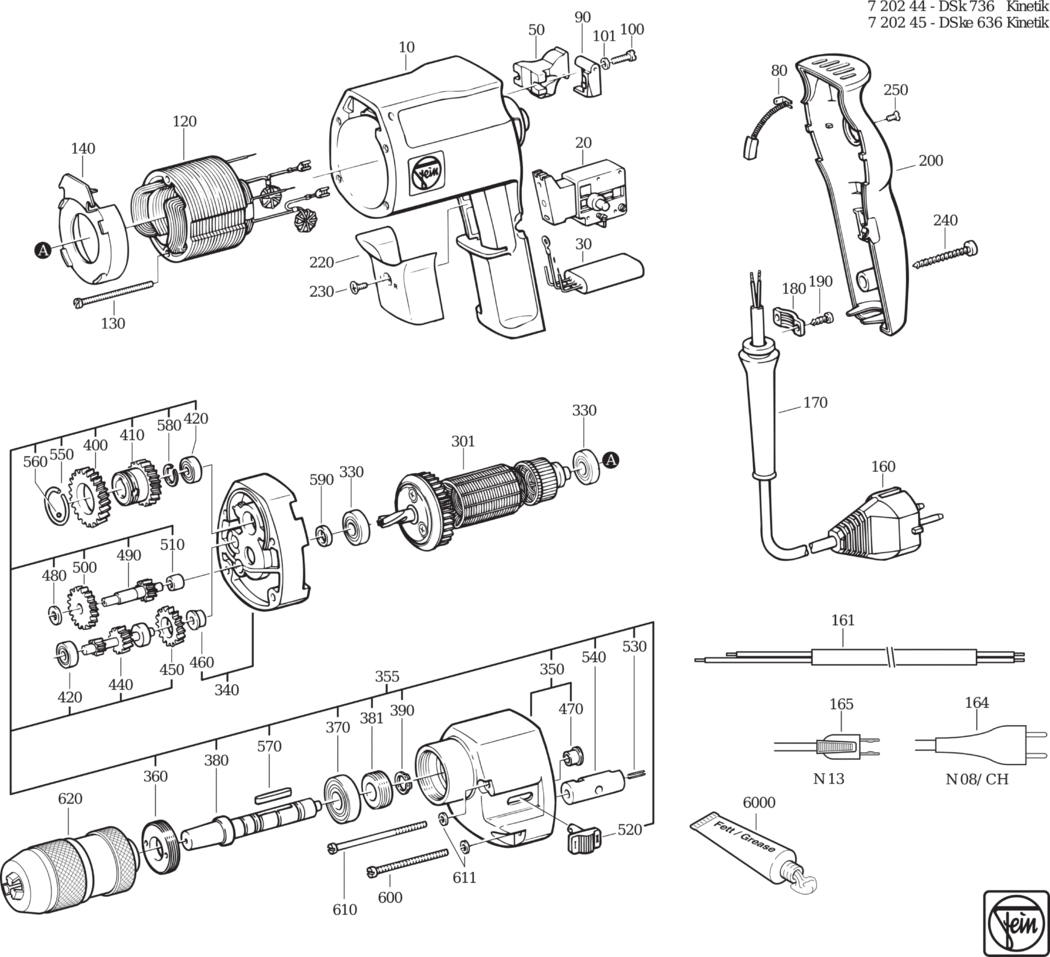

An exploded diagram and spare parts listing for the Fein DSke 636 Kinetik (50/60Hz 220/230V) / 72024500227

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A18 31901117021	-
20 - SWITCH FEI-30701228002.A42 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A67 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A13 30722161013	£17.85	£21.42
50 - BRUSH HOLDER FEI-30712043001.A40 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A26 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A11 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A35 43002014998	-
101 - CIRCLIP FEI-42443002992.A80 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203002223.A6 51203002223	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A44 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A6 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707101012.A8 30707101012	£14.02	£16.82
170 - CABLE GROMMET FEI-31413142009.A44 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A197 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A50 43046002005	-
200 - COVER FEI-31201066005.A17 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805119008.A1 32805119008	£2.38	£2.86
230 - COUNTERSUNK SCREW FEI-43066006032.A2 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A6 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A10 43066002992	£1.60	£1.92
301 - ARMATURE 50HZ220V FEI-53203001222.A5 53203001222	£134.97	£161.96
330 - GROOVED BALL BEARING FEI-41701001172.A160 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506162000.A2 31506162000	£50.48	£60.57
350 - GEARBOX HOUSING FEI-31508110001.A2 31508110001	£69.78	£83.74
355 - GEARBOX HOUSING FEI-31508110010.A3 31508110010	-
360 - THREAD RING FEI-32618041002.A5 32618041002	£7.90	£9.48
370 - GROOVED BALL BEARING FEI-41701007038.A111 41701007038	£10.17	£12.20
380 - SHAFT FEI-33401063000.A4 33401063000	£67.85	£81.42
381 - SEALING RING FEI-32612068002.A1 32612068002	£4.57	£5.48
390 - CIRCLIP FEI-42616013001.A5 42616013001	£1.60	£1.92
400 - GEAR-WHEEL FEI-33607089006.A3 33607089006	£42.02	£50.43
410 - GEAR-WHEEL FEI-33607088002.A2 33607088002	£75.38	£90.46
420 - GROOVED BALL BEARING FEI-41701202018.A4 41701202018	£6.92	£8.30
440 - SHAFT TOOTHED FEI-33811062001.A2 33811062001	-
450 - GEAR-WHEEL FEI-33657027008.A2 33657027008	£33.27	£39.92
460 - BUSH FEI-31602037002.A4 31602037002	£3.48	£4.18
470 - BUSH FEI-31602037002.A5 31602037002	£3.48	£4.18
480 - DISC FEI-32408161002.A4 32408161002	£6.65	£7.98
490 - SHAFT TOOTHED Z=15 FEI-33757017008.A2 33757017008	-
500 - GEAR-WHEEL Z=30 FEI-33657011003.A3 33657011003	£35.00	£42.00
510 - BUSH FEI-41705005003.A2 41705005003	£5.62	£6.74
520 - SLIDE SWITCH FEI-30109056005.A2 30109056005	£17.58	£21.10
530 - CLAMPING SLEEVE FEI-40238007005.A2 40238007005	£1.60	£1.92
540 - BOLT FEI-30217182002.A2 30217182002	£32.20	£38.64
550 - CIRCLIP FEI-42615080003.A5 42615080003	-
560 - BALL FEI-41708015005.A10 41708015005	£1.60	£1.92
570 - FEATHER KEY FEI-40221010009.A2 40221010009	£1.60	£1.92
580 - CIRCLIP FEI-42615081002.A0 42615081002	£1.60	£1.92
590 - SEALING RING FEI-32612055008.A2 32612055008	£2.59	£3.11
600 - CYLINDER HEAD SCREW FEI-43002025991.A43 43002025991	£1.60	£1.92
610 - CYLINDER HEAD SCREW FEI-43002029990.A1 43002029990	-
611 - CIRCLIP FEI-42443002992.A78 42443002992	£1.60	£1.92
620 - QUICK-ACTION CHUCKS FEI-63204021004.A6 63204021004	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A146 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A683 34130054061	-

Attribute Name	Value
Brand	Fein
