Fein MShy 648-1 Z (50/60Hz 220/230V) / 72231300230 Spare Parts

Fein MShy 648-1 Z ⡐/60Hz 220/230V) / 72231300230 Spare Parts

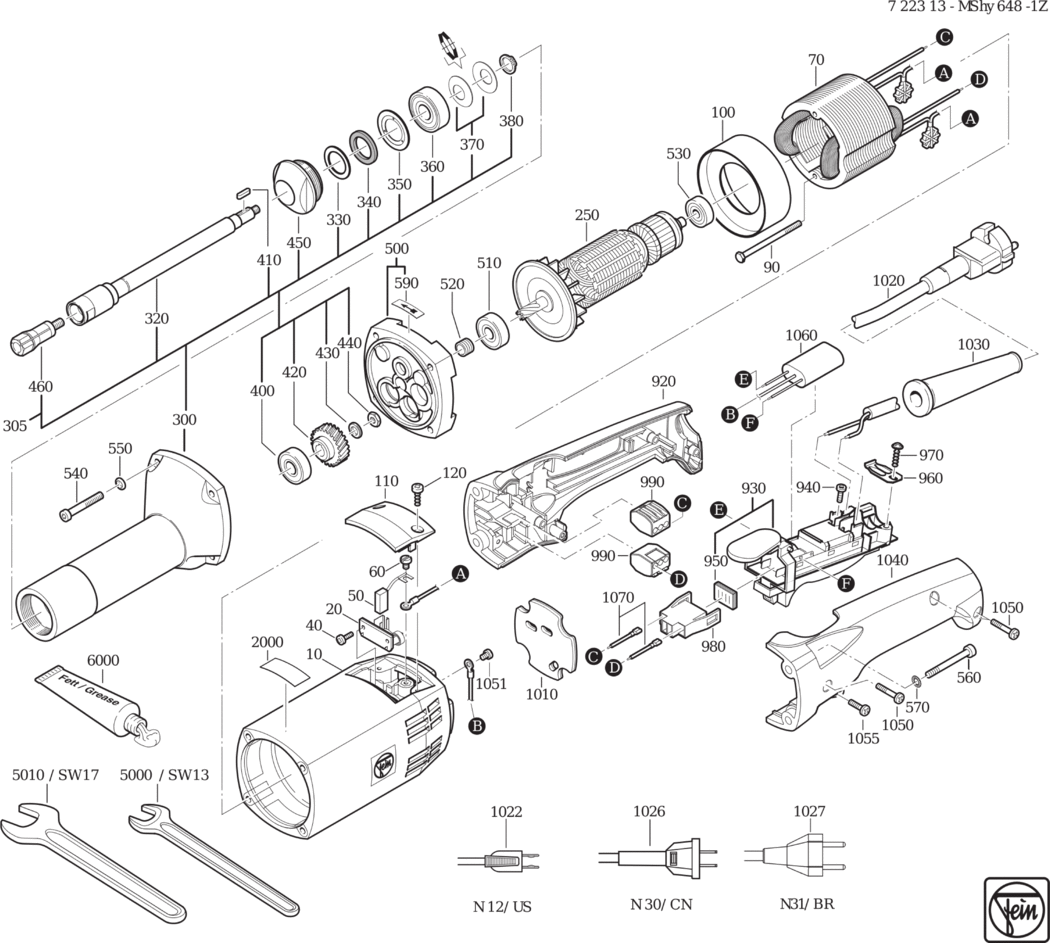

An exploded diagram and spare parts listing for the Fein MShy 648-1 Z (50/60Hz 220/230V) / 72231300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903099006.A16 31903099006	£150.31	£180.37
20 - BRUSH HOLDER FEI-30712067017.A34 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A25 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A5 30711067004	£7.87	£9.44
60 - FILLISTER HEAD SCREW FEI-43041016042.A60 43041016042	-
70 - STATOR FEI-51213041230.A0 51213041230	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A42 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A6 31428010005	£7.53	£9.04
110 - COVER FEI-32427040001.A9 32427040001	£3.39	£4.07
120 - SHEET METAL SCREW FEI-43046001002.A15 43046001002	-
250 - ARMATURE 50HZ220V FEI-53213004226.A2 53213004226	£208.28	£249.93
300 - COLLAR BEARING FEI-31510040003.A1 31510040003	£185.74	£222.89
305 - COLLAR BEARING FEI-31510040012.A0 31510040012	-
320 - SHAFT FEI-33403049008.A3 33403049008	£206.32	£247.58
330 - DISC FEI-32408174006.A4 32408174006	£2.70	£3.24
340 - FELT RING FEI-30601063007.A3 30601063007	£1.60	£1.92
350 - DISC FEI-32411059005.A3 32411059005	£1.60	£1.92
360 - GROOVED BALL BEARING FEI-41701213096.A55 41701213096	£20.90	£25.08
370 - CUP SPRING FEI-30905020005.A2 30905020005	£1.60	£1.92
380 - CIRCLIP FEI-42616006007.A108 42616006007	£1.60	£1.92
400 - GROOVED BALL BEARING FEI-41701007050.A1 41701007050	£15.15	£18.18
410 - FEATHER KEY FEI-40221005008.A13 40221005008	£1.60	£1.92
420 - GEAR-WHEEL FEI-33657046002.A1 33657046002	£110.65	£132.78
430 - DISC FEI-42401018069.A51 42401018069	£1.60	£1.92
440 - HEX NUT FEI-42002007004.A7 42002007004	£2.66	£3.19
450 - SLEEVE FEI-30514085009.A3 30514085009	£27.40	£32.88
460 - COLLETS FEI-63207069005.A7 63207069005	£40.45	£48.54
500 - INTERMEDIATE GEAR BOX FEI-31506191004.A1 31506191004	£54.95	£65.94
510 - GROOVED BALL BEARING FEI-41701207096.A19 41701207096	£18.38	£22.06
520 - SEALING RING FEI-32612060009.A9 32612060009	£10.05	£12.06
530 - GROOVED BALL BEARING FEI-41701204131.A2 41701204131	£9.10	£10.92
540 - CYLINDER HEAD SCREW FEI-43033016055.A67 43033016055	£1.60	£1.92
550 - SEALING RING FEI-40611001002.A48 40611001002	£1.60	£1.92
560 - CYLINDER HEAD SCREW FEI-43033015052.A3 43033015052	£1.60	£1.92
570 - CIRCLIP M5 FEI-42443004057.A316 42443004057	£1.60	£1.92
590 - INFORMATION SIGN FEI-32215026007.A42 32215026007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179000.A4 31204179000	£22.62	£27.15
930 - SWITCH FEI-30701316010.A11 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A17 43041035047	£1.60	£1.92
960 - CABLE CLAMPING PIECE FEI-32431042008.A36 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A32 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A21 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A124 31412063000	£3.93	£4.72
1010 - PLATE FEI-30605041005.A10 30605041005	£4.80	£5.76
1020 - CABLE WITH PLUG FEI-30707419010.A7 30707419010	-
1030 - CABLE GROMMET FEI-31413094007.A120 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A19 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A117 43070031003	£1.60	£1.92
1051 - FILLISTER HEAD SCREW FEI-43041016042.A59 43041016042	-
1055 - SCREW FEI-43070038007.A16 43070038007	£1.60	£1.92
1060 - CAPACITOR FEI-30722186010.A5 30722186010	-
1070 - CONNECTING CABLE FEI-30719655010.A6 30719655010	£2.74	£3.29
5000 - JAW SPANNER SW13 FEI-62901007007.A53 62901007007	£11.61	£13.93
5010 - JAW SPANNER SW17 FEI-62903002009.A13 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A239 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A656 34130054061	-
