Elu BM51 Type 1 Drill Spare Parts

Home Details Reviews Delivery

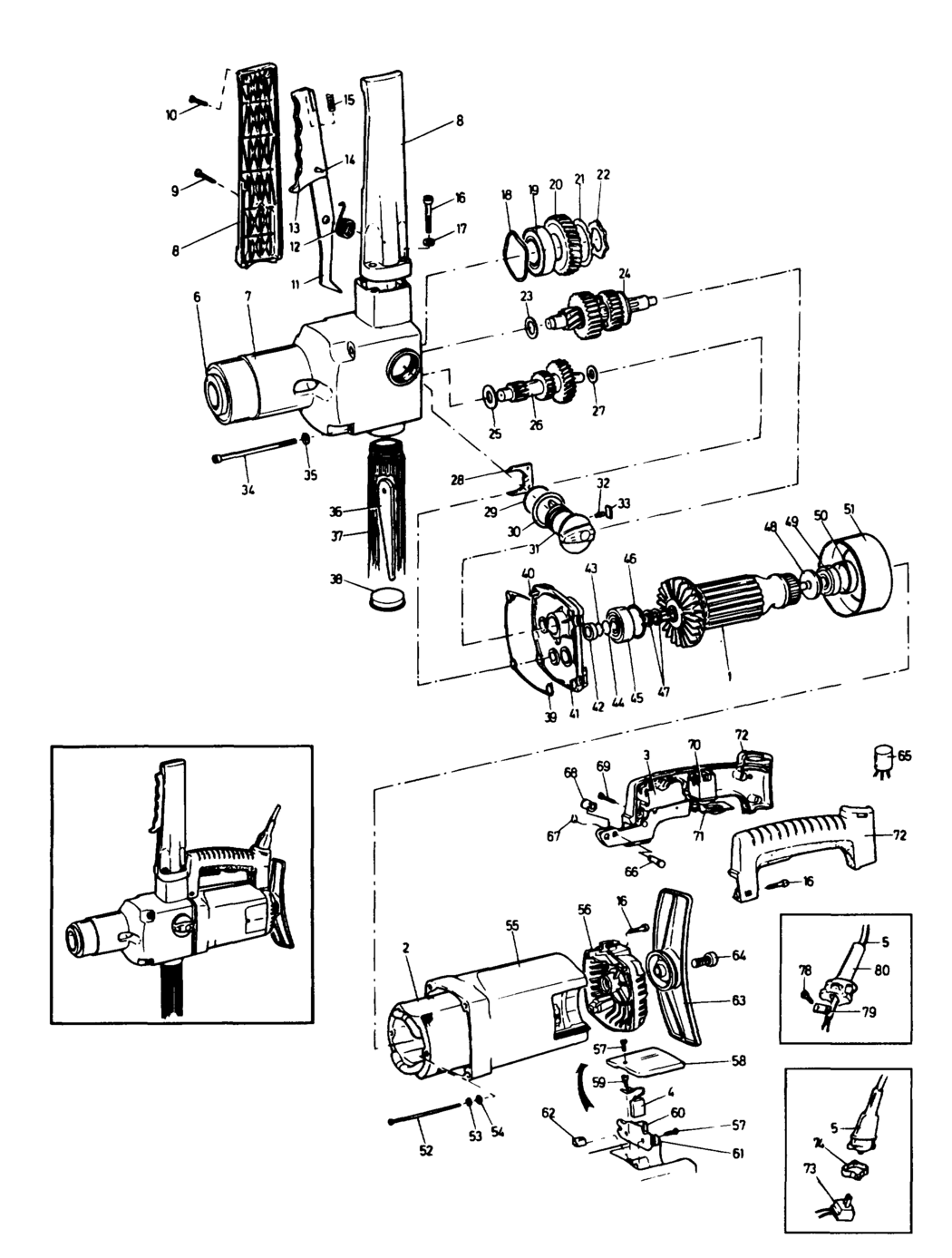

An exploded drawing and spare parts listing for the Elu BM51 Type 1 Drill

	Ex VAT	Inc VAT
1 - ARMATURE GB 240V BDE-868404-00.A3 868404-00	£238.94	£286.73
1 - ARMATURE GB 115V BDE-868404-01.A7 868404-01	-
2 - FIELD 240V GB 240V BDE-868503-04.A4 868503-04	£226.53	£271.84
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48554 000000-00	-
3 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48555 000000-00	-
3 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48556 000000-00	-
4 - BRUSH GB 115V BDE-932497-00.A10 932497-00	£4.69	£5.63
4 - BRUSH GB 240V BDE-932497-00.A11 932497-00	£4.69	£5.63
5 - CABLE & PLUG GB 115V BDE-949770-29.A5 949770-29	-
5 - CABLE & PLUG GB 240V BDE-949770-15.A2 949770-15	£33.13	£39.76
6 - HOLDER BDE-932300-00.A1 932300-00	£101.69	£122.03
7 - GEARCASE SA BDE-932418-00.A2 932418-00	£238.94	£286.73
8 - HANDLE SA BDE-935833-02.A4 935833-02	£44.00	£52.80
9 - SCREW BDE-949896-14.A1 949896-14	£1.66	£1.99
10 - SCREW BDE-949896-13.A8 949896-13	£1.66	£1.99
11 - LEVER BDE-932315-00.A0 932315-00	£3.22	£3.86
12 - SPRING BDE-932313-00.A0 932313-00	£5.72	£6.87
13 - COVER BDE-932317-00.A8 932317-00	£3.70	£4.44
14 - PIN BDE-932314-00.A8 932314-00	£1.66	£1.99
15 - SPRING BDE-931013-00.A12 931013-00	£1.66	£1.99
16 - SCREW BDE-860093-11.A12 860093-11	£1.66	£1.99
18 - SPACER BDE-930614.A4 930614	£1.66	£1.99
19 - BEARING BDE-930025-00.A8 930025-00	£9.17	£11.00
20 - GEAR BDE-932428-00.A1 932428-00	£29.32	£35.18
21 - WASHER BDE-932297-00.A1 932297-00	£1.66	£1.99
22 - RING BDE-932299-00.A2 932299-00	£7.01	£8.41
23 - WASHER BDE-932287-00.A0 932287-00	£1.66	£1.99
24 - SPINDLE & GEAR SA BDE-869219-00.A0 869219-00	£135.36	£162.43
25 - WASHER BDE-932286-00.A9 932286-00	£2.71	£3.25
26 - SPINDLE & GEAR SA BDE-869219-02.A9 869219-02	£101.69	£122.03
27 - WASHER BDE-932285-00.A0 932285-00	£3.39	£4.07
28 - PLATE BDE-932288-00.A9 932288-00	£1.66	£1.99
29 - SEAL BDE-930039.A26 930039	£1.66	£1.99
30 - WASHER BDE-932289-00.A0 932289-00	£1.66	£1.99
31 - LEVER SA BDE-932265-00.A9 932265-00	£29.32	£35.18
32 - SPRING BDE-932290-00.A11 932290-00	£1.78	£2.13
33 - SPRING BDE-932291-00.A0 932291-00	£4.58	£5.49
34 - SCREW BDE-932408-00.A2 932408-00	£1.66	£1.99
35 - WASHER BDE-931429-00.A9 931429-00	£3.30	£3.96
36 - EJECTOR BDE-932304-00.A2 932304-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A48557 000000-00	-
38 - CAP BDE-932308-01.A0 932308-01	-
39 - GASKET BDE-932312-00.A9 932312-00	£1.66	£1.99
40 - PIN BDE-932301-00.A3 932301-00	-
41 - GEARCASE COVER SA BDE-943963-00.A0 943963-00	£59.41	£71.29
42 - SEAL BDE-932311-00.A0 932311-00	£2.21	£2.65
43 - RING BDE-931052-00.A10 931052-00	£1.66	£1.99
44 - RING BDE-930940-00.A3 930940-00	£3.22	£3.86
45 - BEARING BDE-868768-05.A4 868768-05	£7.64	£9.17
46 - CIRCLIP BDE-949729-02.A0 949729-02	£1.66	£1.99
47 - WASHER BDE-932309-00.A12 932309-00	£1.66	£1.99
48 - SPACER BDE-930073-00.A8 930073-00	£1.66	£1.99
49 - BEARING BDE-577745-00.A136 577745-00	£8.08	£9.70
50 - SLEEVE BDE-934409-00.A3 934409-00	-
51 - BAFFLE BDE-930072-00.A7 930072-00	£2.21	£2.65
52 - SCREW BDE-930246-00.A0 930246-00	£1.66	£1.99
53 - WASHER BDE-761035-00.A28 761035-00	£1.66	£1.99
54 - WASHER BDE-949876-08.A9 949876-08	£1.66	£1.99
55 - FIELDCASE BDE-932261-01.A0 932261-01	-
56 - END CAP SA BDE-932272-02.A4 932272-02	£15.63	£18.76
57 - SCREW.TEMP BDE-930251-01.A8 930251-01	£1.66	£1.99
58 - NO LONGER AVAILABLE BDE-000000-00.A48558 000000-00	-
59 - SCREW BDE-930242-00.A0 930242-00	£1.66	£1.99
60 - BASEPLATE SA BDE-930269-00.A0 930269-00	£3.22	£3.86
61 - SPRING BDE-930099-00.A12 930099-00	-
62 - BLOCK BDE-932307-00.A13 932307-00	£1.66	£1.99
63 - PLATE BDE-932320-00.A8 932320-00	£7.64	£9.17
64 - SCREW BDE-932319-00.A0 932319-00	£1.66	£1.99
65 - CAPACITOR GB 115V BDE-932476-00.A4 932476-00	£3.22	£3.86
65 - CAPACITOR GB 240V BDE-932476-00.A5 932476-00	£3.22	£3.86
66 - PIN BDE-932406-00.A5 932406-00	£1.66	£1.99
67 - RING BDE-932268-00.A0 932268-00	£3.22	£3.86
68 - ROLLER BDE-932405-00.A3 932405-00	£1.66	£1.99
69 - SCREW BDE-930079-01.A71 930079-01	£1.66	£1.99
70 - SWITCH REVERSE BDE-932403-00.A6 932403-00	£23.75	£28.50
71 - SLIDER BDE-932402-00.A0 932402-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A48559 000000-00	-
78 - SCREW GB 240V BDE-930076-00.A45 930076-00	£1.66	£1.99
78 - SCREW GB 115V BDE-930076-00.A46 930076-00	£1.66	£1.99
79 - CORD CLAMP GB 240V BDE-930103-00.A123 930103-00	£1.66	£1.99
79 - CORD CLAMP GB 115V BDE-930103-00.A124 930103-00	£1.66	£1.99
80 - CORD PROTECTOR GB 240V BDE-931113-00.A5 931113-00	£1.66	£1.99
80 - CORD PROTECTOR GB 115V BDE-931113-00.A6 931113-00	£1.66	£1.99

Attribute Name	Value
Brand	Elu
