Dewalt DCD990 Type 1 Cordless Drill Spare Parts

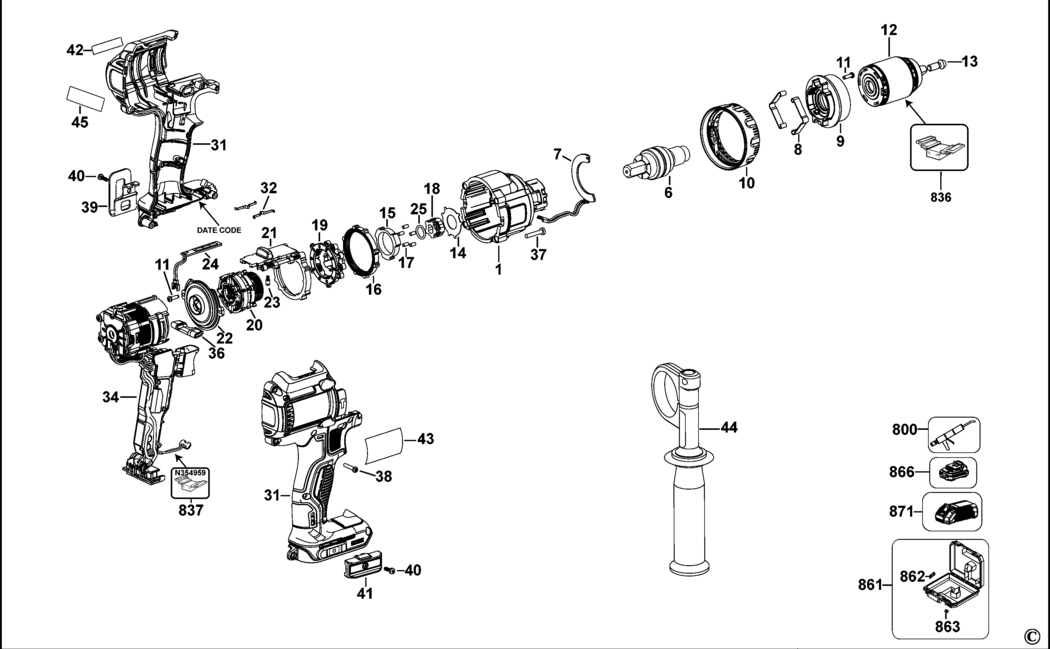

An exploded drawing and spare parts listing for the Dewalt DCD990 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - GEARCASE BDE-N463842 N463842	-
1 - GEARCASE BDE-N422288.A1 N422288	£19.90	£23.88
6 - SPINDLE SA BDE-N336259.A2 N336259	£16.03	£19.24
6 - SPINDLE SA BDE-N537207 N537207	-
7 - SENSOR BDE-N527432 N527432	-
7 - SENSOR BDE-N376088.A5 N376088	£19.90	£23.88
8 - DETENT BDE-N165352.A10 N165352	£1.66	£1.99
9 - END CAP BDE-N161216.A2 N161216	£7.85	£9.42
9 - END CAP BDE-N463829 N463829	-
10 - COLLAR BDE-N453490 N453490	-
10 - COLLAR BDE-N172593.A2 N172593	-
11 - SCREW BDE-N281559.A7 N281559	£1.66	£1.99
11 - SCREW BDE-N281559.A8 N281559	£1.66	£1.99
12 - CHUCK KEYLESS BDE-N242399.A4 N242399	£30.08	£36.10
12 - SOCKET BDE-N467627 N467627	-
13 - COVER BDE-N453973 N453973	-
13 - SCREW.SPECIAL BDE-N243859.A1 N243859	£1.66	£1.99
14 - PLATE BDE-652378-00.A26 652378-00	£1.66	£1.99
14 - PLATE BDE-652378-00.A27 652378-00	£1.66	£1.99
15 - LOCKING RING BDE-N375852.A1 N375852	£9.41	£11.29
15 - LOCKING RING BDE-N375852.A2 N375852	£9.41	£11.29
16 - GEAR BDE-N375864.A6 N375864	£17.48	£20.97
16 - GEAR BDE-N375864.A7 N375864	£17.48	£20.97
17 - ROLLER BDE-654110-00.A27 654110-00	£1.66	£1.99
17 - ROLLER BDE-654110-00.A28 654110-00	£1.66	£1.99
18 - ANVIL BDE-N375869.A5 N375869	£9.41	£11.29
18 - ANVIL BDE-N375869.A6 N375869	£9.41	£11.29
19 - GEAR SA BDE-N375865.A8 N375865	£9.41	£11.29
19 - GEAR SA BDE-N375865.A9 N375865	£9.41	£11.29
20 - GEAR SA BDE-N375866.A3 N375866	£19.90	£23.88
20 - GEAR SA BDE-N375866.A4 N375866	£19.90	£23.88
21 - SLIDER SA BDE-N375867.A8 N375867	£9.41	£11.29
21 - SLIDER SA BDE-N375867.A9 N375867	£9.41	£11.29
22 - BAFFLE SA BDE-N375868.A6 N375868	£7.85	£9.42
22 - BAFFLE SA BDE-N375868.A7 N375868	£7.85	£9.42
23 - ROLL PIN BDE-N071836.A7 N071836	£1.66	£1.99
23 - DETENT TO DCODE WK14 2015 BDE-326467-00.A369 326467-00	£1.66	£1.99
24 - NO LONGER AVAILABLE TO DCODE WK14 2015 BDE-000000-00.A96674 000000-00	-
25 - O RING BDE-N309119.A7 N309119	£1.66	£1.99
25 - O RING BDE-N309119.A12 N309119	£1.66	£1.99
31 - CLAMSHELL SET BDE-N234440.A1 N234440	£18.91	£22.69
31 - CLAMSHELL SET BDE-N234440.A2 N234440	£18.91	£22.69
32 - LEAF SPRING BDE-N014681.A61 N014681	£1.66	£1.99
32 - LEAF SPRING BDE-N014681.A62 N014681	£1.66	£1.99
34 - MOTOR SA BDE-N389442.A4 N389442	£94.12	£112.94
34 - MOTOR SA GB BDE-N389442.A5 N389442	£94.12	£112.94
36 - ACTUATOR FWD/REV BDE-N167664.A7 N167664	£1.66	£1.99
36 - ACTUATOR FWD/REV BDE-N167664.A8 N167664	£1.66	£1.99
37 - SCREW.SPECIAL BDE-330019-52.A20 330019-52	£1.66	£1.99
37 - SCREW.SPECIAL BDE-330019-52.A21 330019-52	£1.66	£1.99
38 - SCREW BDE-682211-00.A181 682211-00	£1.66	£1.99
38 - SCREW BDE-682211-00.A182 682211-00	£1.66	£1.99
39 - HOOK BDE-N086039.A16 N086039	£4.69	£5.63
39 - HOOK BDE-N086039.A17 N086039	£4.69	£5.63
40 - SCREW BDE-N042665.A58 N042665	£1.66	£1.99
40 - SCREW BDE-N042665.A59 N042665	£1.66	£1.99
41 - HOLDER BIT BDE-N095778.A27 N095778	£7.18	£8.62
41 - HOLDER BIT BDE-N095778.A28 N095778	£7.18	£8.62
42 - LABEL BDE-N237999.A7 N237999	£1.66	£1.99
42 - LABEL BDE-N237999.A8 N237999	£1.66	£1.99
43 - RATING PLATE GB BDE-N260160 N260160	£1.66	£1.99
44 - SIDE HANDLE BDE-N221312.A5 N221312	£9.41	£11.29
44 - SIDE HANDLE BDE-N221312.A6 N221312	£9.41	£11.29
45 - LABEL BDE-N317859.A9 N317859	£1.66	£1.99
45 - LABEL BDE-N317859.A10 N317859	£1.66	£1.99
800 - GREASE 150 GMS BDE-N017298.A38 N017298	£47.08	£56.49
800 - GREASE 150 GMS BDE-N017298.A39 N017298	£47.08	£56.49
836 - S.T.CHUCK REMOVAL JIG BDE-559661-99.A36 559661-99	£113.07	£135.68
836 - S.T.INSERT BDE-596004-99.A26 596004-99	£25.70	£30.84
837 - SERVICE TOOL BDE-N354959.A8 N354959	£24.39	£29.27
861 - KITBOX DCD990NT BDE-N506511.A10 N506511	£37.35	£44.82
861 - KITBOX BDE-N506511.A11 N506511	£37.35	£44.82
861 - KITBOX DCD990NT BDE-N506511.A12 N506511	£37.35	£44.82
862 - LATCH DCD990NT BDE-N409477.A21 N409477	£1.66	£1.99
863 - LATCH DCD990NT BDE-P910190.A23 P910190	£9.41	£11.29
866 - BATTERY 18V - 5.0AH - 90WH DCD990P2 GB BDE-N394624.A22 N394624	£192.14	£230.57
866 - BATTERY 18V - 4.0AH - 72WH DCD990M2 GB BDE-N195933.A43 N195933	£218.32	£261.98
871 - CHARGER 10.8V - 18V GB BDE-N450537.A199 N450537	£157.18	£188.61
