Black & Decker BD6300 Type 1 Drill Spare Parts

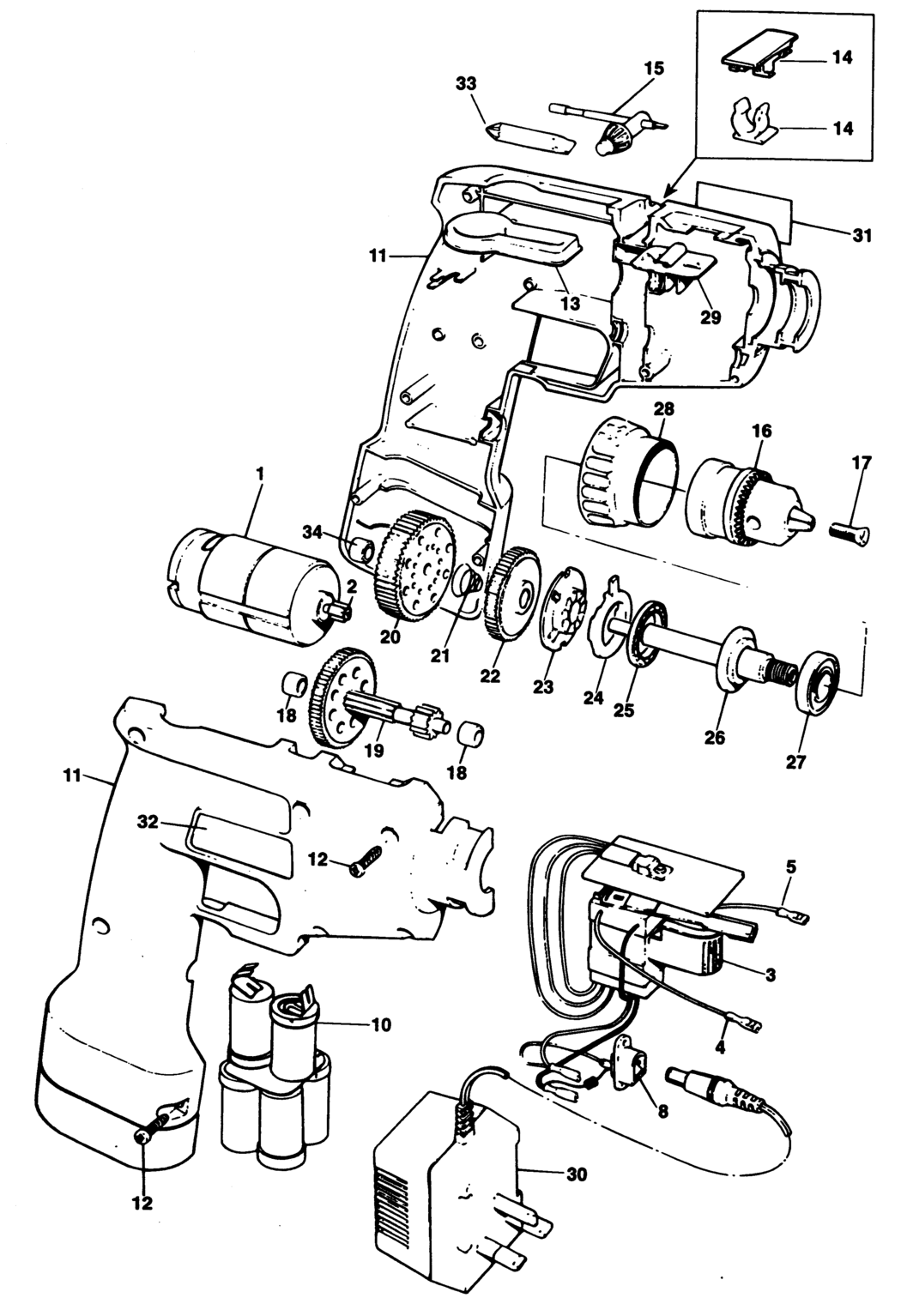

An exploded drawing and spare parts listing for the Black & Decker BD6300 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A100079 000000-00	-
3 - NO LONGER AVAILABLE BD602 BDE-000000-00.A100080 000000-00	-
3 - NO LONGER AVAILABLE BD6300 BDE-000000-00.A100081 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A100082 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A100083 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A100084 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A100085 000000-00	-
12 - SCREW BDE-330013-04.A59 330013-04	-
13 - NO LONGER AVAILABLE BDE-000000-00.A100088 000000-00	-
14 - NO LONGER AVAILABLE BD602 BDE-000000-00.A100089 000000-00	-
15 - CHUCK KEY CHUCK S2A BDE-330034-07.A83 330034-07	£1.66	£1.99
15 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A79 330034-00	-
16 - NO LONGER AVAILABLE CHUCK NON S2A BDE-000000-00.A100090 000000-00	-
16 - CHUCK 10MM CHUCK S2A BDE-330033-15.A109 330033-15	-
16 - NO LONGER AVAILABLE BD6300 BDE-000000-00.A100134 000000-00	-
17 - SCREW.SPECIAL BDE-805434.A153 805434	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A100091 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A100092 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A100093 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A100094 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A100095 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A100096 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A100097 000000-00	-
25 - BEARING BDE-892261.A53 892261	-
26 - NO LONGER AVAILABLE BDE-000000-00.A100112 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A100113 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A100114 000000-00	-
33 - BIT PHILLIPS BD6300 BDE-297757-02.A38 297757-02	£1.82	£2.19
33 - BIT PHILLIPS GB BDE-297757-02.A39 297757-02	£1.82	£2.19
34 - NO LONGER AVAILABLE BDE-000000-00.A100098 000000-00	-

Attribute Name	Value
Brand	Black & Decker
