Black & Decker H504 Type H1C Hammer Drill Spare Parts

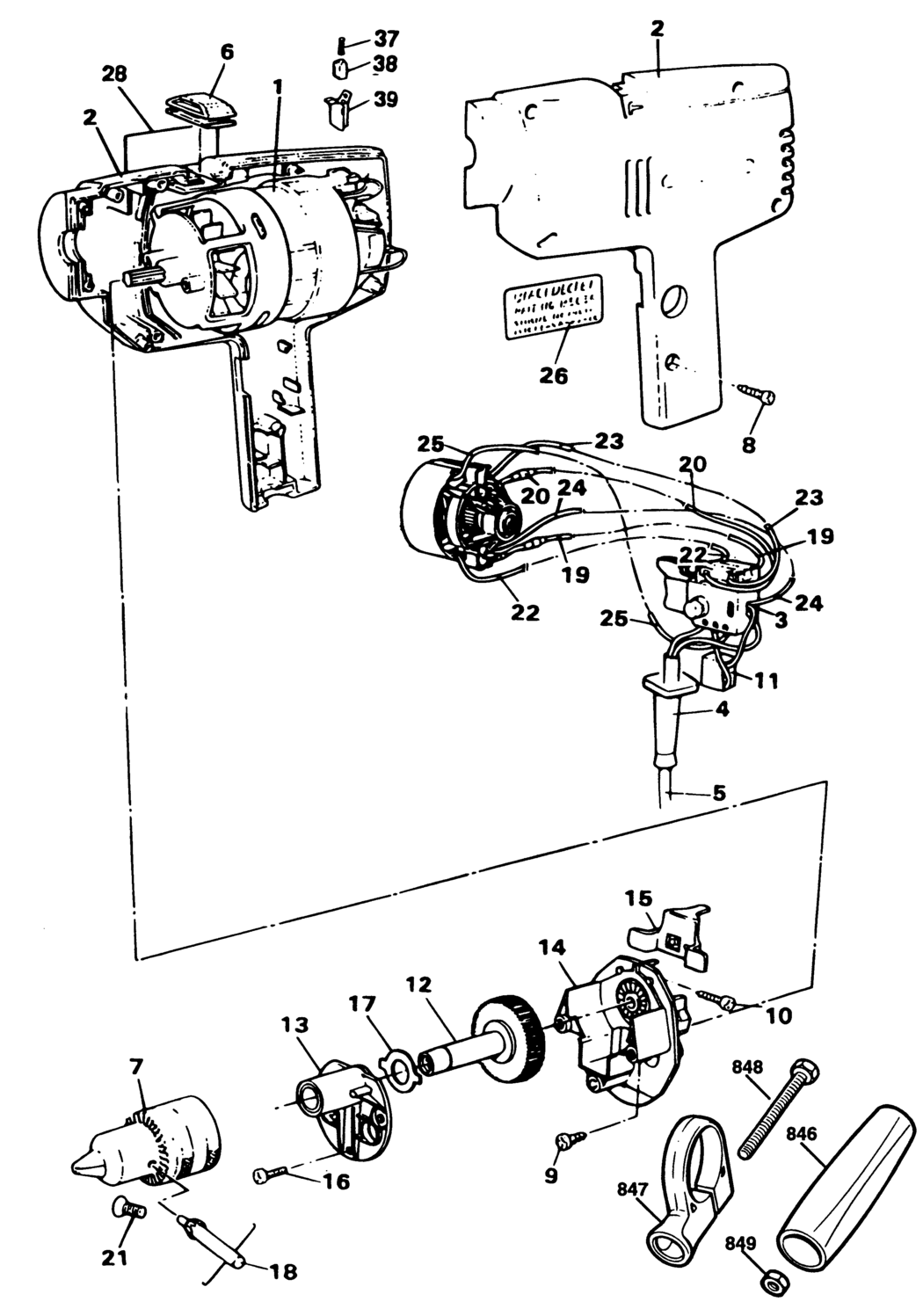

An exploded drawing and spare parts listing for the Black & Decker H504 Type H1C Hammer Drill

	Ex VAT	Inc VAT
4 - NO LONGER AVAILABLE BDE-000000-00.A100307 000000-00	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A100308 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A100309 000000-00	-
7 - NO LONGER AVAILABLE CHUCK NON S2A BDE-000000-00.A100310 000000-00	-
7 - CHUCK 10MM CHUCK S2A BDE-330033-15.A115 330033-15	-
8 - NO LONGER AVAILABLE BDE-000000-00.A100312 000000-00	-
9 - SCREW BDE-812171.A114 812171	£1.66	£1.99
10 - NO LONGER AVAILABLE BDE-000000-00.A100317 000000-00	-
11 - CAPACITOR GB BDE-807285-06.A87 807285-06	£1.66	£1.99
12 - NO LONGER AVAILABLE BD504--H1D BDE-000000-00.A100313 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A100314 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A100315 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A100316 000000-00	-
16 - SCREW BDE-812171.A115 812171	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A100318 000000-00	-
18 - CHUCK KEY CHUCK S2A BDE-330034-07.A70 330034-07	£1.66	£1.99
18 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A87 330034-00	-
19 - NO LONGER AVAILABLE GB BDE-000000-00.A100319 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A100320 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A100321 000000-00	-
27 - NO LONGER AVAILABLE BD504--H1D BDE-000000-00.A100322 000000-00	-
27 - NO LONGER AVAILABLE BD504--H1 TO H1C BDE-000000-00.A100323 000000-00	-
37 - SPRING BDE-847709.A230 847709	£3.30	£3.96
38 - NO LONGER AVAILABLE BDE-000000-00.A100324 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A100325 000000-00	-
846 - NO LONGER AVAILABLE BDE-000000-00.A100326 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A100327 000000-00	-
848 - NO LONGER AVAILABLE BDE-000000-00.A100328 000000-00	-
849 - NO LONGER AVAILABLE BDE-000000-00.A100329 000000-00	-
