Dewalt DW1251----A Type 1 France Radial Arm Saw Spare Parts

Home Details Reviews Delivery

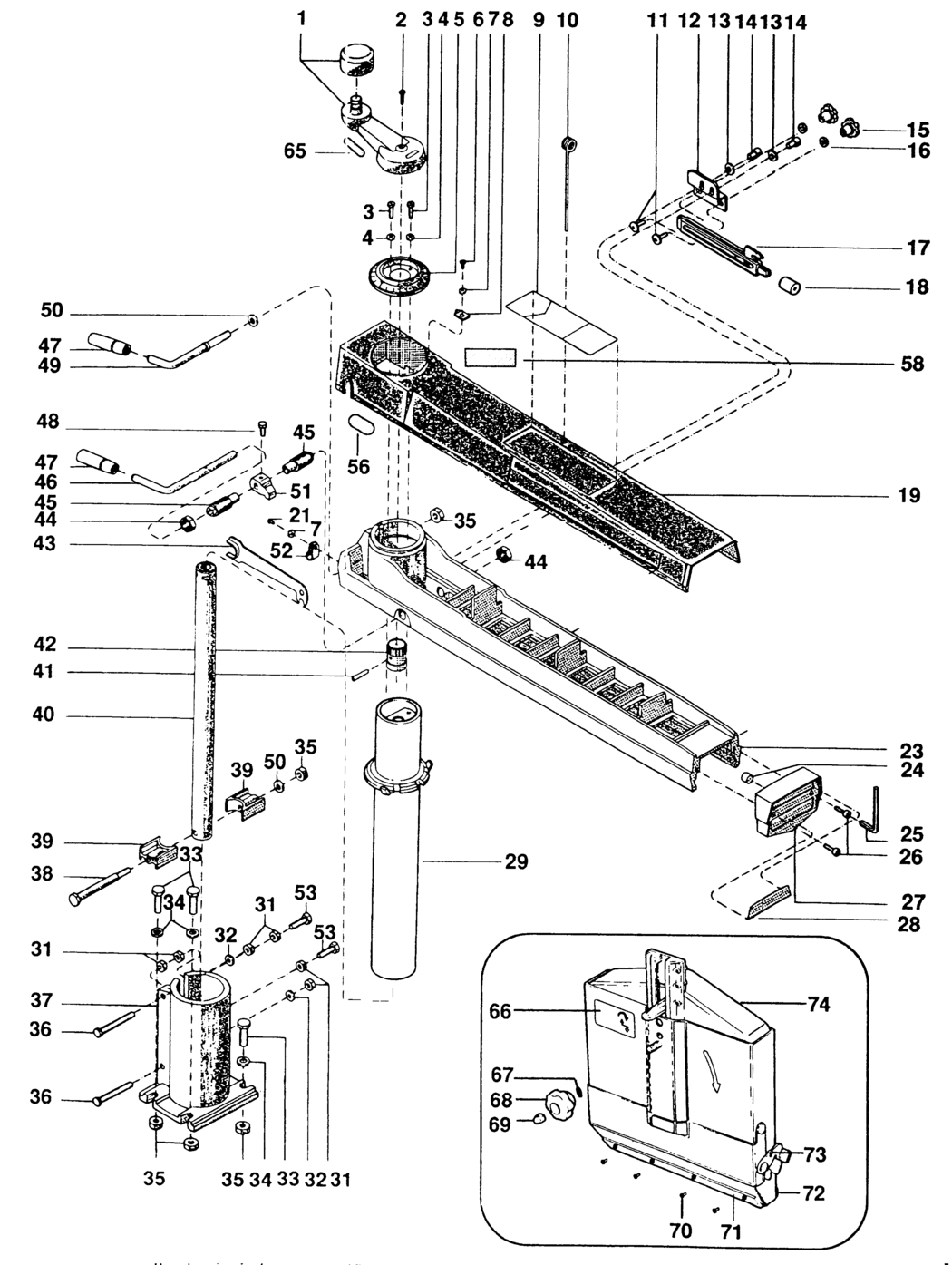

An exploded drawing and spare parts listing for the Dewalt DW1251----A Type 1 France Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A14494 000000-00	-
2 - SCREW BDE-934401-00.A35 934401-00	£1.66	£1.99
3 - SCREW BDE-860085-10.A91 860085-10	£1.66	£1.99
4 - WASHER BDE-720959-00.A91 720959-00	£1.66	£1.99
5 - CAP BDE-860784-00.A47 860784-00	£8.08	£9.70
6 - SCREW BDE-860084-20.A108 860084-20	£1.66	£1.99
7 - WASHER BDE-860073-00.A126 860073-00	£1.66	£1.99
8 - POINTER BDE-860237-00.A54 860237-00	£3.92	£4.70
9 - NO LONGER AVAILABLE BDE-000000-00.A14498 000000-00	-
10 - SPRING BDE-863723-00.A9 863723-00	-
11 - SCREW BDE-860301-00.A76 860301-00	£1.66	£1.99
12 - SUPPORT BDE-860787-90.A47 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A242 860074-03	£1.66	£1.99
14 - SCREW BDE-860093-14.A23 860093-14	£1.66	£1.99
15 - KNOB BDE-946469-00.A59 946469-00	£1.66	£1.99
16 - WASHER BDE-720959-00.A90 720959-00	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A14499 000000-00	-
18 - STOP RUBBER BDE-860786-00.A12 860786-00	£1.66	£1.99
19 - NO LONGER AVAILABLE BDE-000000-00.A14500 000000-00	-
21 - SCREW BDE-860531-00.A36 860531-00	£1.66	£1.99
23 - NO LONGER AVAILABLE BDE-000000-00.A14501 000000-00	-
24 - BUMPER BDE-860429-00.A34 860429-00	£1.66	£1.99
25 - HEX KEY 5 MM BDE-930574-00.A12 930574-00	£1.66	£1.99
26 - SCREW BDE-860085-10.A89 860085-10	£1.66	£1.99
27 - NO LONGER AVAILABLE BDE-000000-00.A14502 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A14503 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A14504 000000-00	-
31 - NUT BDE-860083-04.A132 860083-04	£1.66	£1.99
32 - WASHER M8 BDE-860073-03.A381 860073-03	£1.66	£1.99
33 - SCREW BDE-860085-05.A62 860085-05	£1.88	£2.26
34 - WASHER BDE-860073-04.A43 860073-04	£1.66	£1.99
35 - NUT RH BDE-860083-05.A140 860083-05	£1.66	£1.99
36 - SCREW BDE-860085-02.A3 860085-02	£1.88	£2.26
37 - NO LONGER AVAILABLE BDE-000000-00.A14505 000000-00	-
38 - SCREW BDE-860086-00.A50 860086-00	£3.92	£4.70
39 - SPACER BDE-860065-00.A38 860065-00	£1.88	£2.26
40 - TUBE ELEVATING SA BDE-860791-00.A7 860791-00	£96.44	£115.73
41 - PIN BDE-860096-06.A13 860096-06	£1.66	£1.99
42 - PINION BDE-860831-90.A40 860831-90	£19.48	£23.37
43 - WRENCH BDE-860423-00.A4 860423-00	£4.83	£5.80
44 - NUT BDE-860232-00.A15 860232-00	£3.92	£4.70
45 - SCREW BDE-860231-00.A45 860231-00	£15.01	£18.01
46 - NO LONGER AVAILABLE BDE-000000-00.A14506 000000-00	-
47 - KNOB BDE-860796-01.A61 860796-01	-
48 - SCREW BDE-860085-06.A6 860085-06	£1.66	£1.99
49 - NO LONGER AVAILABLE BDE-000000-00.A14507 000000-00	-
50 - WASHER BDE-860074-04.A73 860074-04	£1.66	£1.99
51 - LATCH BDE-864672-01.A17 864672-01	-
52 - BRACKET BDE-860843-02.A54 860843-02	£1.66	£1.99
53 - SCREW BDE-949853-11.A3 949853-11	£38.48	£46.17
56 - NO LONGER AVAILABLE BDE-000000-00.A14508 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A14509 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A14510 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A14511 000000-00	-
67 - WASHER BDE-720959-00.A103 720959-00	£1.66	£1.99
68 - NO LONGER AVAILABLE BDE-000000-00.A14517 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A14518 000000-00	-
70 - SCREW BDE-860084-05.A1 860084-05	£1.66	£1.99
71 - NO LONGER AVAILABLE BDE-000000-00.A14512 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A14513 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A14514 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A14515 000000-00	-

Attribute Name	Value
Brand	Dewalt
