Dewalt DW770 Type 2 Mitre Saw Spare Parts

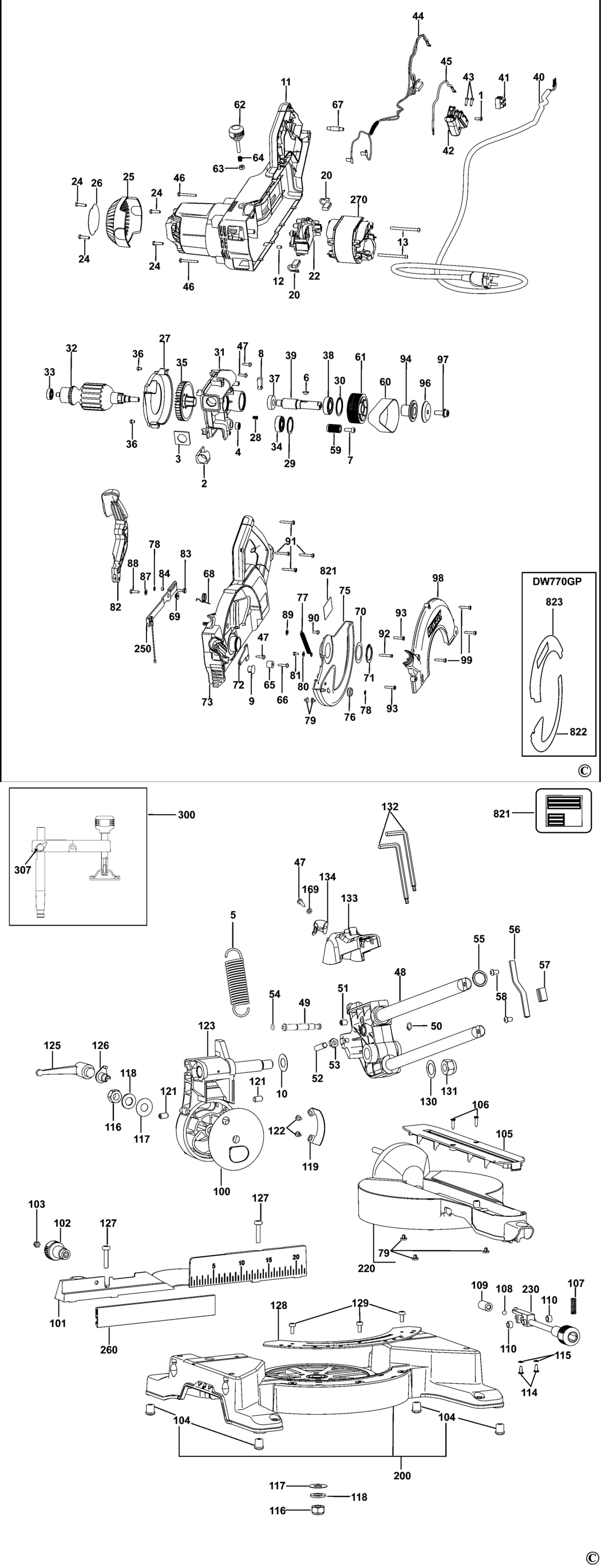

An exploded drawing and spare parts listing for the Dewalt DW770 Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330065-06.A279 330065-06	£1.66	£1.99
2 - INSERT BDE-947018-00.A21 947018-00	£1.66	£1.99
3 - SEAL BDE-947638-00.A15 947638-00	£1.66	£1.99
4 - ADJUSTER BDE-946874-00.A17 946874-00	£1.66	£1.99
5 - SPRING BDE-869142-00.A9 869142-00	£15.01	£18.01
6 - KEY BDE-940441-00.A5 940441-00	£1.66	£1.99
7 - SCREW BDE-949886-26.A21 949886-26	£1.88	£2.26
8 - STOP RUBBER BDE-869275-01.A8 869275-01	£1.66	£1.99
9 - PLUG BDE-947067-00.A4 947067-00	£1.66	£1.99
10 - WASHER BDE-869163-01.A1 869163-01	£1.66	£1.99
11 - FIELDCASE BDE-869159-00.A0 869159-00	£80.46	£96.55
12 - PLUG BDE-145312-00.A38 145312-00	£1.66	£1.99
13 - SCREW BDE-330019-19.A163 330019-19	£1.66	£1.99
20 - BRUSH PAIR BDE-659512-00.A12 659512-00	£12.53	£15.04
22 - BRUSH & HOLDER SA BDE-659513-00.A2 659513-00	£25.12	£30.15
24 - SCREW BDE-330019-13.A477 330019-13	£1.66	£1.99
25 - END CAP BDE-391933-00.A8 391933-00	£4.83	£5.80
26 - LABEL BDE-N625165.A23 N625165	£1.66	£1.99
27 - BAFFLE FAN BDE-869138-00.A4 869138-00	£7.40	£8.88
28 - SPRING BDE-869246-00.A21 869246-00	£1.66	£1.99
29 - CIRCLIP BDE-949729-02.A28 949729-02	£1.66	£1.99
30 - CIRCLIP BDE-949729-03.A5 949729-03	£1.66	£1.99
31 - BRACKET SA BDE-869312-02.A2 869312-02	£76.38	£91.65
32 - ARMATURE 115V LX BDE-N379144.A0 N379144	£122.90	£147.48
32 - ARMATURE 230V GB BDE-N379145.A1 N379145	£119.24	£143.09
33 - BEARING BDE-N110359.A40 N110359	£3.75	£4.50
34 - BEARING BDE-861721-13.A12 861721-13	£8.08	£9.70
35 - FAN BDE-869139-00.A9 869139-00	£3.92	£4.70
36 - SCREW BDE-860094-02.A116 860094-02	£1.66	£1.99
37 - BEARING BDE-605040-59.A28 605040-59	£3.39	£4.07
38 - BEARING BDE-861721-10.A12 861721-10	£8.08	£9.70
39 - SPINDLE BDE-869316-00.A8 869316-00	£16.52	£19.82
40 - CABLE SA GB BDE-N411964.A0 N411964	£30.98	£37.18
40 - CABLE SA LX BDE-N411965.A1 N411965	£39.97	£47.96
41 - TERMINAL BLOCK LX BDE-656549-00.A1 656549-00	£6.06	£7.27
41 - TERMINAL BLOCK GB BDE-326057-00.A23 326057-00	£1.66	£1.99
42 - SWITCH BDE-394375-02P.A11 394375-02P	£15.01	£18.01
43 - SCREW BDE-384127-01.A28 384127-01	£1.66	£1.99
44 - CAPACITOR SA GB BDE-869334-00.A3 869334-00	£15.01	£18.01
44 - CAPACITOR SA LX BDE-869334-01.A1 869334-01	£17.48	£20.97
45 - LEAD BDE-869277-00.A1 869277-00	£4.83	£5.80
46 - SCREW BDE-330045-10.A5 330045-10	£9.69	£11.63
47 - SCREW BDE-949896-12.A90 949896-12	£1.66	£1.99
48 - RAIL SA BDE-869318-00.A6 869318-00	£102.45	£122.94
49 - PIN BDE-N325259.A0 N325259	£12.53	£15.04
50 - CIRCLIP BDE-860079-02.A14 860079-02	£1.66	£1.99
51 - GRUB SCREW BDE-330022-17.A5 330022-17	£1.66	£1.99
52 - SCREW BDE-760242-00.A26 760242-00	£1.66	£1.99
53 - NUT BDE-860083-14.A117 860083-14	£1.66	£1.99
54 - O RING BDE-949746-02.A6 949746-02	£1.66	£1.99
55 - O RING BDE-869141-00.A2 869141-00	£1.66	£1.99
56 - BRACKET BDE-947613-00.A19 947613-00	£2.87	£3.44
57 - BUMPER BDE-869275-00.A0 869275-00	£1.66	£1.99
58 - SCREW BDE-949609-03.A8 949609-03	£1.66	£1.99
59 - DRIVE PULLEY BDE-869147-00.A10 869147-00	£12.53	£15.04
60 - BELT GROOVED BDE-869150-00.A10 869150-00	£15.01	£18.01
61 - PULLEY BDE-869149-00.A1 869149-00	£30.98	£37.18
62 - LOCKING KNOB BDE-869140-00.A0 869140-00	£6.06	£7.27
63 - NUT M6 BDE-860083-12.A267 860083-12	£1.66	£1.99
64 - SPRING BDE-868082-00.A97 868082-00	£1.66	£1.99
65 - BUMPER BDE-761306-00.A28 761306-00	£1.66	£1.99
66 - SCREW BDE-949896-13.A14 949896-13	£1.66	£1.99
67 - PIVOT BDE-760296-01.A22 760296-01	£1.66	£1.99
68 - SPRING TORSION BDE-869161-00.A1 869161-00	£1.66	£1.99
69 - BUSH BDE-869192-00.A10 869192-00	£1.88	£2.26
70 - WASHER BDE-760270-01.A6 760270-01	£1.66	£1.99
71 - CIRCLIP BDE-949727-04.A12 949727-04	£1.66	£1.99
72 - LOCKING DEVICE BDE-869166-00.A13 869166-00	£2.87	£3.44
73 - HANDLE & COVER BDE-N295980.A2 N295980	£25.12	£30.15
75 - GUARD LOWER BDE-869154-02 869154-02	£24.39	£29.27
76 - ROLLER BDE-861367-02.A6 861367-02	£1.66	£1.99
77 - SPRING BDE-760295-01.A16 760295-01	£1.66	£1.99
78 - WASHER BDE-860077-01.A40 860077-01	£1.66	£1.99
79 - INSERT BDE-760298-01.A22 760298-01	£1.66	£1.99
80 - WASHER BDE-860074-01.A86 860074-01	£1.66	£1.99
81 - SCREW BDE-943022-01.A20 943022-01	£1.66	£1.99
82 - LEVER BDE-N464700.A9 N464700	£3.92	£4.70
83 - PIN BDE-869156-00.A1 869156-00	£3.92	£4.70
84 - BUSH BDE-869295-00.A1 869295-00	£1.66	£1.99
87 - WASHER BDE-939625-00.A0 939625-00	£3.92	£4.70
88 - SCREW BDE-930076-01.A16 930076-01	£1.66	£1.99
89 - WASHER BDE-860073-00.A91 860073-00	£1.66	£1.99
90 - SCREW BDE-860084-20.A25 860084-20	£1.66	£1.99
91 - SCREW BDE-949896-10.A11 949896-10	£1.66	£1.99
92 - SCREW BDE-949894-04.A19 949894-04	£1.66	£1.99
93 - SCREW BDE-330045-05.A270 330045-05	£1.66	£1.99
94 - INNER FLANGE BDE-N292720.A4 N292720	£7.49	£8.99
96 - OUTER FLANGE BDE-869292-00.A10 869292-00	£9.69	£11.63
97 - SCREW BDE-869245-00.A19 869245-00	£3.54	£4.25
98 - GUARD UPPER BDE-N311279 N311279	£8.08	£9.70
99 - SCREW BDE-N456928.A16 N456928	£1.88	£2.26
100 - PLATE BDE-947614-00.A9 947614-00	£2.08	£2.50
101 - BACK FENCE BDE-N785466.A0 N785466	£46.49	£55.79
102 - KNOB BDE-869195-00.A4 869195-00	£7.40	£8.88
103 - NUT M5 BDE-860092-03.A86 860092-03	£1.66	£1.99
104 - FOOT BDE-868777-00.A20 868777-00	£1.66	£1.99
105 - INSERT BDE-868688-02.A1 868688-02	£3.92	£4.70
106 - SCREW BDE-860205-08.A17 860205-08	£1.66	£1.99
107 - SPRING BDE-868778-00.A8 868778-00	£1.66	£1.99
108 - BALL BDE-868708-00.A17 868708-00	£1.66	£1.99
109 - BUSH BDE-868707-01.A9 868707-01	£1.66	£1.99
110 - BUSH BDE-N299799.A10 N299799	£1.66	£1.99
114 - SCREW BDE-330045-05.A231 330045-05	£1.66	£1.99
115 - WASHER BDE-860073-00.A92 860073-00	£1.66	£1.99
116 - NUT BDE-860092-07.A16 860092-07	£1.66	£1.99
117 - WASHER BDE-949705-01.A21 949705-01	£1.66	£1.99
118 - WASHER BDE-860073-05.A29 860073-05	£1.66	£1.99
119 - SCALE BDE-869091-00.A11 869091-00	£8.08	£9.70
121 - SCREW BDE-949743-02.A43 949743-02	£1.66	£1.99
122 - SCREW BDE-949894-12.A36 949894-12	£1.66	£1.99
123 - SEGMENT SA BDE-869319-00.A4 869319-00	£48.48	£58.17
125 - LEVER BDE-861840-03.A9 861840-03	£7.40	£8.88
126 - INSERT BDE-868680-00.A16 868680-00	£4.79	£5.75
127 - SCREW BDE-330045-26.A27 330045-26	£1.88	£2.26
128 - SCALE BDE-868677-00.A8 868677-00	£19.48	£23.37
129 - SCREW BDE-330045-49.A15 330045-49	£1.66	£1.99
130 - WASHER BDE-869163-00.A10 869163-00	£1.66	£1.99
131 - NUT BDE-860092-09.A6 860092-09	£1.66	£1.99
132 - HEX KEY BDE-868682-00.A19 868682-00	£1.66	£1.99
133 - GUARD LOWER BDE-N295979.A5 N295979	£2.32	£2.78
134 - INLET BDE-869310-00.A5 869310-00	£2.87	£3.44
169 - WASHER BDE-249233-00.A39 249233-00	£1.66	£1.99
200 - TABLE SA BDE-869313-00.A12 869313-00	£122.90	£147.48
220 - TABLE ROTARY BDE-869313-01.A3 869313-01	£96.44	£115.73
230 - LEVER LOCK BDE-N315680.A0 N315680	£11.18	£13.41
250 - LEVER SA BDE-N467382.A5 N467382	£9.69	£11.63
260 - FENCE BDE-868743-02.A1 868743-02	£35.02	£42.02
270 - FIELD 230V GB BDE-N379143.A1 N379143	£80.98	£97.18
270 - FIELD 115V LX BDE-N379142.A0 N379142	£80.98	£97.18
300 - CLAMP SA BDE-N294299.A1 N294299	£19.48	£23.37
307 - SCREW WING BDE-326573-01.A90 326573-01	£1.88	£2.26
821 - RATING LABEL GB BDE-N306067 N306067	£1.66	£1.99
821 - RATING LABEL LX BDE-N306068 N306068	£2.32	£2.78

Attribute Name	Value
Brand	Dewalt
