Dewalt D25104K Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

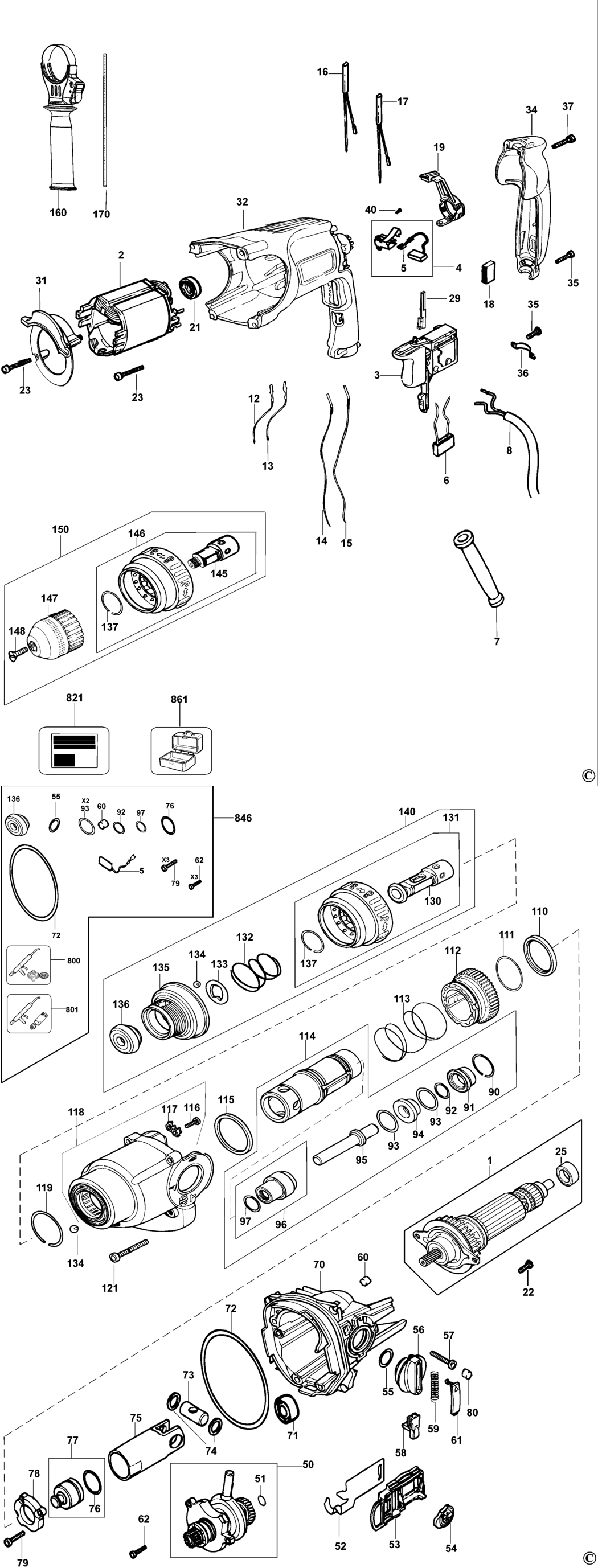

An exploded drawing and spare parts listing for the Dewalt D25104K Type 3 Rotary Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V BDE-585474-00.A1 585474-00	-
2 - FIELD 230V BDE-576690-05.A5 576690-05	£30.98	£37.18
3 - SWITCH BDE-583748-09.A13 583748-09	£25.12	£30.15
4 - BRUSH HOLDER SA BDE-577830-02.A17 577830-02	£11.87	£14.24
5 - BRUSH PAIR 230V BDE-585475-00.A4 585475-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A27766 000000-00	-
7 - CORD PROTECTOR BDE-584090-00.A6 584090-00	£1.66	£1.99
8 - CORDSET GB BDE-582319-32.A4 582319-32	£25.12	£30.15
12 - LEAD WHITE BDE-584304-00.A36 584304-00	£1.66	£1.99
13 - LEAD BLUE BDE-584304-10.A9 584304-10	£1.66	£1.99
14 - LEAD BLACK BDE-584304-04.A0 584304-04	£1.66	£1.99
15 - LEAD VIOLET BDE-584304-05.A37 584304-05	£1.66	£1.99
16 - CHOKE LEAD RED BDE-584304-02.A0 584304-02	£4.58	£5.49
17 - CHOKE LEAD BDE-584304-03.A21 584304-03	£4.58	£5.49
18 - BUMPER BDE-930026-01.A40 930026-01	£1.66	£1.99
19 - LEVER BDE-479818-00.A11 479818-00	£1.66	£1.99
21 - SLEEVE BDE-870052.A220 870052	£1.66	£1.99
22 - SCREW BDE-324006-14.A15 324006-14	£1.66	£1.99
23 - SCREW BDE-326519-03.A16 326519-03	£1.66	£1.99
25 - BEARING BDE-330003-19.A233 330003-19	£2.87	£3.44
29 - INSERT BDE-584551-00.A47 584551-00	£2.32	£2.78
31 - BAFFLE FAN BDE-577826-00.A4 577826-00	£2.78	£3.34
32 - FIELDCASE BDE-577810-00.A22 577810-00	£14.57	£17.48
34 - HANDLE COVER BDE-479817-00.A21 479817-00	£14.57	£17.48
35 - SCREW BDE-330065-06.A10 330065-06	£1.66	£1.99
36 - CORD CLAMP BDE-821070.A557 821070	£1.66	£1.99
37 - SCREW BDE-330065-13.A93 330065-13	£1.66	£1.99
40 - SCREW BDE-330065-25.A118 330065-25	£1.66	£1.99
50 - INTERSHAFT SA BDE-585480-00.A2 585480-00	£86.95	£104.34
51 - O RING BDE-580907-00.A22 580907-00	£1.66	£1.99
52 - PLATE BDE-578271-00.A31 578271-00	£3.92	£4.70
53 - HOLDER BDE-579564-00.A38 579564-00	£1.66	£1.99
54 - SELECTOR BDE-579552-00.A8 579552-00	£4.83	£5.80
55 - O RING BDE-584638-00.A27 584638-00	£1.66	£1.99
56 - LEVER BDE-587269-00.A8 587269-00	£1.66	£1.99
57 - SCREW BDE-324007-14.A19 324007-14	-
58 - LOCK BUTTON BDE-579184-00.A0 579184-00	£1.66	£1.99
59 - SPRING BDE-579179-00.A34 579179-00	£1.66	£1.99
60 - FILTER BDE-582865-00.A61 582865-00	£1.66	£1.99
61 - COVER BDE-579185-00.A30 579185-00	£1.88	£2.26
62 - SCREW BDE-583981-00.A28 583981-00	£1.66	£1.99
70 - HOUSING SA BDE-585482-00.A17 585482-00	£36.42	£43.70
71 - BEARING BDE-330003-31.A13 330003-31	£2.87	£3.44
72 - SEAL BDE-578229-00.A56 578229-00	£1.66	£1.99
73 - BEARING BLOCK BDE-577801-00.A57 577801-00	£6.06	£7.27
74 - WASHER SHIM BDE-577802-00.A25 577802-00	£2.21	£2.65
75 - PISTON BDE-584420-00.A5 584420-00	£30.98	£37.18
76 - O RING BDE-579699-00.A61 579699-00	£1.66	£1.99
77 - NO LONGER AVAILABLE BDE-000000-00.A27767 000000-00	-
78 - BEARING BUSH BDE-N042808.A45 N042808	£6.06	£7.27
79 - SCREW BDE-324006-15.A94 324006-15	£1.66	£1.99
80 - FILTER BDE-587252-00.A22 587252-00	£1.66	£1.99
90 - CLIP BDE-577793-00.A18 577793-00	£1.66	£1.99
91 - BUSH BDE-584426-00.A20 584426-00	£16.52	£19.82
92 - O RING BDE-580990-00.A94 580990-00	£1.66	£1.99
93 - O RING BDE-577135-00.A82 577135-00	£3.39	£4.07
94 - DAMPER BDE-584425-00.A46 584425-00	£16.03	£19.24
95 - BEAT PIECE BDE-584424-01.A3 584424-01	£10.85	£13.02
96 - BEARING & SEAL BDE-584423-01.A2 584423-01	£20.50	£24.60
97 - SEAL BDE-577139-00.A3 577139-00	£1.66	£1.99
110 - WASHER BDE-577797-00.A13 577797-00	£1.66	£1.99
111 - O RING BDE-577744-00.A20 577744-00	£1.88	£2.26
112 - CLUTCH SA BDE-587482-00.A32 587482-00	£42.48	£50.98
113 - SPRING BDE-579178-00.A0 579178-00	£1.66	£1.99
114 - CYLINDER SA BDE-584422-01.A2 584422-01	£113.93	£136.72
115 - WASHER BDE-577814-00.A28 577814-00	£2.32	£2.78
116 - SCREW BDE-330065-05.A138 330065-05	£1.66	£1.99
117 - LOCKING DEVICE BDE-580291-00.A43 580291-00	£2.26	£2.71
118 - GEARCASE SA BDE-586499-00.A1 586499-00	£25.05	£30.06
119 - RING BDE-577795-00.A41 577795-00	£1.66	£1.99
121 - SCREW BDE-330065-13.A94 330065-13	£1.66	£1.99
130 - SPINDLE BDE-N031254.A5 N031254	£25.05	£30.06
131 - SLEEVE SA BDE-584431-00.A0 584431-00	£38.48	£46.17
132 - SPRING BDE-871690.A113 871690	£1.66	£1.99
133 - WASHER BDE-578387-00.A100 578387-00	£1.66	£1.99
134 - BALL 7MM BDE-583890-00.A184 583890-00	£1.66	£1.99
135 - TUBE BDE-N504215.A27 N504215	£7.40	£8.88
136 - CAP BDE-323489-00.A95 323489-00	£1.66	£1.99
137 - RING BDE-579212-00.A69 579212-00	£1.66	£1.99
140 - HOLDER TOOL BDE-N591846.A8 N591846	£62.77	£75.32
145 - SPINDLE BDE-584676-00.A11 584676-00	£35.02	£42.02
146 - SPINDLE SA BDE-584556-00.A18 584556-00	£56.97	£68.36
147 - CHUCK KEYLESS BDE-582512-02.A16 582512-02	£25.12	£30.15
148 - SCREW BDE-605256-02.A255 605256-02	£1.66	£1.99
150 - CHUCK & SPINDLE SA BDE-N591847.A23 N591847	£53.46	£64.15
160 - SIDE HANDLE BDE-589467-00.A37 589467-00	-
170 - DEPTH STOP BDE-798846-02.A30 798846-02	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A518 870889-02	£8.08	£9.70
801 - GREASE 10 GMS BDE-487130-04.A83 487130-04	£3.92	£4.70
846 - SERVICE KIT 230V BDE-585499-00.A4 585499-00	£59.41	£71.29
